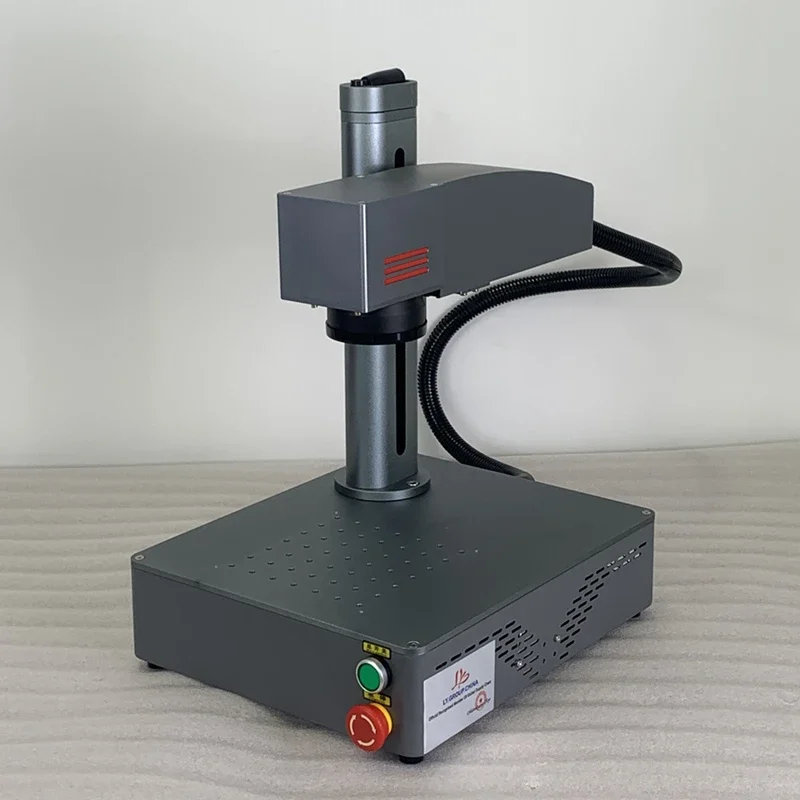

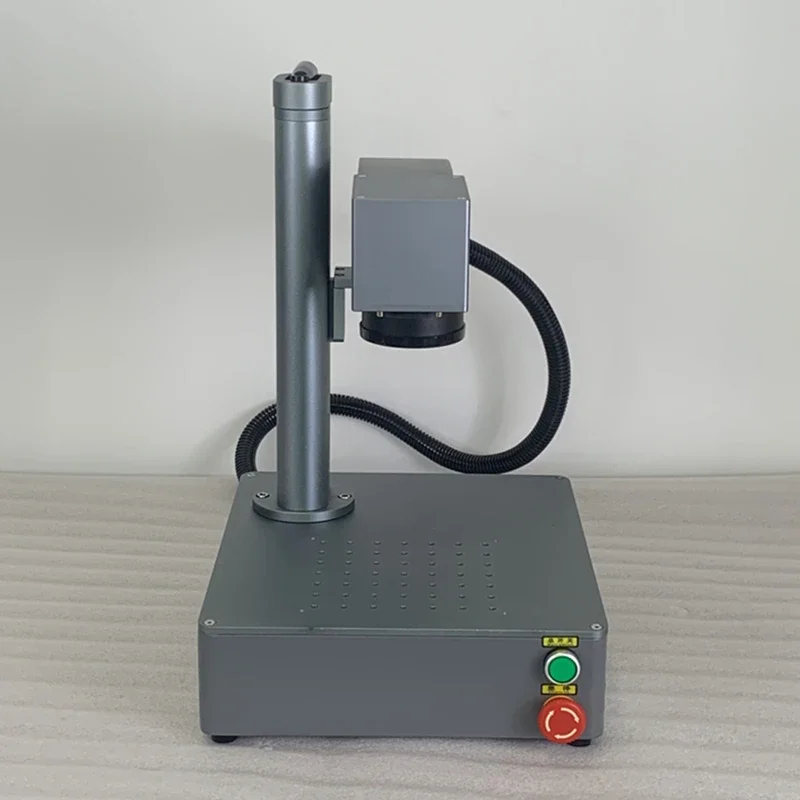

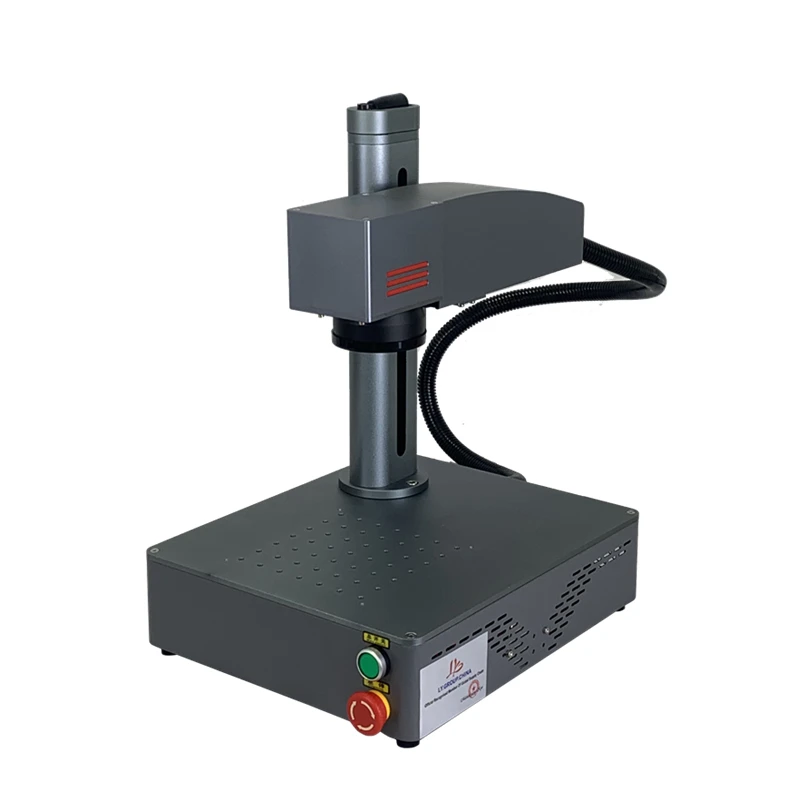

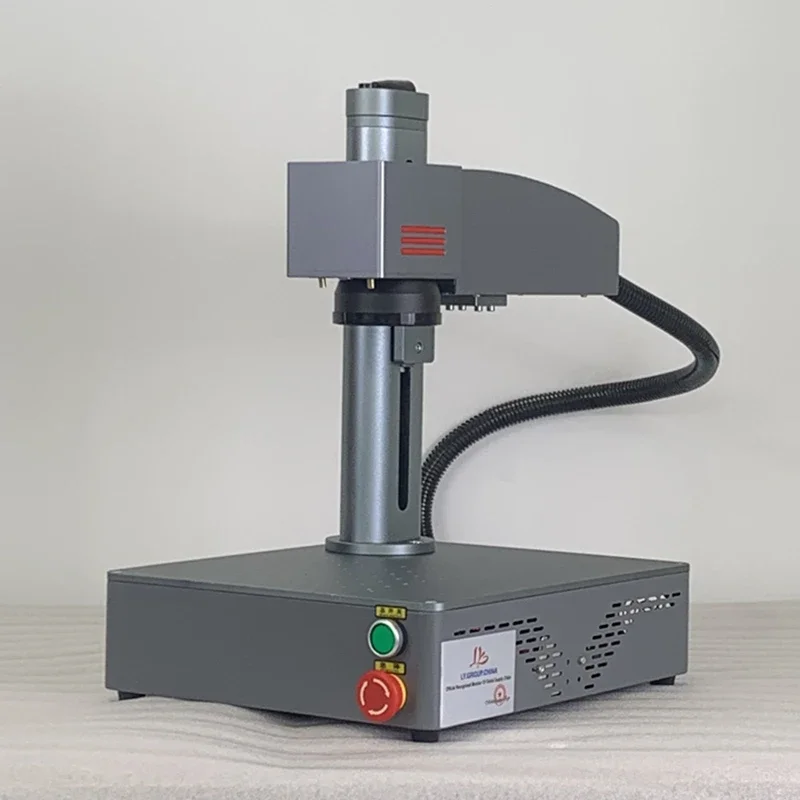

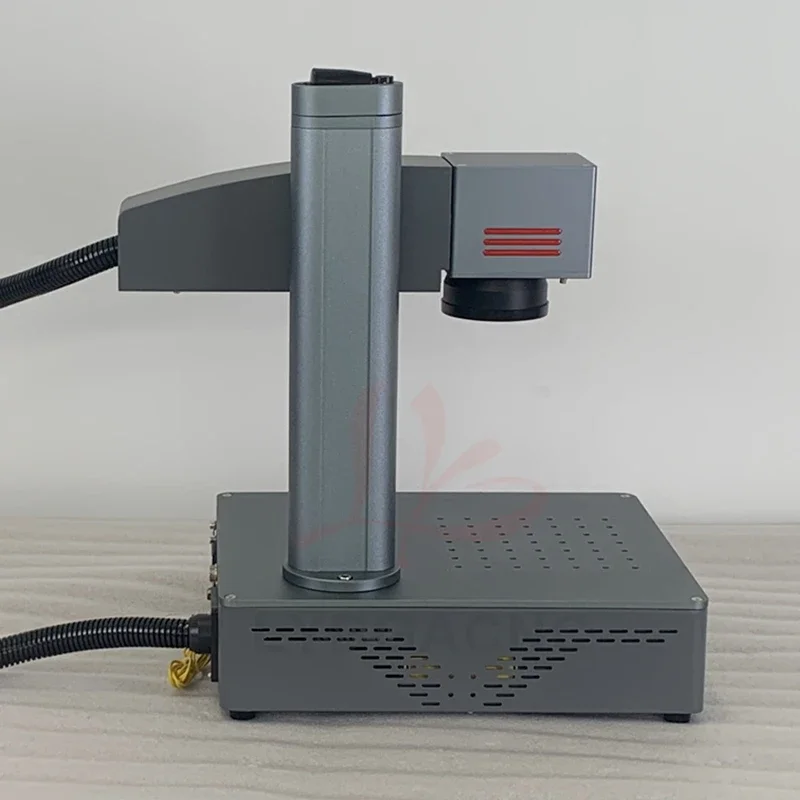

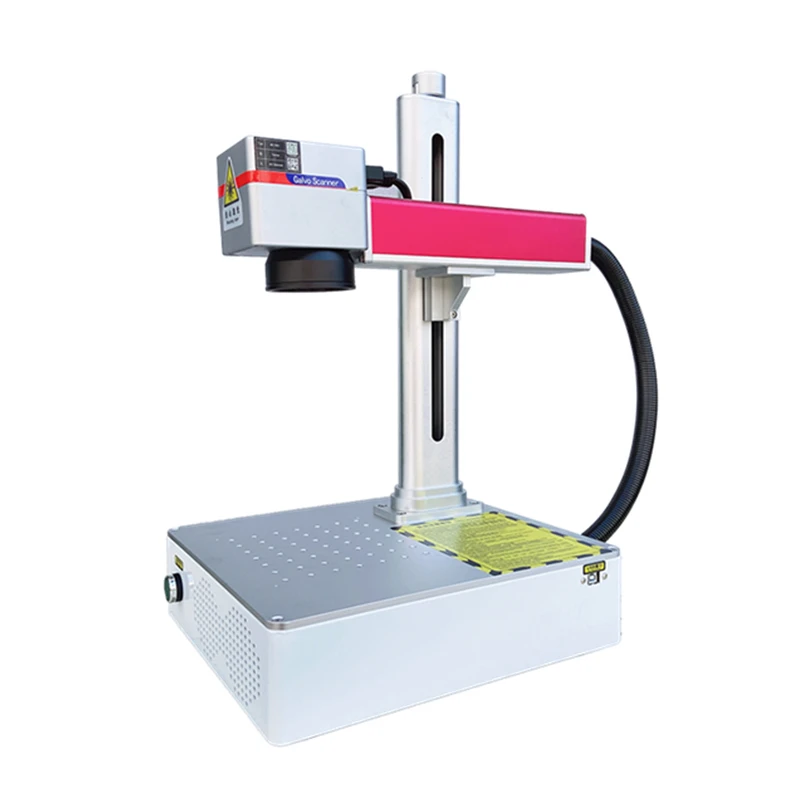

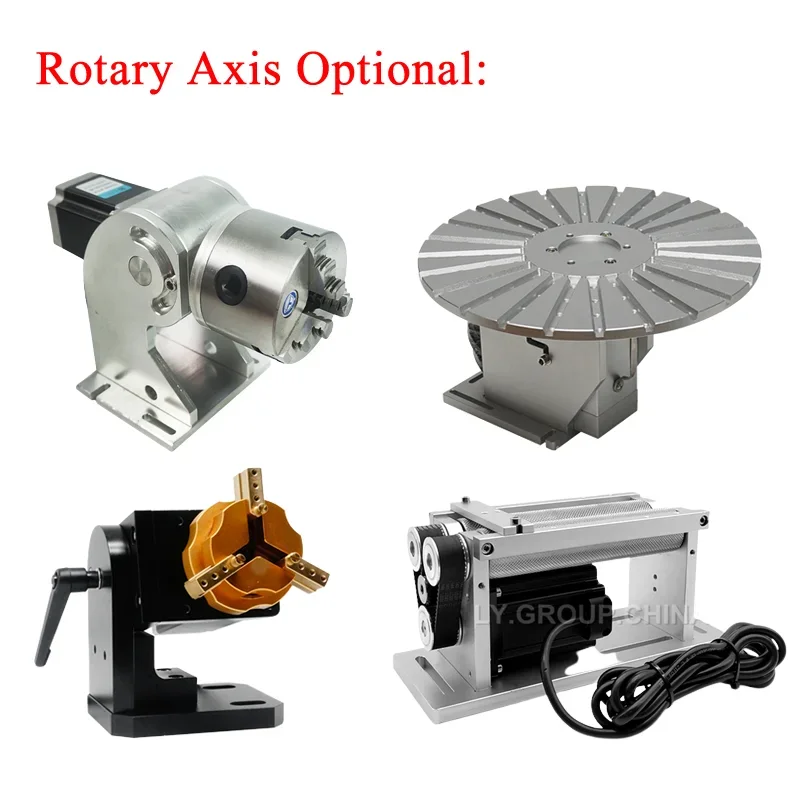

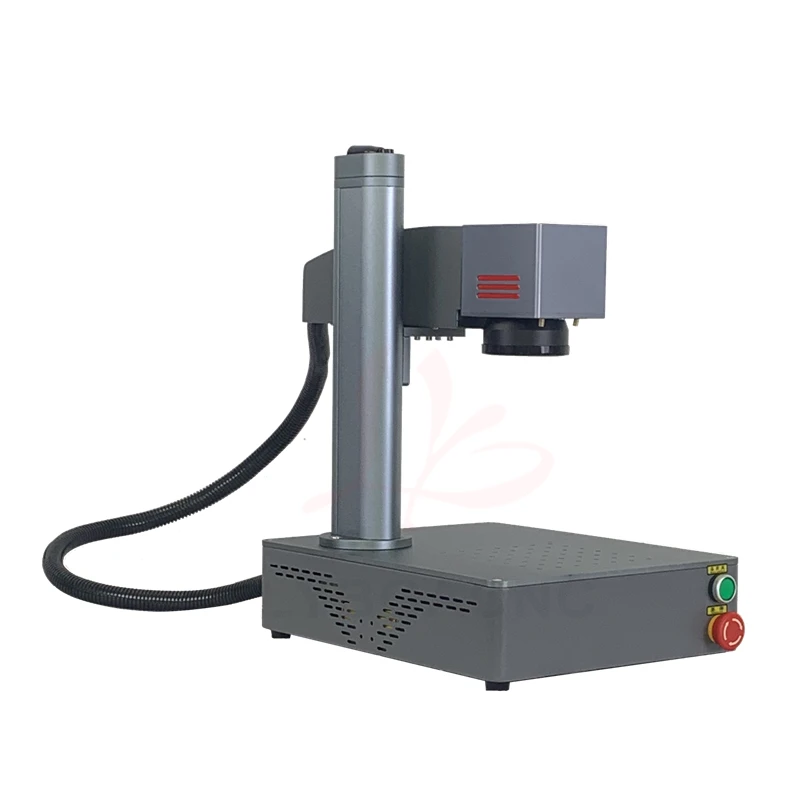

30W MAX Desktop Mini Fiber Laser Nameplate Marking Machine 20W For PVC Plastic Stainless Steel With Rotary Axis

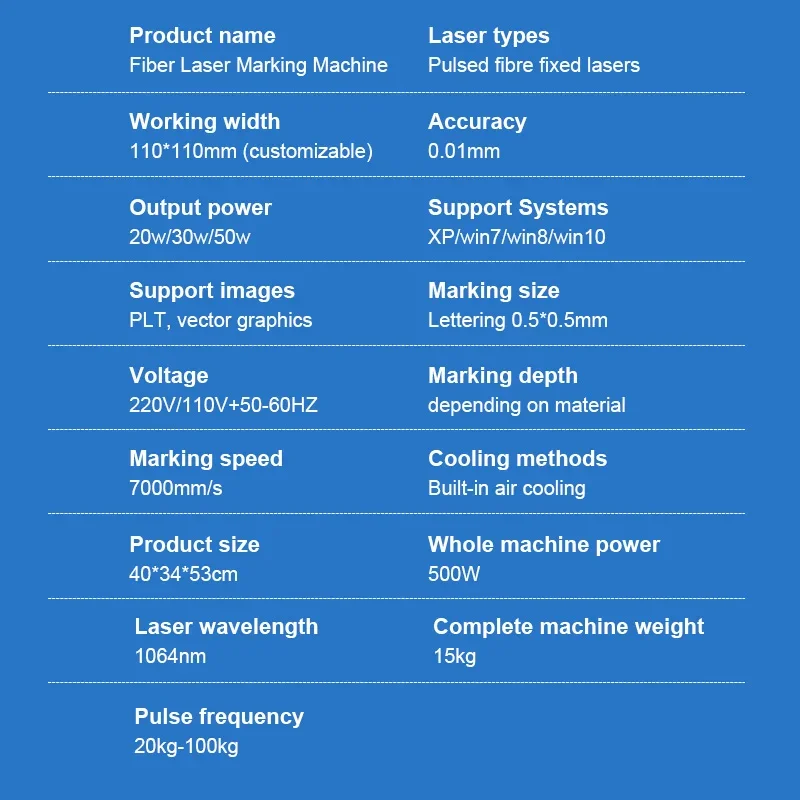

Technical Parameter
| Model | |
| Laser power | 20W/30W |
| Working Area | 20W 110*110mm (Default)
or 70*70mm150*150mm(Optional) 30W 150*150mm (Default) |
| Cooling Mode | Air Cooling |
| Laser Wavelength | 10.64 um |
| Frequency of pulse | 20-100 KHz |
| Marking Depth | ≤0.3 mm |
| Marking Speed | ≤7000 mm/s |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.002 mm |
| Resolution Ratio | 0.1 mm |
| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |

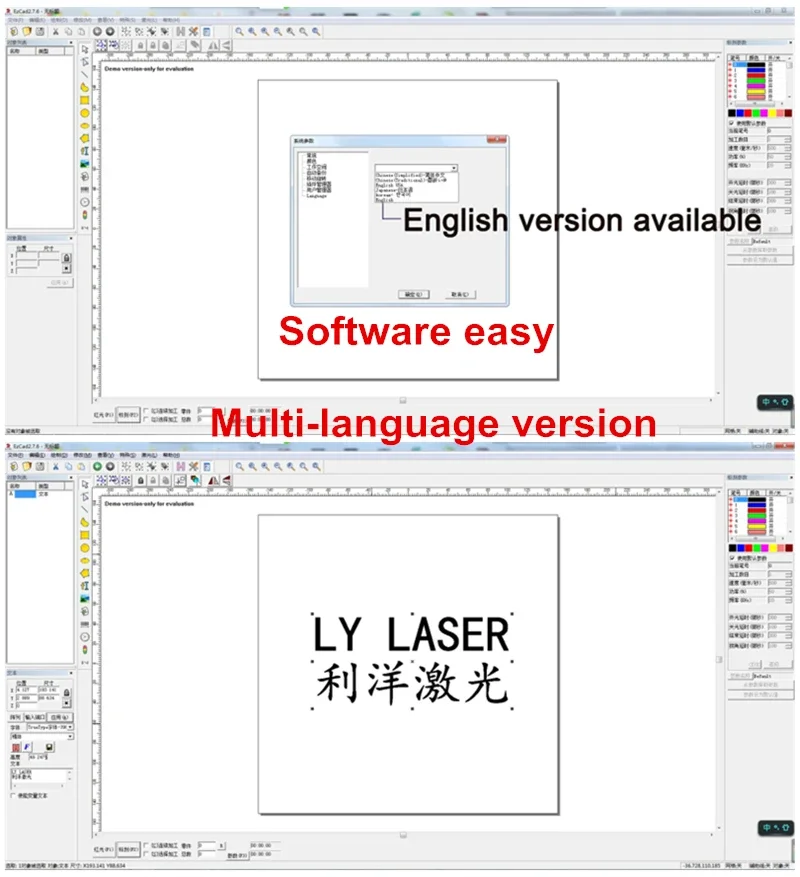

| Control Software | EZCAD ENGLISH Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | 500W |
| Operation Temperature | 5°C-40°C |
| Relative Moisture | ≤ 90%, no fog |

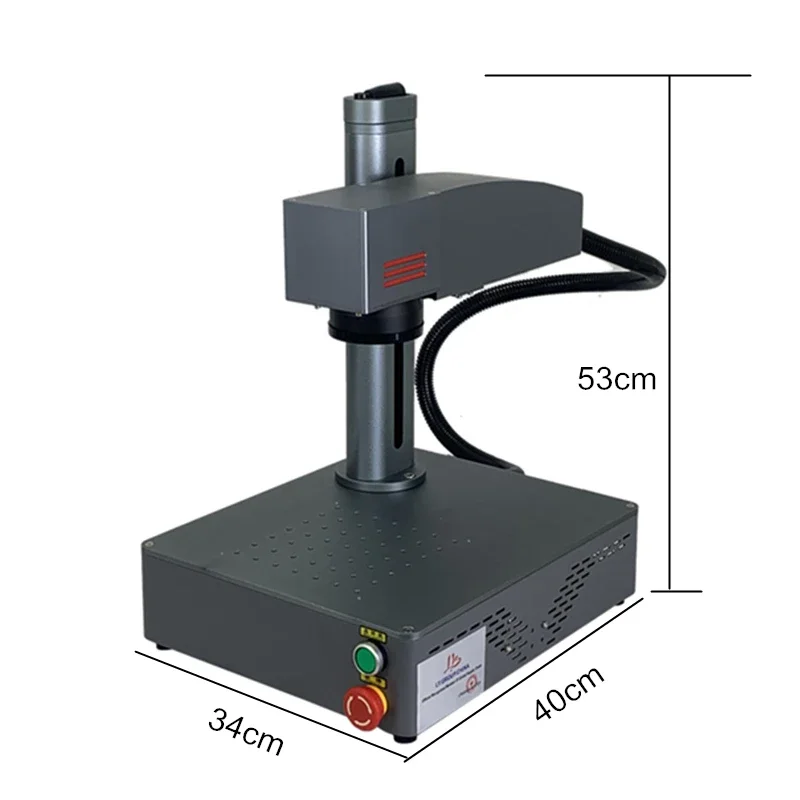

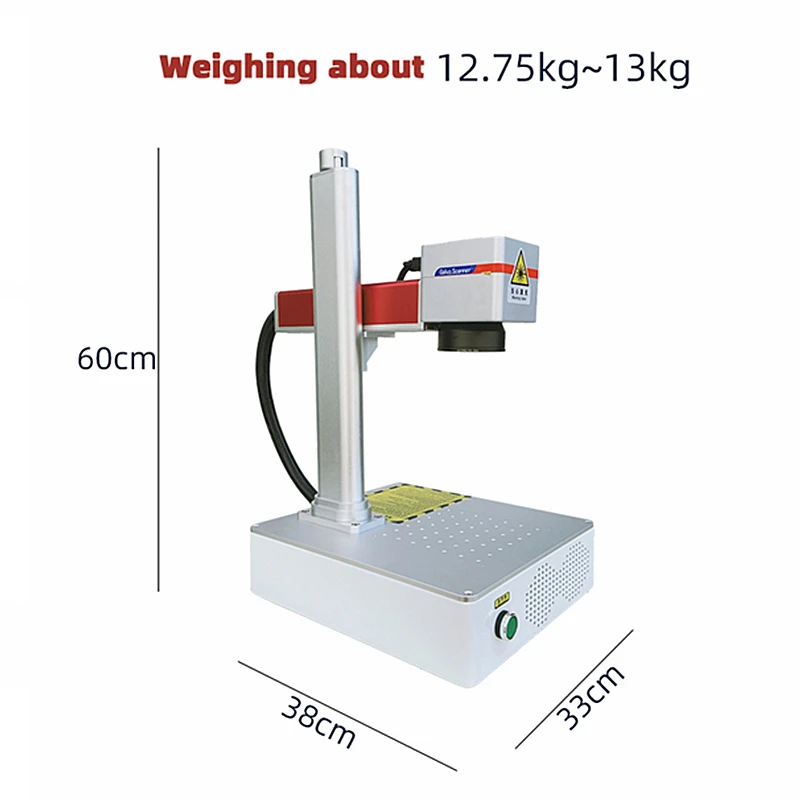

| Dimensions(L*W*H) | 40 x 35 x 55 cm |
| Power supply requirements | 220 V or 110V |
| Weight | 13~16KG |
| Warranty | 24 months |
