Feature

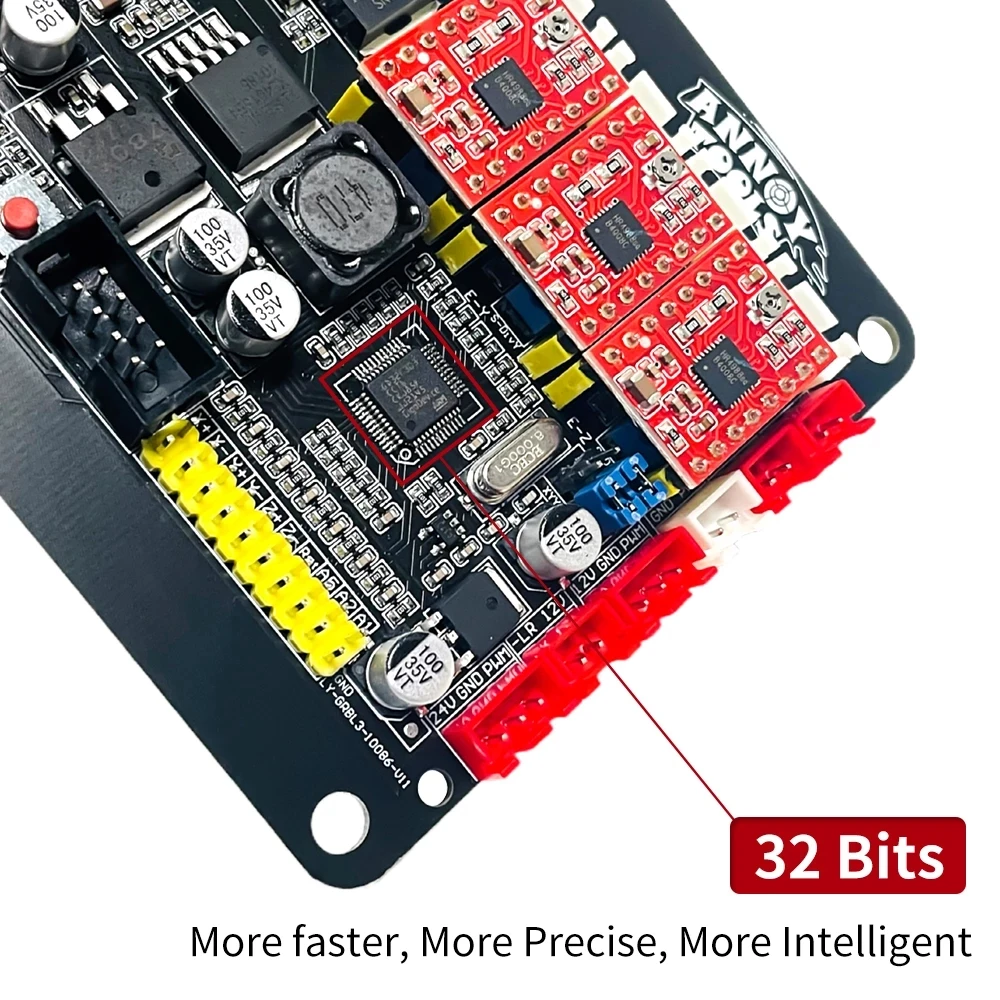

● GRBL 32-bit, stable performance, faster speed and higher accuracy
● Double y-axis, all-round use,XYZ or XYY.
● Stepper drive setup subdivision.
● Integrated 3 A4988 drivers, directly connect to four wire stepper motor.
● Support Laser or Spindle.
● Support 24V,12V, 5V with TTL and without TTL laser.
● Adjustable driver subdivision.
● Support the xyz limit switch, probe interface.
● Support external Offline Controller(Optional).

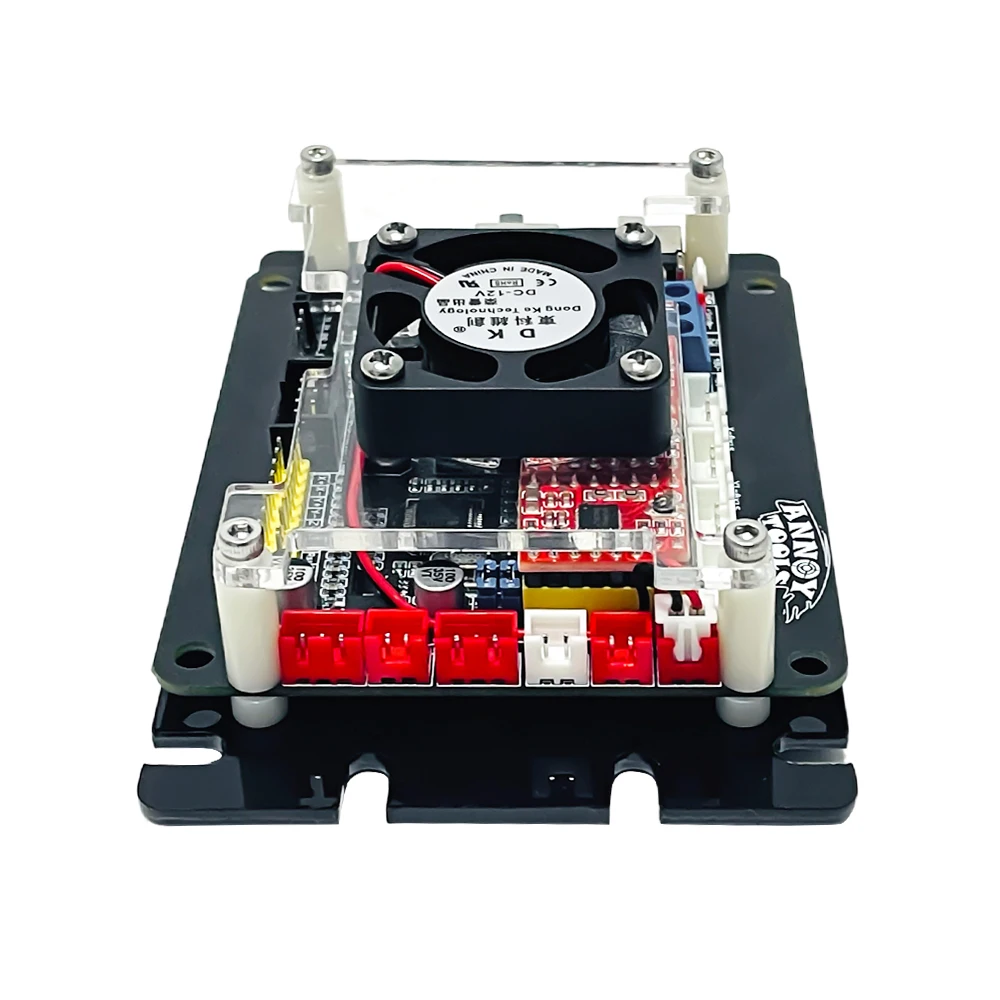

● Add Fan and Control Board Shell

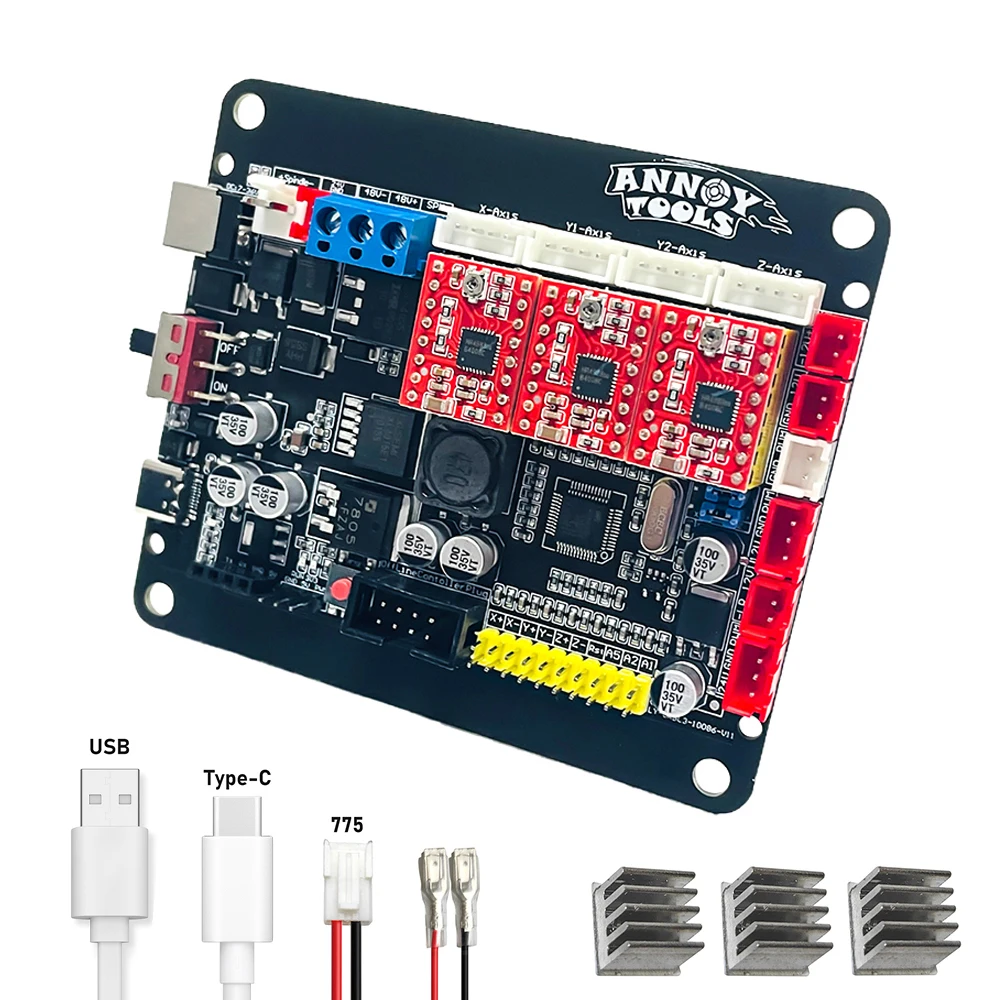

Packing list：
● 1*Control board
● 1*USB Data line (Type C)
● 1*775 Motor Cable
● 3*Heat Sink
M***u –
Foarte Ok
Color: board
A***s –
The product works well.
Those who do not have course limiters will have some problems because the board will look for them.
The rear screws for those who bought with a fan will make it difficult to fix the machine.
Color: with fan
s***s –
Super good card, without failures… Download the DRIVER file to read the USB and with GRBL you have everything… very good experience and fast shipping to Spain .. Less than 7 days
Color: board
AliExpress Shopper –
Still without testing I hope that it works already there are three that and bought one I fail at the first of changes the other all working well for the price nor did I claim the shipment always on time I recommend to the seller
Color: board
J***k –
I received well packed, everything working properly, just have no outlet for the air assist of the laser module. Grbl comes pre installed and if you need to reinstall I did not find the firmware to download.
Color: with fan
A***s –
The license plate is working, but the one I bought prior is broken.
The store always sends very fast.
Color: board
S***E –
Works perfectly, possible to put other drivers like tmc2208, works too! To the top!
Color: board
AliExpress Shopper –
All right.
Color: board
N***g –
Color: with fan
K***r –
The delivery is fast and the product is good. Thank you.
Color: board
J***e –
The heat sinks have not arrived
Color: with fan
F***r –
servi rapide
Color: board
AliExpress Shopper –
Color: board
AliExpress Shopper –
works as expected. However, no instructions included, but 4 easy to work out
Color: with fan
j***o –
Received before the date, placed in the cnc, the only thing that when connecting to the computer, asks for files for installation, and I do not find them on the internet.
It seems to work with the external controller I have, but only the z-axis goes a little.
Color: board
E***r –
once again, another flawless supply and delivery via Ali express.
simply order and payment process,
thanks
Color: board
c***a –
The plate looks great. I don’t know when I use it. But the 6A USB cable I think is worth half the same board so I’m satisfied.
Color: board
M***n –
Nice board, just waiting for offline controller to test
Color: board
A***y –
Arrived fast and everything is fine, just need to check operation
Color: board
