Buyers how to choose Field lens:
For Same Lens , Power is higher, Engrave is Deeper ,
For Same Power, Lens is smaller, Engrave is Deeper，
Bigger Lens Engrave Bigger Area ，
Smaller Lens Engrave Deeper Depth,
if 20w machine choose 200mm*200mm lens , your focus distance is very top,its power of mark object is very weak , so biggest lens area is not best ,it is best that choose most suitable lens.
this is our suggestion:
20w choose 70*70mm , 110*110mm,150*150mm
30w choose 70*70mm , 110*110mm , 150*150mm ,200*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm 70*70mm , 110*110mm , 150*150mm ,200*200mm, 300*300mm
50W 30W 20W Raycus/MAX Fiber Laser Engraver Jewerly Metal Marking Engraving Machine With Rotary axis
| Brand | RAYCUS / MAX(random） |
| Laser power | 20W/30W/50W |
| WorkingArea | 110*110mm(Optional 50x50mm/70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/220x220mm/300x300mm，if buyer need other size , after placed order ,tell me) |
| Cooling Mode | Air Cooling |
| Laser Wavelength | 10.64 um |
| Frequency of pulse | 20-100 KHz |
| Marking Depth | ≤0.3 mm |
| Marking Speed | ≤4000 mm/s RC1001 (if need SG7110, add USD150, ≤7000mm/s) |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.002 mm |
| Resolution Ratio | 0.1 mm |
| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows XP or Windows 2000 WIN 7 WIN8 WIN 10 |
| Control Software | EZCAD ENGLISH Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | ≤0.9 KW |
| Operation Temperature | 5°C-40°C |
| Relative Moisture | ≤ 90%, no fog |

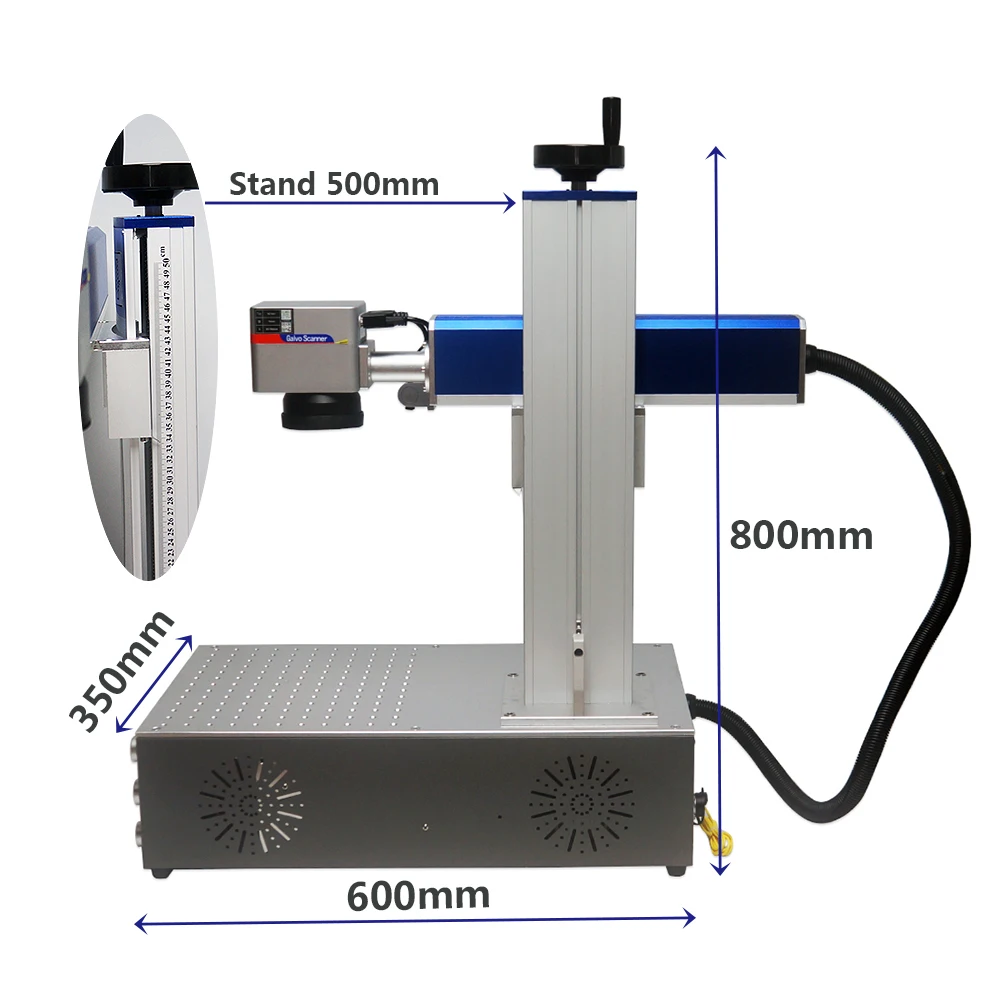

| Dimensions(L*W*H) | 95 x 78 x 55 cm |
| Power supply requirements | 220 V or 110V |
| Weight | 40KG |
| Warranty | 24 months |
20W/30W/50W Raycus or MAX Fiber Laser Marking machine :
