650nm 5mW Line/Cross/red Point Laser Module Head Adjustable Beam 3-5V 12MM Glass Lens Focusable Diode Head Industrial Class
Introduction:
Laser launch principle and the specificity of the production process determines the laser with ordinary light does not have the characteristics of the three good (monochromatic good, good coherence, good direction) a high (high brightness).
The use of laser orientation of the good brightness, high grams widely used in various occasions, change the series of laser tube convenient and intuitive, easy to install, stable and reliable.
Product Usage:
1.It could be used for sight positioning
2. It could be used for laser testing tools
3. It could be used for concentricity positioning
4. It could be used to make signal equipment

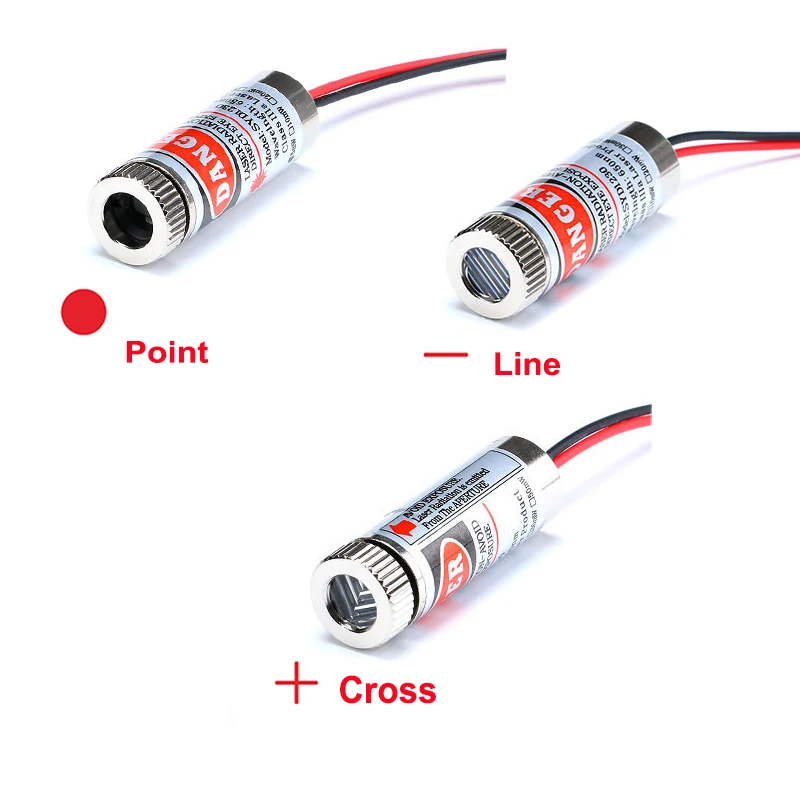

Product Information( Point):

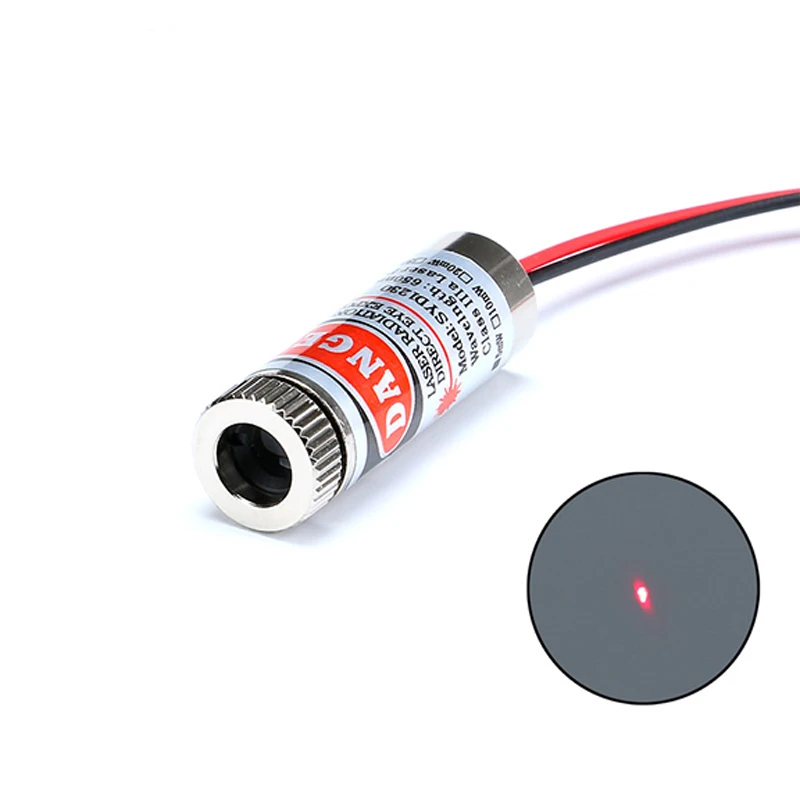

Red dot point laser tube, laser module
Wavelength: 650nm
Diameter: 12MM
Weight: 13.5g
Long: 35MM
Max Power: 5MW
Voltage: DC3V-6V
Max Current: 40MA
Drive circuit: APC
Product Information( Line):
Red (adjustable Line) laser tube, laser module
Wavelength: 650nm
Diameter: 12MM
Weight: 13.5g
Long: 36MM
Power: 5MW
Voltage: 3V-6V
Current: 30-50MA
Product Information( Cross):
Red cross line laser tube, laser module
Diameter: 12MM
Weight: 13.5g
Long: 36MM
Power: 5MW
Voltage: DC3V-6V
Current: 25-50MA
