Features.
True FAC compression technology: ultra-fast engraving speed 304 stainless steel, up to 400mm/s, excellent cutting ability: cutting 10mm plywood at a time at 1.6mm/s, surpassing the same level of 80W laser.
40W new technology: excellent cutting ability to cut 4mm plywood at a time at 1.6mm/s, can engrave oxidized metal, engraving and cutting speed faster than traditional 40W-60W
Original diode: this CNC laser module is manufactured by high-tech equipment production, high quality to ensure the service life, the use of the process smooth, accurate and durable engraving effect is clear and obvious.

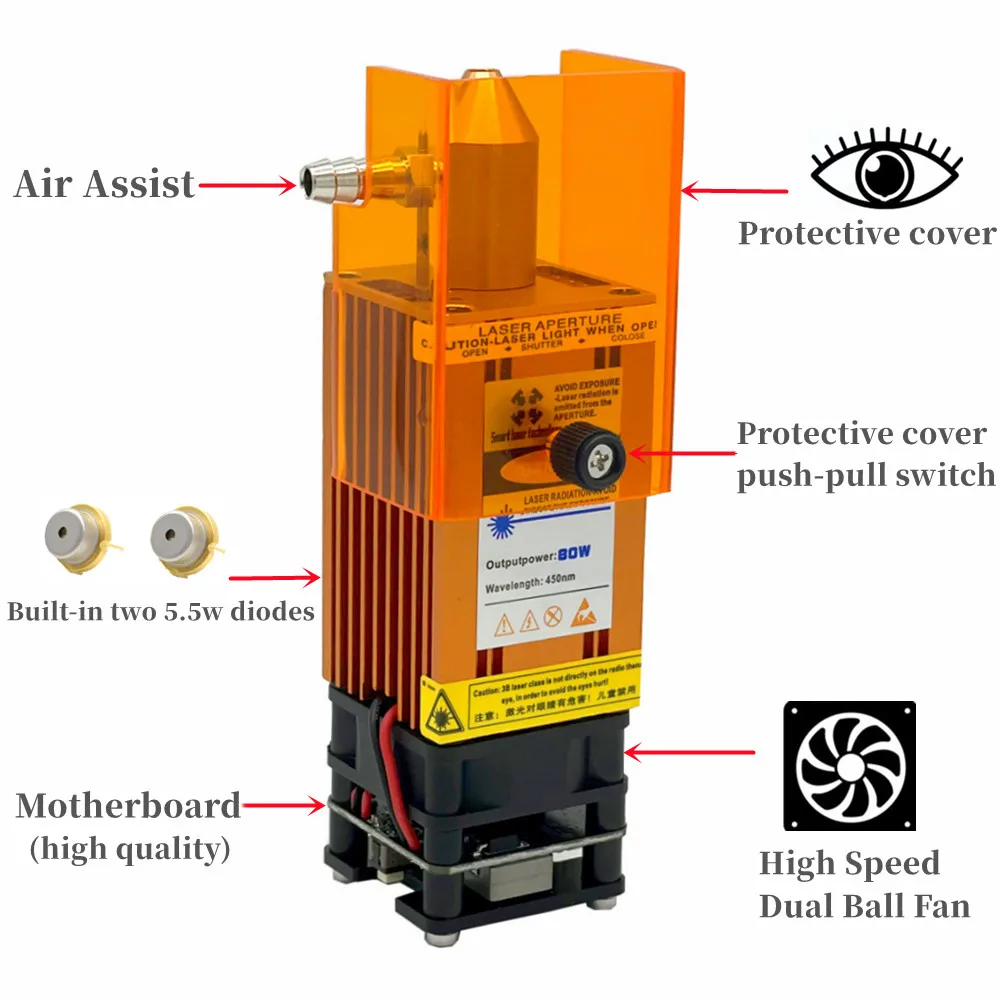

Laser shield: protects the lens to avoid laser energy decay, reduce smoke and dust protection lens to protect the user’s eyes without the need to wear additional protective glasses. Also, prevent pets from catching the laser spot.
Entity laser module manufacturer: can provide customized solutions, accept custom-made laser modules of all types, you are welcome to visit our factory at any time!
80W/40W technical parameters.
Shell size: 80W 40×40×144.6mm : 40W 40×40×141.9mm
Shell material: aviation aluminum: module center material: copper
Power control: 0-5V 0-12 PWM modulation
Light shape: point-shaped fixed focus (the laser module’s protective cover slides upward, the focal distance between the bottom of the module and the engraved object is 40mm)
Interface specifications: 3pin XH2.54 /4pin XH2.54 support TTL signal control power
Laser wavelength: 450nm
Laser effect power: 80W 40W
80W optical power: 10W actual: the number of diodes: 2
40W optical power: 5W actual: the number of diodes: 1
Supply voltage: 12V 40W 1.9A : 80W 3.4A : (40W 24V 0.95A 80W24V 1.7A) Operating life: 20000 hours
Packing list: laser module × 1, 4P line × 1, 3P line × 1, short line DC × 1, focal length bar × 1
Unable to engrave: blue / purple / white / transparent material / no oxide layer aluminum / metal raw materials, the
Purchase instructions, please check clearly whether your engraving motherboard and laser head connection port match, if you do not understand you can take pictures and send us to check. Man-made damage does not provide warranty.
About maintenance: all machines have a 12-month warranty against manufacturing defects, please feel free to buy. If there is a fault, please send us the working video, we will provide you with a solution.
Caution: When the laser is working, avoid touching the laser directly with your hands to prevent the laser from being damaged by human static electricity. If you need to replace the wire, please note the order of the wire, air-assisted interface tube compatible with the inner diameter of 6.5mm ~ 7.5mm.
Shipping time: same day shipping during working days, except holidays, please use soft cotton containing alcohol to clean the laser lens regularly to keep the lens clear, thus ensuring a high quality laser beam.
P***n –
Color: 12V 80W Laser Module
