Name: Co2 ⅡⅥ Focusing Lens
Application: Co2 Laser Cutting & Engraving Machine
Material: USA CVD ZnSe
Diameter: 18/19.05/20mm
Focal Length: 38.1/50.8/63.5/76.2/101.6/127mm (1.5/2/2.5/3/4/5inch)
Thickness: 2.5mm
Power: 0-300W(MAX)
Wavelength: 10.6um/ 10600nm
Transmittance: 99.5%
Clear Aperture: ＞90%
AR Coating Reflectivity: ＜0.3%
Scratch-dig: 20-10

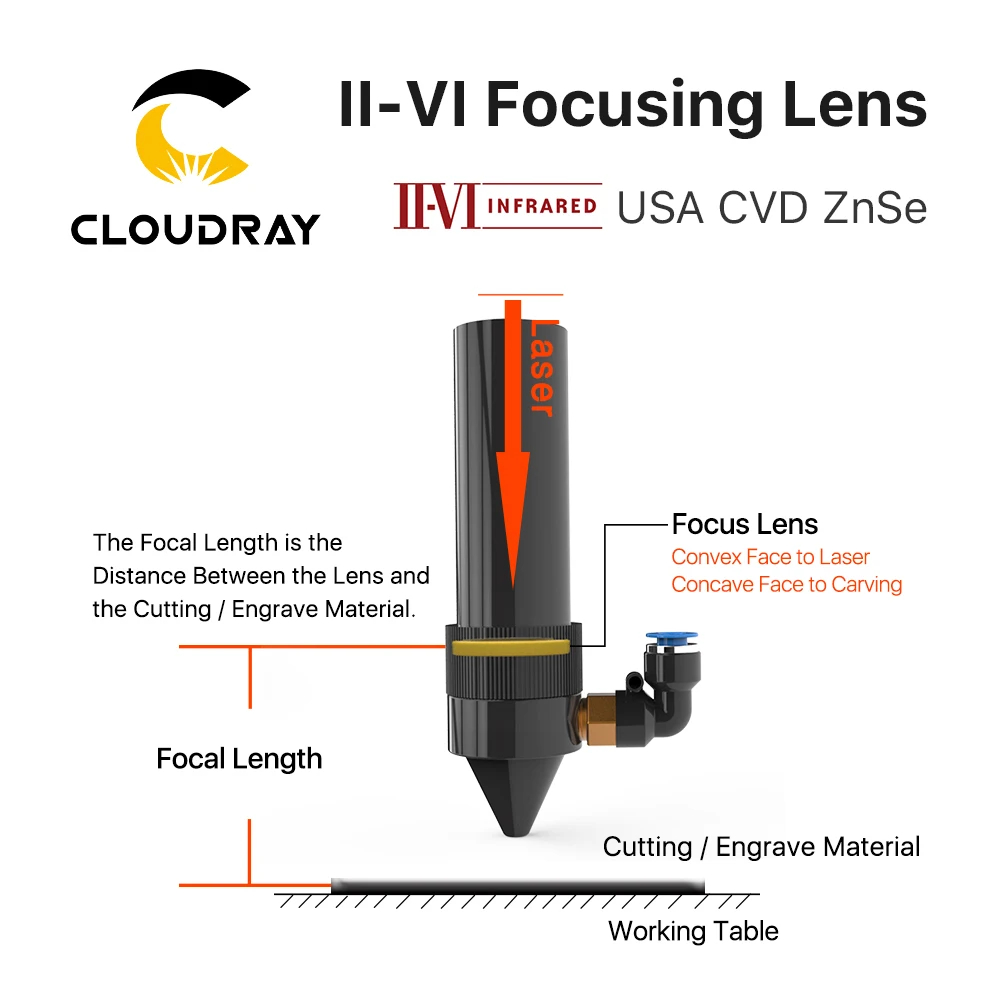

How to Determine Focal Length: The focal length is the distance between the lens and the cutting/engrave material.
E***r –
Focal Length: 63.5mm Diameter: 20mm
D***a –
Focal Length: 63.5mm Diameter: 20mm
Г***ч –
Good 100 cotton lamp lens cuts 3mm plywood at 70 mm/s
Focal Length: 101.6mm Diameter: 20mm
AliExpress Shopper –
Focal Length: 63.5mm Diameter: 20mm
B***o –
Focal Length: 50.8mm Diameter: 20mm
Ш***ч –
Focal Length: 63.5mm Diameter: 20mm
А***в –
Focal Length: 76.2mm Diameter: 20mm
K***v –
Focal Length: 50.8mm Diameter: 20mm
Y***n –
Focal Length: 63.5mm Diameter: 20mm
A***s –
Focal Length: 50.8mm Diameter: 19.05mm
A***a –
As listed/described. Foto random…………………………………………………………….
Focal Length: 63.5mm Diameter: 20mm
Y***z –
Fast delivery good product.
Focal Length: 50.8mm Diameter: 20mm
Ч***ь –
The order arrived quickly. The cardboard box was badly dented and I was worried that the lens did not survive. But everything is fine, there was a hard plastic box inside which was wrapped in bubble wrap and there was a lens in it. She’s whole. Thanks to the seller for the good packaging and product.
Focal Length: 50.8mm Diameter: 20mm
b***o –
It is a product to believe and write.
The quality is good and the price is OK.
Focal Length: 63.5mm Diameter: 20mm
j***r –
All right.
Focal Length: 50.8mm Diameter: 20mm
Н***ч –
Focal Length: 63.5mm Diameter: 20mm
v***z –
Focal Length: 63.5mm Diameter: 20mm
H***o –
Focal Length: 50.8mm Diameter: 20mm
AliExpress Shopper –
A quality product. Just as I expected. I recommend it to anyone in need. Packaging is very good. I got it in a short time. Fast and reliable store. Thank you.
Focal Length: 50.8mm Diameter: 20mm
