CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port 1
CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port 2
CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port 3
CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port 4
CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port 5
CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port 6

CNC 3018 Pro Laser Engraver Woodworking 3 Axis CNC Engraving Machine Control Board grbl 1.1f USB Port

Rated 4.88 out of 5 based on 17 customer ratings
(17 customer reviews)

Price range: $33.84 through $64.68

Laser Engraver Woodworking

SKU: 3BMMEN1KMVO5 Category:

support wholesale / dropshipping/customized product please us

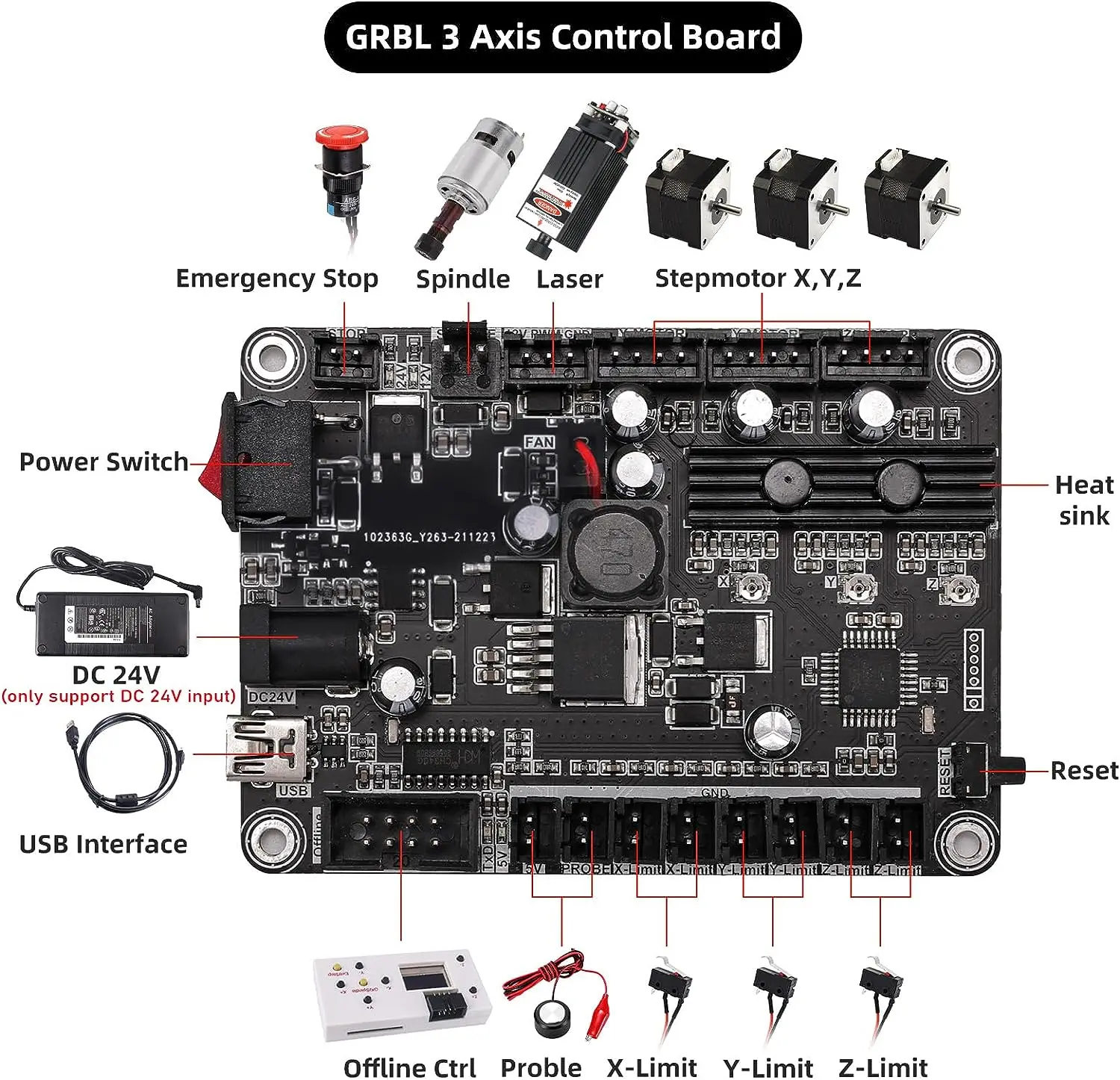

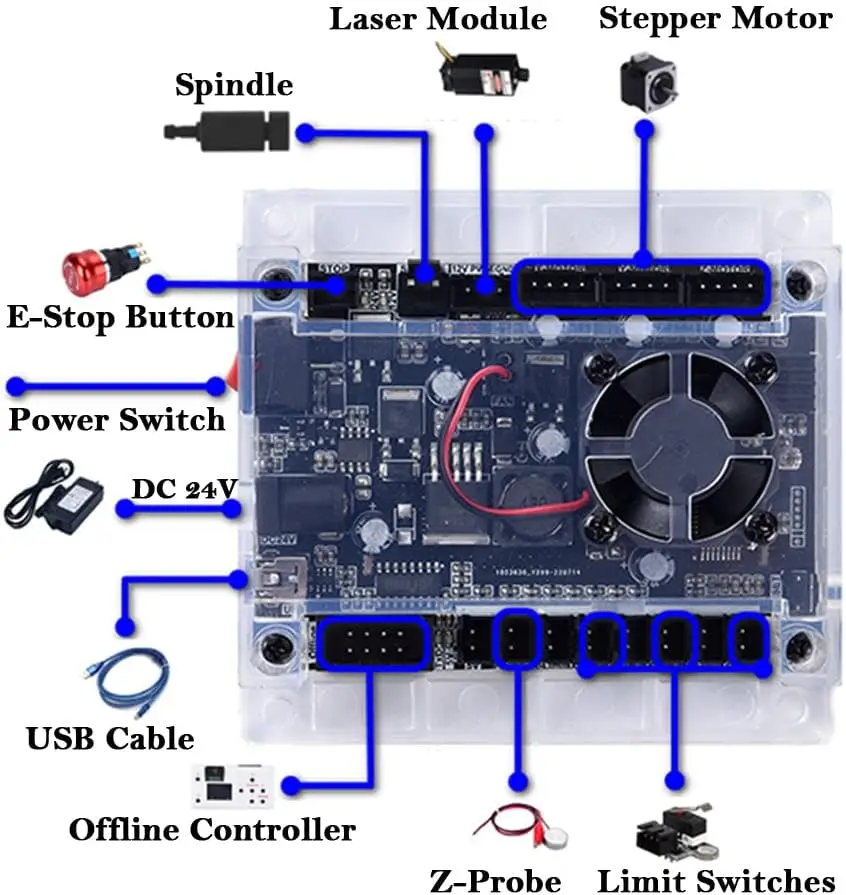

GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board

Specification:

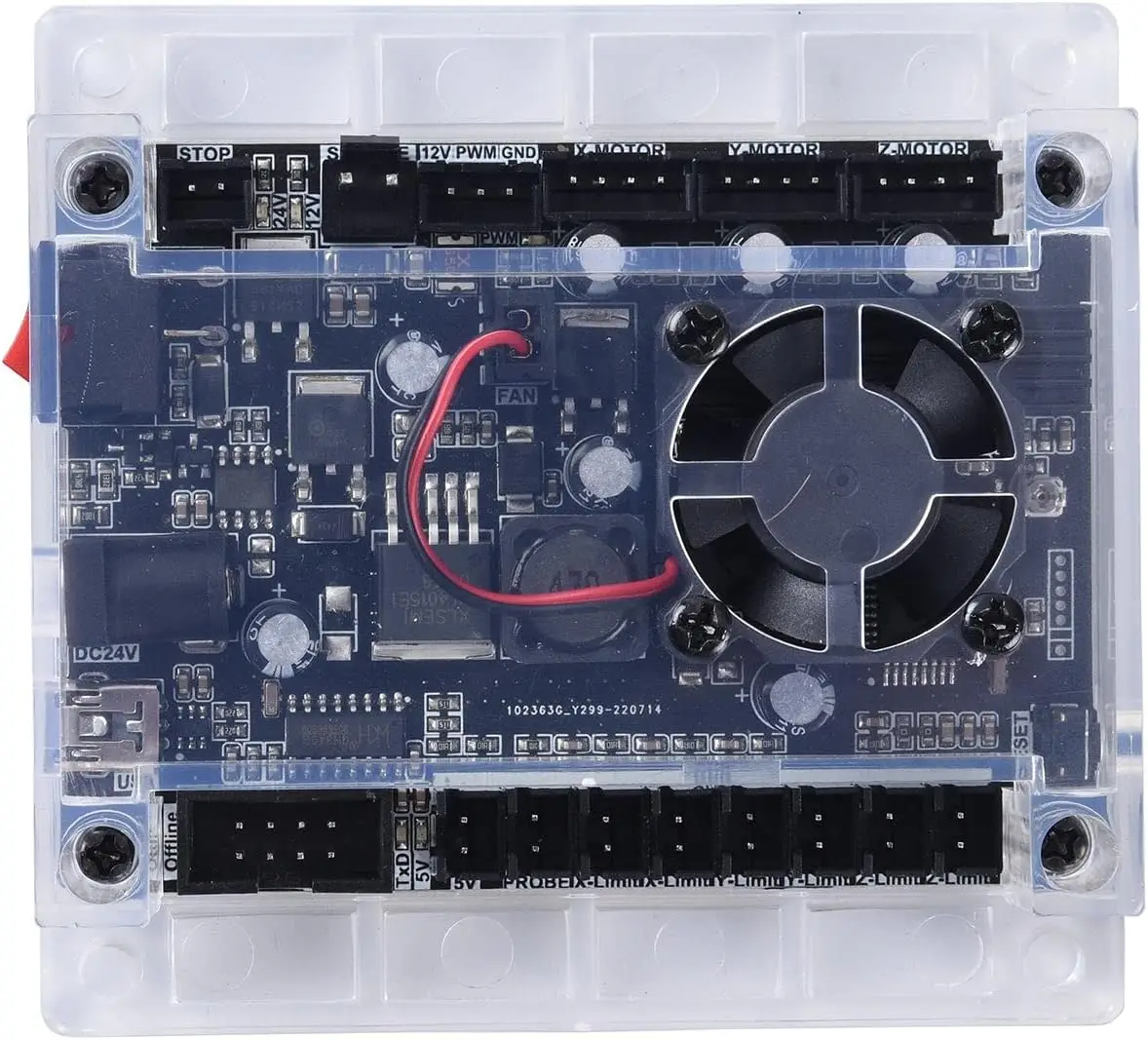

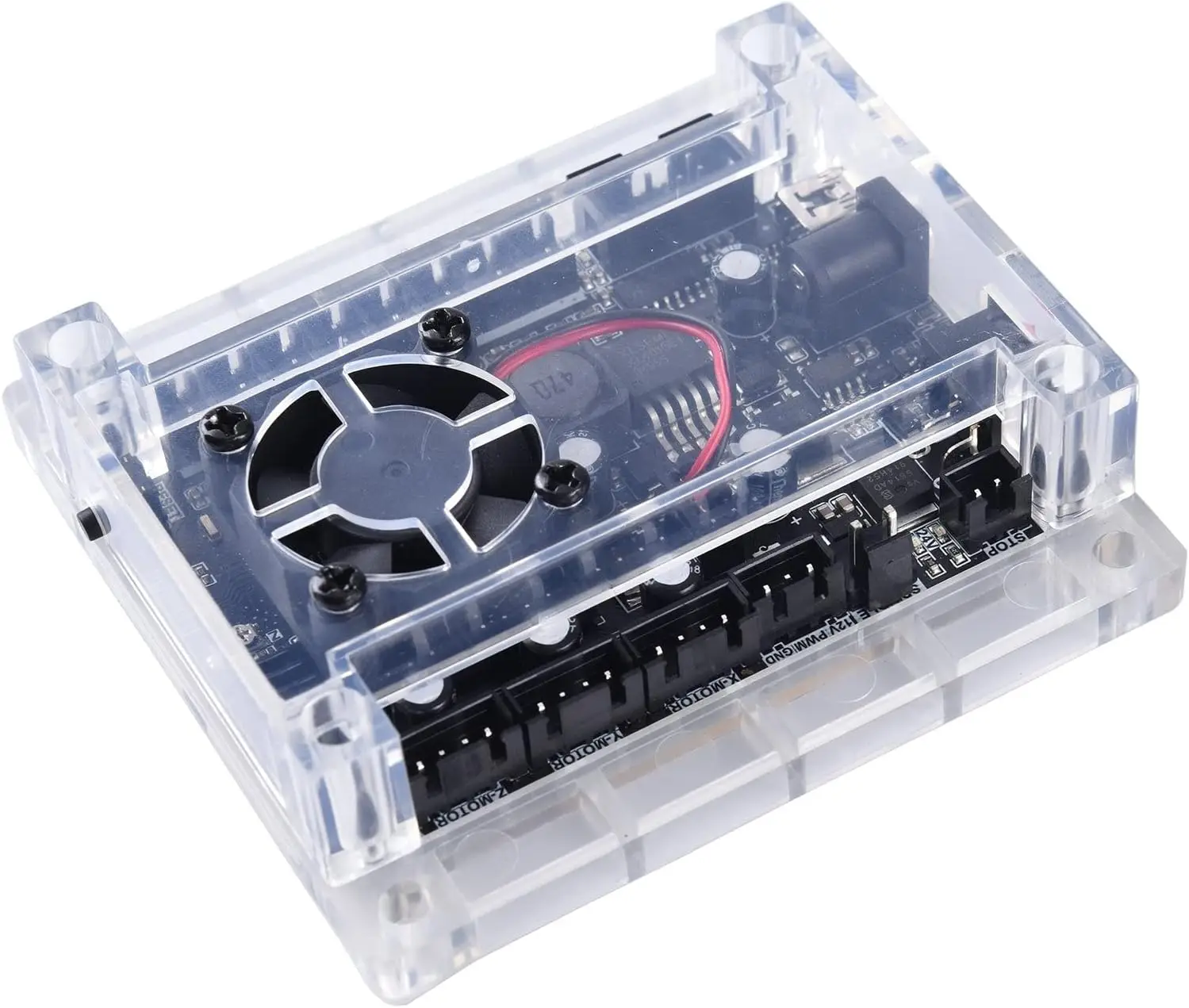

GRBL CNC One-piece control board, three-axis drive + spindle drive, can directly drive the three-axis system + spindle power control, eliminating the need for electrical connection, suitable for ordinary engraving machine and laser engraving machine, DIY essential!!!Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )Support stepper motor:12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Pay attention to multiple options and purchase as needed!!!

Introduction to product options with pictures and text: (shipped according to your choice)

only Offline :(Offline board)

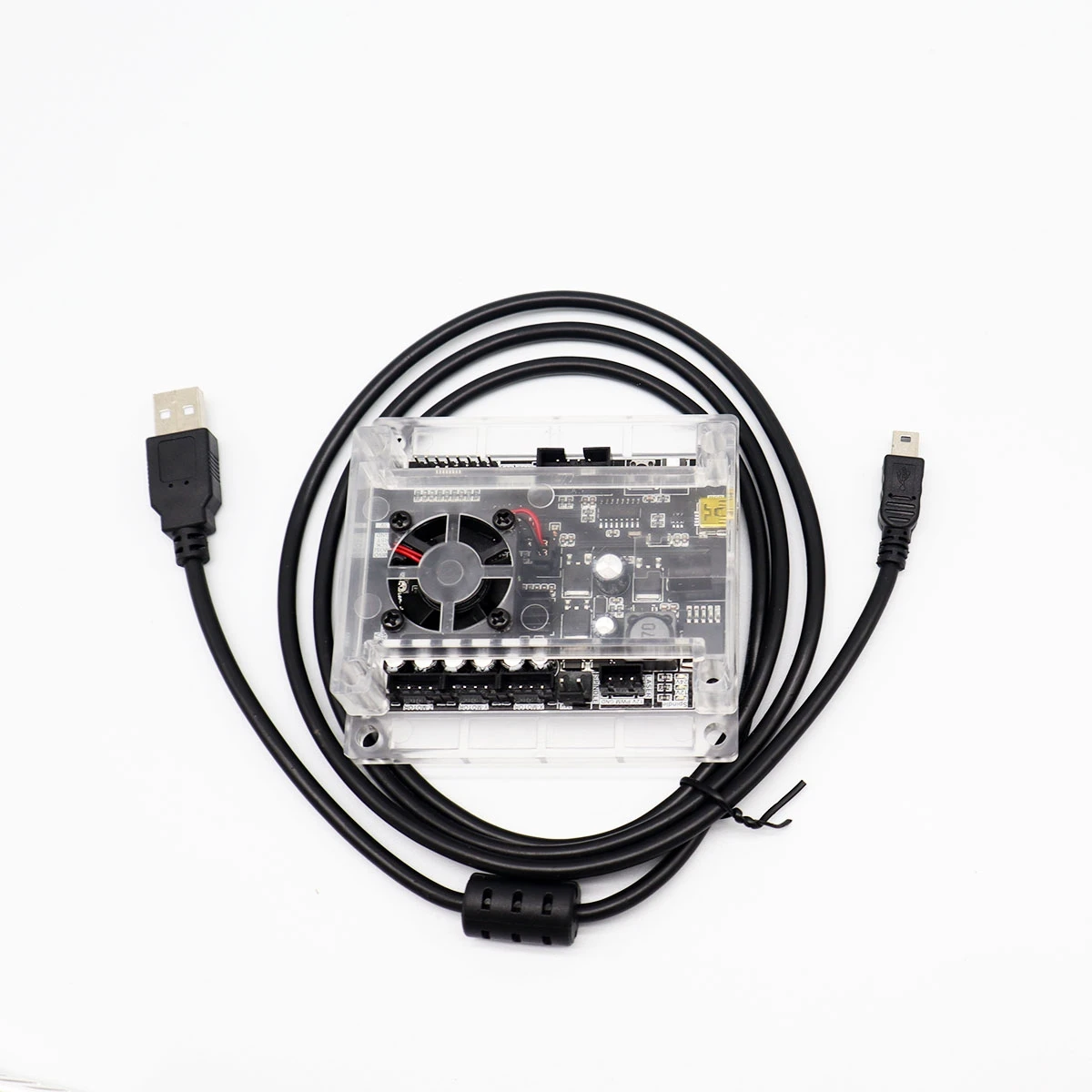

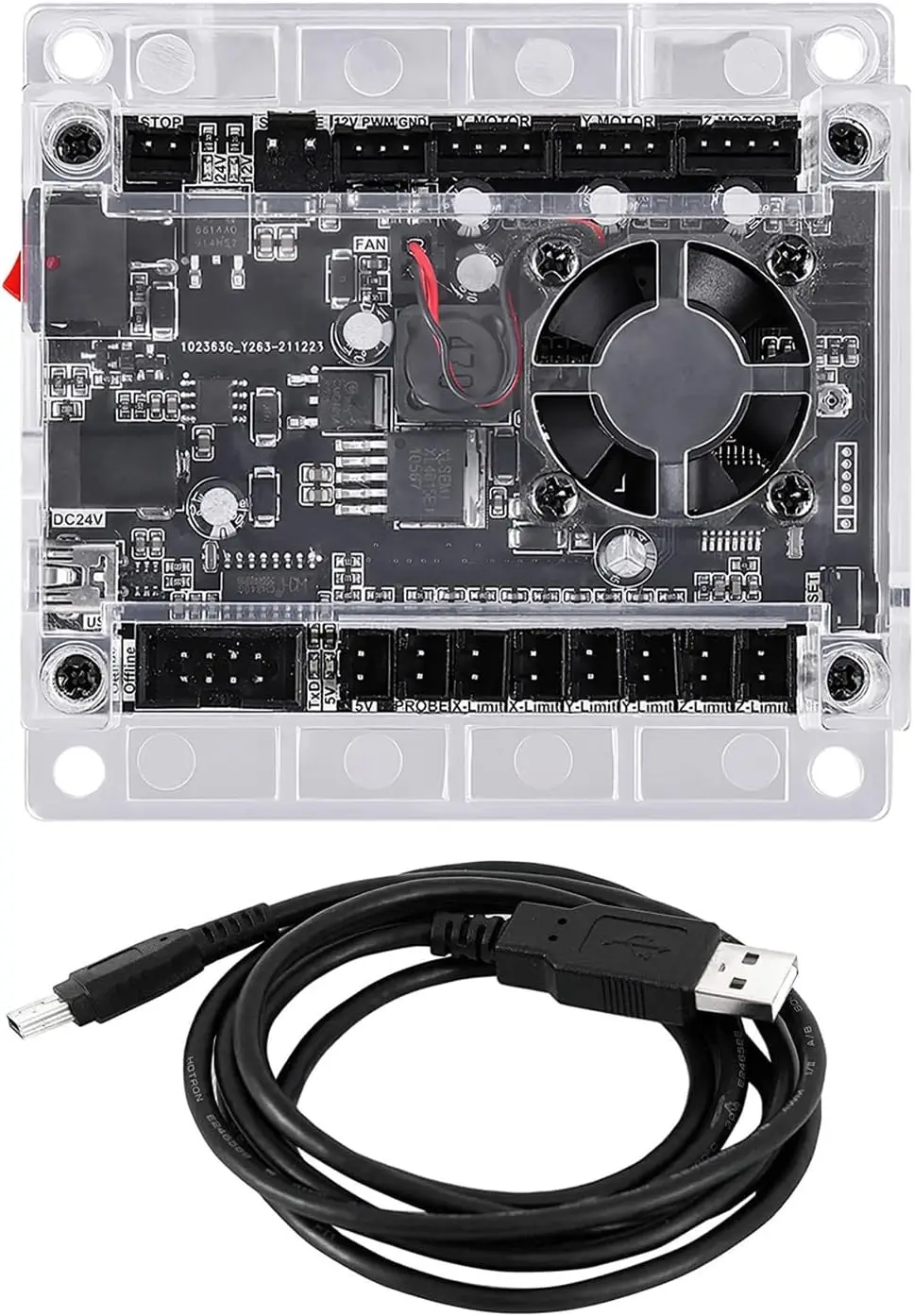

Control board: (including USB cable)

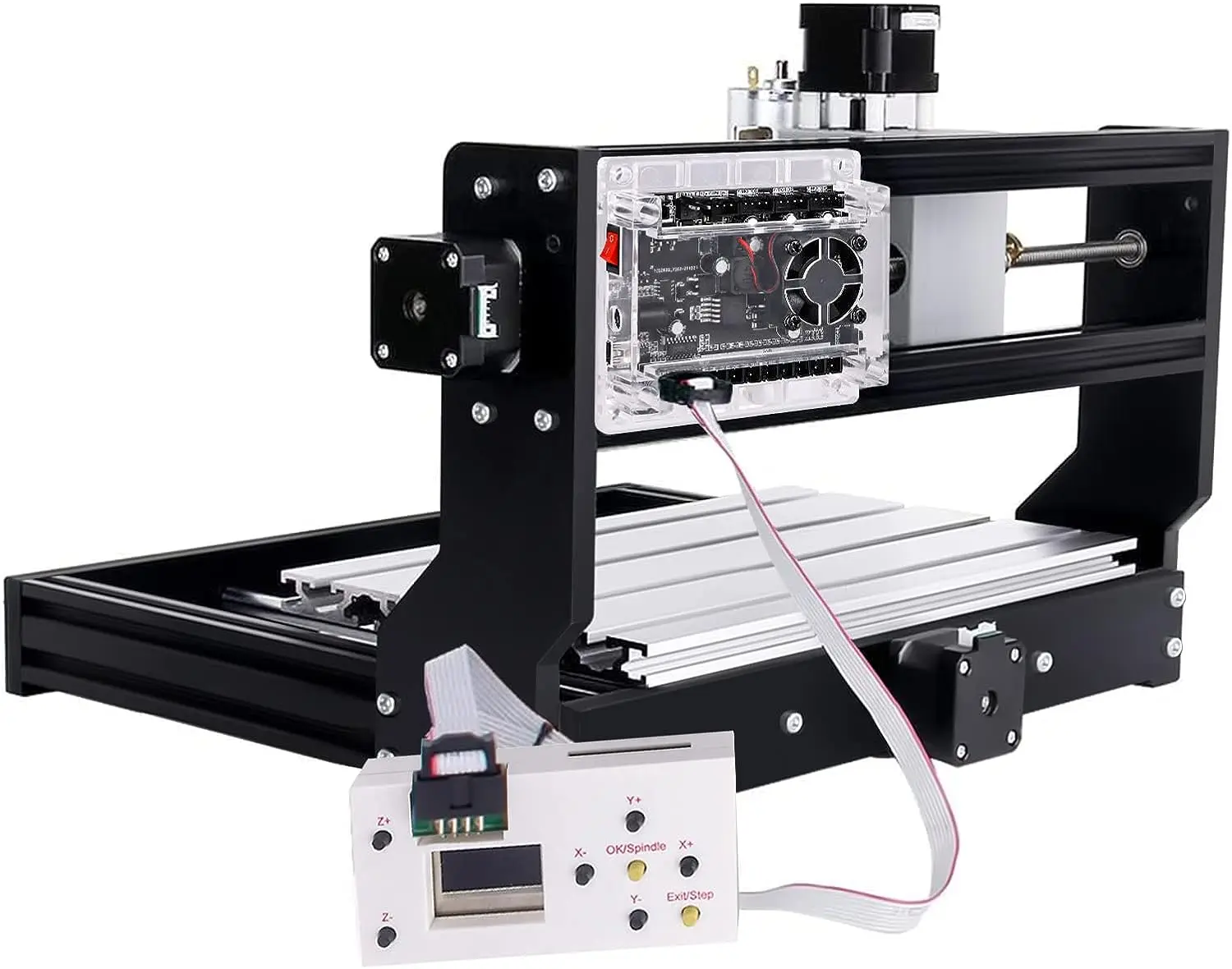

Full Kit: (Control board + Offline Board)

GRBL CNC One-piece control board, three-axis drive + spindle drive, can directly drive the three-axis system + spindle power control, eliminating the need for electrical connection, suitable for ordinary engraving machine and laser engraving machine, DIY essential!!!



Weight 0.300 kg
Dimensions 12 × 12 × 12 cm
Brand Name

Dobtian
Origin

Mainland China
Hign-concerned Chemical

none
Certification

CE
Application

Milling Machine
Model Number

GRBL 1.1F
Connection

USB (USB-CH340)
Software

grblcontrol/candle(3Axis), lasergrbl(laser)
system

windows XP, 7/8/10
Stepper motor driver

42 stepper(1.3A/0.3Nm/24V)
spindle motor

775ER(24V/10000rmp/support PWM0%-100%)
laser support

12V5Amax(1W/2.5W/5.5W/7W/10W/15W)
Power input

24V (12-24)
Offline control

support gcode, txt, tap, nc, ncc, CNC format processing files
