CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver 1
CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver 2
CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver 3
CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver 4
CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver 5
CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver 6

CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver

Rated 5.00 out of 5 based on 4 customer ratings
(4 customer reviews)

Price range: $37.56 through $63.96

SKU: 0W22Y05XLEGU Category:

GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board

Specification:

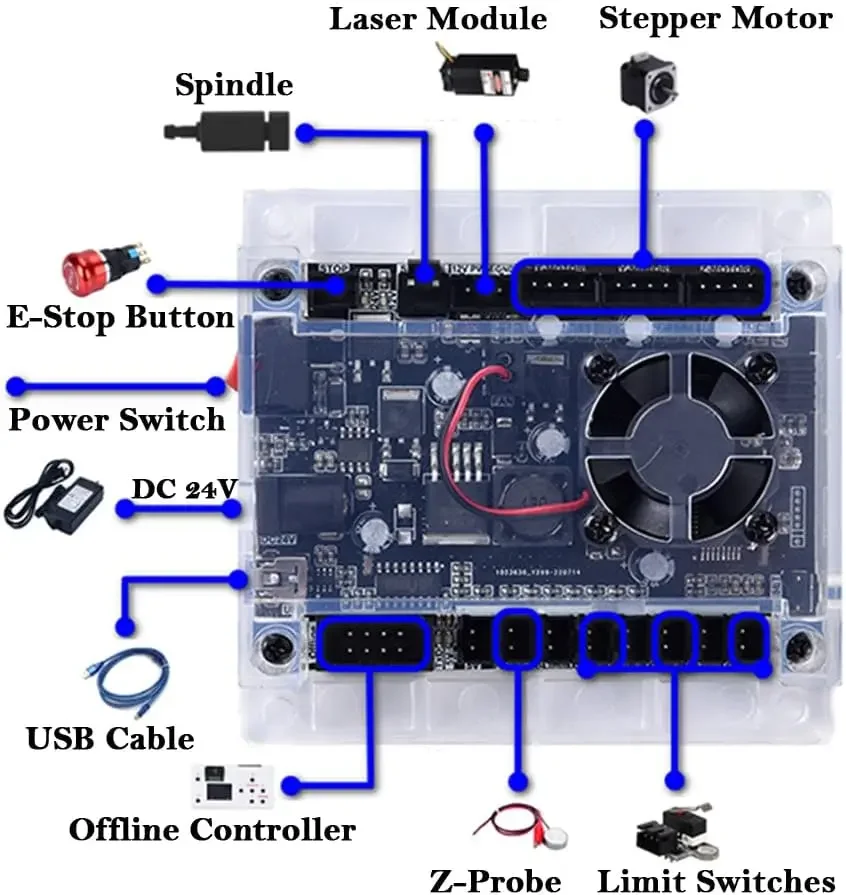

GRBL CNC One-piece control board, three-axis drive + spindle drive, can directly drive the three-axis system + spindle power control, eliminating the need for electrical connection, suitable for ordinary engraving machine and laser engraving machine, DIY essential!!!Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )Support stepper motor:12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Control board: (including USB cable)

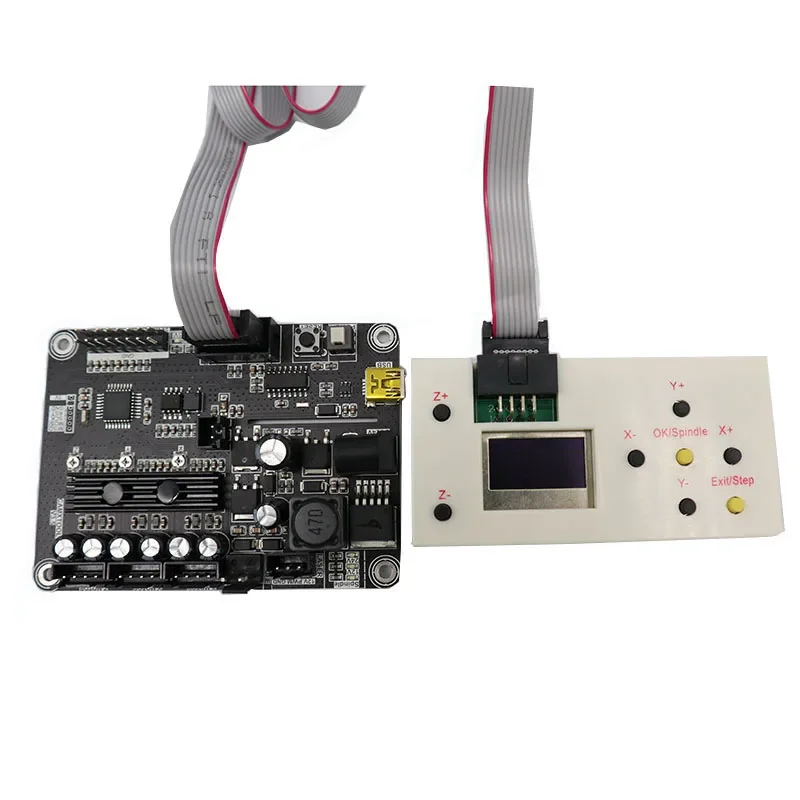

Full Kit: (Control board + Offline Board)

GRBL CNC One-piece control board, three-axis drive + spindle drive, can directly drive the three-axis system + spindle power control, eliminating the need for electrical connection, suitable for ordinary engraving machine and laser engraving machine, DIY essential!!!

Weight 0.300 kg
Dimensions 12 × 12 × 5 cm
Brand Name

Dobtian
Origin

Mainland China
Hign-concerned Chemical

none
Certification

CE
Application

Milling Machine
Model Number

GRBL 1.1F
Connection

USB (USB-CH340)
Software

grblcontrol/candle(3Axis), lasergrbl(laser)
system

windows XP, 7/8/10
Stepper motor driver

42 stepper(1.3A/0.3Nm/24V)
spindle motor

775ER(24V/10000rmp/support PWM0%-100%)
laser support

12V5Amax(1W/2.5W/5.5W/7W/10W/15W)
Power input

24V (12-24)
Offline control

support gcode, txt, tap, nc, ncc, CNC format processing files
Choice

yes
semi_Choice

yes

4 reviews for CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver

  1. Rated 5 out of 5

    s***r –

    The product looks good.

    Voltage: Controller board

  2. Rated 5 out of 5

    m***r –

    Perfect, and exactly as described. Good price and quick delivery.

    Voltage: full kit

  3. Rated 5 out of 5

    M***r –

    controller works great and the size makes it easy to keep it out of the way

    Voltage: Controller board

  4. Rated 5 out of 5

    AliExpress Shopper –

    Voltage: Controller board
