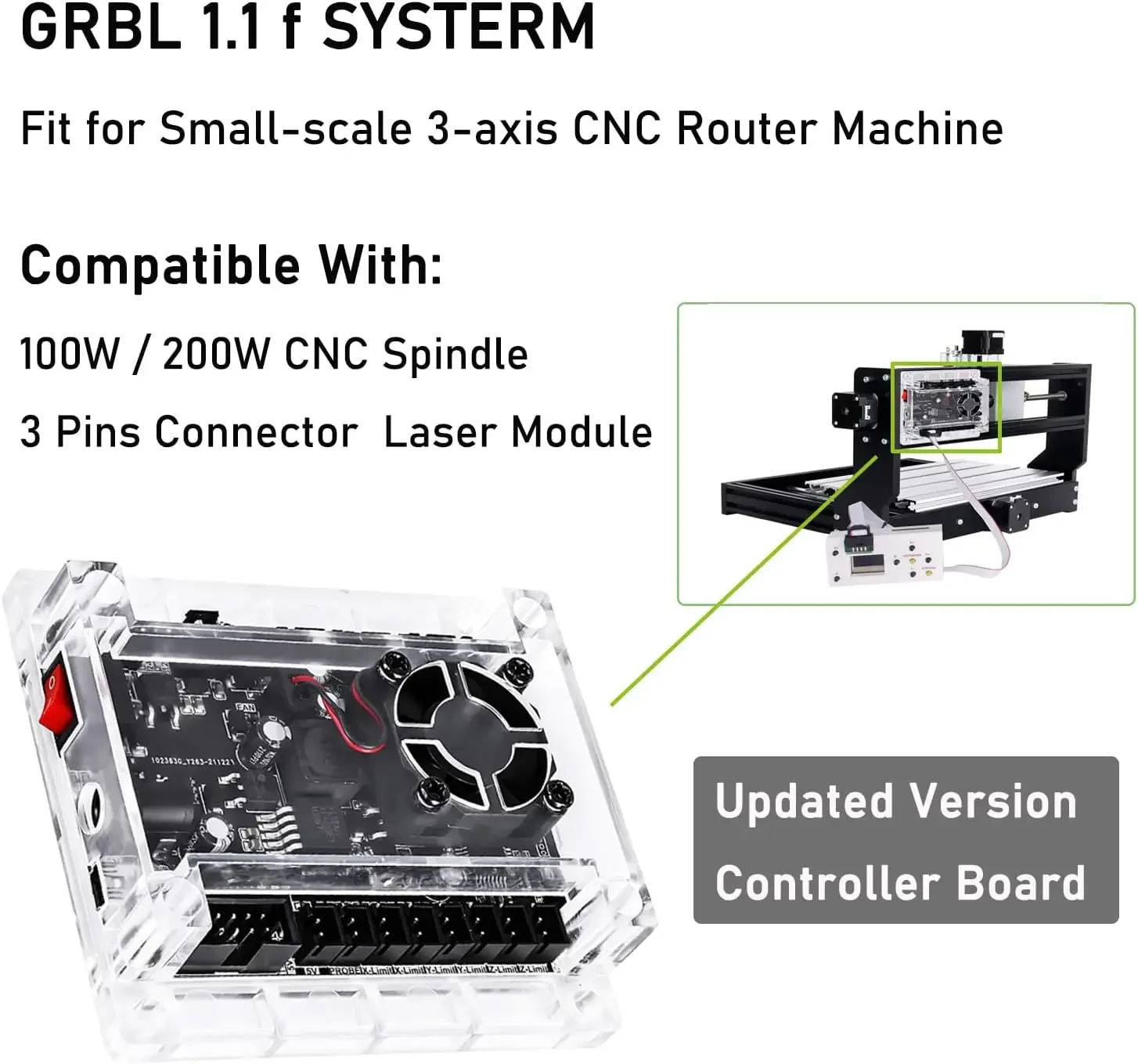

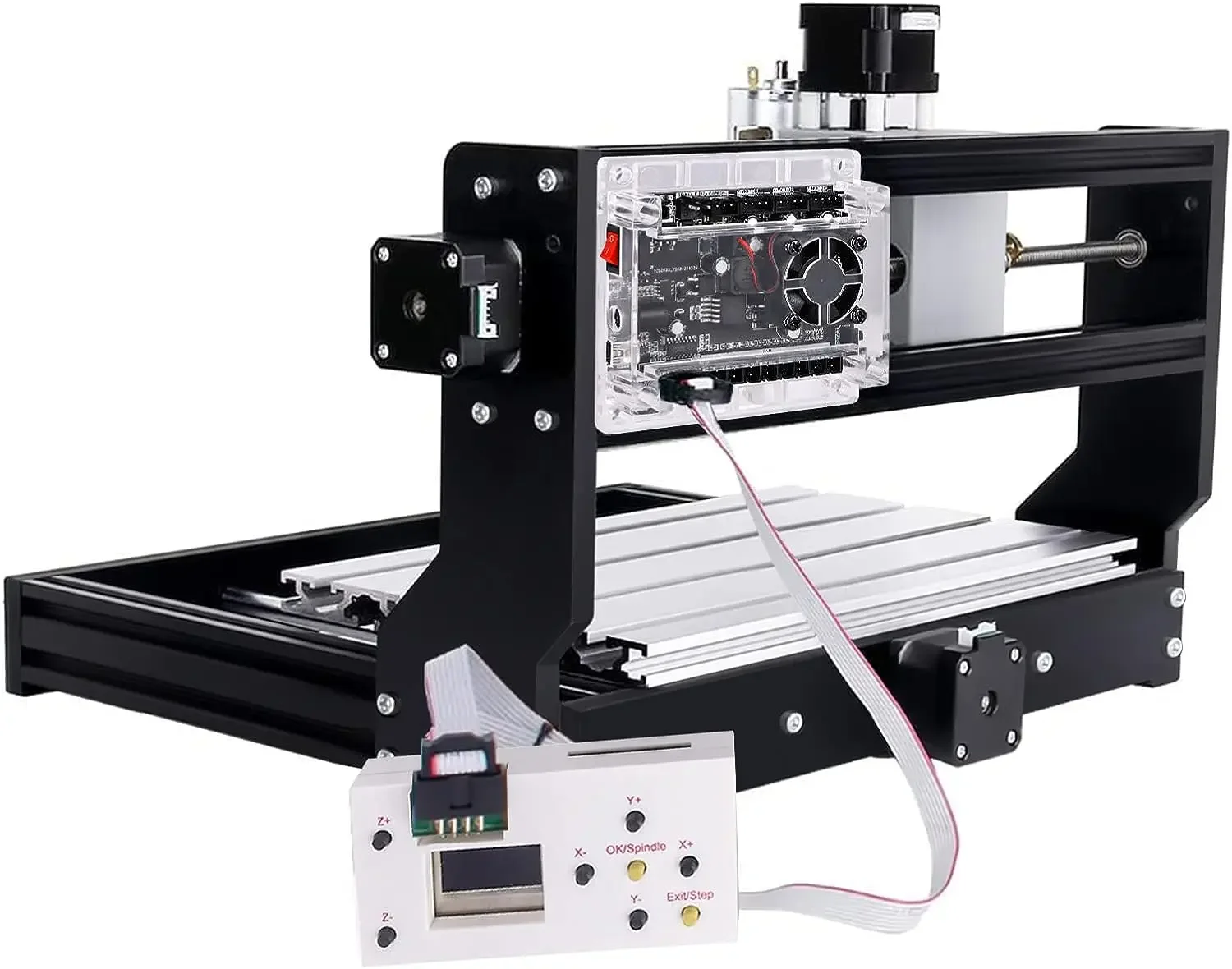

CNC Controller Tools 3-Axis Control Board GRBL 1.1 USB Port Integrated Driver With Offline Controller for 3018 Laser Engraver

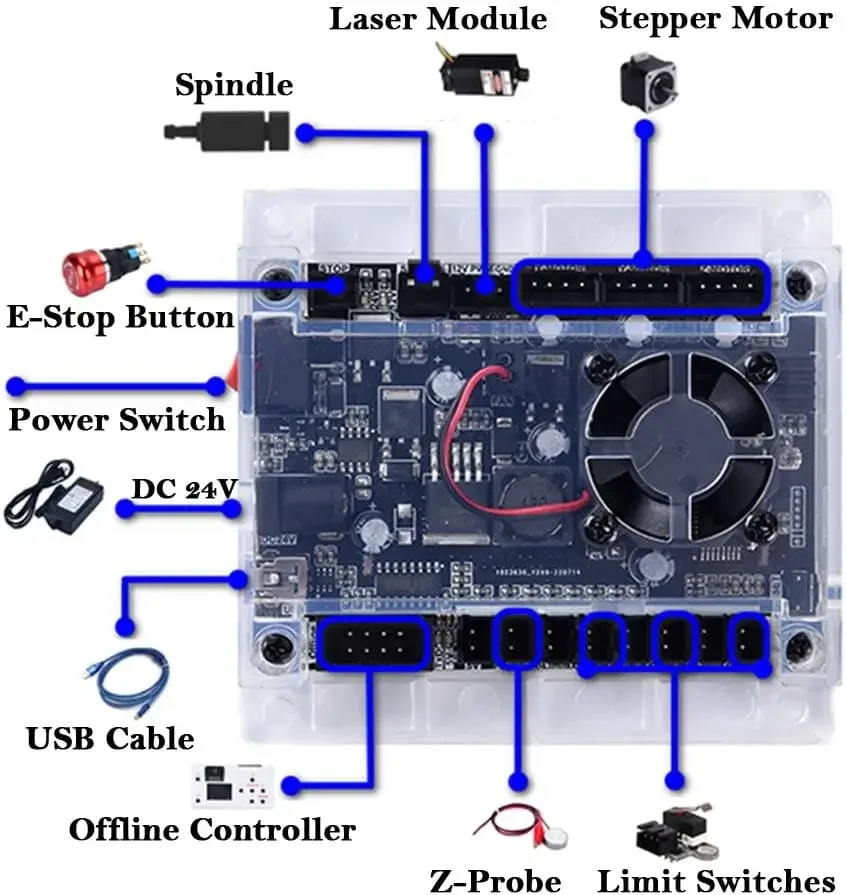

Specification:
Connection: USB (USB-CH340)
Software: GRBL controller, UniversalGcodeSender
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
Package List:
Package 1st:

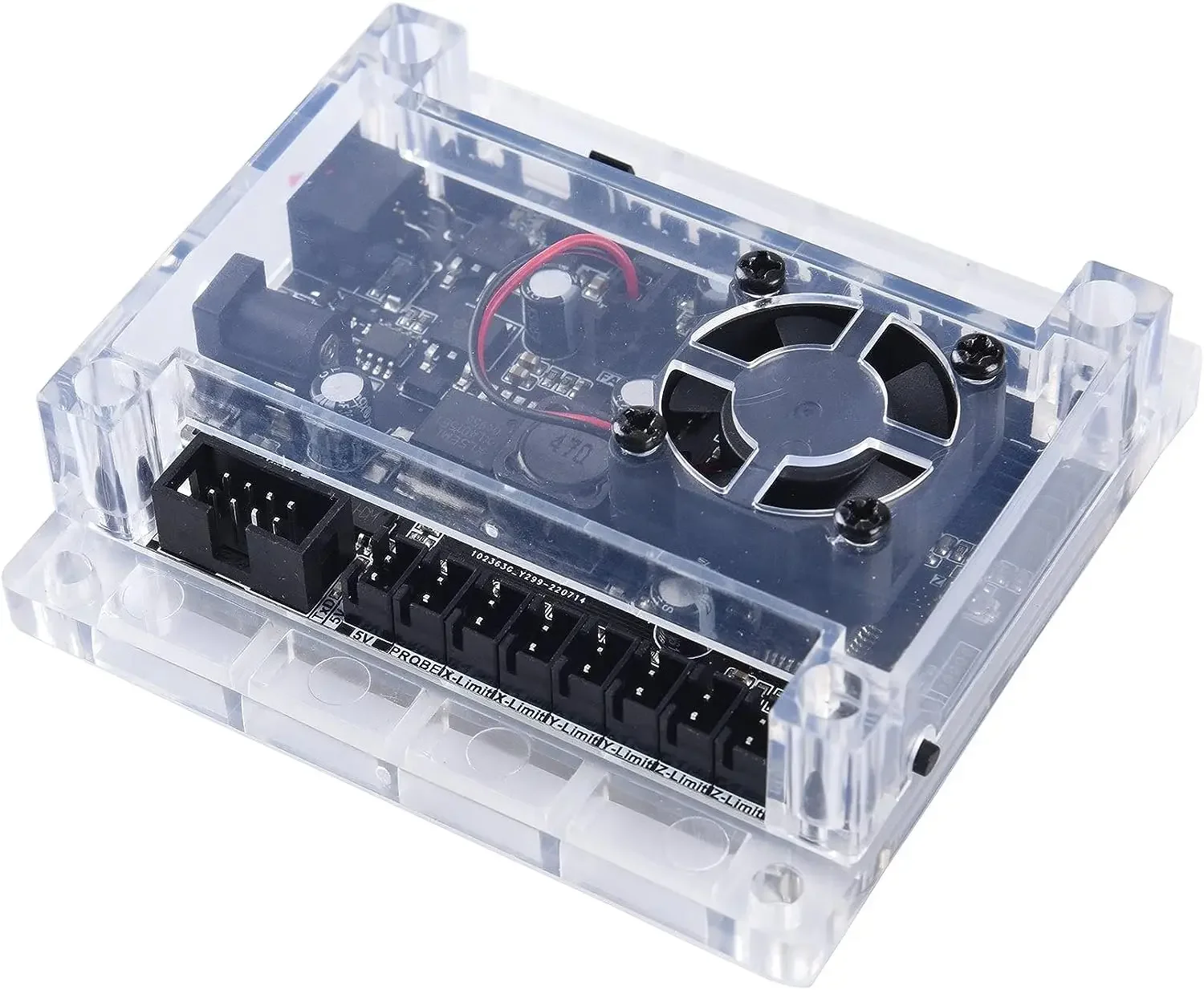

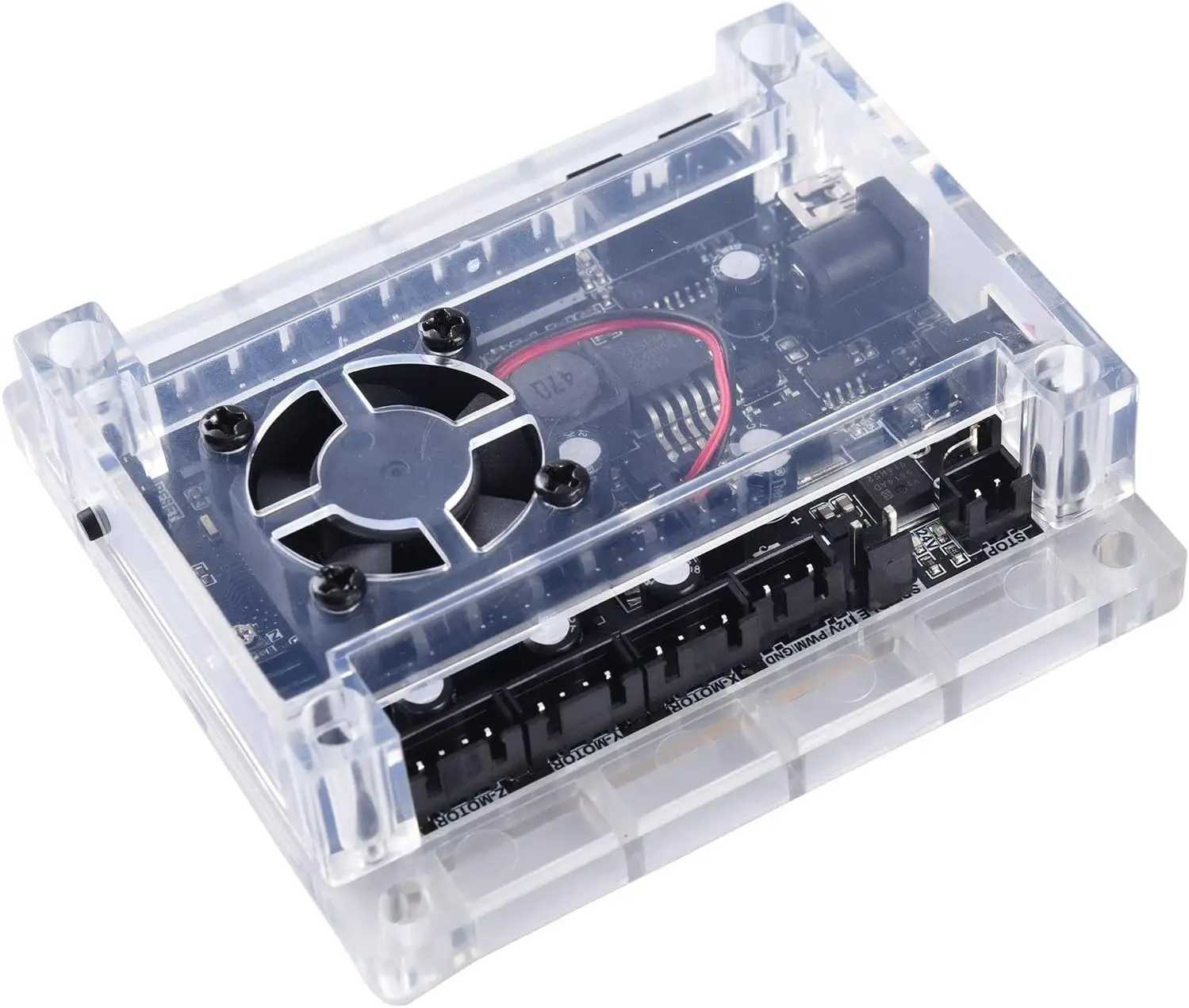

1x GRBL 1.1 J 3 axis control board with box and fan
1x USB cable
Package 2nd:

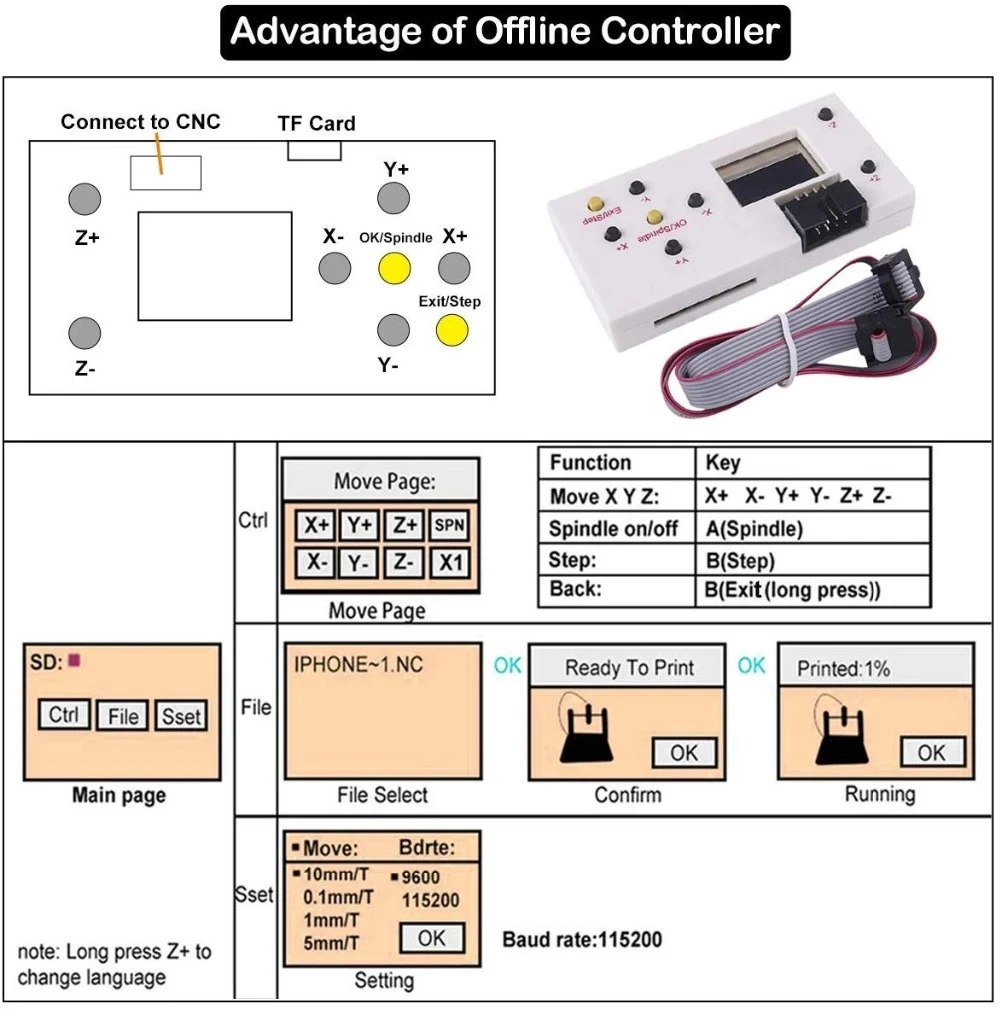

1x Offline controller
1x User manual
1x 1G SD card
Package 3rd:
1x Offline controller
1x User manual
1x 1G SD card
1x GRBL 1.1 J 3 axis control board with box and fan
1x USB cable
S***h –
Everything works well!
Color: Control board Ships From: China
n***r –
good
Color: Offline add Board Ships From: CHINA
Г***ч –
Came quickly on time. The controller works perfectly. the fan works quietly
Color: Control board Ships From: express
L***i –
Everything as described. Works well!
Color: Control board Ships From: CHINA
A***g –
Congratulations great product.
Color: Offline add Board Ships From: CHINA
К***ч –
Color: Control board Ships From: express
Ðœ***ч –
Board works, laser power adjusts. Unlike the old board, this one works quieter with the step men of the machine, just the pleasure for the ears to work with it.
Color: Control board Ships From: express
d***r –
Exelent product very well
Color: Control board Ships From: CHINA
