CNC OFFLINE controller MKS DLC V2 + TFT24 touch screen CNC control board for diy desktop mini portable laser engraving machine

Rated 5.00 out of 5 based on 1 customer rating

Price range: $33.06 through $79.80

Color

Clear

SKU: WTVTEVBC0AZW Category: Other Accessories

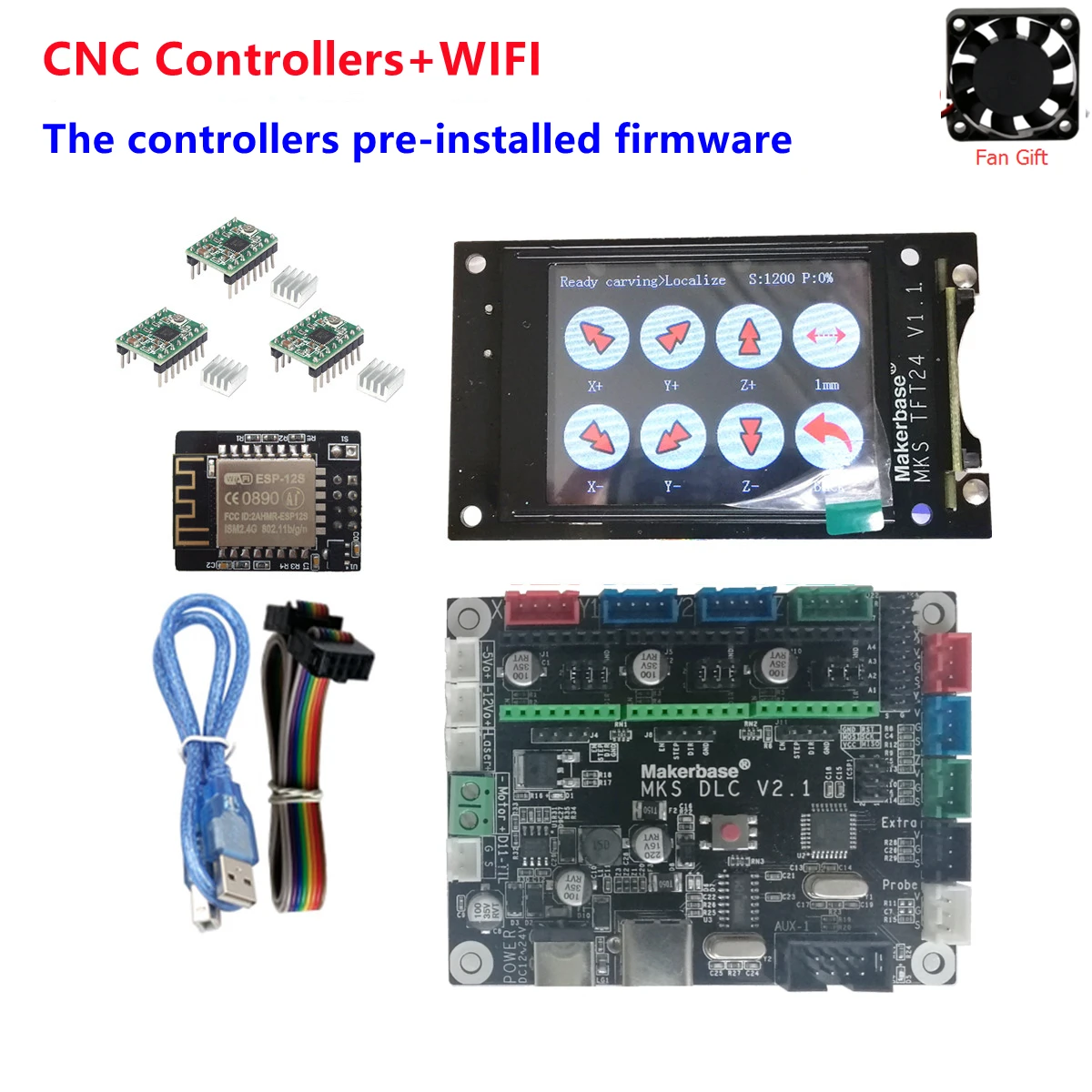

The controllers already pre-installed firmware.
Default baudrate 115200.

Name: MKS DLC

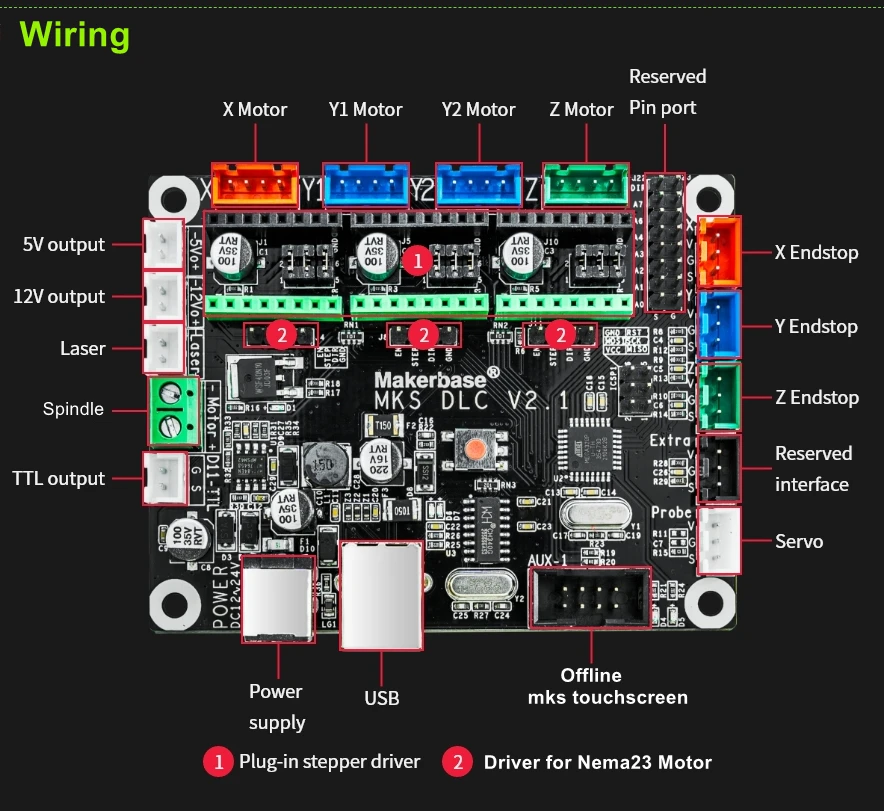

Wiring

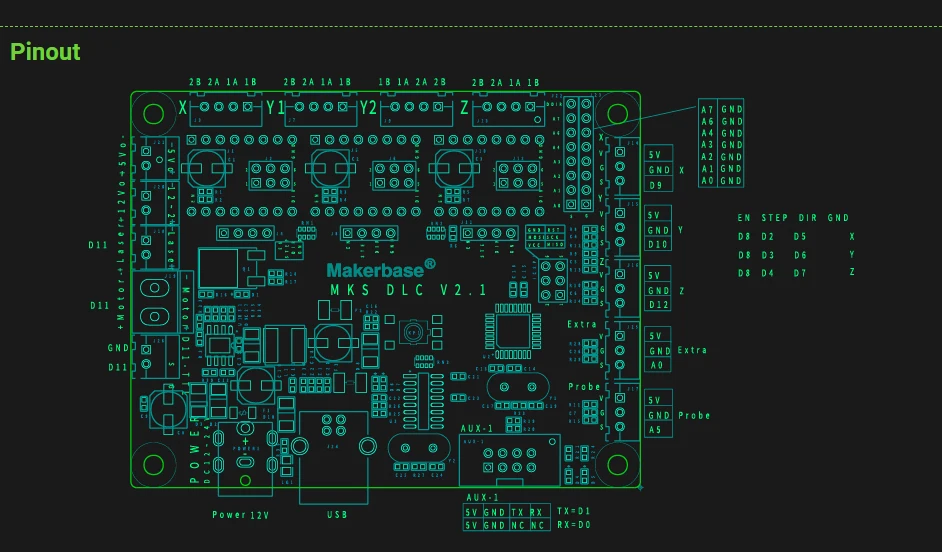

Pinout

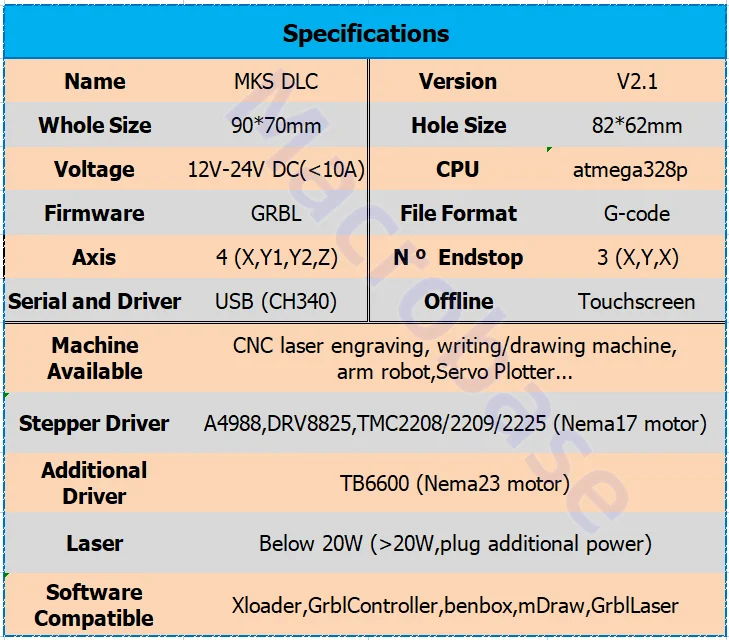

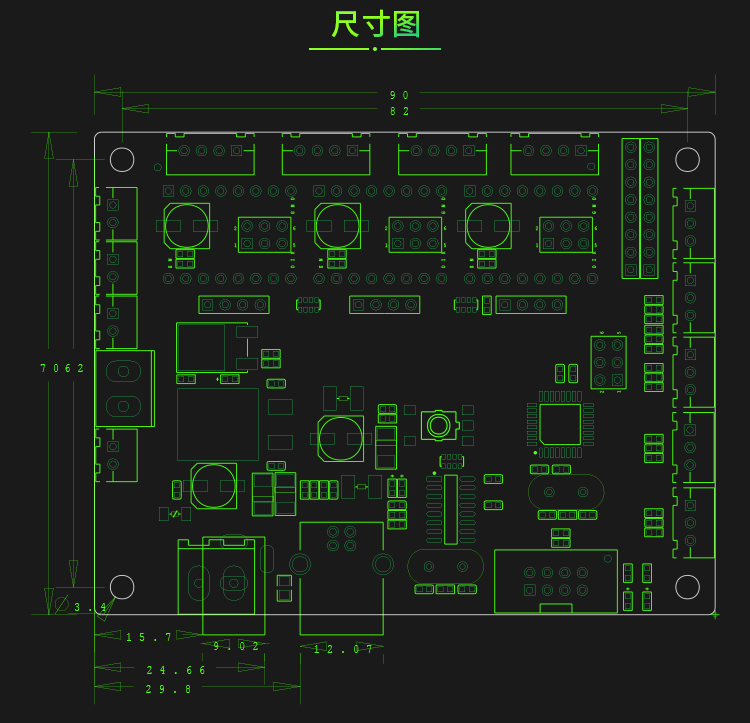

Size

Drivers Parameters

Caution!

Please mind the power polarity and drivers direction.

Please don’t put the drivers or motors on/off when power on.

Please disconnect all motors when adjust driver current.

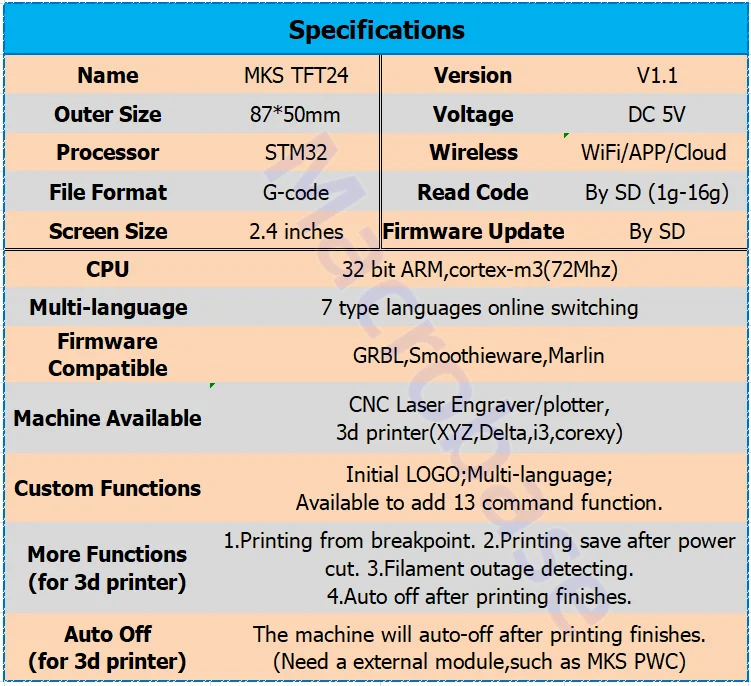

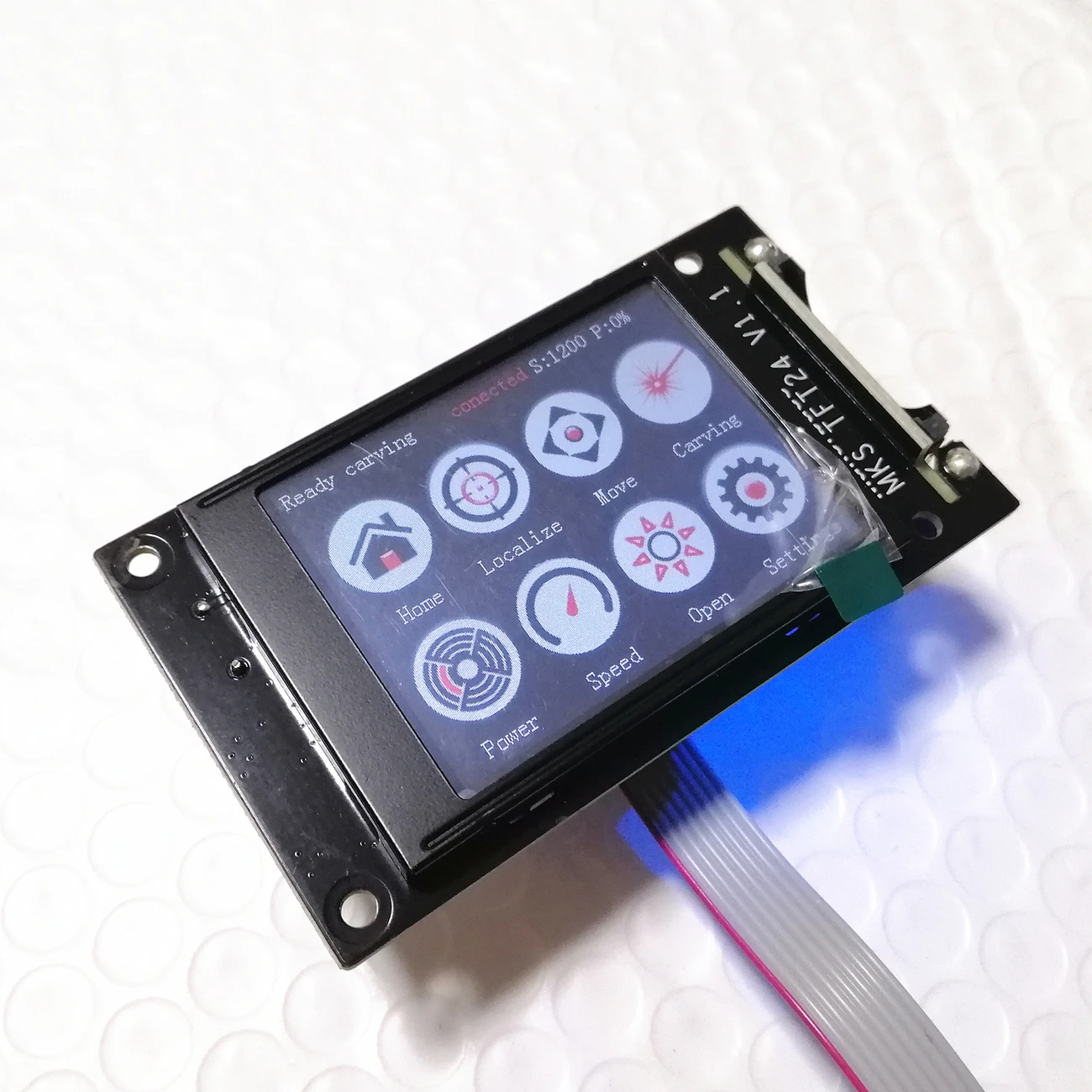

TFT24 Display

Wiring

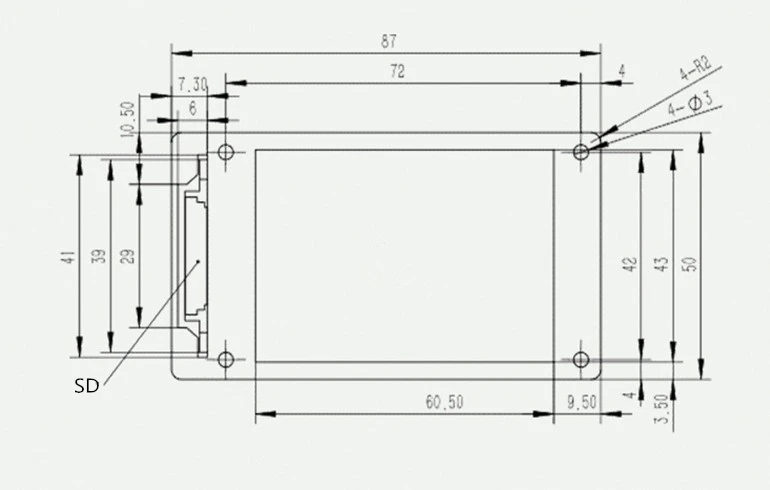

Size

Firmware download and update

https://github.com/Macrobase-tech/CNC-Firmware

Install Xloader to PC,upload GRBL firmware to MKS DLC board.

2. Display firmware update

Select baud rate 115200 on config.

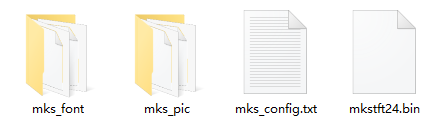

Copy below files to SD card and plug it to TFT24 display.

3.Wire TFT24 to Aux-1 of CNC board.Then put board’s power on,it will update automatically.

4. Read G-code

Copy G-code to SD card,plug it to the display.(SD card:1g-16g,Gcode format is nc.)

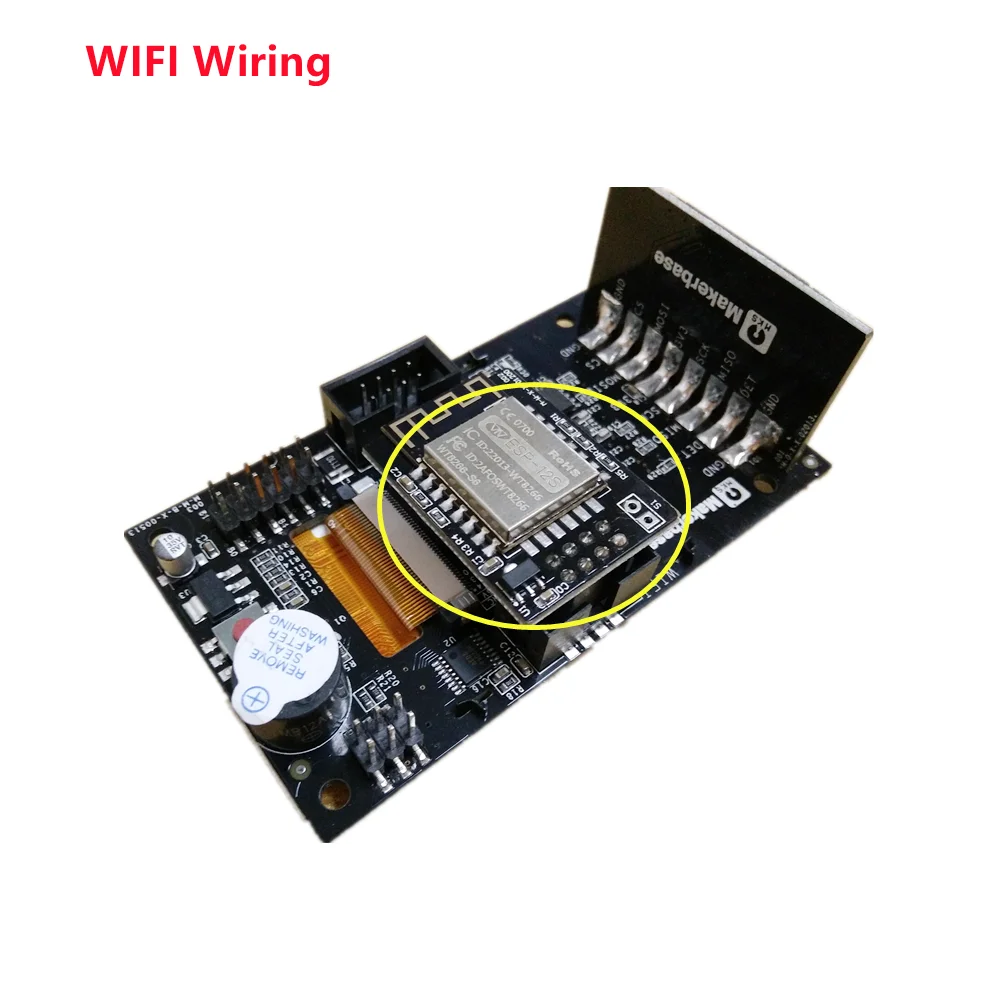

How to Use WIFI

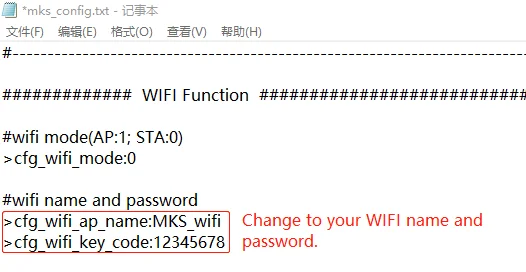

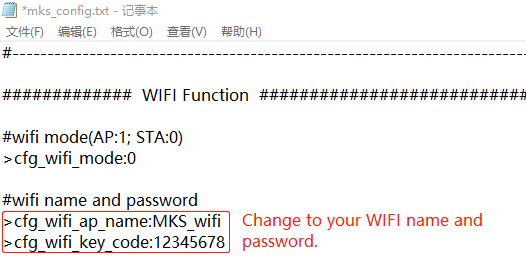

1.Connect to your WIFI.Enable WIFI on TFT config.And update the firmware to display.

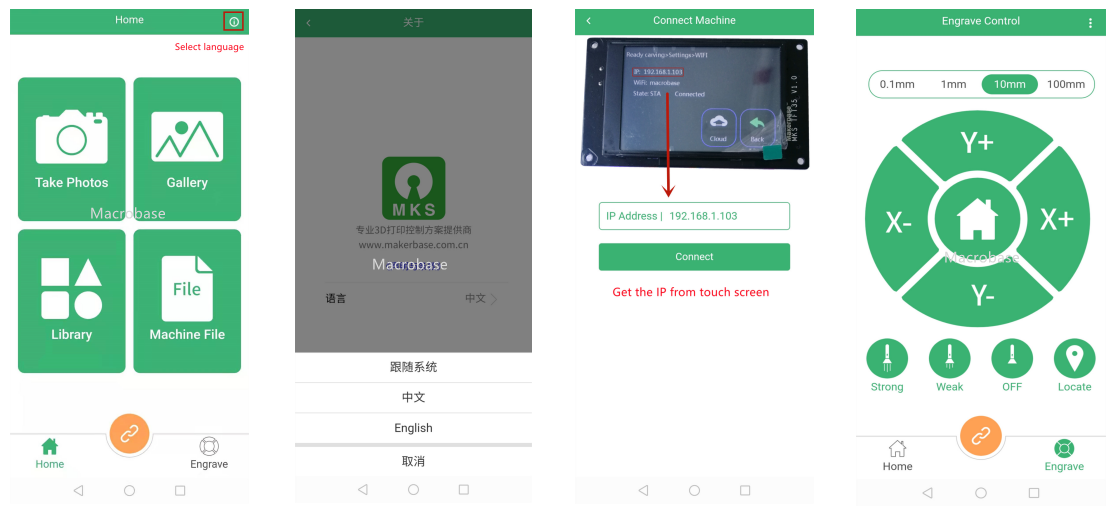

2.Install MKSLaser APP to Phone.

Weight	0.300 kg
Dimensions	20 × 14 × 4 cm
Brand Name	MacroBase
Origin	Mainland China
Model Number	MKS DLC+TFT24 touch screen
Certification	none
Machine	cnc laser engraving, draw machine
Support	TTL
Feature	Offline operating
CNC board	MKS DLC V2.1
CNC touch screen	TFT24
Compatible	GRBL 1.1
Software	grblcontrol, candle, lasergrbl
