CNC Sheet Metal and Tube Laser Cutter Fiber Laser Cutting Machines with 6m Tube 1000w 2000w 3kw Stainless Steel Plate Cutter



CNC Sheet Metal and Tube Laser Cutter Fiber Laser Cutting Machines with 6m Tube 1000w 2000w 3kw Stainless Steel Plate Cutter

>> Advantages

Autofocus Laser Cutting Head Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
Dual Use and Cost-saving

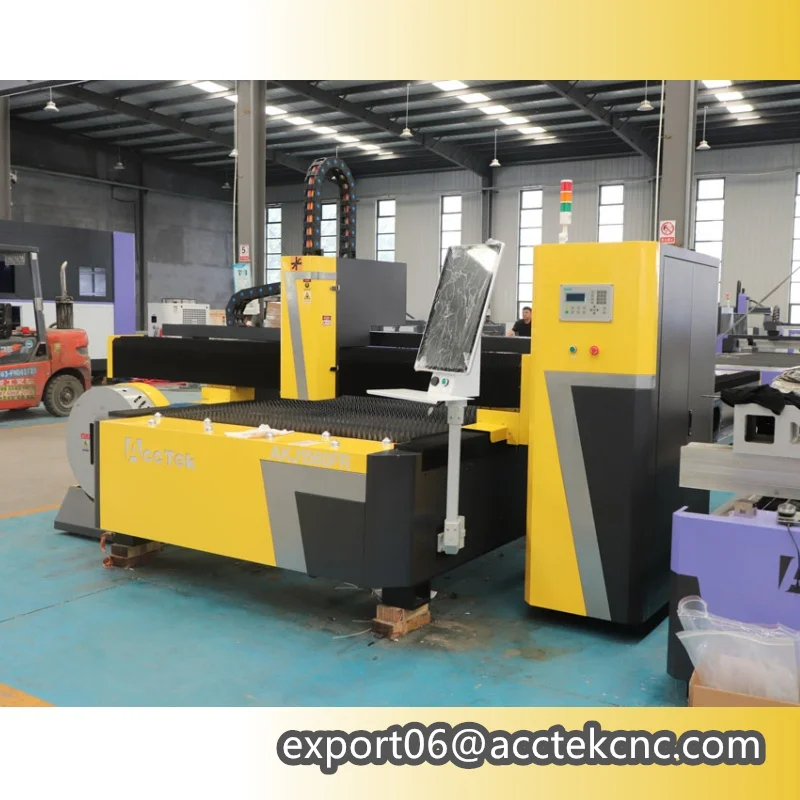

Acctek AKJ-FR series fiber laser cutting machine can not only cut metal plates,but also metal pipes. It has many uses and can save the space of more than 50%,which effectively improve productivity.

Clamp Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm

>> Main configurations

1	Model	AKJ1530FR
2	Working area	1500*3000mm
3	Laser power	1500W/2000W/3000W/6000W…
4	Control System	Cypcut controller
5	Transmission	Rack and pinion transmission
6	Guide rail	Taiwan HIWIN linear guide rail
7	Motor	Yaskawa servo motor
8	Reducer brand	French Motoreducer reducer
9	Max Speed	20m/min
10	Repeat positioning accuracy	±0.02mm/m
11	Maximum Acceleration	0.5G
12	Rotary	220*6000mm
13	Graphic Format Supported	AI, BMP, DST, DXF, DXP, PLT
14	Cooling Way	Water cooling
15	Machine Operating temperature	0 ℃ -40 ℃
16	Power Requirements	380V/50Hz/60Hz/60A

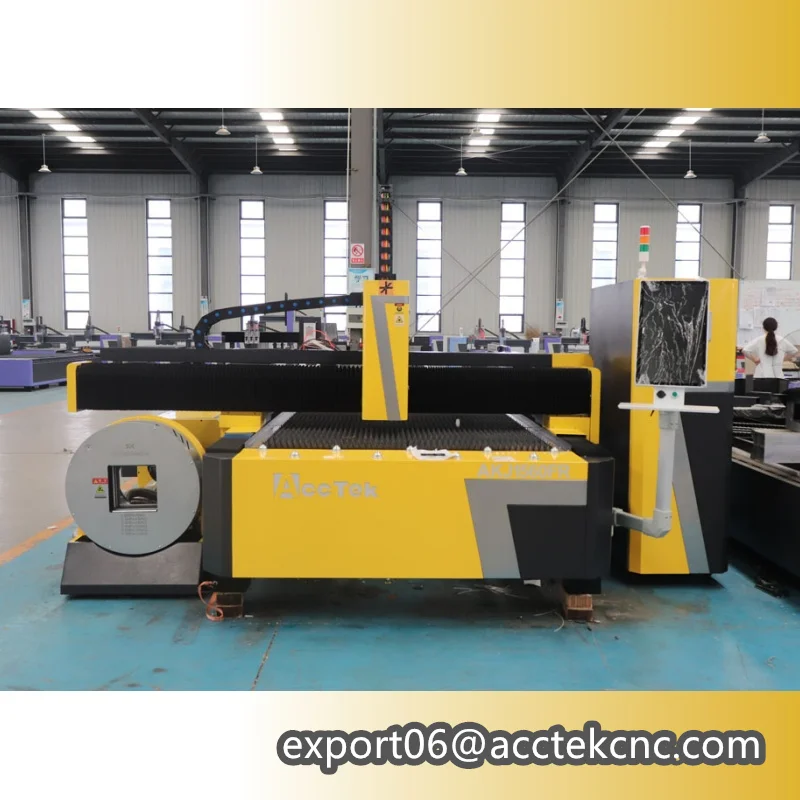

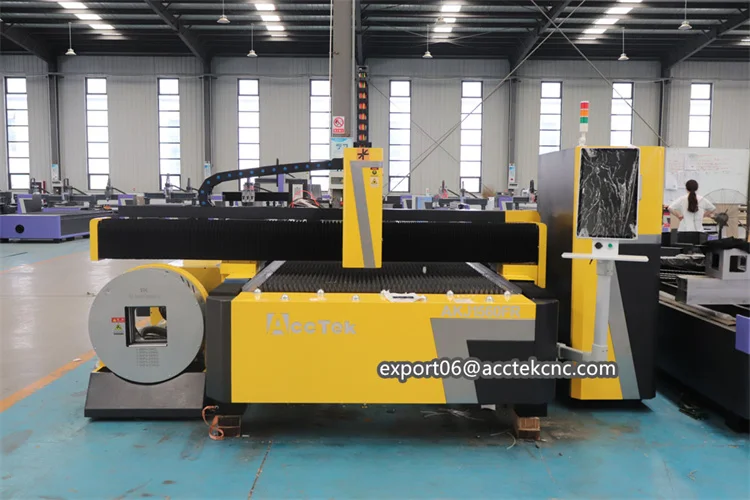

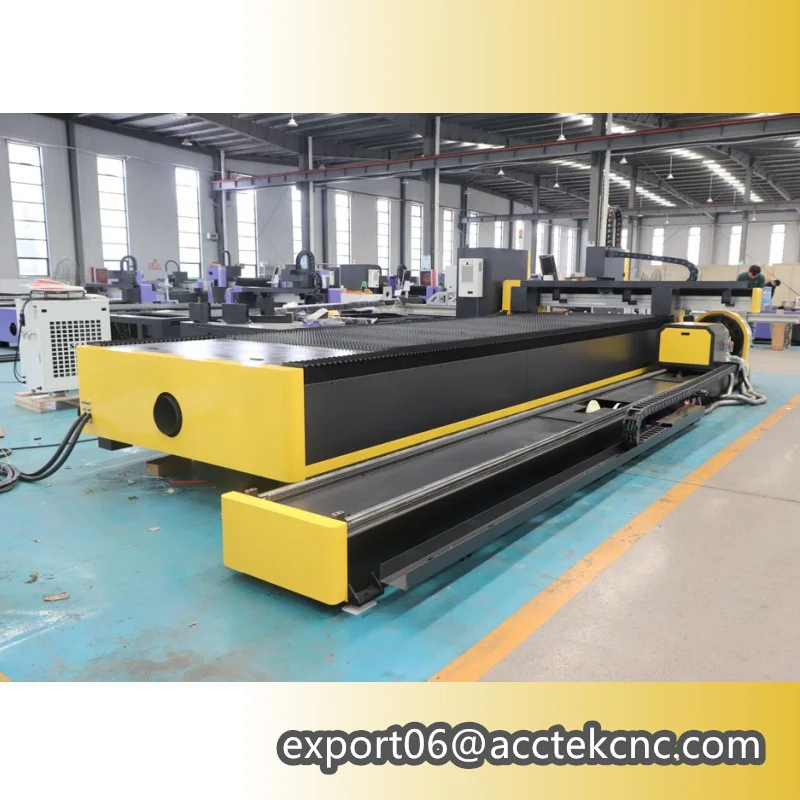

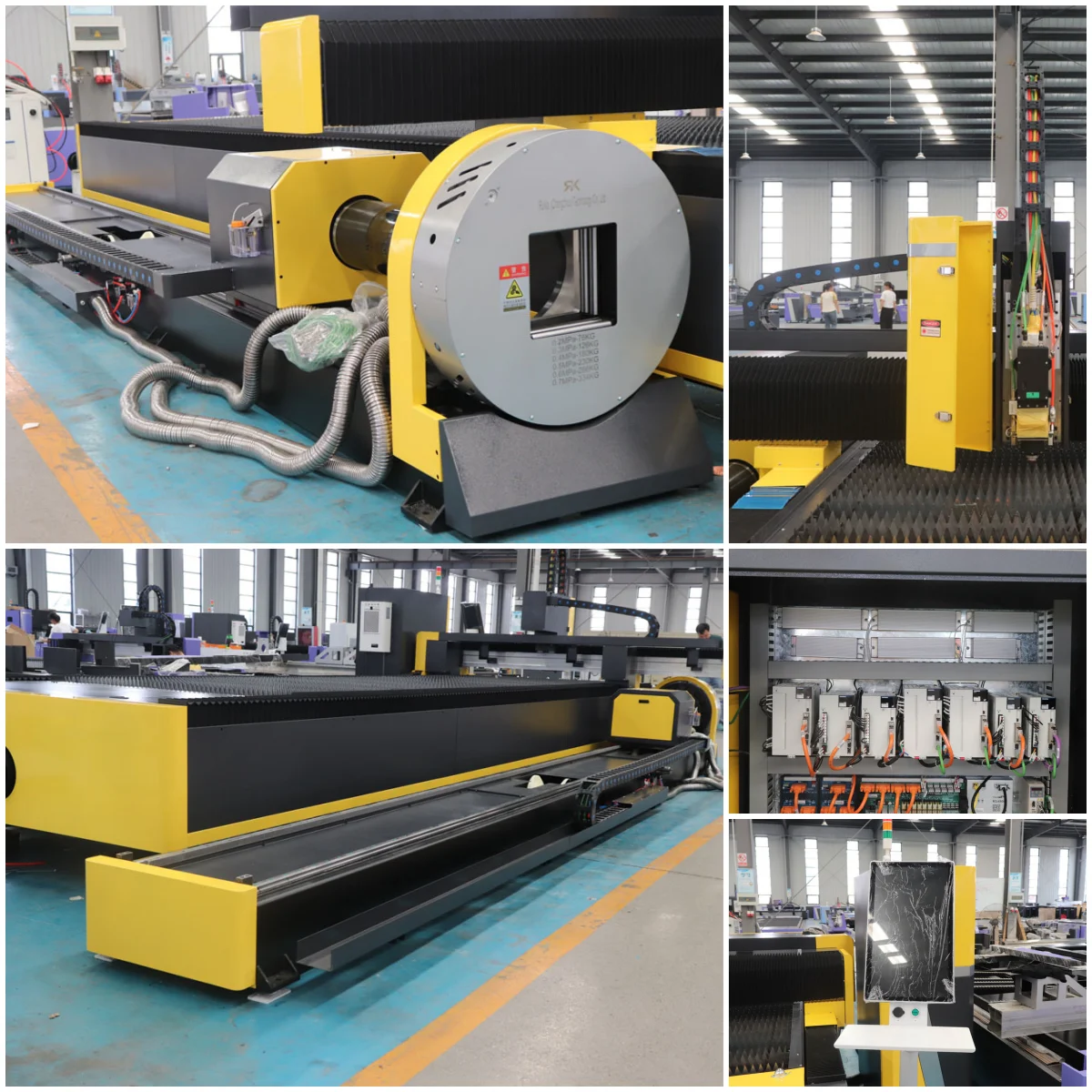

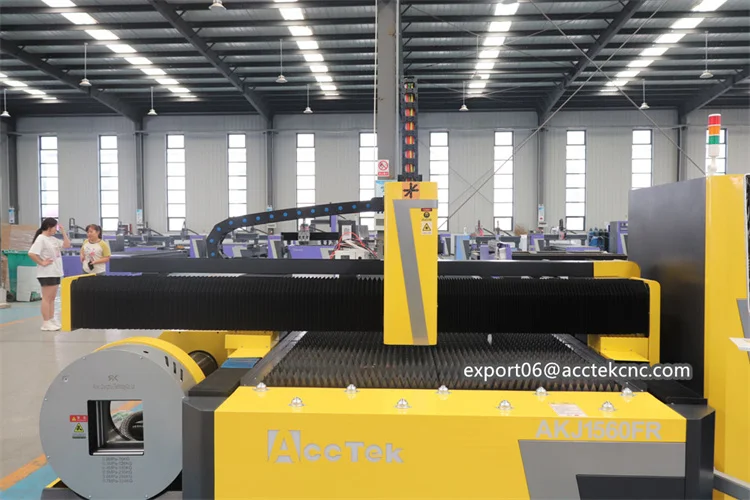

>> More Details

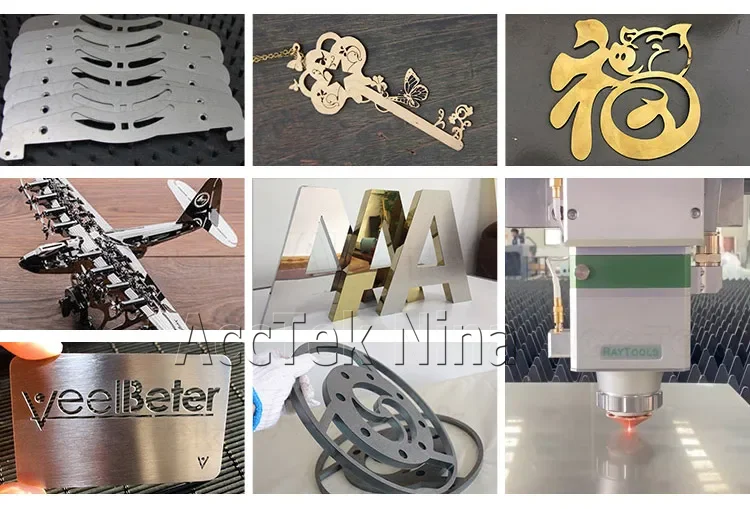

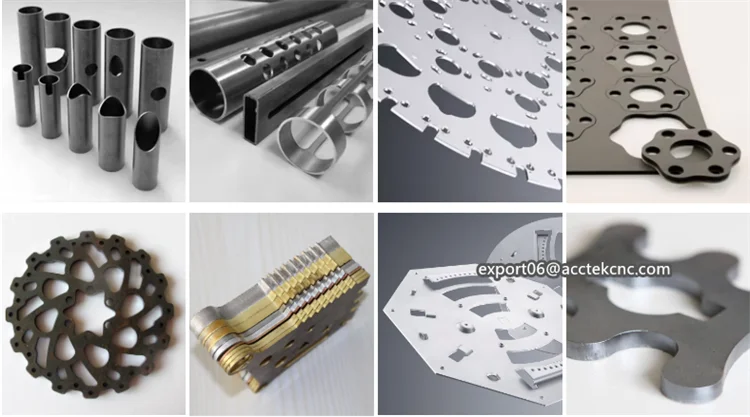

>>Working samples

Since sheet and pipe integrated design, Industry adaptability of AKJ1530FR has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc.

Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-300mm.

>>After sales service

1. 3 years guarantee of the whole machine, including fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.

>>About Acctek

AccTek specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in

the Industrial Zone of Jinan City, Shandong Province south of Beijing. Our main products are AccTek CNC

Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty.

Components for our machines are sourced from world class suppliers and innovators in machine control.

These machines are used in many industries, crafts and arts businesses around the world. These include

woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a

few. Our dedicated and highly skilled after sales service department, sales team, and thorough quality

assurance procedures mean that you can buy with confidence. We welcome customers and potential business

associates from around the world. We can work together cooperatively for mutual benefit.

“Our business is to improve your business”

Welcome customers to visit our factory 🙂

>>FAQ

1, MOQ?

Our MOQ is 1 set machine. We could send metal machine to your country port directly, please tell us your
port name. There will be best shipping freight and machine price for you.

2, Do you arrange shipment for metal machine?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, you need to arrange shipment by yourselves or your agents.

3, Do you provide trade assurance for metal machine?

We are member of trade assurance.
You will get

• Order quality and on-time shipment safe guards

4, I did not imported before, how should I do?

You only need pay to us, we will arrange all the things to you and teach you how to do we will prepare

all the documents for you, you don’t need worry, because we know what you need.

5, How about the documents after shipment?

• Usually, if your country doesn’t need original documents, telex release will be more convenient.
• Otherwise, we’ll send all original documents (for example: the Packing List, Commercial Invoice, B/L,

and other certificates as required by you) to you by express.
6, How about the packing ?

Free strong plywood box
