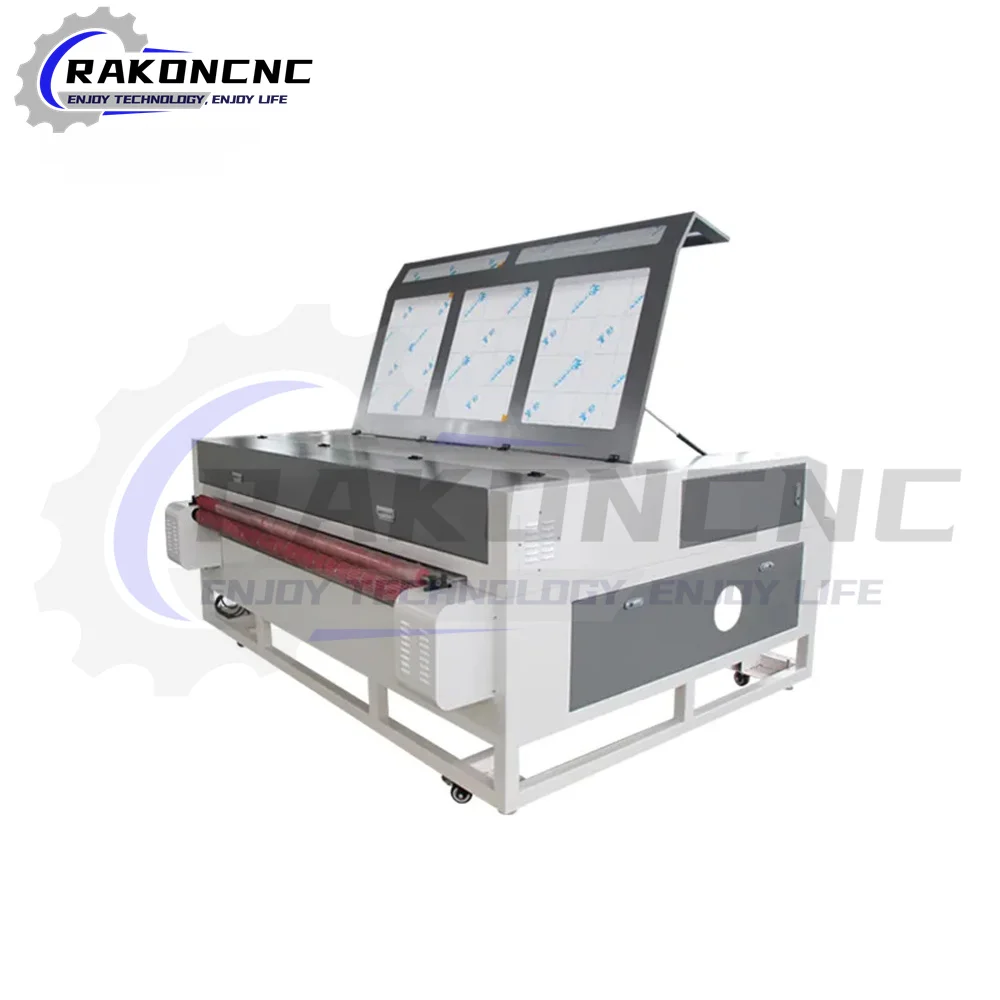

Co2 Laser Cutting Machine Double Heads 1390 1610 1325 100W 130W 150W Co2 Laser

Co2 Laser Cutting Machine Double Heads 1390 1610 1325 100W 130W 150W Co2 Laser

Miss. Merry

Jinan Rakoncnc Machinery Co., Ltd

Email:export01@rakoncnc.com

Products Parameter

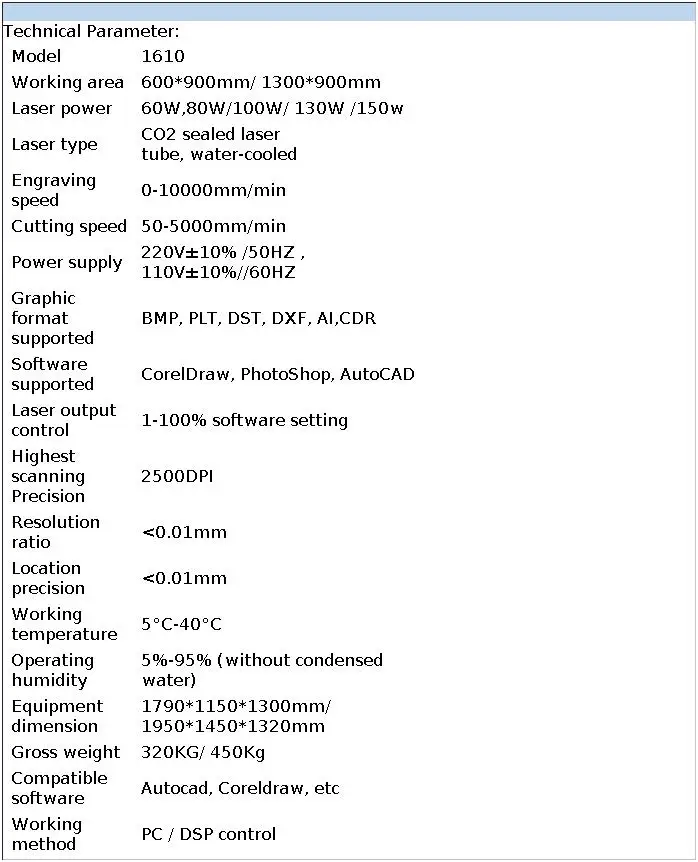

Technical Parameter: Model 1610 Working area 600*900mm/ 1300*900mm Laser power 60W,80W/100W/ 130W /150w Laser type CO2 sealed laser tube, water-cooled Engraving speed 0-10000mm/min Cutting speed 50-5000mm/min Power supply 220V±10% /50HZ , 110V±10%//60HZ Graphic format supported BMP, PLT, DST, DXF, AI,CDR Software supported CorelDraw, PhotoShop, AutoCAD Laser output control 1-100% software setting Highest scanning Precision 2500DPI Resolution ratio <0.01mm Location precision <0.01mm Working temperature 5°C-40°C Operating humidity 5%-95% (without condensed water) Equipment dimension 1790*1150*1300mm/ 1950*1450*1320mm Gross weight 320KG/ 450Kg Compatible software Autocad, Coreldraw, etc Working method PC / DSP control



Product Features

1.Cold-rolled steel welded machine bed, strong and running stable.



2. Aluminium blade table: to process hard materials like acrylic, wood and so on.



3.Fireproof window,more security.



4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service timeover 8500~10000 working hours.



5. Laser Power 60W~150W, good quality and stable output to prolong the laser tube service time.



6.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.



7.High accuracy stepper motors and drivers. Belt transmisson.



Products Details



Products Applications

• Non-metal materials ,such as double color board, plexiglass, glass, bamboo and wood , rubber, marble, granite, tiles , leathers, etc.

•

Sample Display

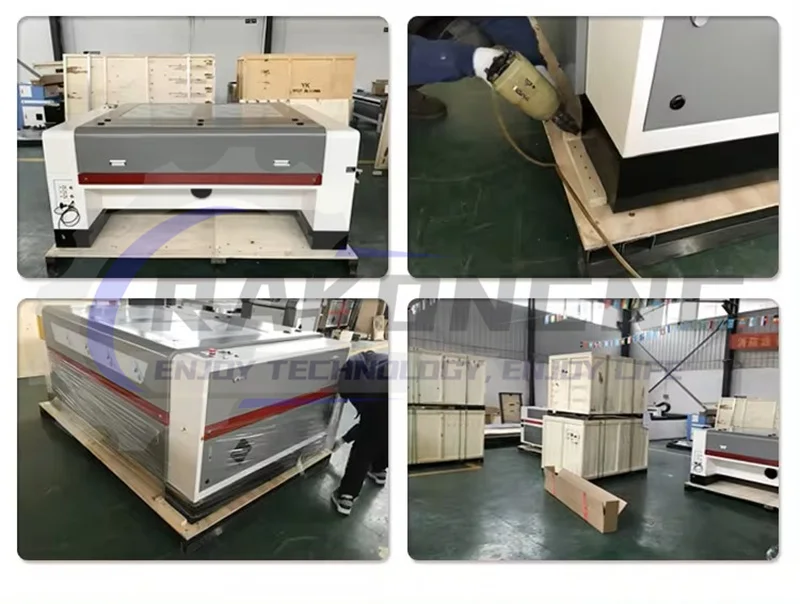

Package and Delivery

F A Q
