DC 12V 24V 110V 220V Solenoid Valve 1/4

Rated 5.00 out of 5 based on 14 customer ratings
(14 customer reviews)

$10.46 – $11.46

SKU: 8ZIKO4HFBW22 Category:

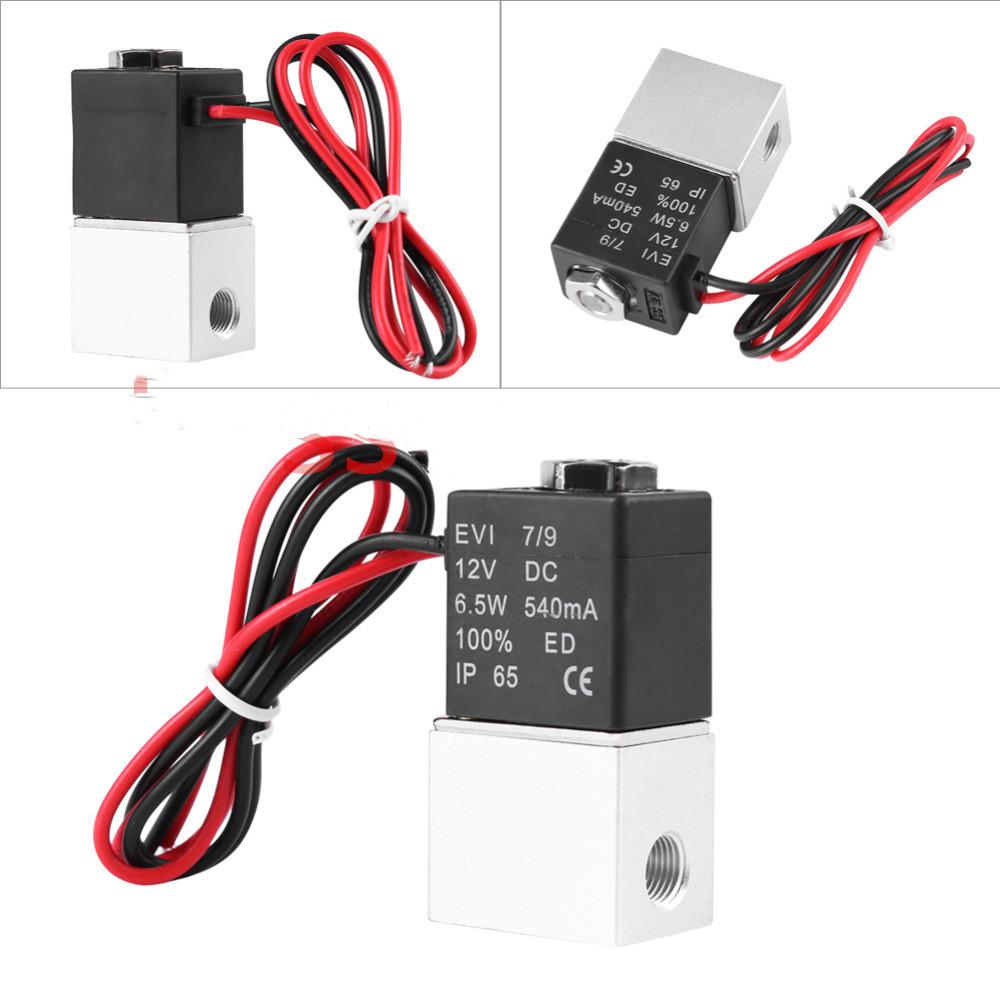

DC 12V Solenoid Valve 1/4″ 1/8″ 2 Way Normally Closed Direct-acting Pneumatic Valves For Water Air Gas

Specifications

Model Number: 2V025-1/4-12VDC/2V025-1/8-12VDC

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Port Size: 1/4″ NPT Female Port,1/8″ NPT Female Port

Coil Voltage: DC12V
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C

Coil Power: 6.5W

Material:
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
Package included

1 x Solenoid Valve


Weight 0.145 kg
Dimensions 13 × 9 × 4 cm
Brand Name

NoEnName_Null
Origin

Mainland China
Structure

control
Power Source

DC
Standard or Nonstandard

Standard
Certification

none
Material

ALLOY
Pressure

Medium Pressure
Actuator Mode

With Manual And Instruction
Power

Manual
Choice

yes

14 reviews for DC 12V 24V 110V 220V Solenoid Valve 1/4

  1. Rated 5 out of 5

    L***i –

    Excellent, working as a drain on my compressor

    Voltage: 220V Specification: 1/4″

  2. Rated 5 out of 5

    AliExpress Shopper –

    Product of excellent quality, the material of manufacture is very good, arrived 4 days before the indicated date and its operation the expected, highly recommended.

    Voltage: 12V Specification: 1/8″

  3. Rated 5 out of 5

    r***o –

    Ótimo

    Voltage: 220V Specification: 1/4″

  4. Rated 5 out of 5

    j***o –

    good

    Voltage: 12V Specification: 1/8″

  5. Rated 5 out of 5

    G***s –

    Fast delivery

    Voltage: 220V Specification: 1/4″

  6. Rated 5 out of 5

    M***a –

    Excellent! 5 stars!

    Voltage: 24V Specification: 1/8″

  7. Rated 5 out of 5

    c***z –

    It looks good, it only needs to be used.

    Voltage: 12V Specification: 1/4″

  8. Rated 5 out of 5

    진***ë…¸ –

    That’s just right. It’s good.

    Voltage: 12V Specification: 1/8″

  9. Rated 5 out of 5

    I***a –

    Good quality material, narrow gas or liquid passage suits high pressure flow, the manufacturer didn’t indicate the flow direction.

    Voltage: 12V Specification: 1/4″

  10. Rated 5 out of 5

    t***e –

    Can’t I look like anything yet but good

    Voltage: 24V Specification: 1/4″

  11. Rated 5 out of 5

    d***c –

    honest and reliable seller, good contact. I recommend

    Voltage: 12V Specification: 1/4″

  12. Rated 5 out of 5

    P***k –

    Arrived OK and in Time

    Voltage: 12V Specification: 1/4″

  13. Rated 5 out of 5

    G***r –

    The electronics work. I would have to test how much pressure it holds.

    Voltage: 12V Specification: 1/8″

  14. Rated 5 out of 5

    d***A –

    I am absolutely delighted with this product! The quality exceeded my expectations, and it performs exceptionally well for my needs. From the build to the functionality, every aspect showcases excellent craftsmanship. I especially appreciate how reliable and durable it has been so far. It truly stands out compared to similar products I’ve used in the past. I highly recommend it to anyone considering a purchase—this is definitely worth every penny and has become an essential part of my setup. I will be purchasing more in the future and recommending it to my friends.

    Voltage: 12V Specification: 1/4″
