Diaotu B3 Wireless Control Fiber laser marking machine Raycus 30w Laser engraving Machine For metal JPT laser engraver Jewelry

Parameter Specifications

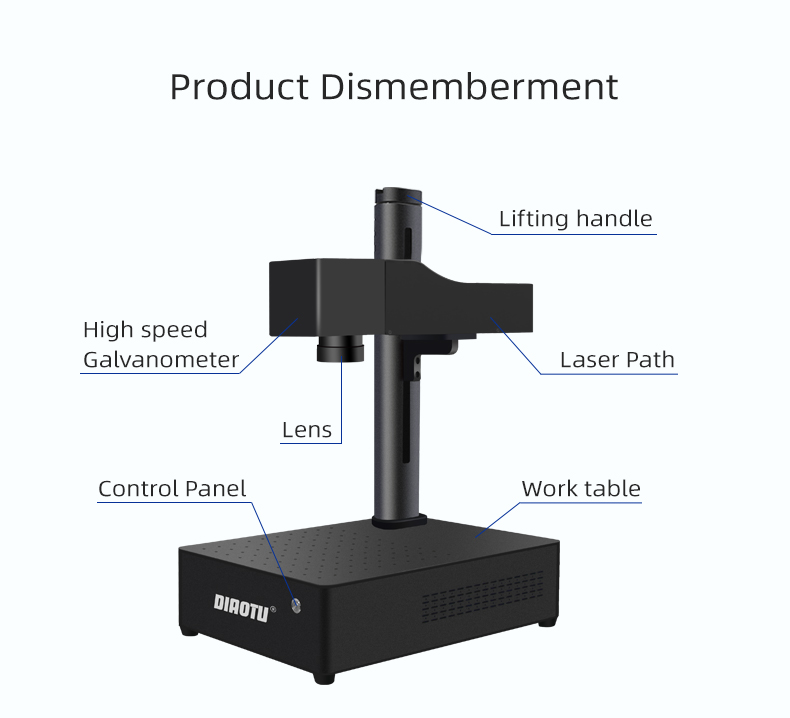

Model:B3 ——– A pure industrial machine with new industrial design

Fiber Laser source:Raycus and JPT(MOPA)

Software:DTCAD(default with 14 languages including English, Spanish, French, Russianetc.)

Supporting system: Window or Android /Iphone

Working area :70mm/110mm/150mm/200mm

Input power:220V/110V

Red light preview：Single red dot preview(default)/Double red dot preview(Optional)

Output power:20W/30W/50W/60W

Laser Wavelength:1064nm

Marking speed : 0-15000mm/s

Weight :10.5/14.5kg/19kg/21kg

Minimum line width:0.01mm

Resolution: 0.001mm

Cooling system :Air cooling

Marking Content：Text, pattern, date,bar code, etc

Product Highlights

1.Compact & Portable With exact same
industrial function, we managed to make the product as Compact as possible. Not
only you can save some shipping cost, but also it is more continent

2.High Speed & Accuracy The benefit of
industrial configuration for the machine is that it works with extremely high accuracy and Speed

3.Easy to use The software is very user-friendly, which allows to edit text, import any picture or vector files

4.B3 has a very fast positioning function, which can automatically mark in batches, while using red light positioning to make the engraving more accurate

5.Automatically generate QR code/bar-code

Applicable material

It can mark all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy etc. It can mark most of the plastics and rubbers. It doesn’t works one paper or wood material

Please kindly be noticed

a.Free shipping is not means free duty. As we all known, import high value goods would be charged import tax in
each country; AND NOT included the remote area charge too

b.If you need to buy rotary, please place an order together and we will install the rotary driver
directly during installation

c. IF you need wireless control please contact us , it is optional function for extra price

Any question, please contact with us!

How to choose lens

With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ，
Bigger Lens Engrave Bigger Area ，
Smaller Lens Engrave Deeper Depth,

if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm
