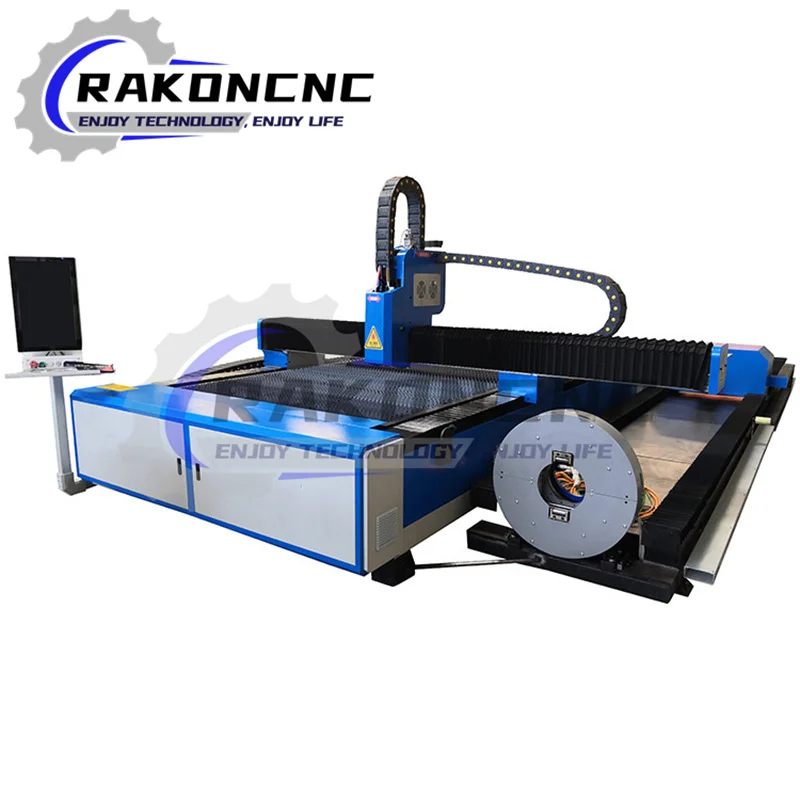

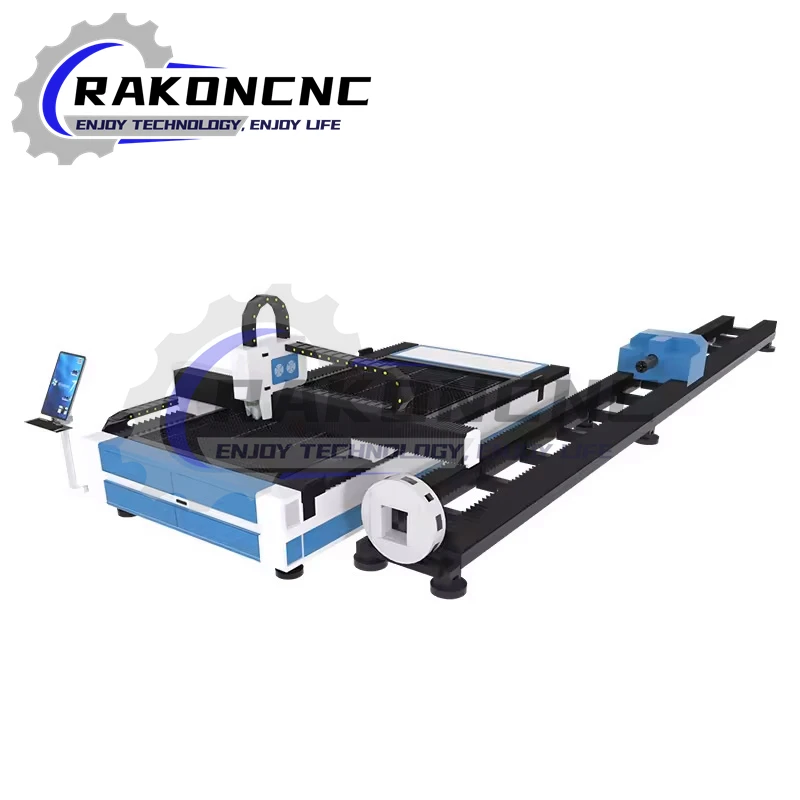

Fiber Laser 1.5Kw 2Kw 3Kw Sheet & Tube Cutting Machines 3015 6020 6M 12M Tube And Plate Metal Cutting



Fiber Laser 1.5Kw 2Kw 3Kw Sheet & Tube Cutting Machines 3015 6020 6M 12M Tube And Plate Metal Cutting

Jinan Rakoncnc Machinery Co., Ltd

+86-15098848753

Rakoncnc@outlook.com

Features:

1.Whole Machine welded bed structure,Stable performance,could ensure the stable operation of equipment
2.After high temperature heat treatment Machine bed, adopt large Gantry milling accuracy process, ensure machine bed stability and smoothness.
3.High quality, high efficiency fiber laser producer. low processing cost and energy conservation and environment protection
4.Servo drive,The structure of the machine tool adopts rack and pinion drive,Ensure equipment high speed , high accuracy, and high reliability
5. Fast delivery 1500kw high power CNC metal sheet plate and pipe fiber laser cutting machine,1500W, 2000W, 3000W, 6000W, 8000W fiber laser power available
6. laser cutting machine adopts MAX, RAYCUS fiber laser source brand available
7. High speed, high accuracy, stable performance, best quality

Products Parameter

No.	ITEM	DESCRIPTION
01	Machine Structure	Pipe Welding Machine Body,Aviation Aluminum Beam
02	Working Area	3000*1500mm
03	Laser Source	Raycus / MAX / JPT / IPG/RECI
04	Laser Cutting Head	Switzerland Raytools Auto Focus Bm110
05	Transmission System	Dual Drive ,Precise Rack & Pinion
06	Guide Rail	Taiwan Hiwin
07	Rack &Pinion	Taiwan Yyc
08	Speed Reducer	Japan Shimpo Reducer
09	Motor &Drives	Japan Yaskawa Servo System
10	Water Chiller	S&A
11	Control System	Cypcut
12	Proportional Valve	Jpan Smc
13	Alxiliary Parts	Exhaust Fan
14	Electrical Component	Schineider France
15	Computer	Yes
16	Auto Lubrication	Yes
17	Remote Controller	Yes
18	Automatic Voltage Stabilizer (50Kva)	Yes
19	X/Y Axis Repeated Position Precision	+-0.03mm
20	Machine Net Weight	2000kgs
21	Voltage	380V,50Hz

Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.

Application Industries:
Rakoncnc Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

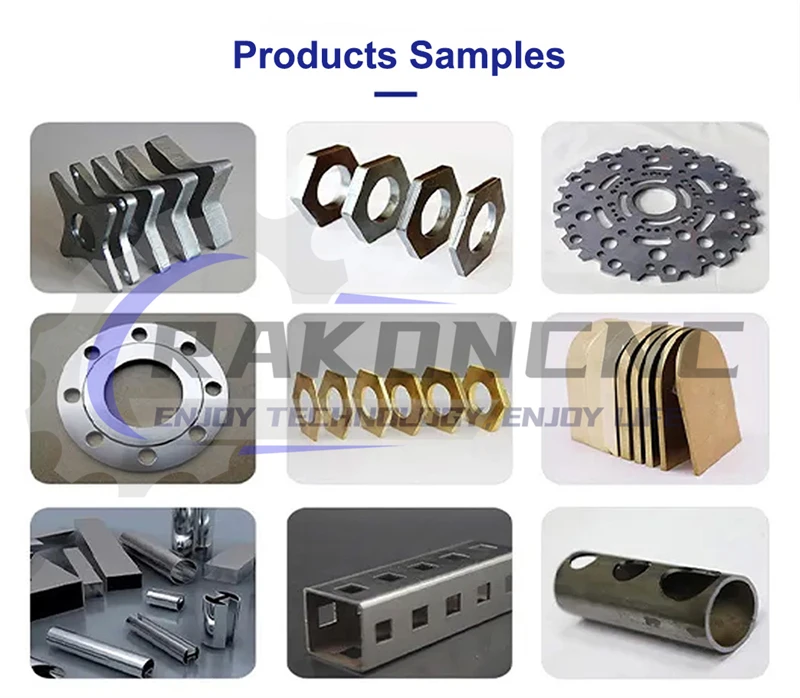

Sample Display:

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
