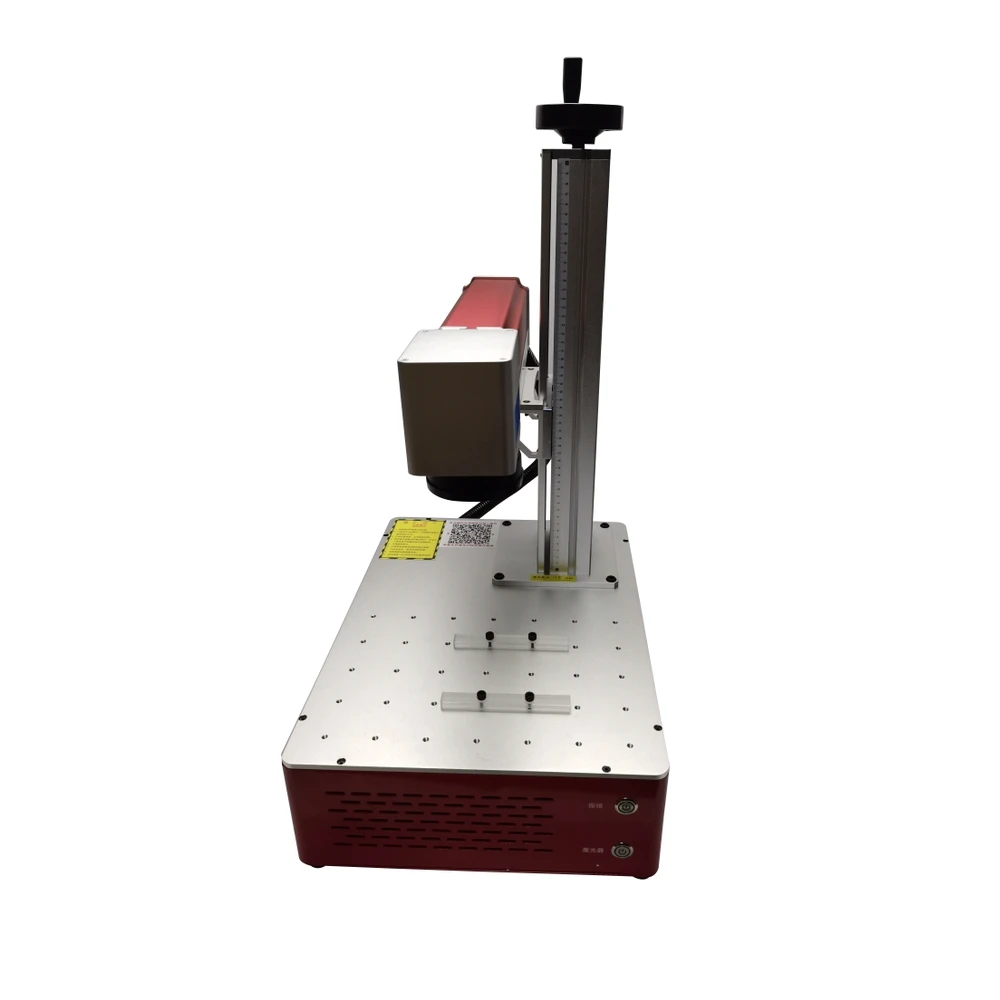

Fiber Laser Marking Machine 20W/30W/50W MAX Raycus Metal Engraving Machine for Steel Gold Aluminum Carving Mobile Repair







20W/30W/50W MAX/RAYCUS Disassembled desktop mini galvo scanner align system all in one optical fiber laser nameplate Marking machine Fiber laser engraver engraving compatible for metal carving mobile repair



Package has U disk , U disk include detail ENGLISH Control Software and driver and english manual and operate video .

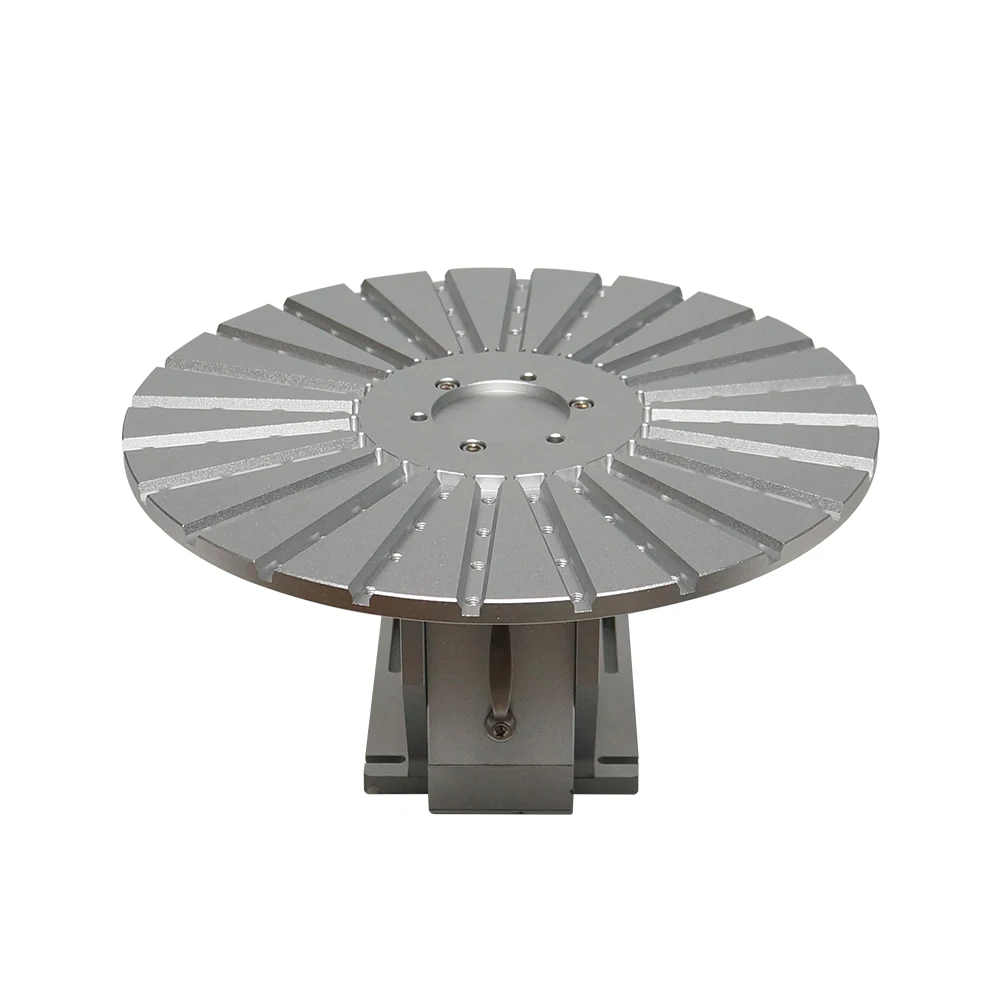

If Buyers want addional rotary axis and lens , please press these pictures to order them together ！



Technical Parameter:



Laser Source : MAX / RAYCUS brand

Laser power: 20W/30W/50W

Working Area : 110*110mm(Initial) Or 150*150mm(Optional) /200*200mm/ 300*300mm(Optional)

Cooling Mode : Air Cooling

Laser Wavelength: 1064nm

Frequency of pulse : 20-100 KHz

Marking Depth: ≤0.3 mm

Marking Speed: ≤7000 mm/s

Marking Lines: 1-10 lines

Minimum Line Width: 0.01 mm

Minimum Character: 0.15 mm

Repeatability Accuracy: ±0.002 mm

Resolution Ratio: 0.1 mm

Marking Content: Text, pattern, date, bar code, etc

Operation System: Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

Control Software: Ezcad software .

Graphic Format Supported: BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power: 500W

Operation Temperature: 5°C-40°C

Relative Moisture: ≤ 90%, no fog

Dimensions(L*W*H): 45 x 55 x 75 cm

Power supply requirements: 220 V or 110V

Weight: 35KG

Warranty: 24 months

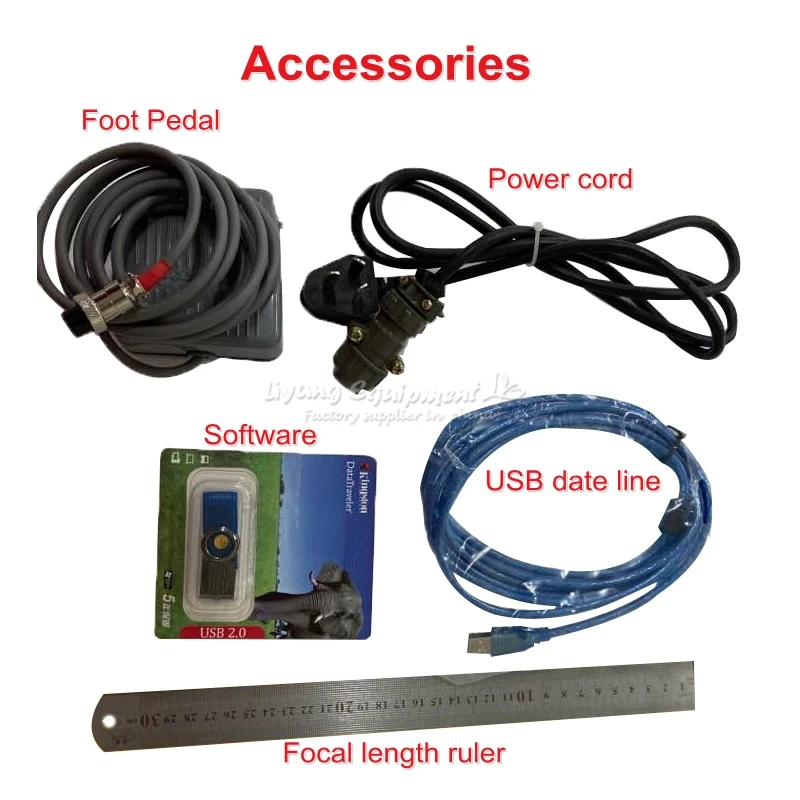

Packing List:

Machine x 1

USB disk x1 (englsih Software and english manual)

Wrench x 1 kit

Power cable x 1

USB data cable x 1

Test marking plate several

Plastic Align rod x 2
