FONLAND Ruida RDC6445 RDC6445G RDC6445S Controller for CO2 Laser Engraving Cutting Machine Upgrade RDC6442 RDC6442G

FONLAND Ruida RDC6445 RDC6445G RDC6445S Controller for Co2 Laser Engraving Cutting Machine Upgrade RDC6442 RDC6442G

Notice: 6445S is a upgrade version for 6445G

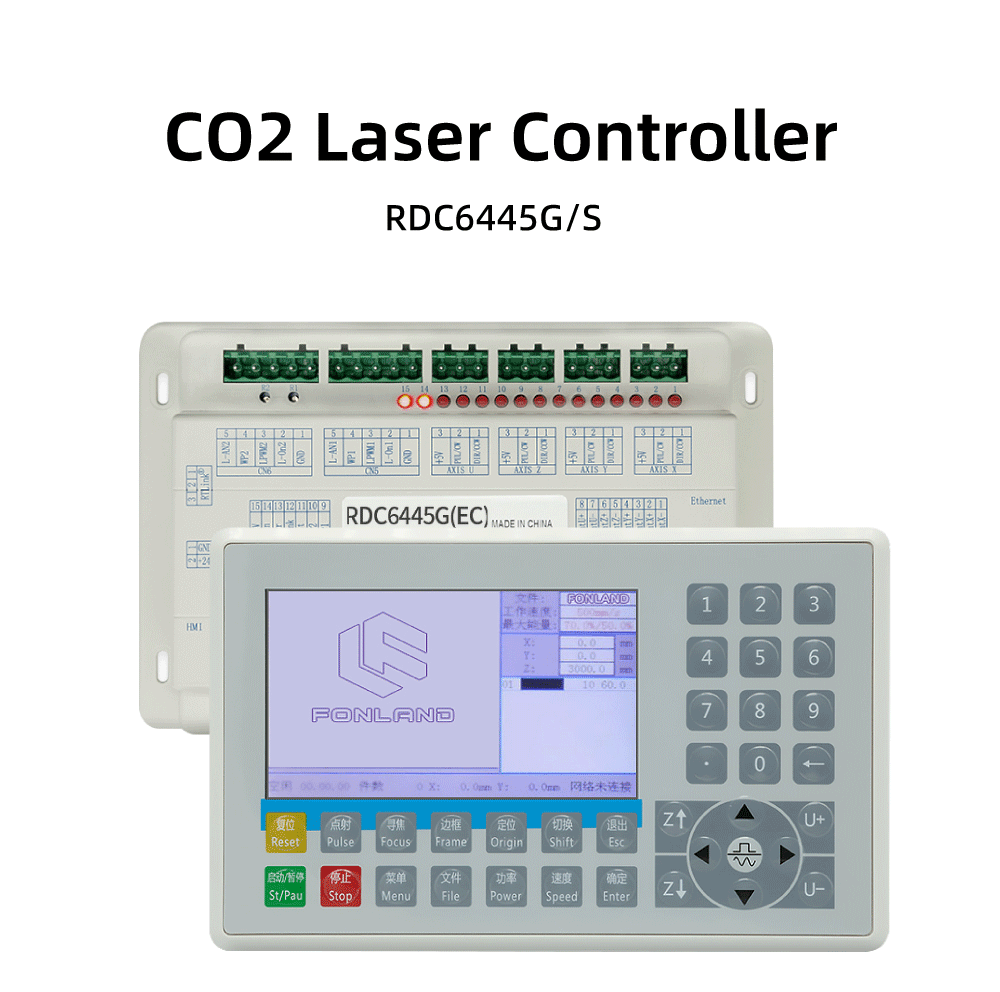

Name:Co2 Laser Controller

Model:
Ruida RDC6445G RDC6445S

Feature:

• Working standalone.128M memory on board.
• Support USB/Ethernet communication and U disk.
• Application software: RDWorksV8. AutoCAD, CorelDraw and Al plug-in software.
• Support 4 axes motion control and 2 channels laser control.
• Support panel to modify manufacturer/user parameters.
• Support manual point/continuous switch,automatic focus and docking point setting functions.
• Yaxis and U axis feeding synchronously.
• Support fixed single and double-head cutting,Double-head shift processing and over-breadth cutting processing.

Parameters:

• Axis:
  4 axis.Pulse+ DIR sianalmaximum Pulse freauency y is 400KHZ
• Laser control:
  2 channels
• Safety protection:
  Security protection and software protection
• Rotary axis:
  Support
• Engraving function:
  Planar engraving/grayscale engraving and 3D engraving
• Docking position:
  Support manual input/automatic extraction of docking coordinates
• Adaptive:
  CO2 glass tube, CO2 metal RF, fiber and UV laser
• Pecision:
  +/-0.5 pulse
• Virtual print:
  Support
• Product licensing:
  Support
• Firmware upgrade:
  Support remote upgrade the mainboard and touch screen program

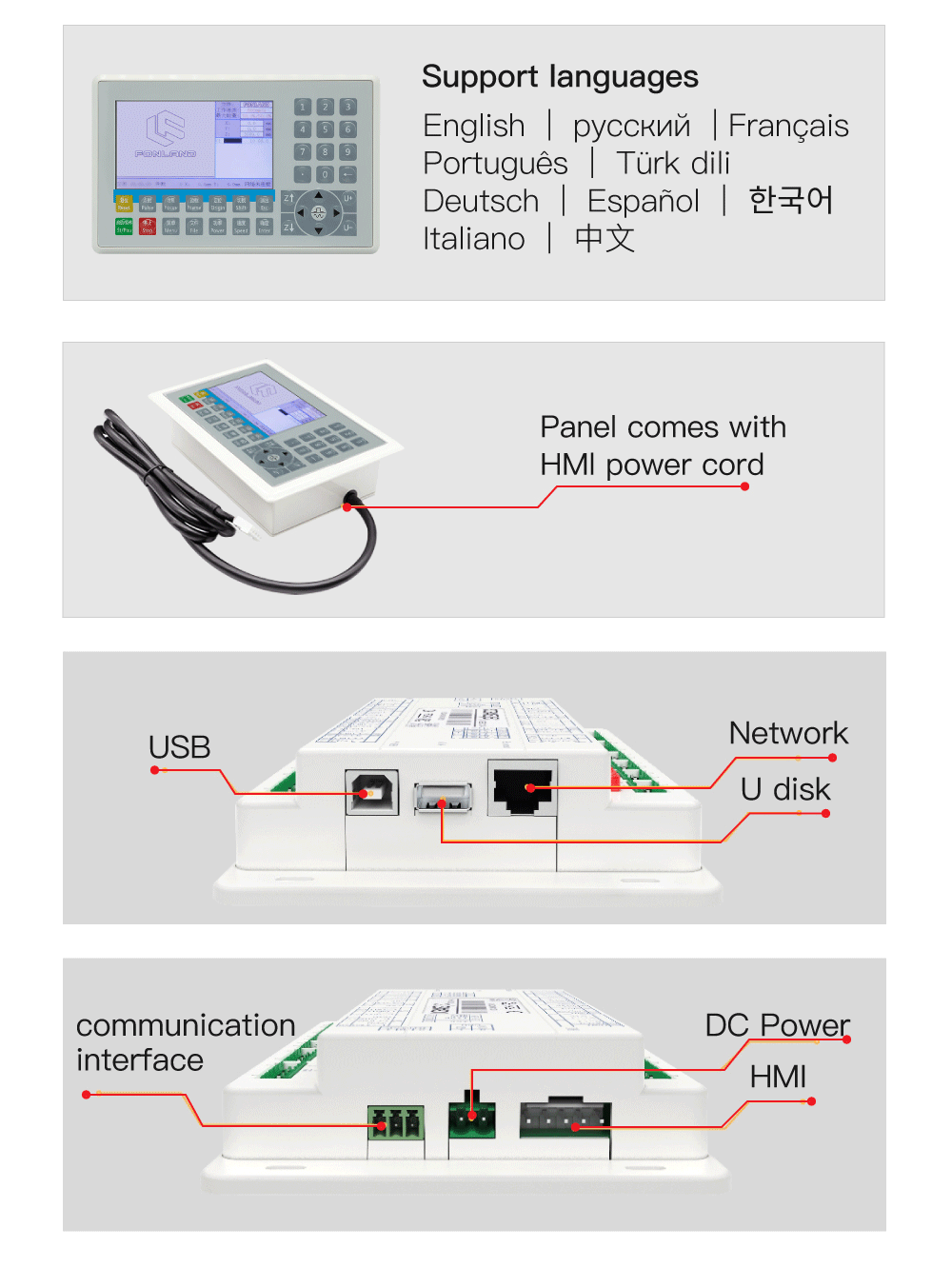

Multiple Languages:

• Support simplified Chinese, traditional Chinese,English,Japaness, German, Russia, Spanish,Portuguese,Korean,French and other 16 languages.

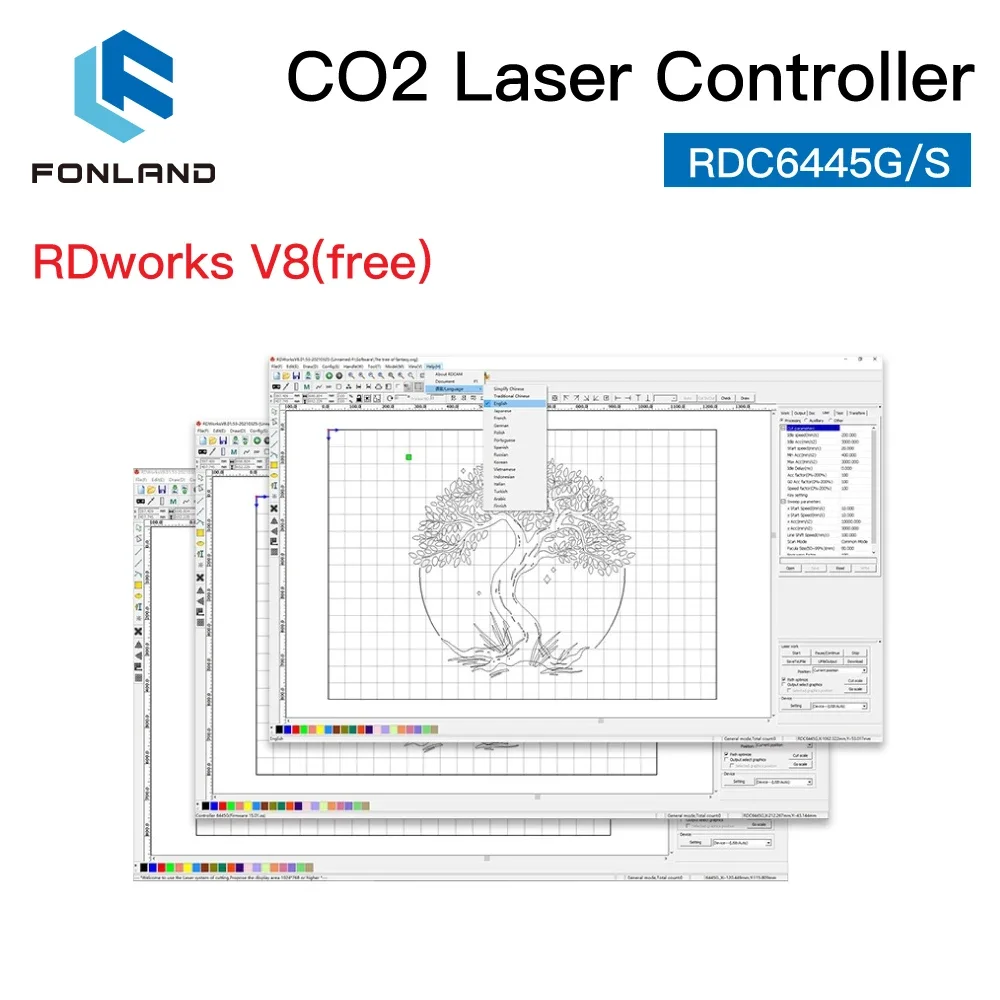

Software RDworks V8:

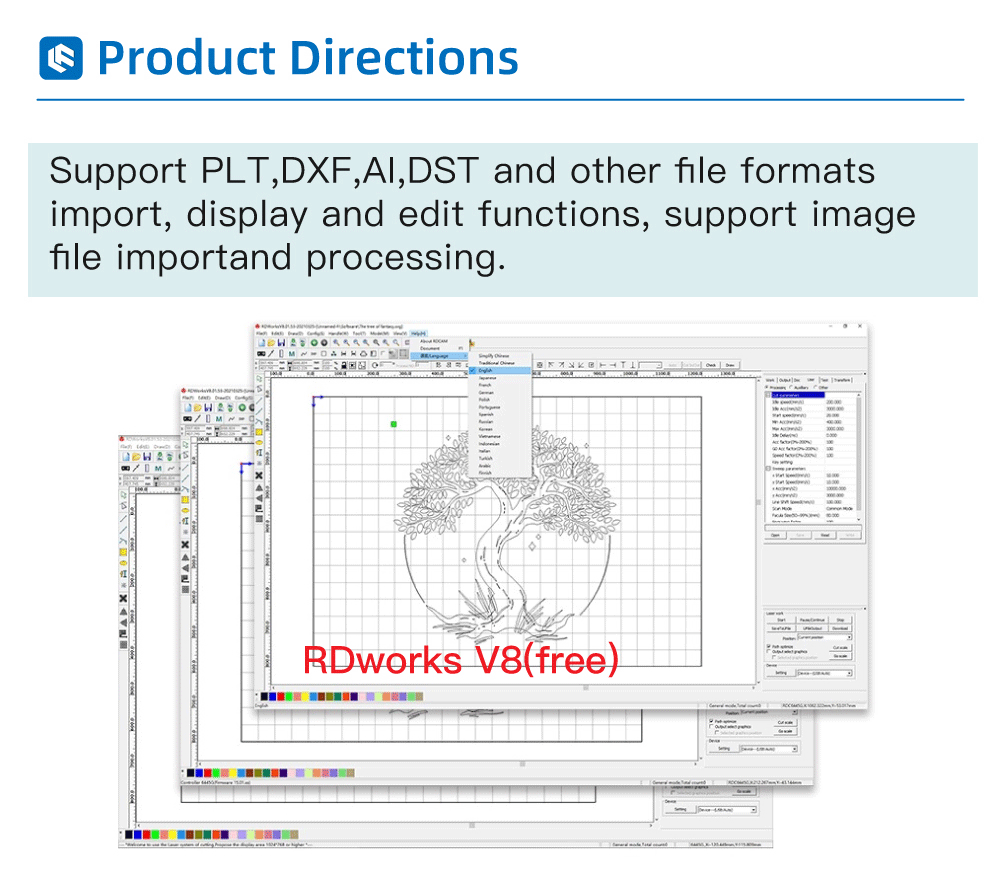

• Support PLT,DXF,AI,DST and other file formats, display and edit functions, support image file import ans peocessing.

Application Area:

• Focus on non-metal cutting, suitable for leather, fobric, sign and 3C application fields.
