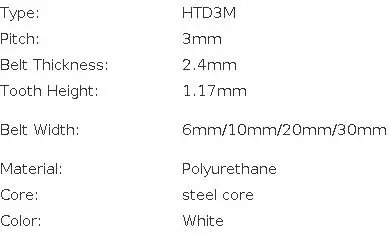

Type: |
HTD3M |
|
Pitch: |
3mm |
|
Belt Thickness: |
2.4mm |
|
Tooth Height: |
1.17mm |
|
Belt Width: |
6mm/10mm/20mm/30mm |
|
Material: |
Polyurethane |
|
Core: |
steel core |
|
Color: |
White |
If need other tooth shape, check on the Tooth shape list and click the model to purchase
|
Picture of tooth shape |
Model |
Pitch (mm) |
Tooth height (mm) |
Belt thickness (mm) |
|
Pb |
hg |
H |
||
|
|
2.5 |
0.7 |
1.3 |
|
|
5 |
1.2 |
2.2 |
||
|
10 |
2.5 |
4.5 |
||
|
T20 |
20 |
5 |
8 |
|
|
|
AT3 |
3 |
1.1 |
1.9 |
|
5 |
1.2 |
2.7 |
||
|
10 |
2.5 |
4.5 |
||
|
AT20 |
20 |
5 |
8 |
|
|
|
3 |
1.17 |
2.4 |
|
|
5 |
2.06 |
3.6 |
||
|
8 |
3.38 |
5.6 |
||
|
HTD14M |
14 |
6 |
10 |
|
|
|
3 |
1.14 |
1.9 |
|
|
5 |
1.91 |
3.4 |
||
|
8 |
3.05 |
5.2 |
||
|
STD14M |
14 |
5.3 |
10.2 |
|
|
|
RPP5M |
5 |
2 |
3.8 |
|
8 |
3.2 |
5.4 |
||
|
RPP14M |
14 |
6 |
10 |
|
|
|
12.7 |
2.3 |
4.3 |
|
|
22.225 |
6.35 |
11.2 |
||
|
|
9.525 |
1.9 |
3.6 |
|
|
5.08 |
1.27 |
2.3 |
||
|
2.032 |
0.51 |
1.14 |
||
|
|
10 |
0 |
1 |
|
|
10 |
0 |
2 |
||
|
10 |
0 |
3 |
||
|
|
2 |
0.75 |
1.38 |
|
|
3 |
1.14 |
2.4 |
||
|
|
5 |
1.2 |
2.6 |
TIMING BELT PROCESSING
1. Connected

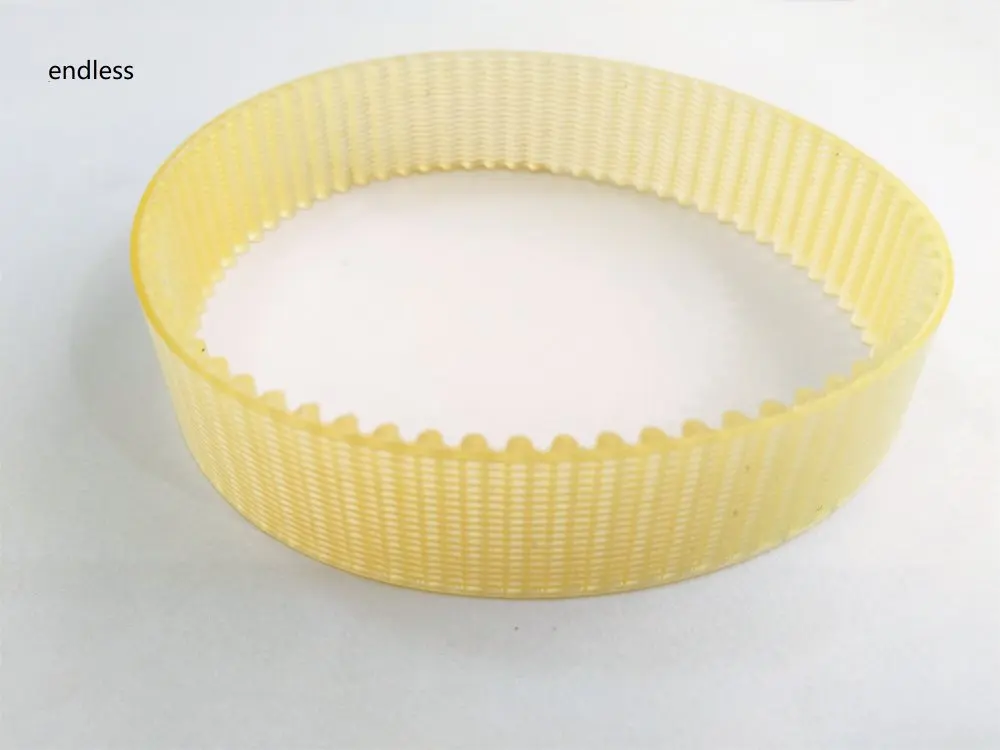

2. Endless
