Huepar 2 Lines Laser Level Self Levelling ( 4 degrees) Green Red Beam Laser Horizontal & Vertical Cross-Line with Magnetic Base



Huepar 2 Lines Laser Level Self Levelling ( 4 degrees) Green Red Beam Laser Horizontal & Vertical Cross-Line with Magnetic Base

Huepar 9011G Cross Line Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
• Laser Wavelength: 510 nm/635 nm
• Spread Coverage: H110°/ V110°
• Horizontal/ Vertical Accuracy: ±3mm/10m
• Leveling/ Compensation Range: 4°±1°
• Working Distance (Line): 30m (100 LUX), up to 40m with laser target/
• Operating Time: Green:6 hours with all laser beams on Red:10hours with all laser beams on
• Power Source: 2×˝AA˝ , >1500mA
• IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough
• Operation Temperature Range: 14℉- 122℉(-10℃–＋50℃)
• Storage Temperature Range: -4℉- 158℉(-20℃–＋70℃)
• Size:7.5×6.5×7.5cm(3”x2.6”x3”)

Warning:
Avoid direct exposure of the laser beam to the eyes.

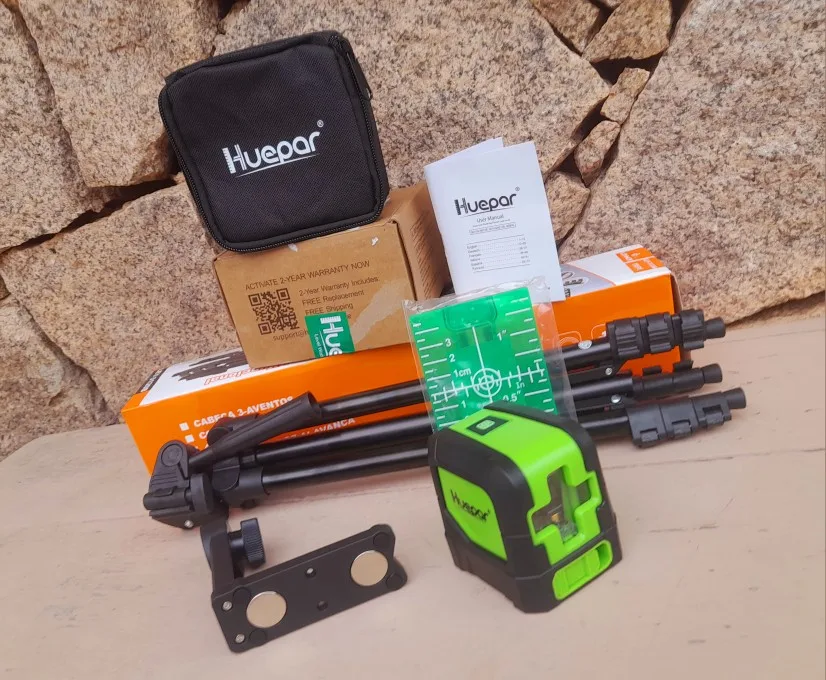

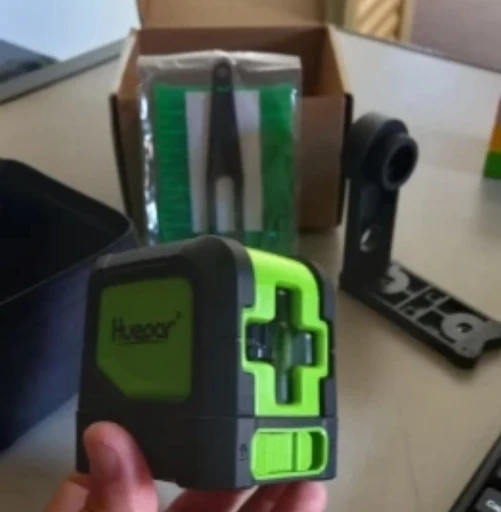

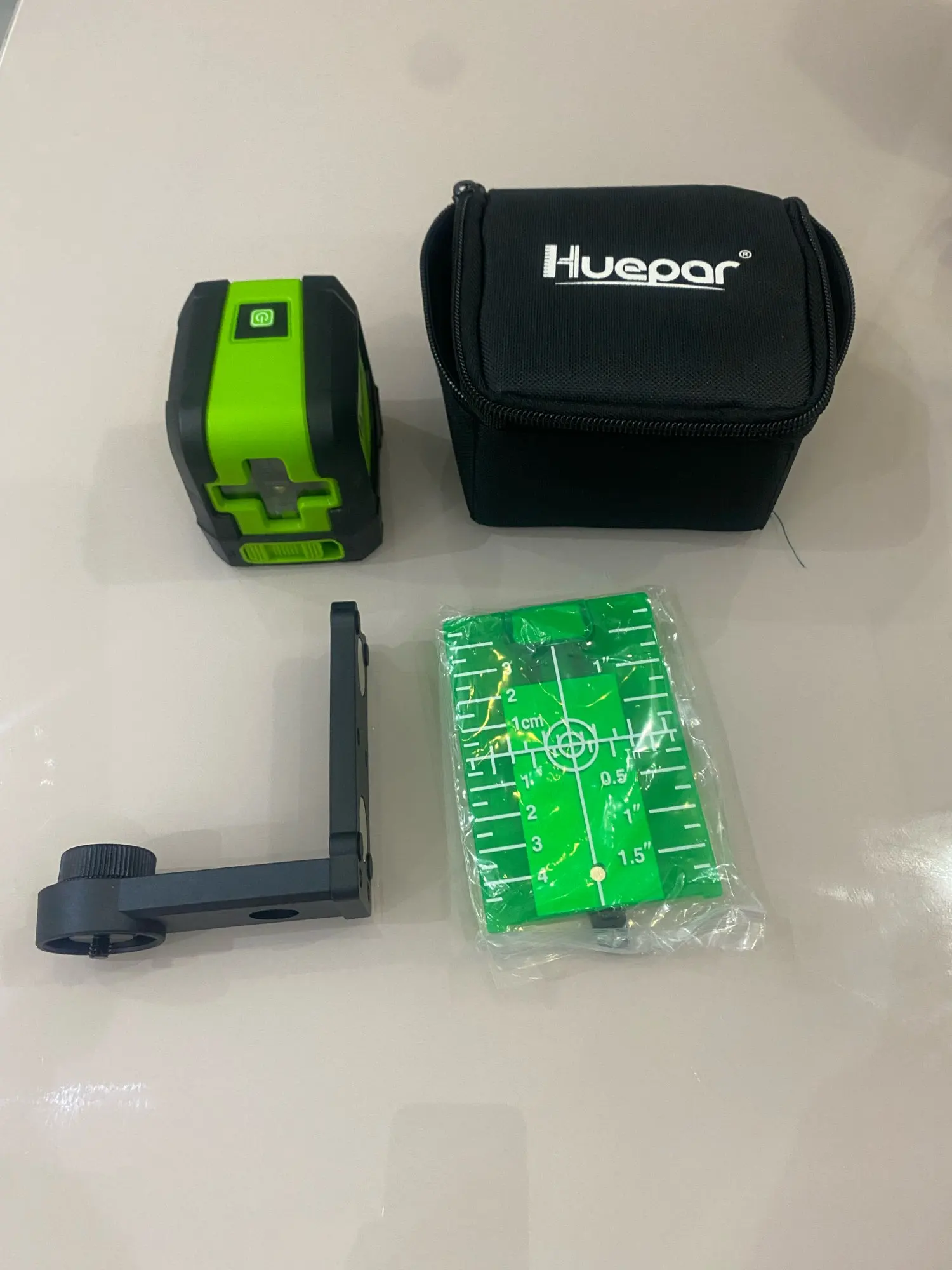

Package Contents for Green Laser level:

• 1 X Huepar 9011G laser level

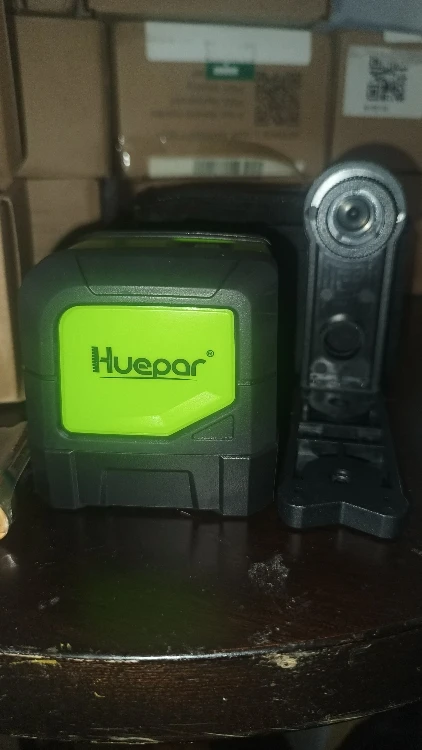

• 1 X 360 Degree Magnetic pivoting base

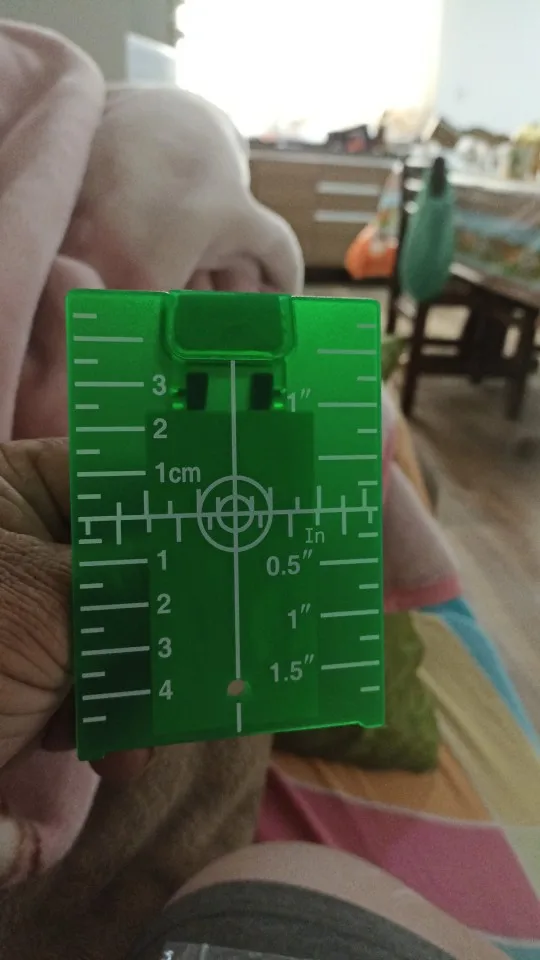

• 1 X Green laser target card

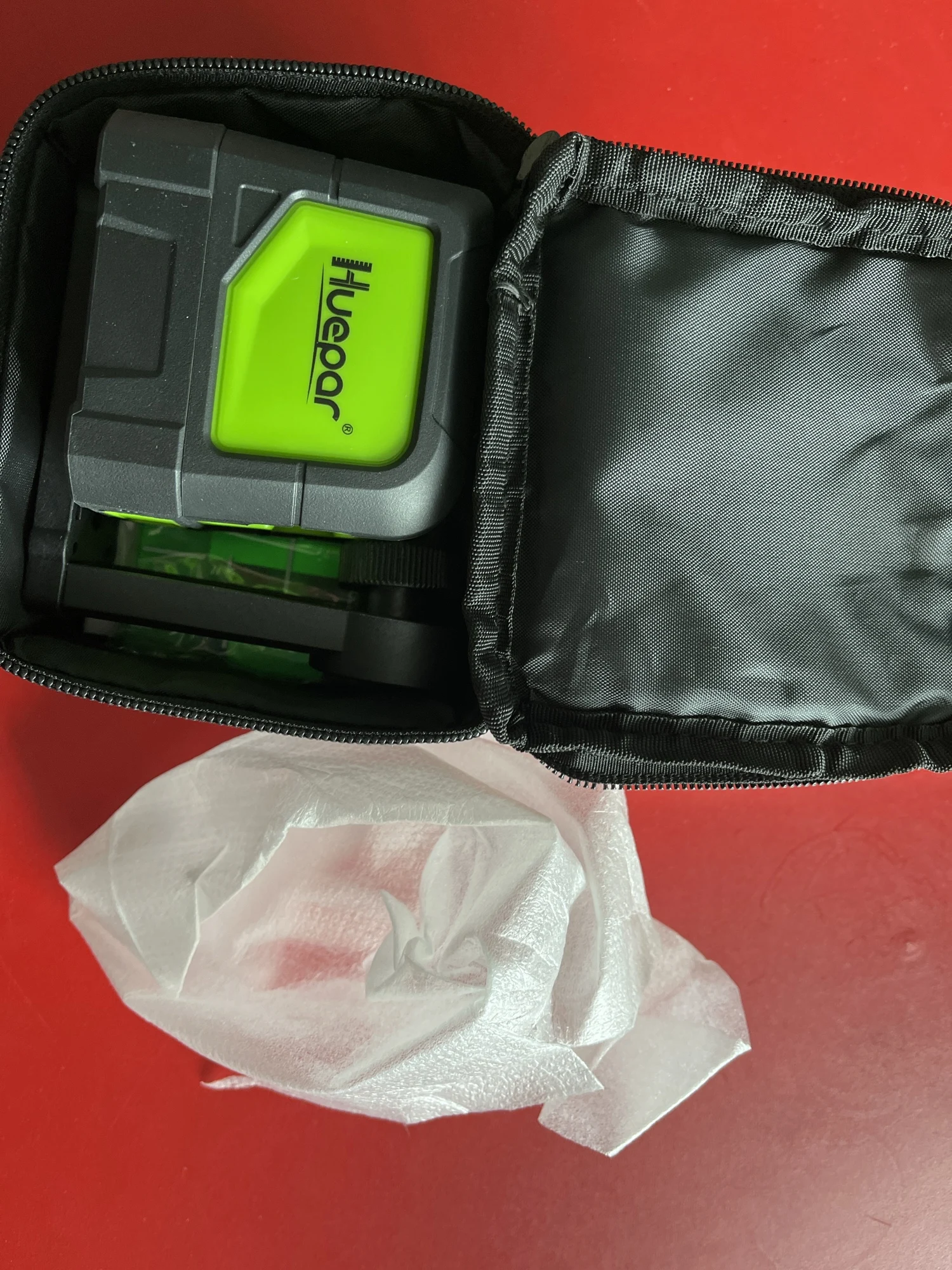

• 1 X Cloth case
• 1 X English User’s Manual



Package Contents for Red Laser level:

• 1 X Huepar 9011R laser level
• 1 X 360 Degree Magnetic pivoting base
• 1 X Red laser target card
• 1 X Cloth case
• 1 X English User’s Manual



Features For 9011G:

Self-leveling mode & Manual mode



➤Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is on. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).anual mode:



➤Manual mode:

When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it’s not self-leveling now.



Imported Germany Osram Diode:

• We adopt advanced bright Osram’s green laser technology, which is the best green laser unit in the word at present;
• Green laser is 2 times brighter than red laser with the same light source.
• When in the cloudy and light intensity is 14000lux environment, but outdoor use is not recommended.

Various Kinds of Fixing Method:

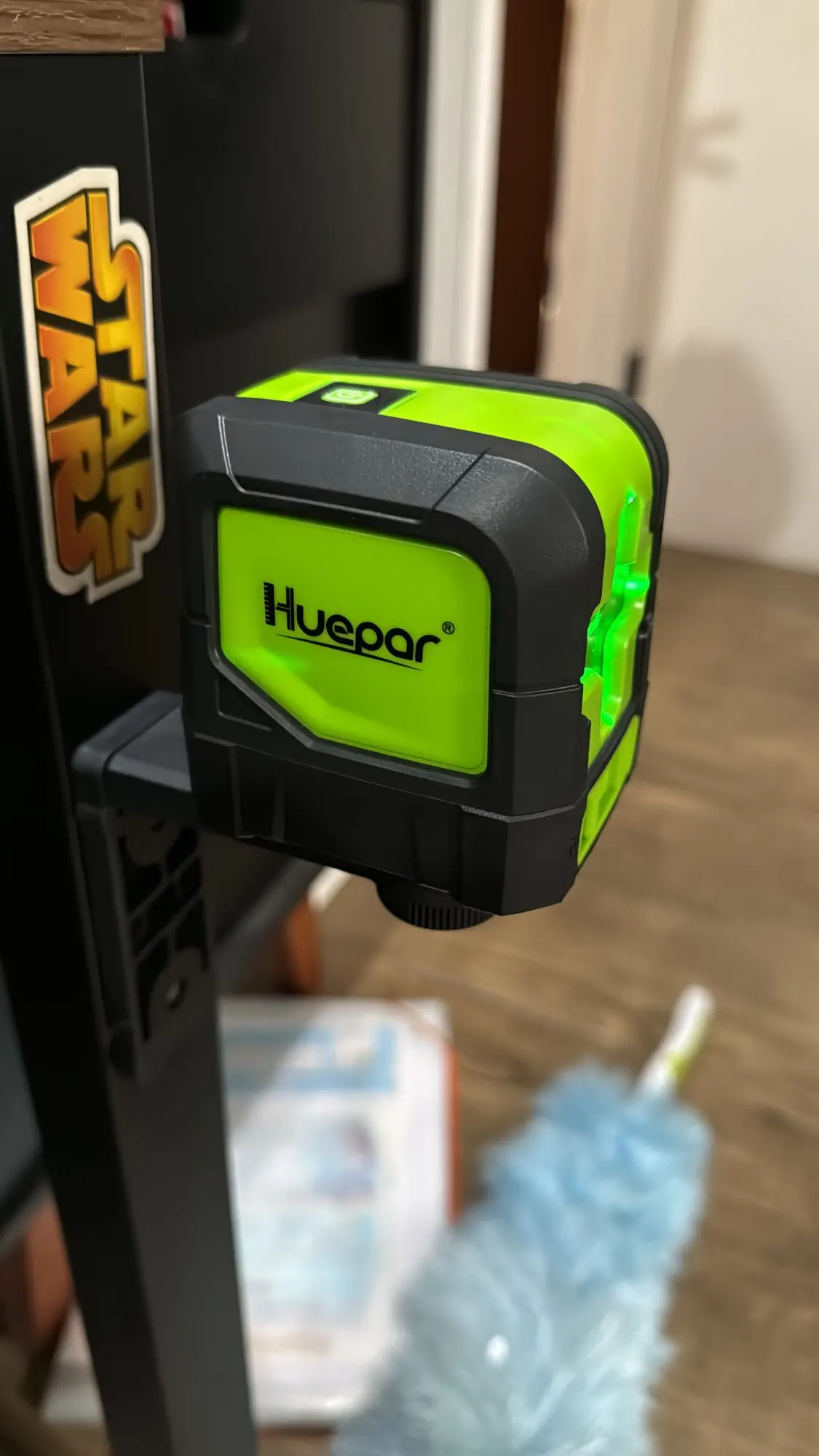

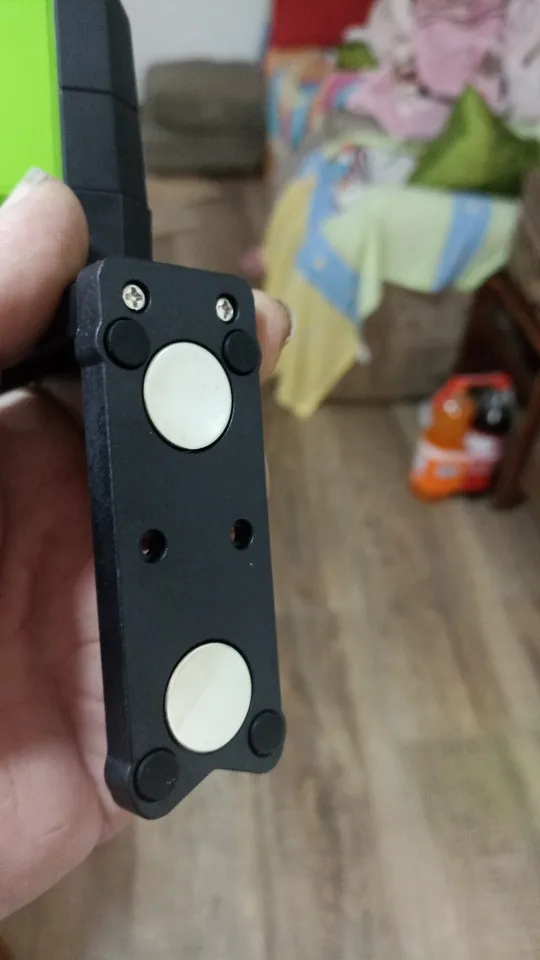

• Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 360 degrees as you like.
• It can also accpets a standard tripod screw to do height adjustment.

How to power ON:Short press the power key or slide locking switch to turn the laser tool ON.

How to power OFF:Lock the pendulum before short pressing the power button to turn the laser tool OFF.

Durable Laser Tool

• This laser level is covered by TPR soft rubber for shock resistant.
• IP54 waterproof and dustproof, shockproof, wear resistant, impact resistance, cold and high temperature.

Wide Use

Huepar’s laser tools can help you work effectively in home decoration: such as pictures hanging design, line up some planters in anticipation of a new decking projects, home refurb projects, wall construction, chandelier installation, mirrors, curtain rails etc.

More Features about this 9011G Laser Level:

• NEW GREEN DIODE TECHNOLOGY: We adopt Osram’s laser unit which is the best green laser unit in the world at present; Green laser is 2 times (300%) brighter than red laser with the same light source. When in the cloudy and light intensity is 14000lux environment, the Huepar 9011G’s visibility is 40ft.
• COMPACT AND HANDY: With its soft-grip, light weight and PALM-SIZED design, the 9011G is the most handy and professional laser tool you can think of to carry out work for all trades from drop ceiling installation, lighting fixtures, photo frames aligning and wall tiling down to floor tiling etc.

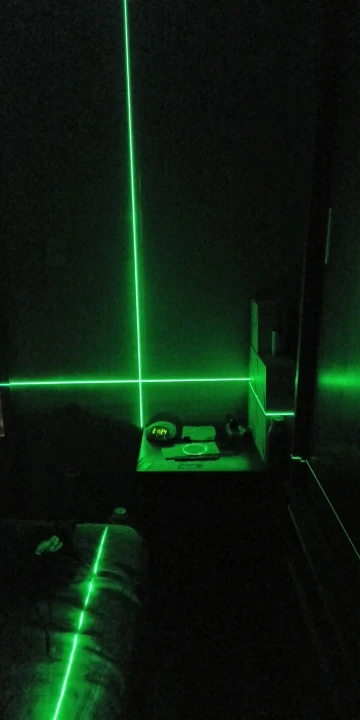

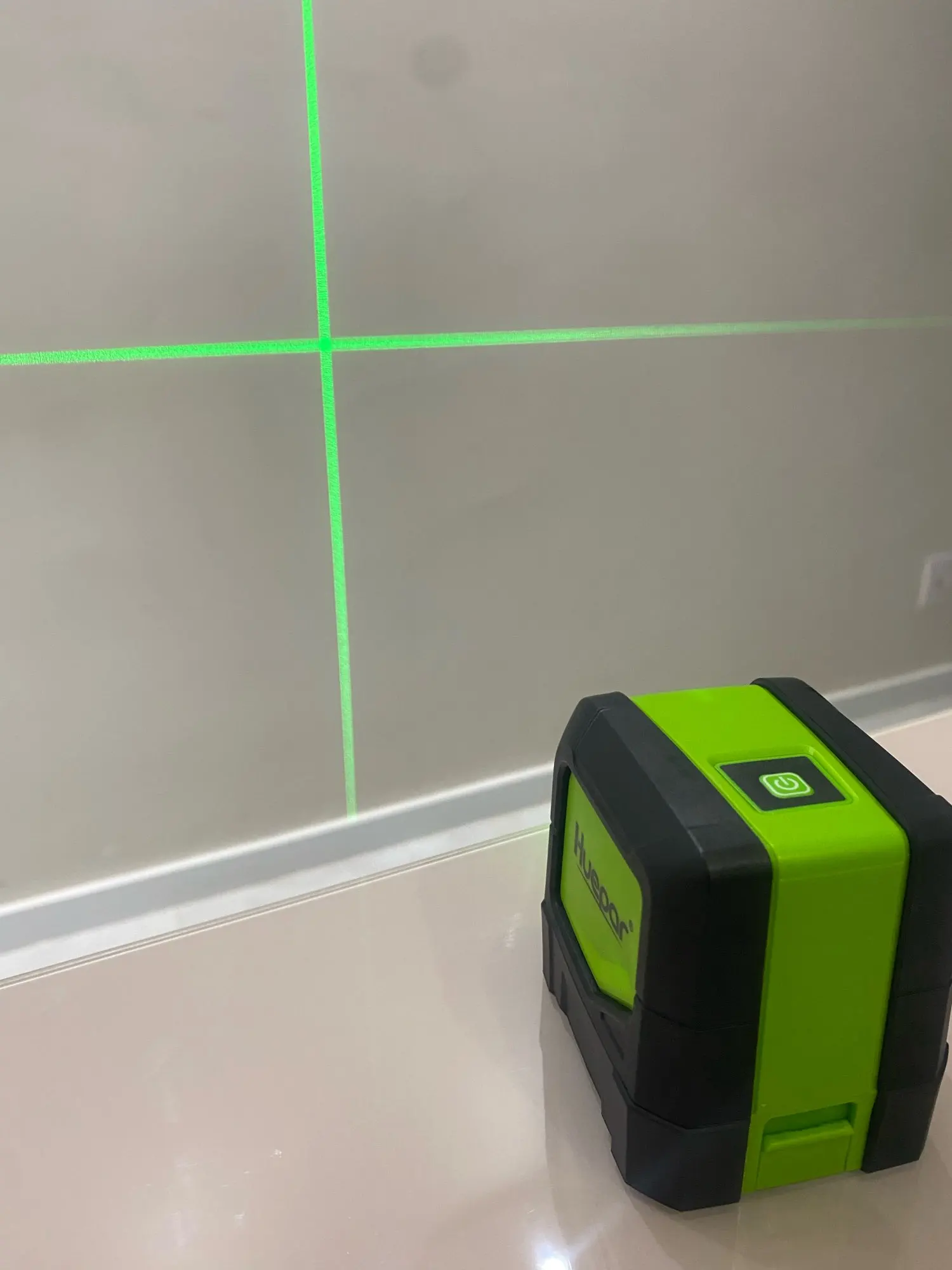

• FINE POSITIONING: Projects a laser cross with an accuracy of ±1/9 of an inch at 33 feet and full brightness for optimal visibility; Self-leveling time less than 3 seconds; 1/4 -20 thread mounts allows you to use it with a tripod (not included) and adjust its height easily to make measuring flexible and stable.

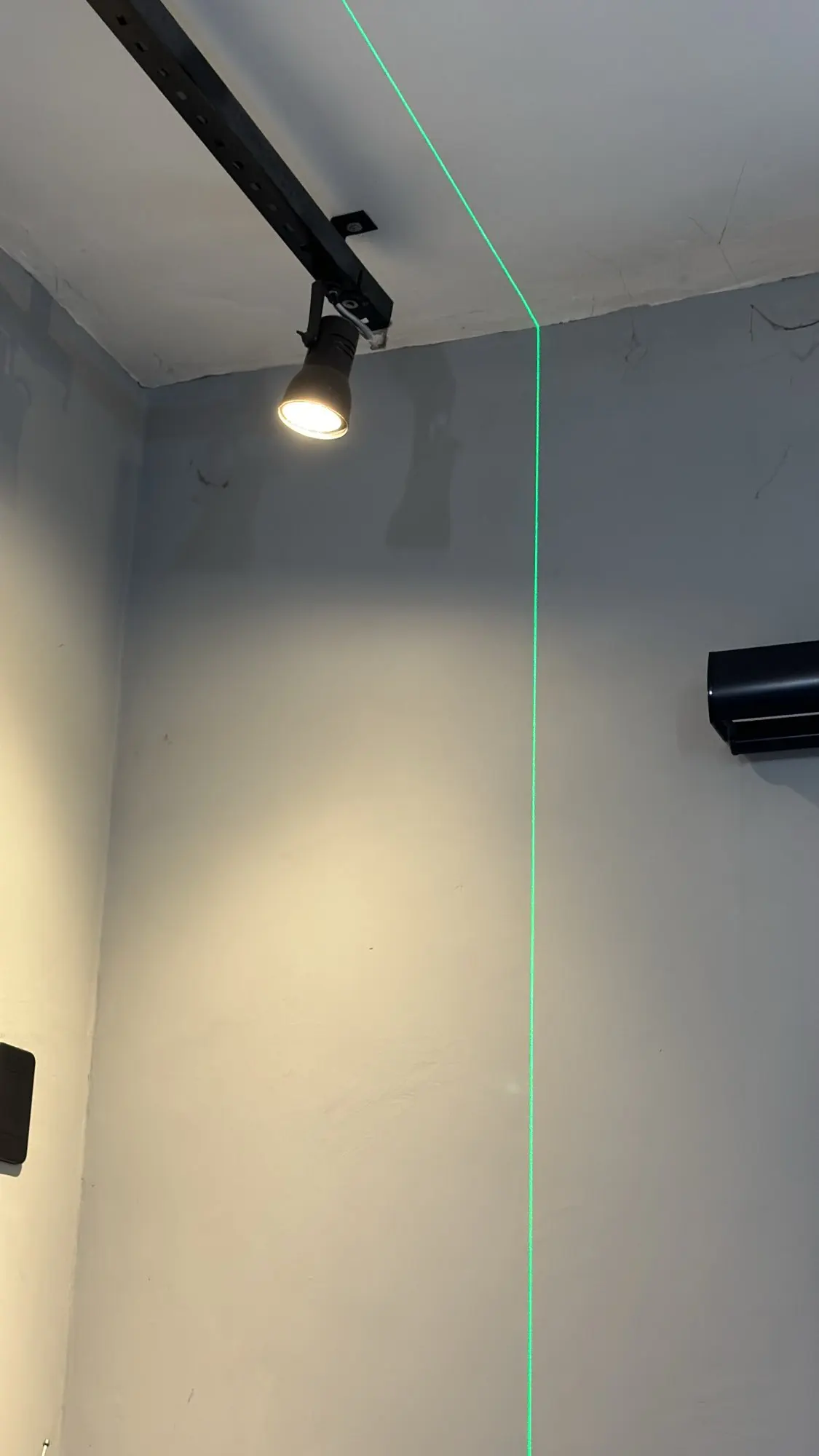

• EASY OPERATION – Simple to use, one switch operation; Simply slide the Pendulum to unlocked position the tool will instantly project a perfectly straight laser cross onto the wall. This sliding switch makes the M-9011G a suitable tool for anyone to use, even those without much previous DIY experience.
• MANUAL FUNCTION: As well as being self-leveling, the 9011G also has a manual function which means that the cross line locks into position when tilted at an angle to maintain the perfect 90 degree angles. You can turn it around on the fixed clip 360 degrees.
