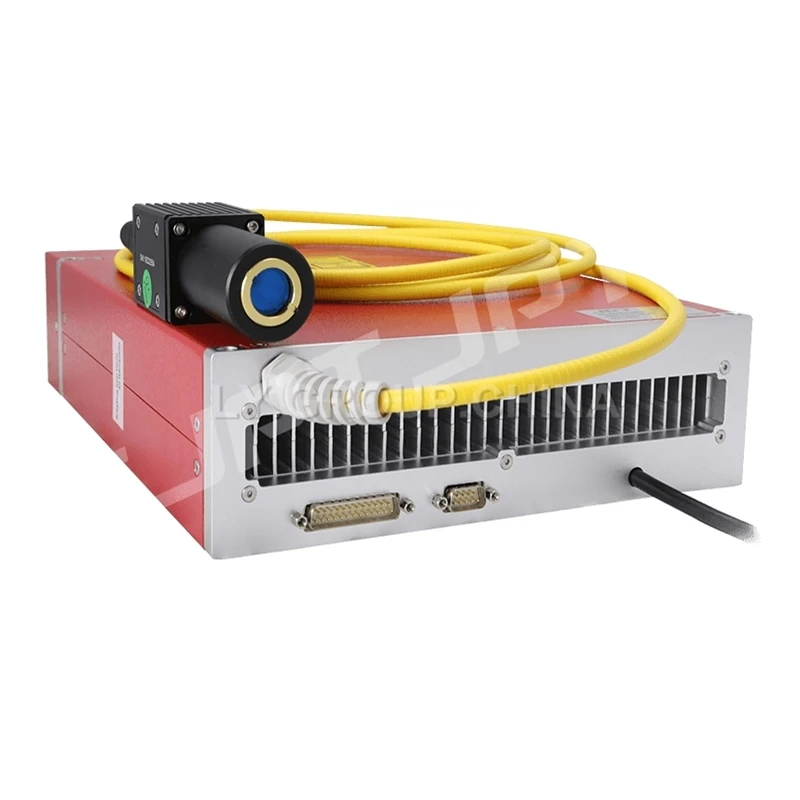

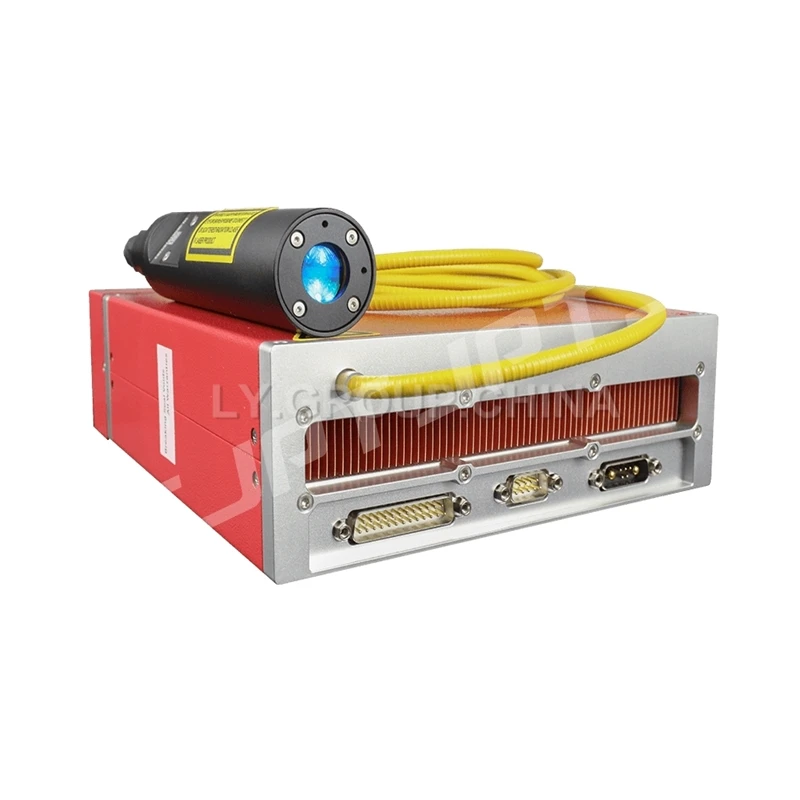

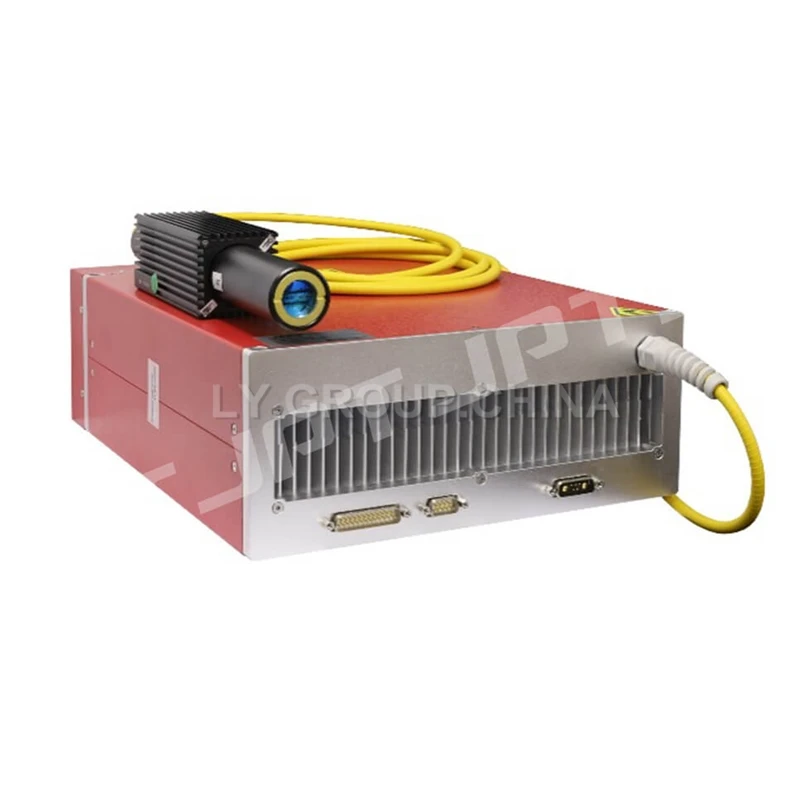

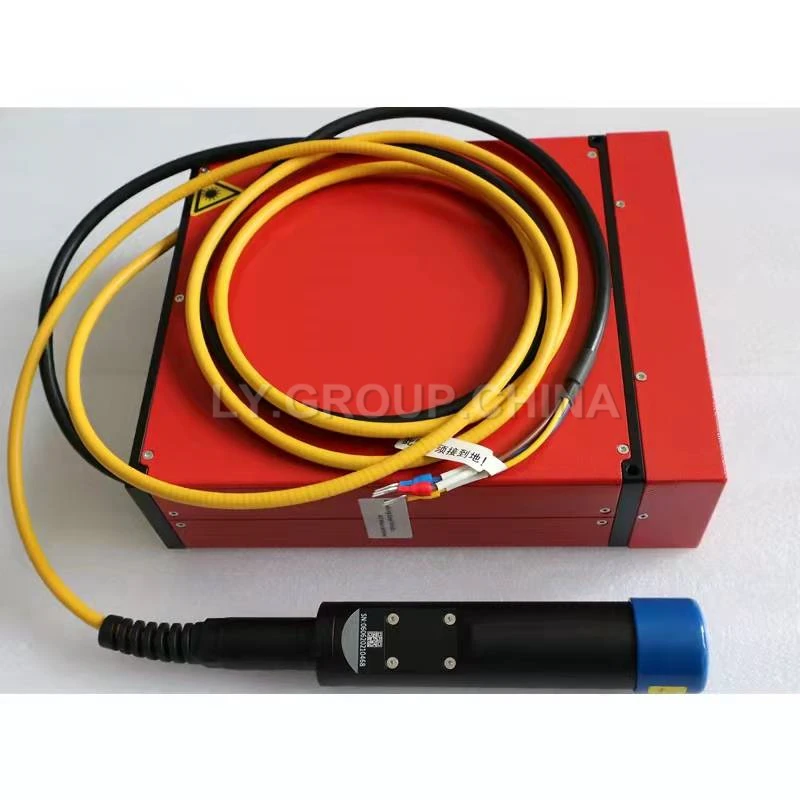

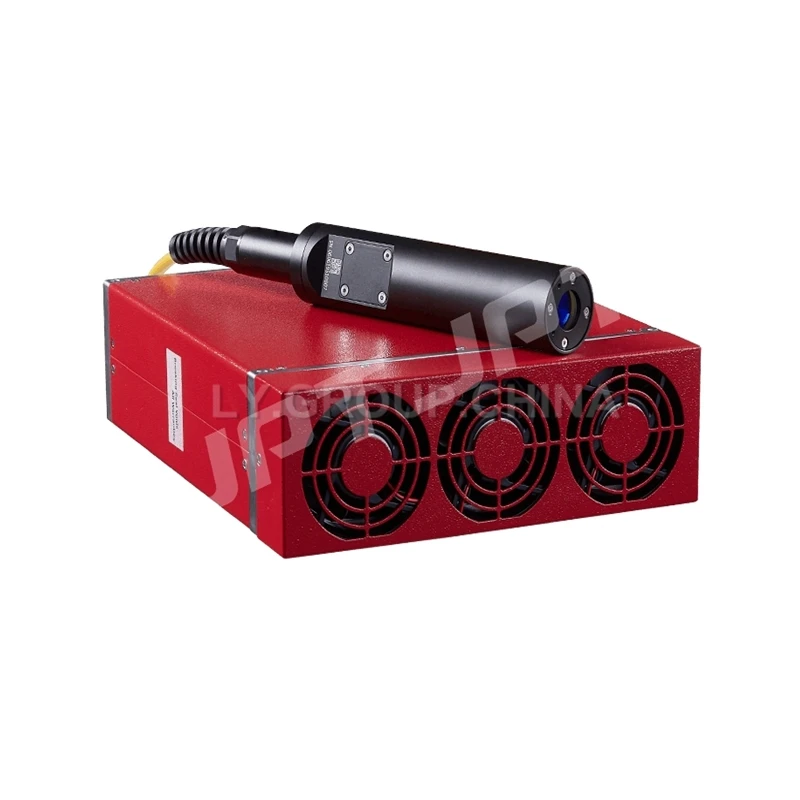

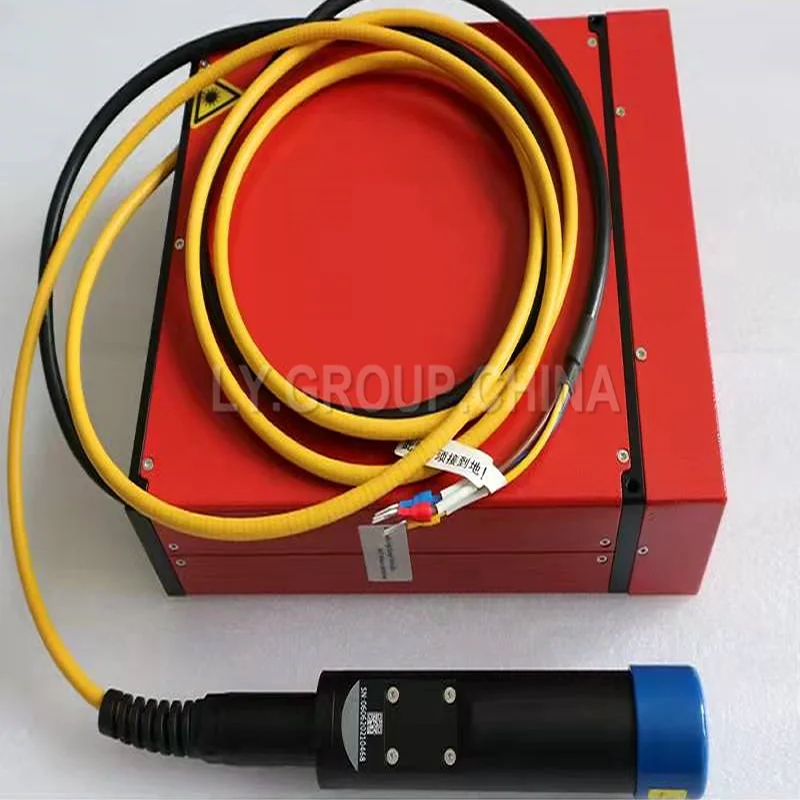

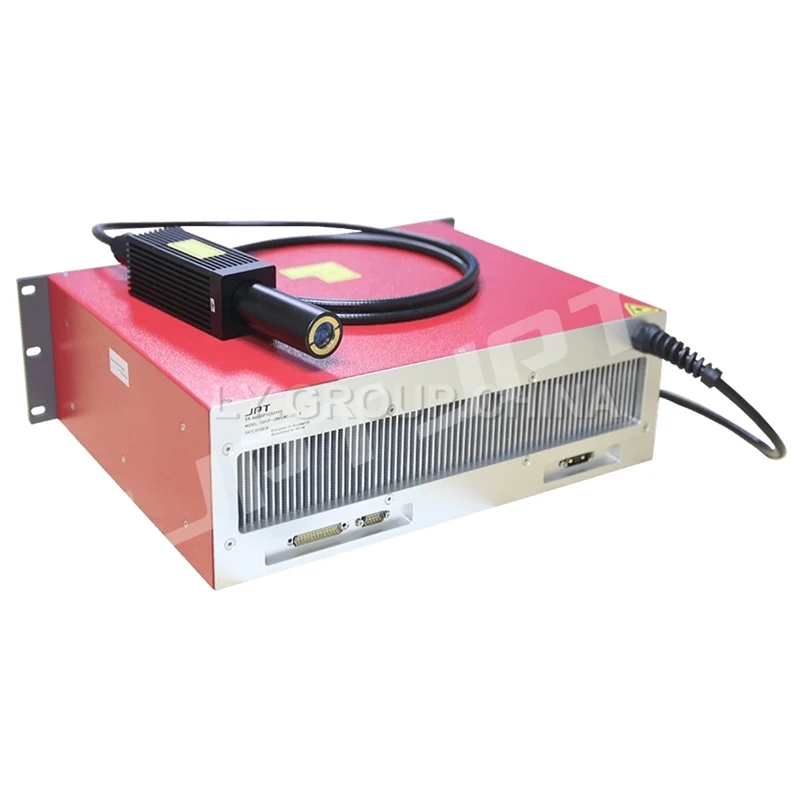

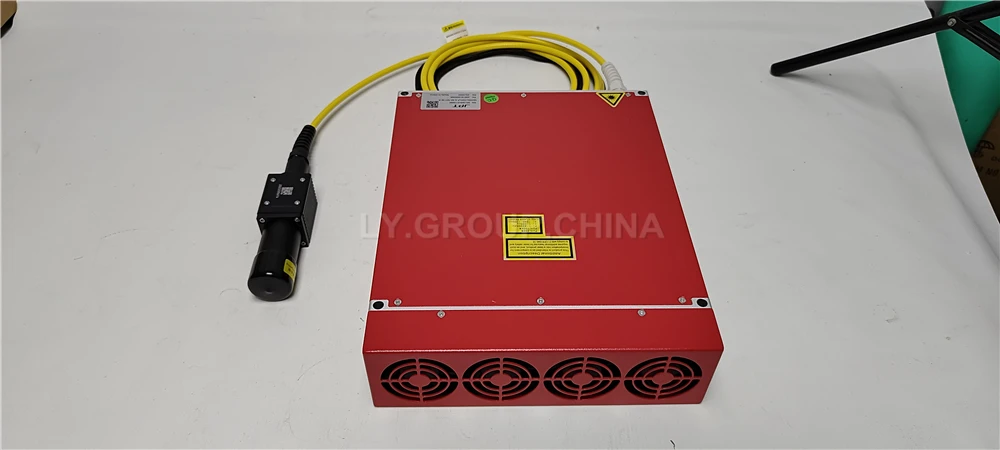

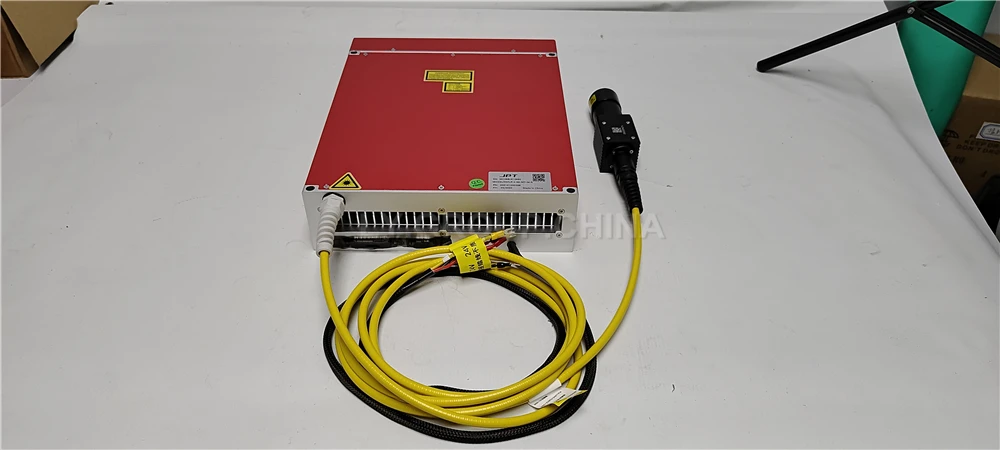

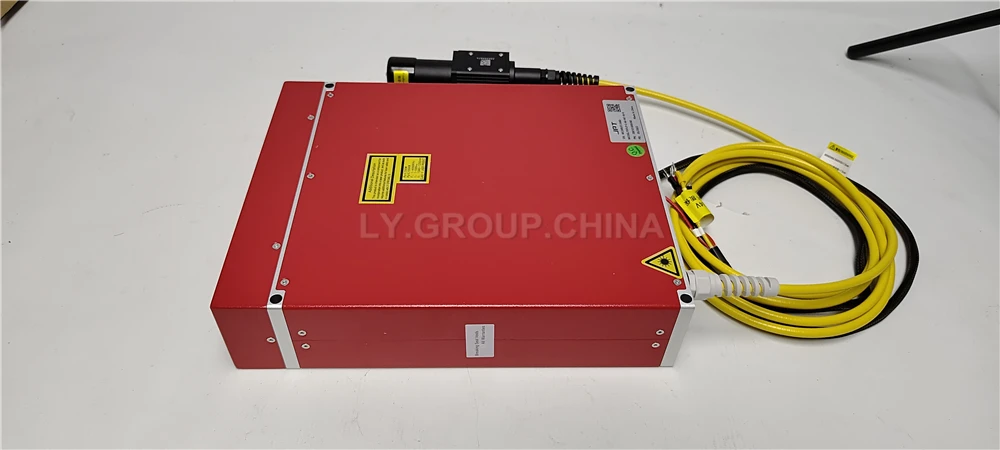

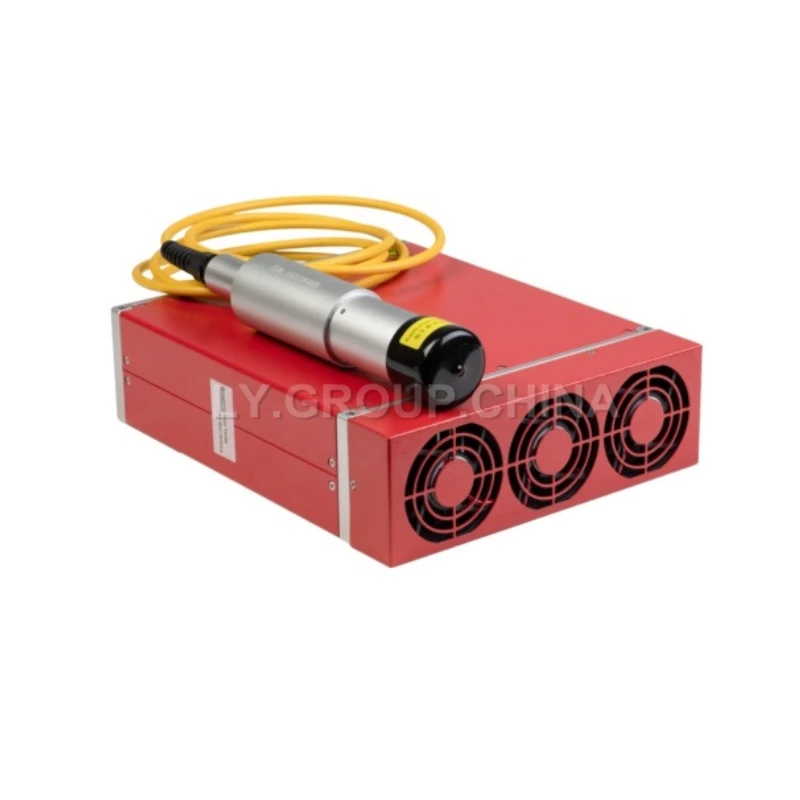

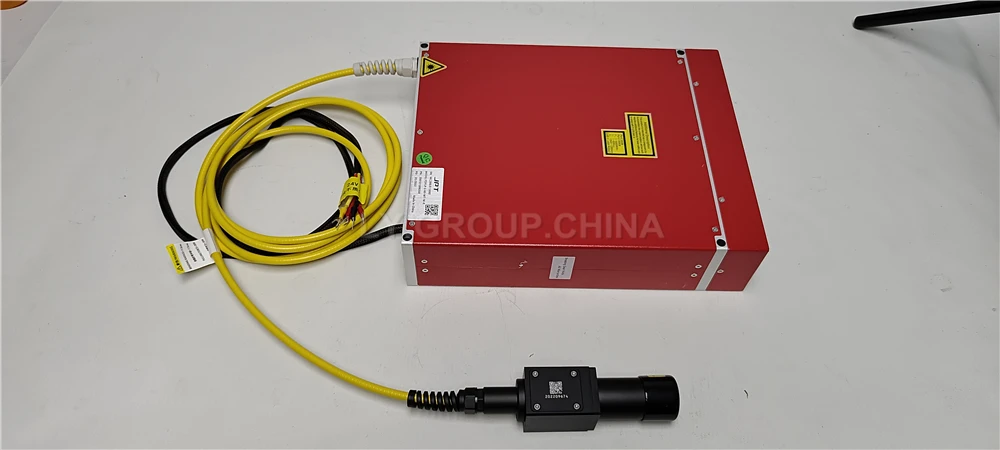

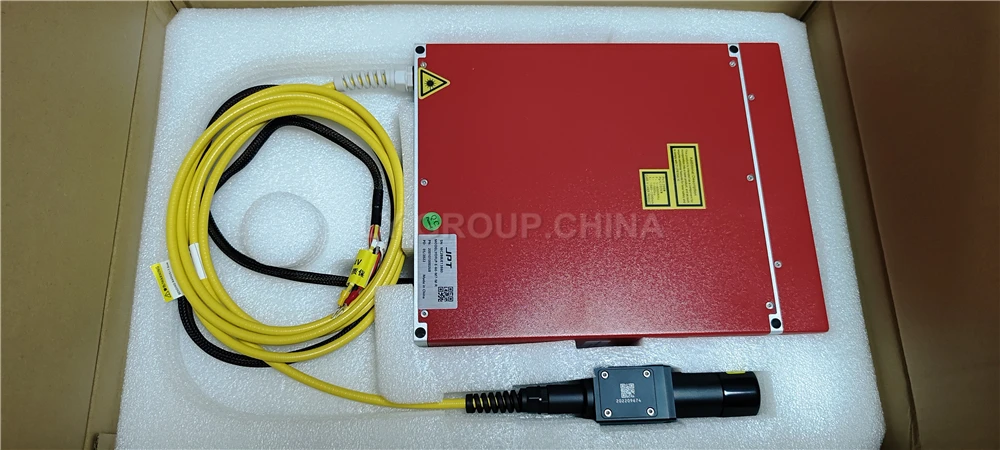

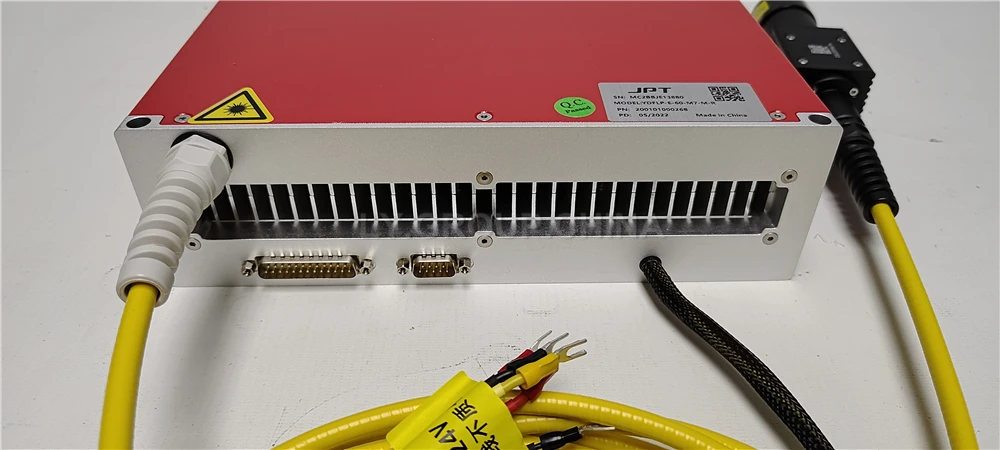

JPT Fiber Laser 20W 30W 50W Laser Source Module GQM 1064nm for Brass Stainless Gold Sliver Engraving Marking Machine

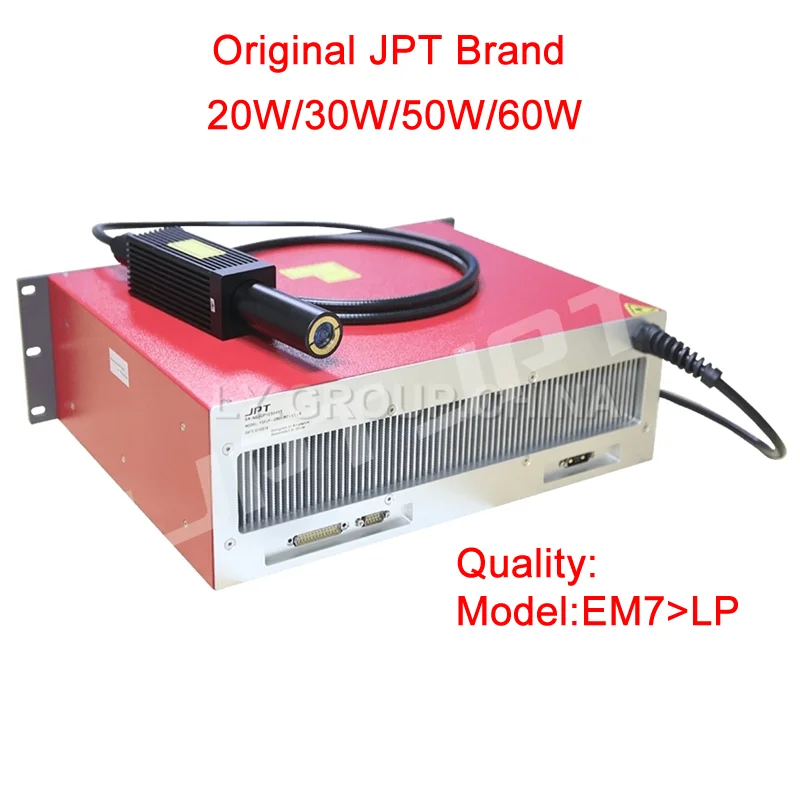

Original JPT Brand LP E-Series 20W 30W 50W Power Q-switch Fiber Laser Source Module GQM 1064nm High Quality For Marking Cutting Coating Laser Derusting

Quality:

Model:EM Series>LP Series



Introduction:

JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and show excellent laser performance as well as high level of temporal pulse shaping controllability. Compared with Q-switching technology, LP series has greater flexibility,wider frequency range, higher control precision and superior first pulse.

Brand:JPT

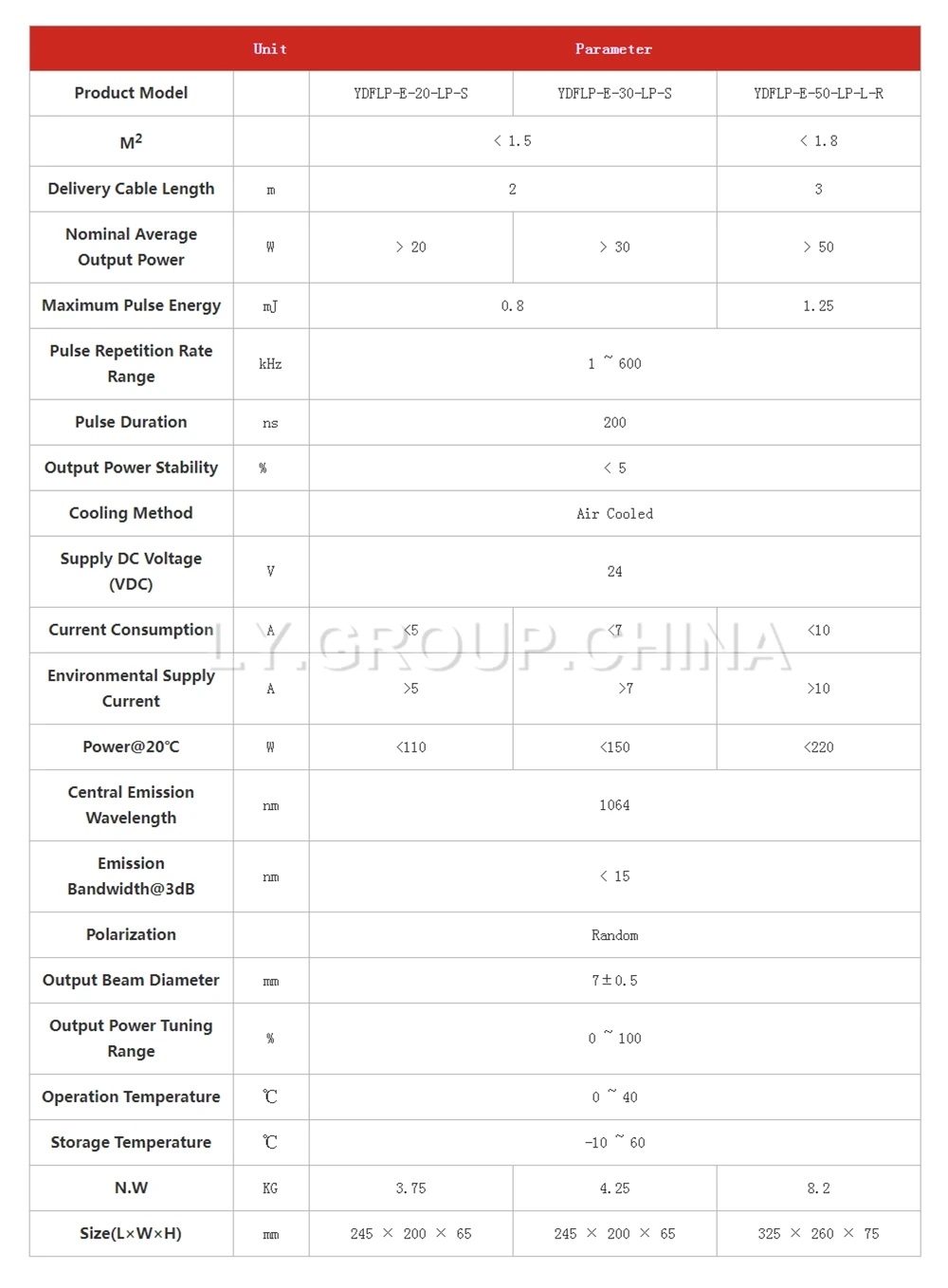

Series:LP-E

Power:20W/30W/50W

Central wavelength:1064nm

Emission Bandwidth@3Db nm <15

Output Power Stability <5%

Output Beam Diameter 7±0.5mm

Pulse Repetition Rate Range 1-600KHZ

Pulse Duration 200NS

Cooling Method: Air cool

Polarization State: Random

Maximum Pulse Energy 0.8MJ(20W/30W) 1.25MJ(50W)

Delivery Cabel Length 2M(20W/30W) 3M(50W)

Supply DC Voltage : 24V

Output Power Tuning range:10-100%

Operating Temperature:0-40 Degree

Storage Temperature:-10-60 Degree

N.W 3.75KG / 4.25KG / 8.2KG

Size 245*200*65MM / 245*200*65MM / 325*260*75MM

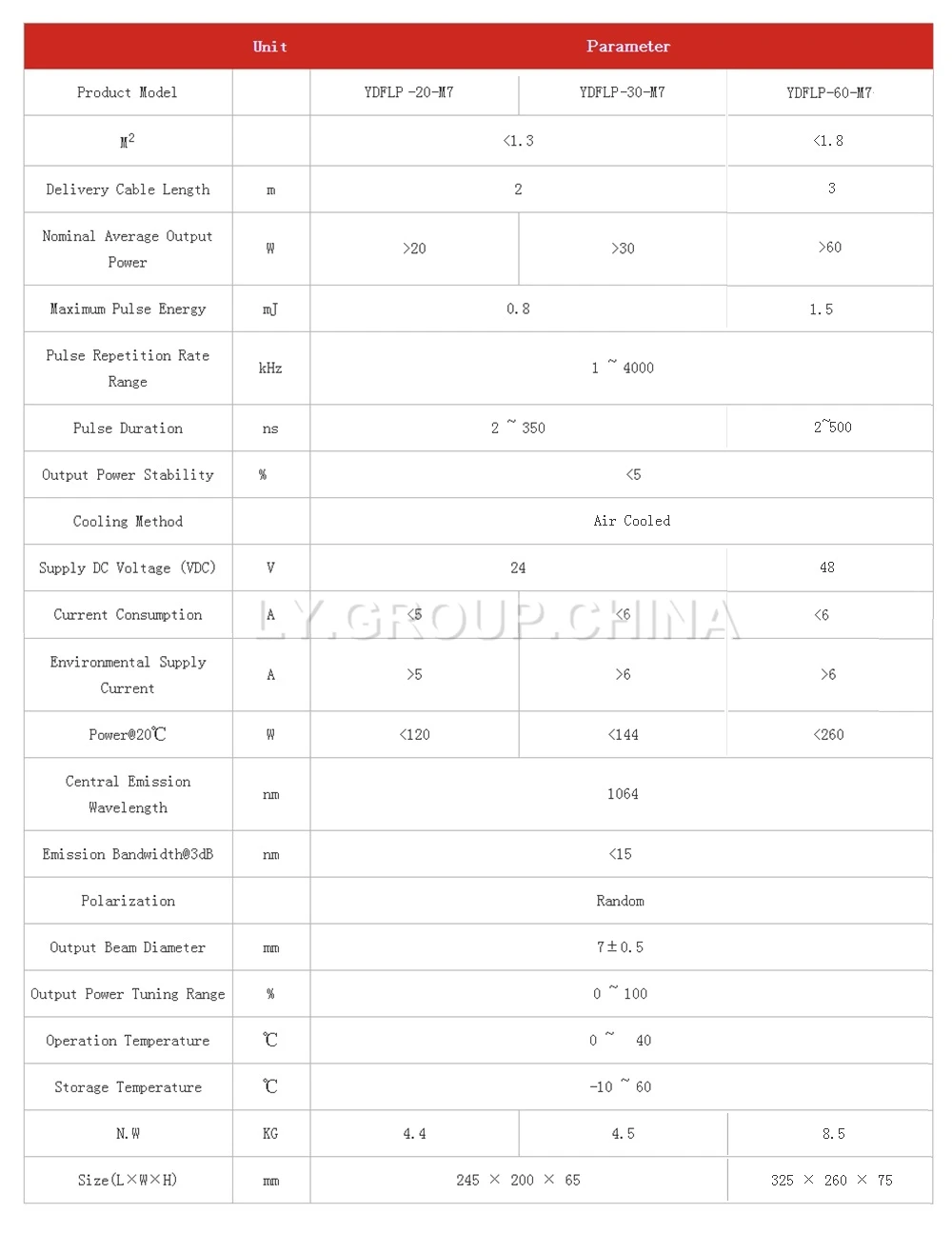

Series: M7-E

Power:20W/30W/60W (If need higher power also have)

Central wavelength:1064nm

Emission Bandwidth@3Db nm <15

Output Power Stability <5%

Output Beam Diameter mm 7±0.5mm

Pulse Repetition Rate Range 1-4000KHZ

Pulse Duration 2-350NS (20W/30W) 2-500NS(60W)

Cooling Method: Air cool

Polarization State: Random

Maximum Pulse Energy 0.8MJ(20W/30W) 1.5MJ(60W)

Delivery Cable Length 2M(20W/30W) 3M(60W)

Supply DC Voltage : 24V(20W/30W) 48V(60W)

Output Power Tuning range:0-100%

Operating Temperature:0-40 Degree

Storage Temperature:-10-60 Degree

N.W 4.4KG / 4.5KG / 8.5KG

Size 245*200*65MM / 245*200*65MM / 325*260*75MM

( RE: We also have MOPA frequency & pulse width adjustable version fiber laser source, As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.)
