Komshine KLS-25M/KPM-25M Fiber Optic Laser Source 1310/1550nm Optical Power Meter Fiber Optic Cable Tester OLS OPM

Komshine KLS-25M Optical Light Source Fiber Optic Laser Source 1310/1550nm Optical Power Meter fiber optic cable tester OLS OPM

KLS-25M Optical Light Source aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Using with KPM-25M handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers.

1310/1550nm Singlemode Optical Laser Source Komshine KLS-25M-S Handheld Fiber Optic Light Source (OLS only)

• 1~3 wavelengths output from one port

• High stabilization, build in optic isolator

• Auto Wave ID output(should work with KomShine optical power meter);

• Energy save mode;

• Continous working for 46 hours

Product picture:

• Telecom Maintenance

• CATV Maintenance

• Fiber Optic lab testing

• Other Fiber Optic Measurements

Applications:

Type	KLS-25M-S
Wavelength	1310/1550
Fiber Model	SM
Output Power	-5dBm
Connector Type	SC
Battery Operating Time	46h
Battery	AAA*2
Operating Temperature	-10~+60
Storage Temperature	-70~+3
Dimension	130mm(W)×65 mm(D)×35 mm(H)
Weight	180g

Product characteristics：

*2.5mm universal adapter

*Output power：-5dB

*Wavelength: 1310/1550nm

*Drop protection: 2m

*Low power function display

*Water-resistant keys

*Pocket size design

*LED lighting

Specification：

Wavelength(nm)	1310/1550nm
Typical OutputPower	-5dB
Optical Connector	2.5mm universal+SC (1.25mm for LC isOptional)）
Power Supply	AlkalineBattery(2 AAA 1.5V batteries)
Output Stability	±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies	CW, 270Hz, 1KHz, 2KHz
Dimensions / Weight	130x65x35mm / 180g

Product Description:

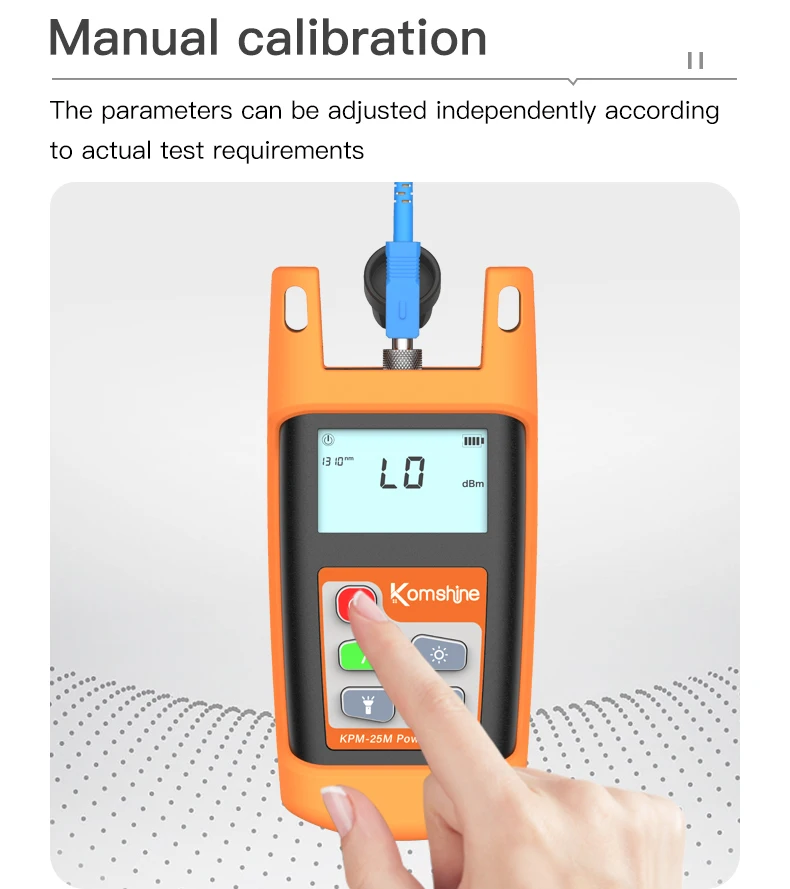

KPM-25 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.

Features:

• Pocketsize, large easy to read LCD display, easy to use

• PC software available for testing data collection and report generation (only available for KPM-25u)

• Wave ID (auto identification & switching)(only available for KPM-25u)

• Power measurements in dBm or μW

• Long battery life with 2 x AAA alkaline

• 2.5 mm SC connector input

Specifications:

Type	KPM-25
Wavelength	800 ~1700 nm
Detector	InGaAs
Measurement Range	-70~+3 dBm
Uncertainty	±5% (-10 dBm,20±30C)
Calibrated Wavelength	850,1300,1310,1490,1550,1625 nm
Resolution	0.01 dBm
Connector	SC
Power Supply	Alkaline Battery(2 AAA 1.5V)
Battery Operating Time	240 h
Operating Temperatrue	-10~+600C
Storage Temperatrue	-25~+700C
Relative Humidity	0~95% (non-condensing)
Dimension	130mm(W)×65 mm(D)×35 mm(H)
Weight	160g
