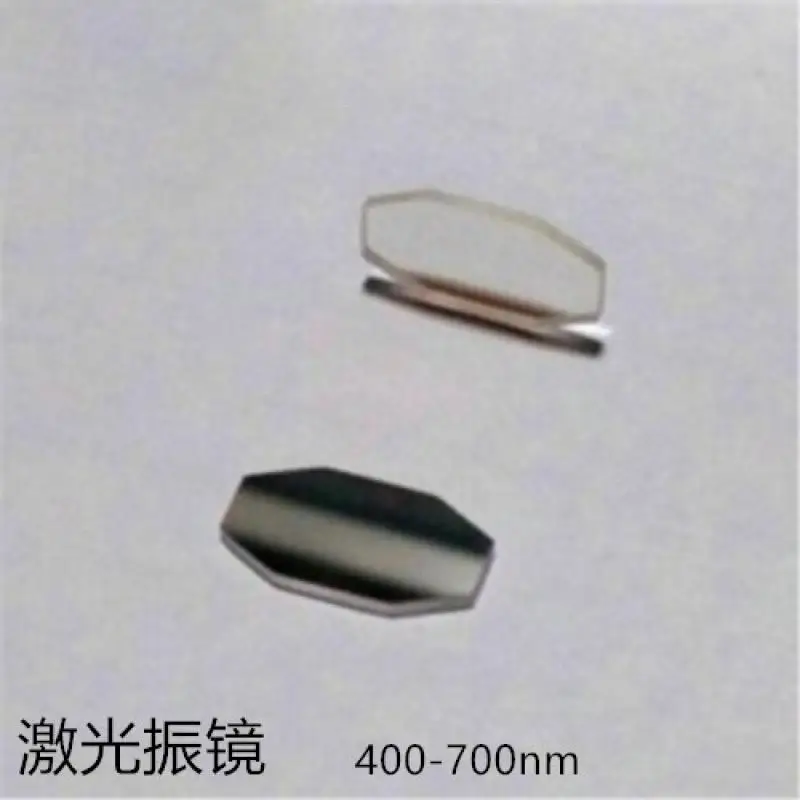

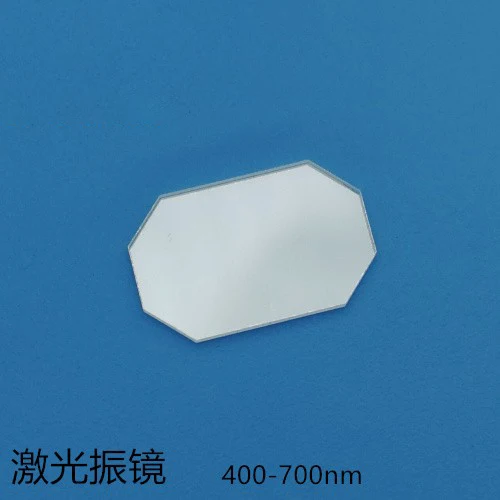

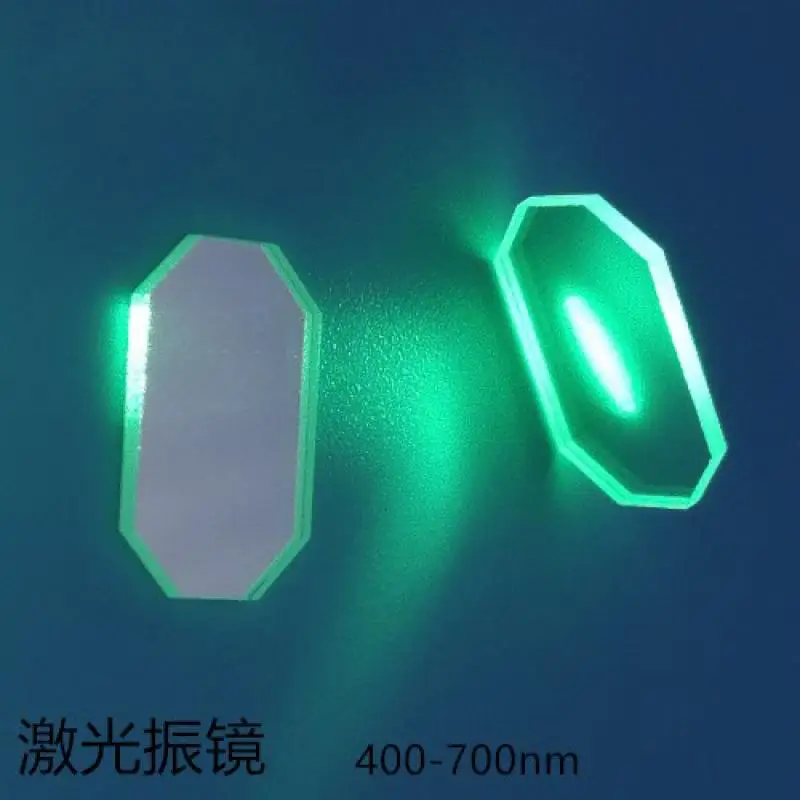

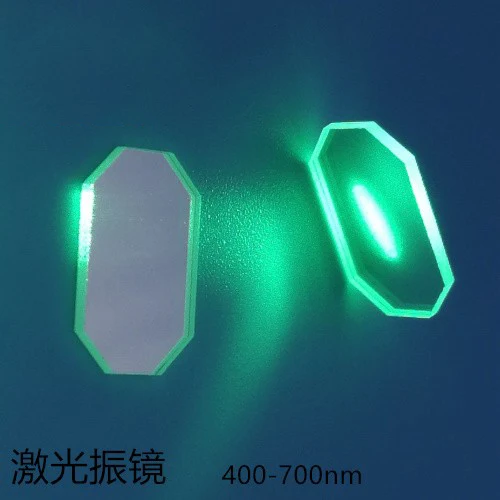

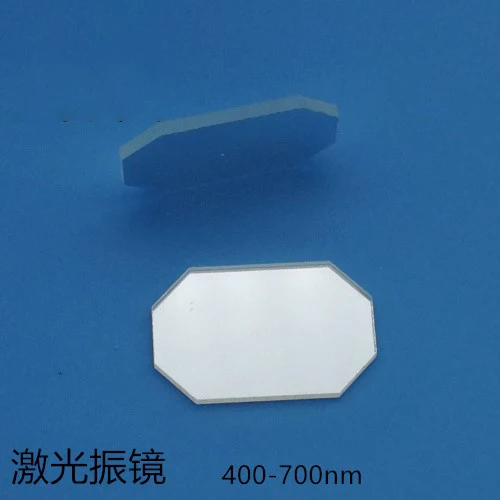

Laser high-speed galvanometer full-angle reflection lens 11*7*0.75mm diamond 400-1600nm800-1600

[Name and specification] optical lens galvanometer

L-R-RBG-Y110707

Wavelength (Wave length): red, blue and green 400-700nm/infrared 800-1600nm

Lens size (Lens size):11*7*0.75mm

Lens Thickness (The Lens Thickness):0.75mm

Optical Power loss (Laser Power Lose): 0.7 percent

Lens material: optical glass

Front surface mirror, one side coated with high reflection film, one side is not coated (for the smooth surface) high transmittance

Application areas:

. Stage laser light equipment (red laser, green laser, blue laser need antireflection equipment)

. Laser barcode scanner

. Photocopier

. Laser printer

. Digital Camera

. Optical analytical instruments

. RGB projector

. Rear Projection TV

No right angle design, effectively reduce wind resistance, dielectric high reflection lens 400-700NM visible light reflectance> 99%
