Laser Module C80 with Air Assist 10W Optical Output Power 450nm Blue Laser Head TTL/PWM for CNC Laser Cutting Machine Tools

Rated 4.93 out of 5 based on 14 customer ratings
(14 customer reviews)

$212.96

Laser Module

Availability: 27 in stock

SKU: 6AGD2U7VTEIZ Category:

  • Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
  • Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
  • Easy to assemble—small, compact, convenient and easy to install.

Advantage 1:

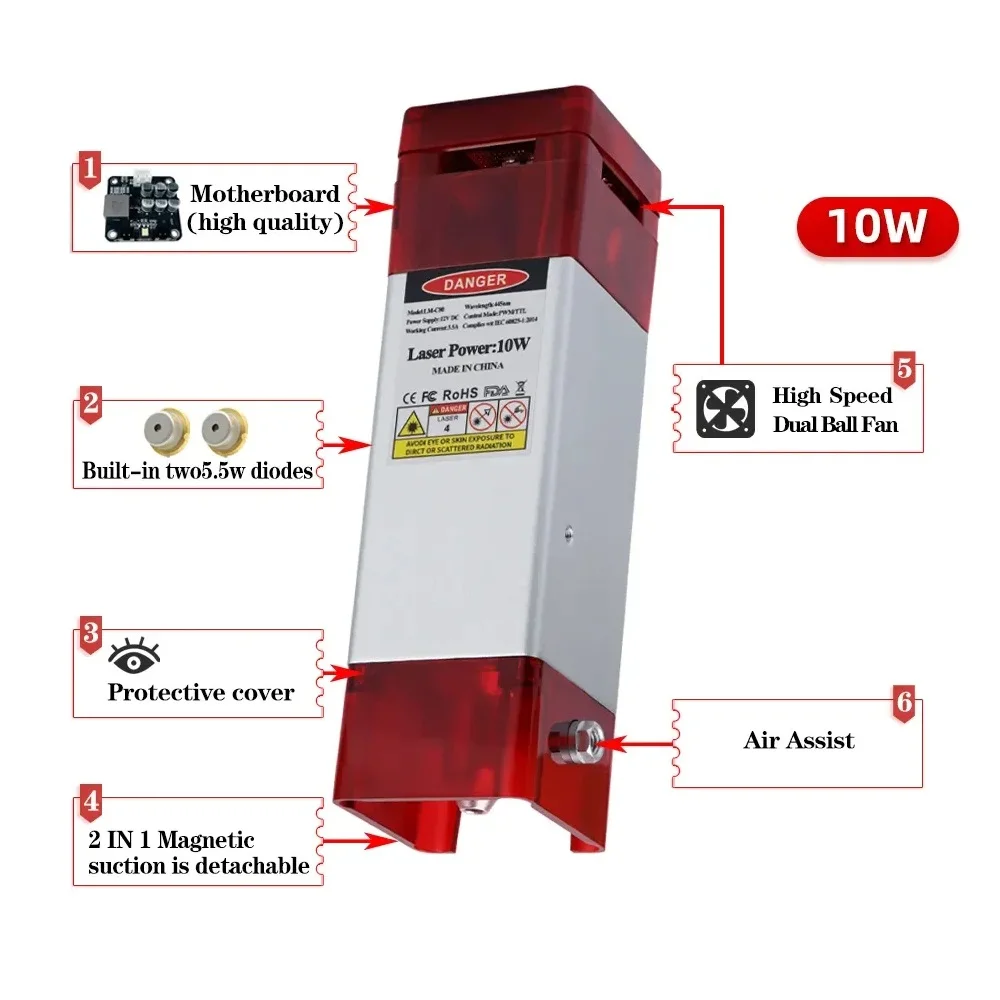

  • Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs.This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself.
  • Recommended Air Tubing:inner diameterΦ6-8mm
  • Recommended air pump:30L/Min Air Pump 0.03Mpa

    Advantage 2:

    Laser protective cover: It can effectively filter blue light and can work without wearing goggles.

    [Main performance]

    • a.Directly engrave mirror stainless steel: no need painting black;
    • b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 45mm focus length;
    • c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s
    [Original diode]
    • Original diode, high quality,20,000 hours lifetime!

    [Easy to use]

    • Wavelength: 445nm, Input: DC 12V 3.5A /24V 1.7A,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.
    [Applicable materials]
    • Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel, Stone, Bamboo, Leather, Rubber,Alumina,Solid wood, etc.

    [Precautions]

    • Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

    • Effect Output Power: 80W(10W optical power) / 40W(5.5W optical power)
    • Wavelenght: 445nm
    • 80w Electric Power: 12V 3.8A / 24V 1.7A

    Engraving Material:

    • Plywood, Pine board,Black acrylic, Leather,MDF,Ceramics,Bone,Coated glass,Mirror stainless steel,Brushed stainlesssteel, Stone,Bamboo,Rubber,Alumina,Solid wood

    Cutting Material:

    • 8-10mm Plywood, 4-5mm Black acrylic, 4-5mm MDF, 8-10mm Pine board, 5-6mm Leather

    You May Be Wondering:

    1. Newest Technology, High-energy, Ultra-fine Laser:
    Laser power can be 5W/10W according to the newest FAC and light refraction technology, the spot size is 0.08*0.08mm, can cut 5mm colorful acrylic & 8mm plywood, clearly engrave metal, ceramic, glass, stainless steel and so on.
    2. Why is the title says 80W, 40W, but the Laser is 10W or 5W:
    80w / 40W is the effective power of Laser machines, its actual laser output power should be 10W/5W.
    3. Is it possible to engrave metal?
    Yes, Our laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.
    4. Is it possible to engrave glasses cups?
    Yes, it can engrave glasses.
    5. Can this machine only cut dark acrylic?
    Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.
    6. Is there user manual?
    Yes, there are user manual in paper in the box, also some assembly videos.
    7. Has any warranty?
    Our laser engraving machine has 1 year warranty, Laser has 3 month warranty ,the parts can be replaced free, you just need pay for the shipping cost.
    8. Do I have to pay for tax?
    We have warehouses in China, Russia, Russia will not need to pay customs duties,other countries need to pay .

    • Two engraving modes: the cutting mode is converted to engraving mode, the nozzle needs to be removed, and then the red protective shell is installed, and the focus is adjusted before use

Weight 0.378 kg
Dimensions 18 × 13 × 9 cm
Brand Name

NoEnName_Null

Origin

Mainland China

Model Number

LM-C80

CNC or Not

CNC

Is Smart Device

no

Controller

GRBL

Condition

New

Certification

CE

Optical power

10W

Power adjustable

TTL/PWM

Cable

3PIN, 80cm

Operating temperature

-15°C–30°C

Material

Aluminum & Copper

Wavelength

445nm

Input

12V 1.7A / 24V 3.5A

Module Size

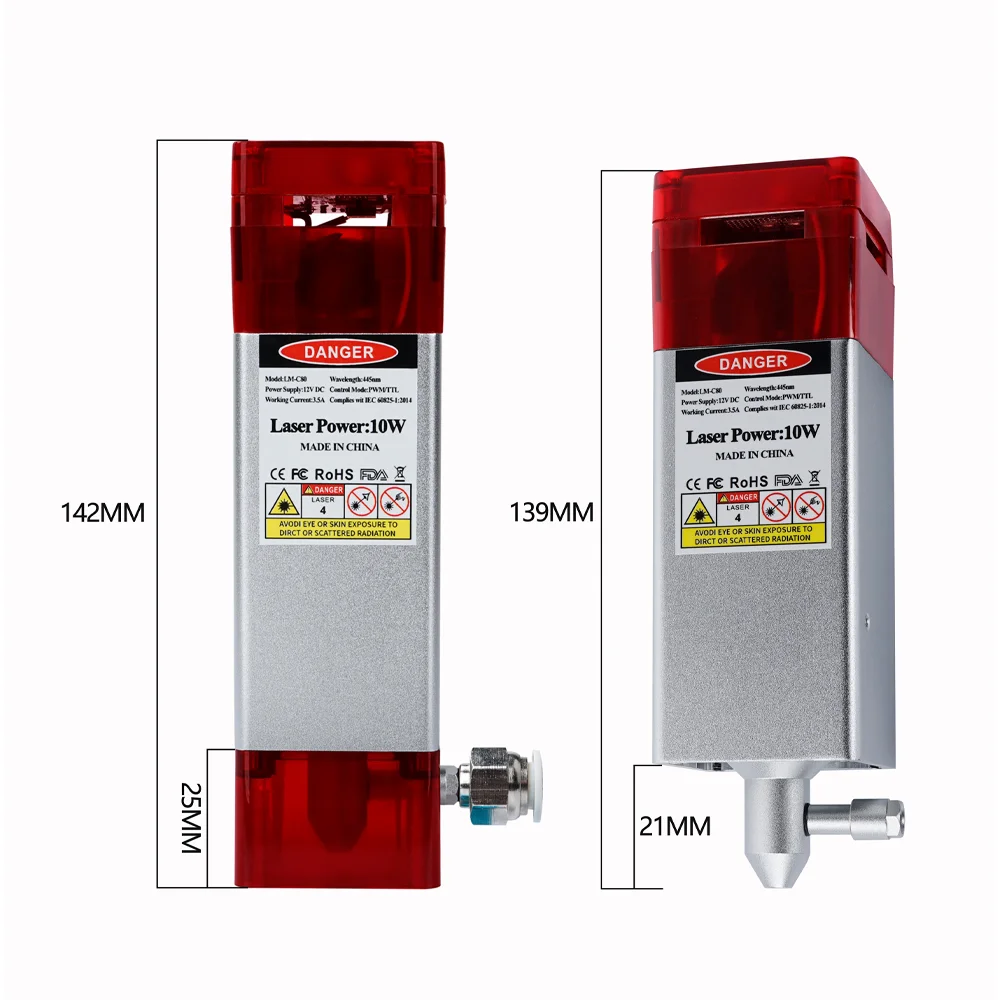

40x40x142mm

Application

Engraving or Cutting

PWM modulation

1-5V, 0.2-10kHz

Interface

XH2.54-3P socket

Focus Length

30mm

Choice

yes

14 reviews for Laser Module C80 with Air Assist 10W Optical Output Power 450nm Blue Laser Head TTL/PWM for CNC Laser Cutting Machine Tools

  1. Rated 5 out of 5

    M***k

    great laser, no dramas getting it working.
    just double check both laser and controller side of cable. I had to swap pwm and dc+ on both ends.

    Color: LM-C80-24V Power: 10W

  2. Rated 5 out of 5

    W***s

    Perfect working correct.

    Color: LM-C80-12V Power: 10W

  3. Rated 5 out of 5

    G***u

    Arrived quite fast. It has all the items that you see in the description. It’s not that quiet but it’s working.

    Color: LM-C80-24V Power: 10W

  4. Rated 5 out of 5

    z***r

    It was what I asked for, it arrived in very good condition, the box intact and in less than the estimated time

    Color: LM-C80-12V Power: 10W

  5. Rated 5 out of 5

    J***e

    Great prices, fast shipping, good quality, good packaging, and super fast,excellent supplier. highly recommended.

    Color: LM-C80-24V Power: 10W

  6. Rated 5 out of 5

    a***r

    It’s very well and good.

    Color: LM-C80-12V Power: 10W

  7. Rated 5 out of 5

    m***a

    Delivered on time!👍

    Color: LM-C80-12V Power: 10W

  8. Rated 5 out of 5

    G***i

    Shipping very fast laser, I cut 4 mm poplar plywood with power 80% speed 200 mm/min. Very satisfied.

    Color: LM-C80-24V Power: 10W

  9. Rated 5 out of 5

    AliExpress Shopper

    All right. Goods 1 class

    Color: LM-C80-12V Power: 10W

  10. Rated 4 out of 5

    R***o

    I miss a key that serves to change the protective lens, I had to break the tip with a hacksaw to clean that lens, otherwise I liked it very well

    Color: LM-C40-12V Power: 5.5W

  11. Rated 5 out of 5

    M***a

    I am satisfied with the fast delivery. Very good quality set.
    Complete with everything in the picture.
    I recommend the seller

    Color: LM-C80-24V Power: 10W

  12. Rated 5 out of 5

    j***n

    Package returned to the origin due to incompetence of the hispapost delivery men put recipient absent when they don’t even ring the bell, no problem with the seller

    Color: LM-C40-12V Power: 5.5W

  13. Rated 5 out of 5

    G***y

    Csak jót tudok írni a termékről!🙂

    Color: LM-C80-12V Power: 10W

  14. Rated 5 out of 5

    G***o

    Everything OK!

    Color: LM-C80-12V Power: 10W
