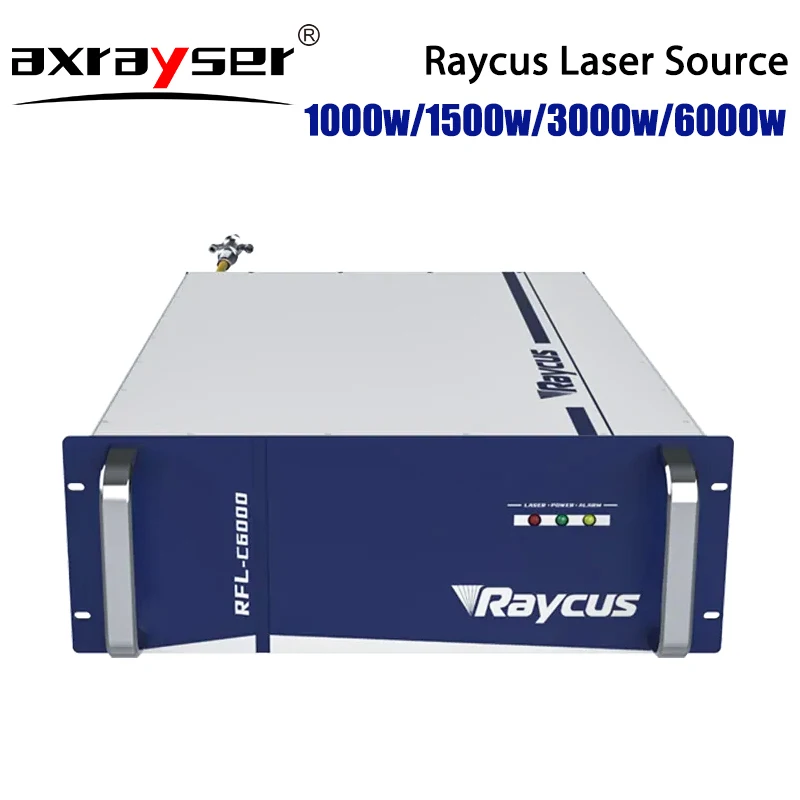

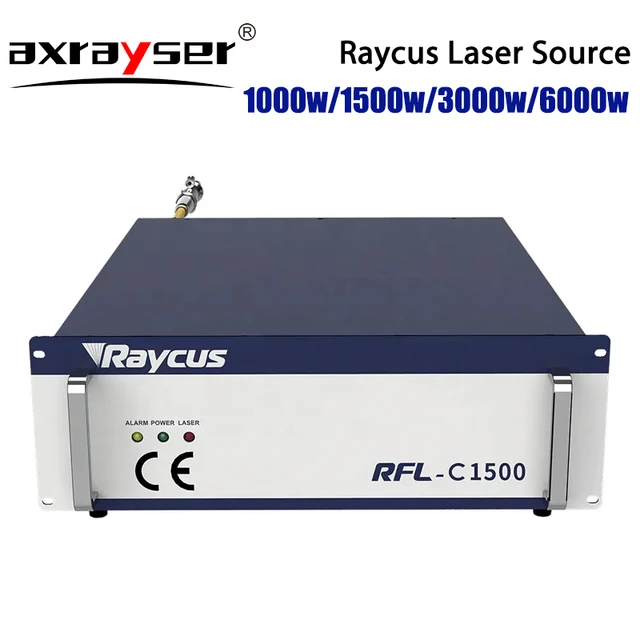

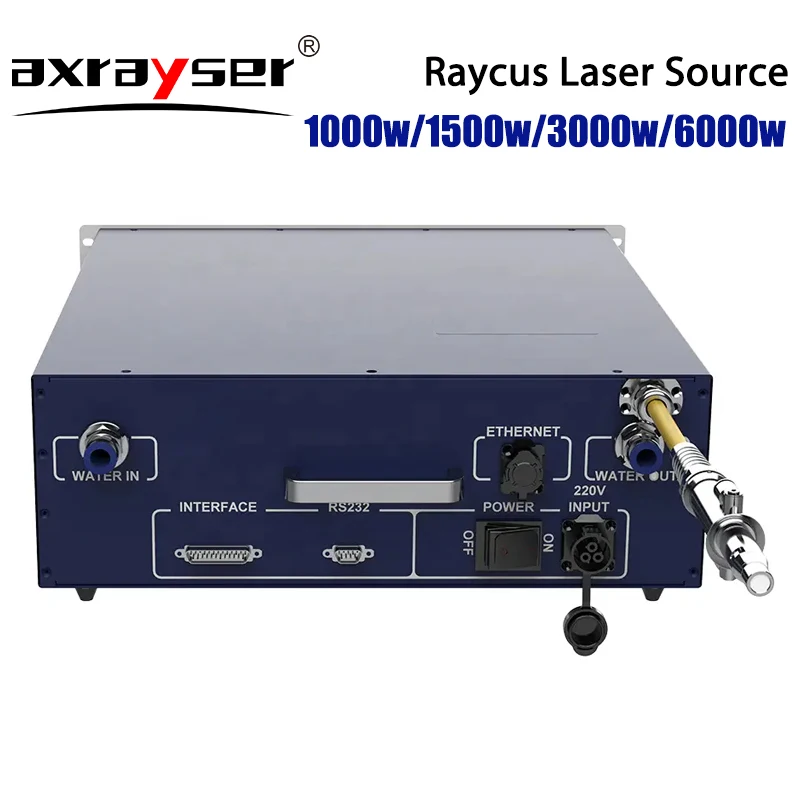

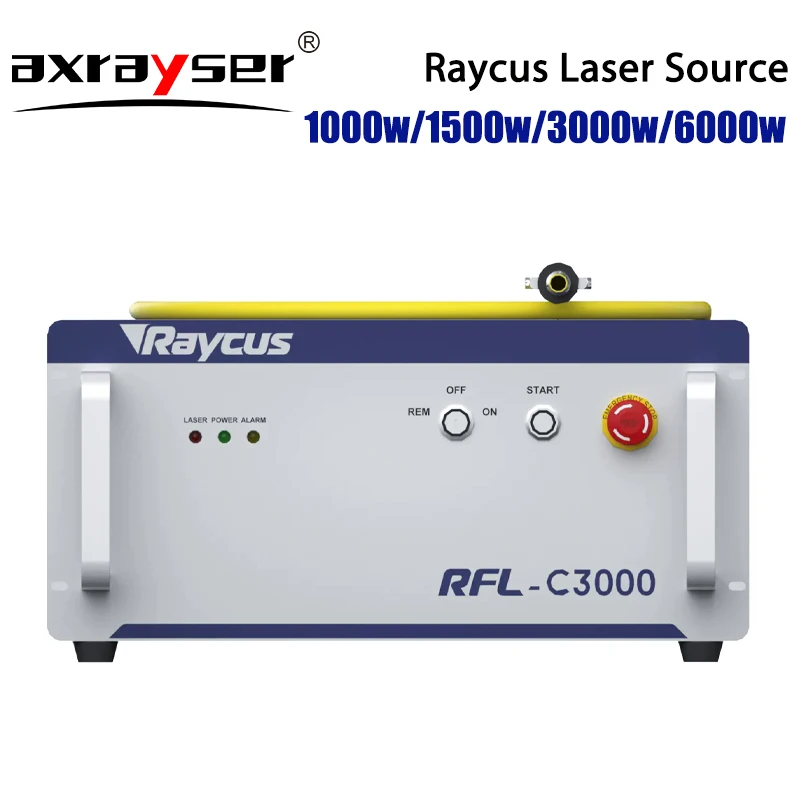

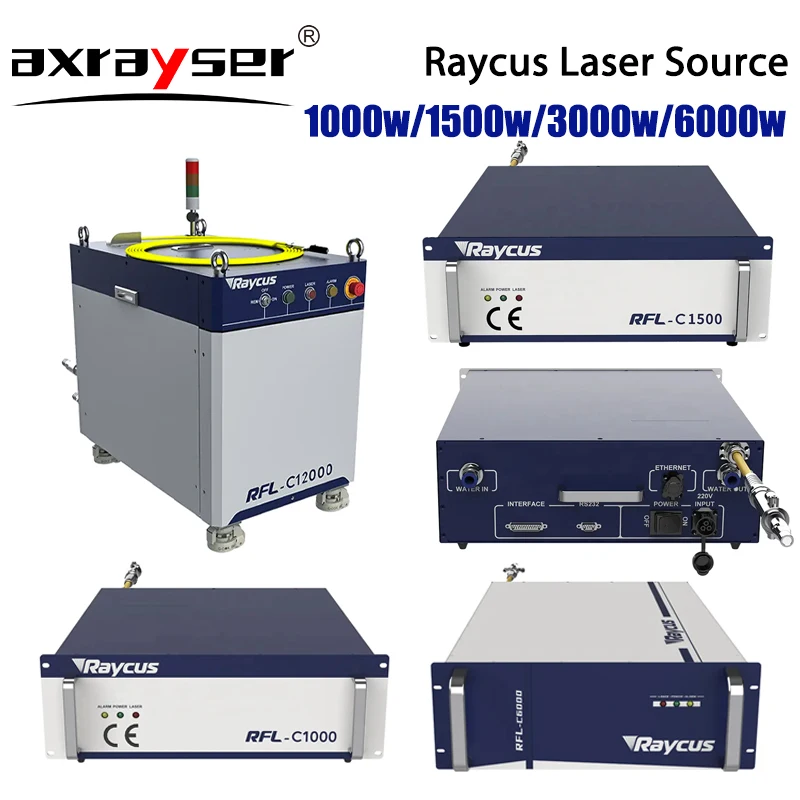

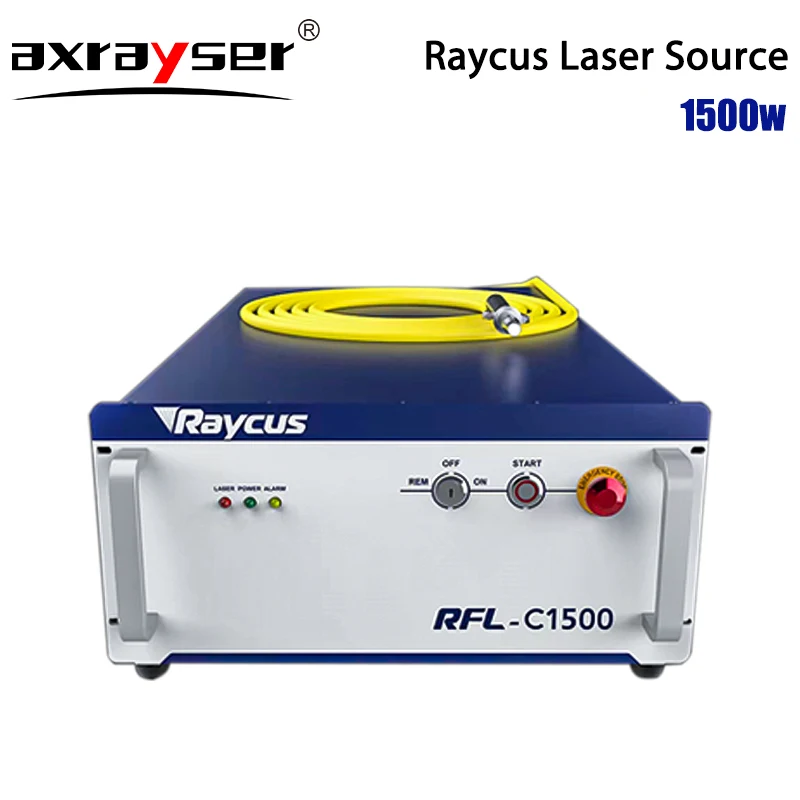

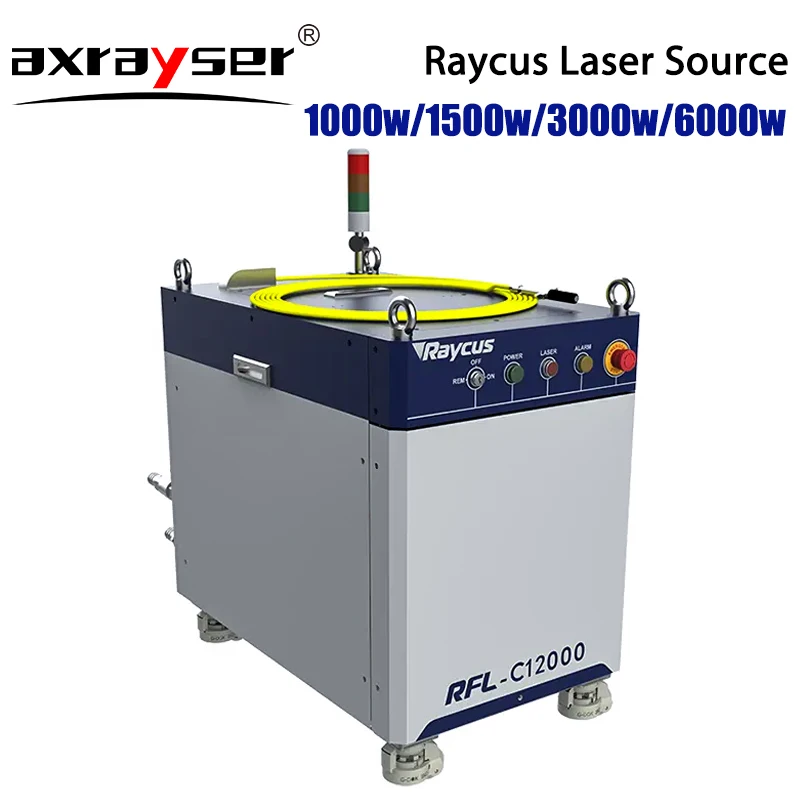

Laser Source Raycus Original 1000/1500/3000/6000W CW Laser RFL-C1000S for Metal Fiber Cutting Machine Accessories

Price range: $3,814.58 through $32,290.86

The Raycus Original Laser Source is a state-of-the-art device that combines precision, power, and reliability in a single, compact package. This sophisticated laser source is designed for a wide range of applications, including cutting, welding, marking, and more, across various industries such as aerospace, automotive, electronics, and medical.

Key Features and Benefits

  1. High Power Output:
    • The Raycus Original Laser Source offers a wide range of power outputs, from 1000W to 60000W, depending on the specific model. This ensures that there is a suitable laser source for every application, no matter how demanding.
  2. Excellent Beam Quality:
    • With a narrow beam divergence and high degree of collimation, the laser beam produced by the Raycus Original Laser Source is highly focused and intense. This results in precise and consistent results, even when working on intricate designs or delicate materials.
  3. High Photoelectric Conversion Efficiency:
    • The Raycus Original Laser Source boasts a high photoelectric conversion efficiency, which means that it converts a significant portion of the input electrical power into laser output. This results in lower power consumption and reduced operational costs.
  4. Stable and Reliable Performance:
    • Built with high-quality components and advanced cooling systems, the Raycus Original Laser Source is designed to withstand the rigors of continuous use. It offers a long operational lifespan and consistent performance, even in harsh environments.
- +
SKU: JTQH61GRZY6J Category:



Laser Source Raycus Original 1000/1500/3000/6000W CW Laser RFL-C1000S for Metal Fiber Cutting Machine Accessories




Weight 0.050 kg
Dimensions 10 × 10 × 10 cm
Brand Name

axrayser

Certification

CE

Origin

Mainland China

Model Number

RFL-C1000S/C1500S/C3000S/C6000S/C12000S-CE

Average output power: (W)

1000

Central wavelength: (nm)

1080±5

Maximum modulation frequency(kHz)

5

Output power instability

±1.5%

Red laser

Yes

Output connector

QBH (customizable)

output fiber core diameter (μm)

25 (customizable)

beam quality

<1.5

Input power (V AC )

200-240, Single Phase

Control mode

external RS232, external AD, Ethernet

power adjustment range (%)

10-100

Dimensions (mm )

440*586*150

Weight (kg)

<25

Cooling method

water cooling

Working temperature (℃ )

10-40
