LASER TREE 10W TTL Laser Module with Air Assist Laser Head for Cnc Laser Engraving Cutting Machine 450nm Blue Light Wood Tools

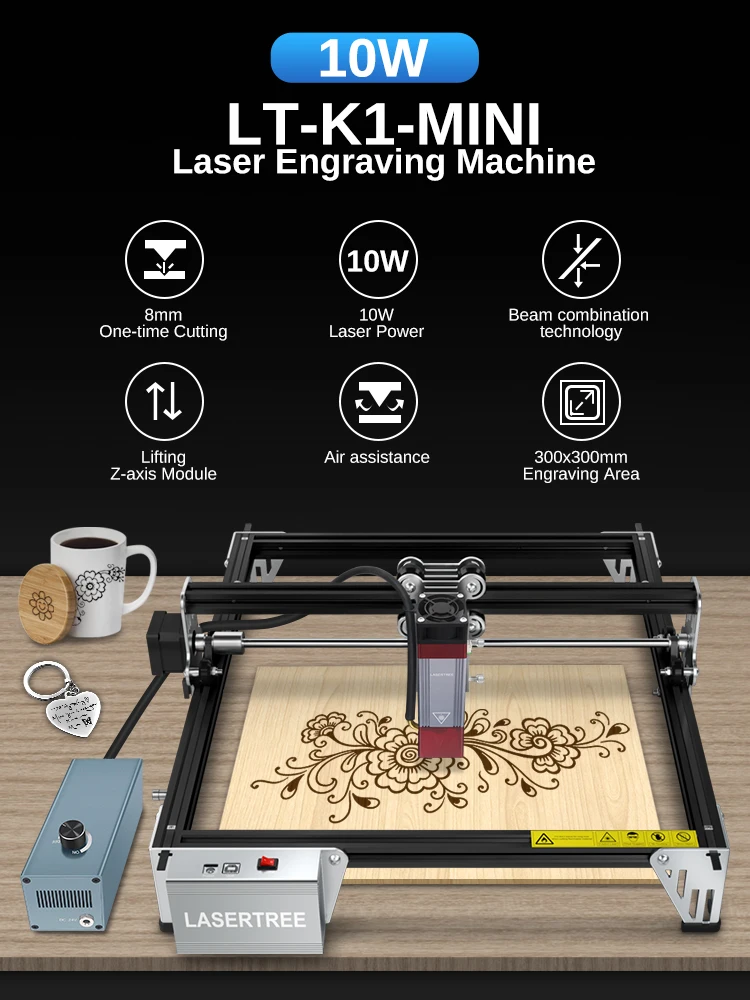

Recommend: LT-K1-Mini （ Laser Engraver Machine With 10W Laser Module ）





LASER TREE 80W TTL Laser Module with Air Assist Laser Head for CNC Laser Engraving Cutting Machine 450nm Blue Light Wood Tools

LT-80W-AA-PRO: 10W Laser Module Head with Air Assist for Laser Engraver

Product Description:

1. High Power Laser Module— 2-Beam compression technology, 10W optical power laser module

2. Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min, 100% power, by one pass

Cut 5mm black acrylic: 50mm/min, 100% power, by one pass

Cut 5mm MDF: 150mm/min, 100% power, by 2 passes



3. Professional Air Assist— Blowing through the air nozzle to get clean-cut edges, improve cutting performance

4. Super Fast Engraving Speed— ultra-fast engravingon stainless steel-30mm/s

5. Widely Compatibility— Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.



Specification:

Material: aluminum alloy

Effect output power: 80W

Optical Power：10W (±1W)

Wavelength: 450nm (±10nm)

Light color: blue

Focus Length: 45mm

Spot form: Punctiform, fixed focus

Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)



PWM Modulation: 0/3-12V 0-5kHz TTL/PWM

Input port: XH2.54-3P socket

Item size: 40*40*147mm

Laser module net weight: 250g



Professional Air Assist

Upgraded 6mm diameter air nozzle has an advanced hydrodynamic design, which better reduces air resistance and faster jet airflow.
Recommended inner diameter of air tube: Φ4mm, outer diameter: 8x6mm
Air pump suggestion:Air pressure and capacity: ≥0.027kPa, 27L/min

With Air Assist VS No Air Assist

Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle: Scorched Edges
with Air Nozzle: Clean-Cut Edges

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

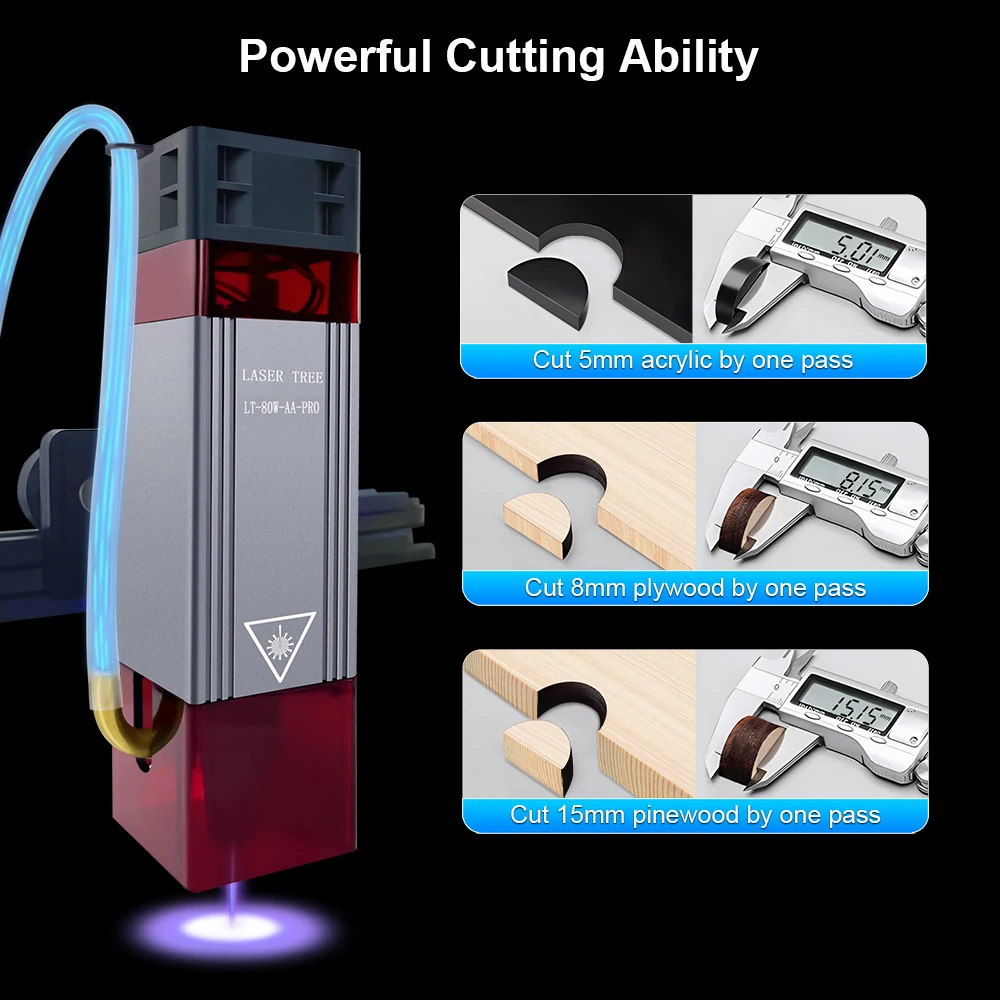

Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass
Cut 5mm MDF: 150mm/min,100% power,by 2 passes

Minimum 0.08mm Ultra-thin Beam

Ultra-fast engraving on stainless steel-30mm/s

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

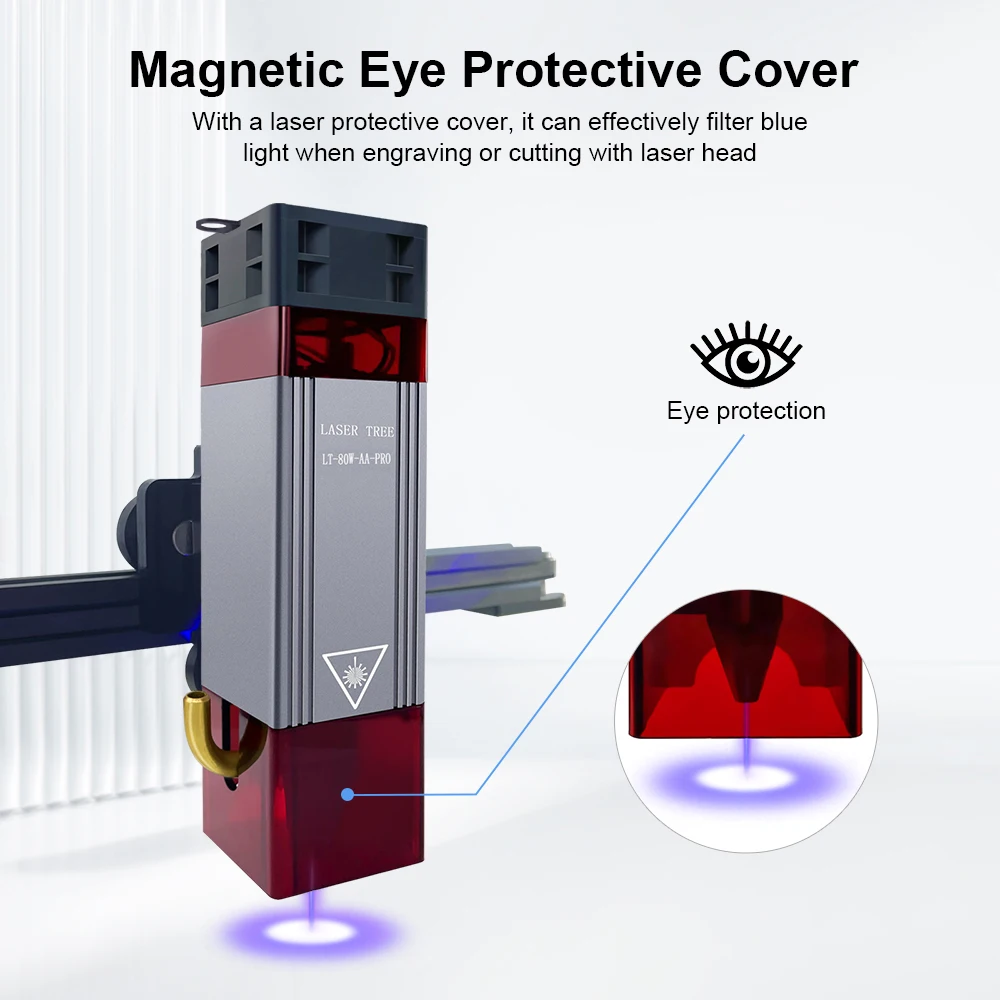

Magnetic Protective Cover

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head, safe and convenient

Replaceable Protective Lens

Upgraded brass protective lens, more durable

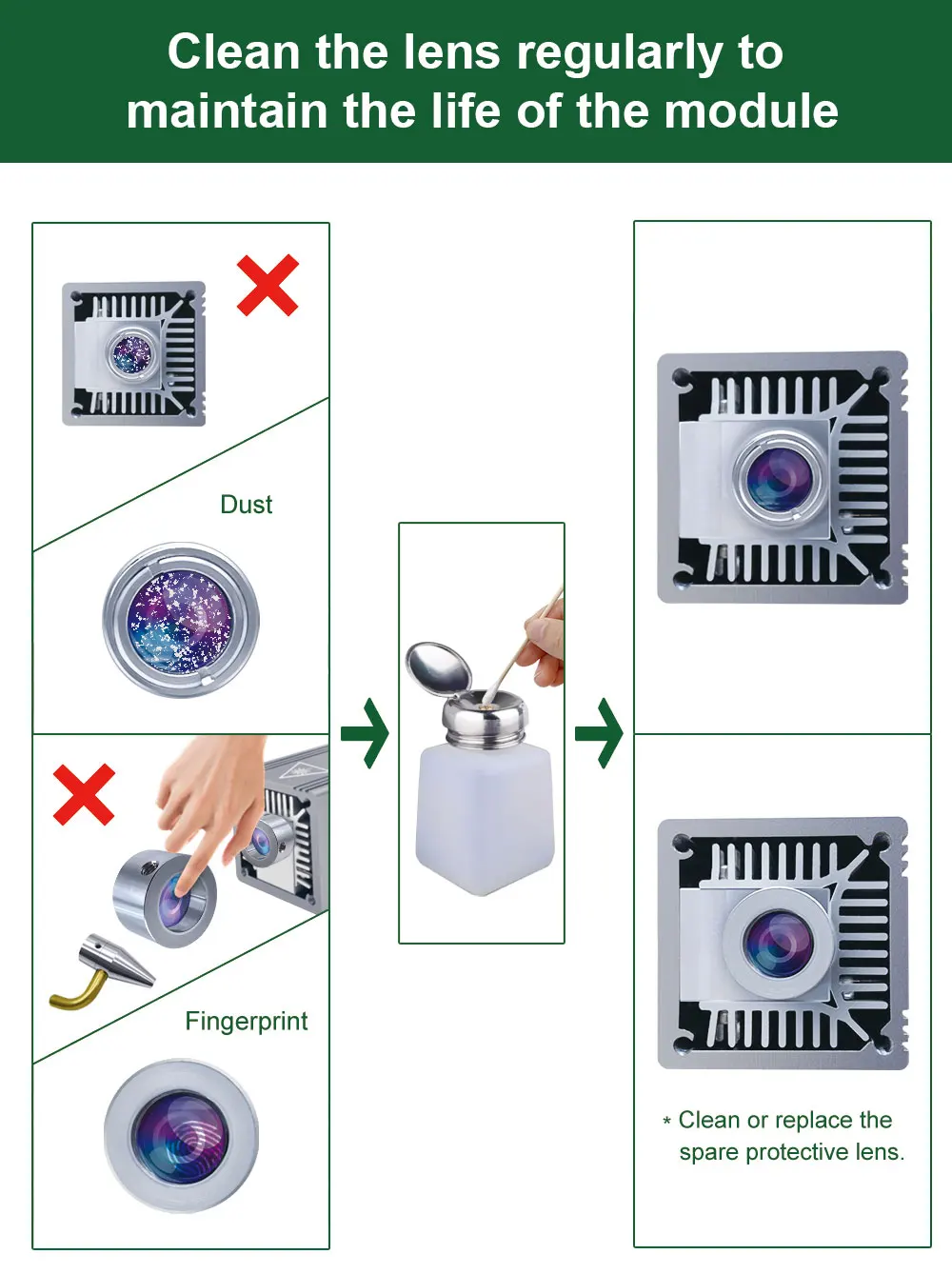

Lens Maintenance

When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.

When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.

When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.

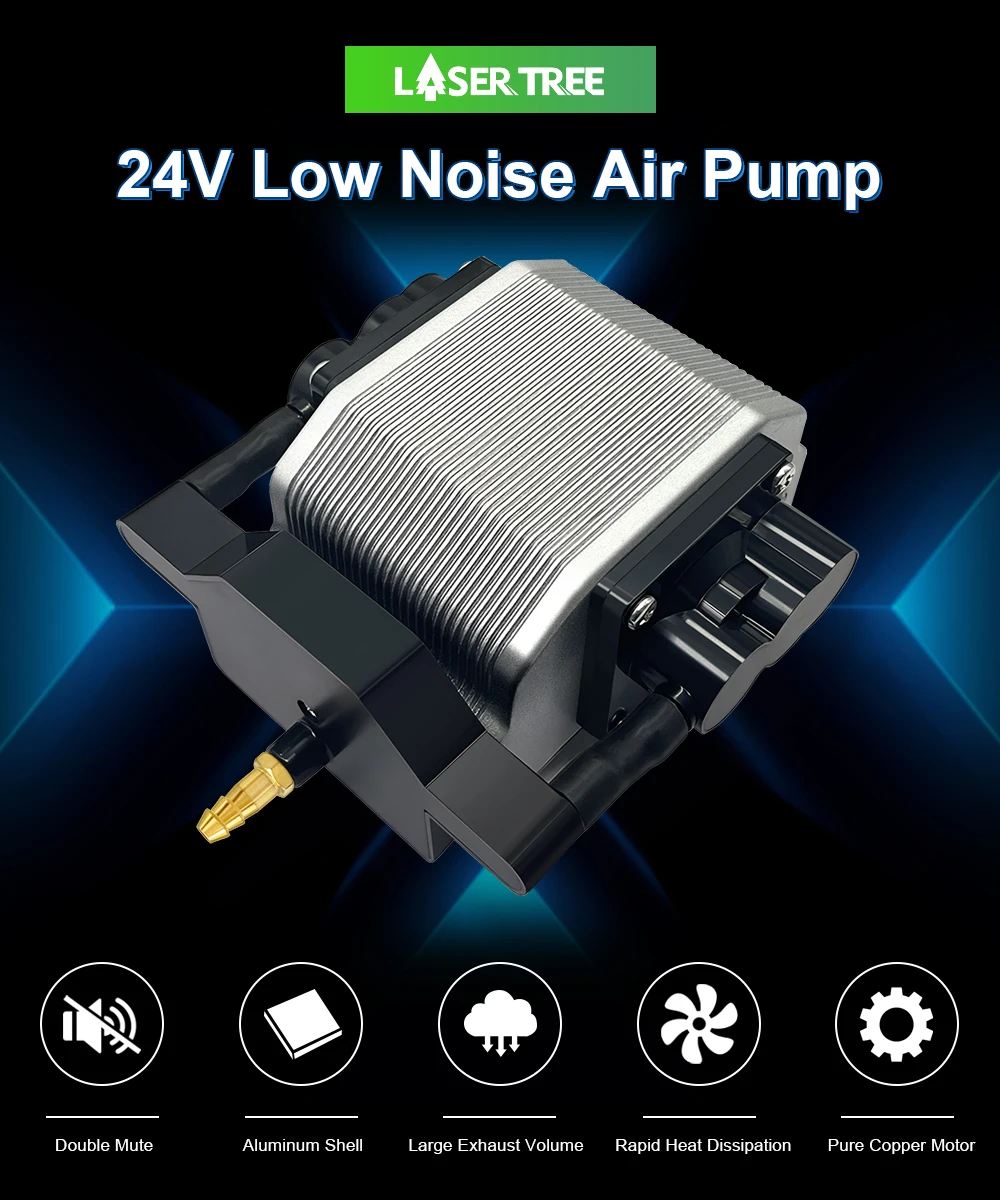

Air Assist Pump:

Description

The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges;
Protecting the laser head’s lens from contamination and extending the laser head’s service life.
In addition, it can improve the efficiency of laser processing and thus save your time.

Features:

1. High-quality Materials: metal nozzle, resisting high temperature.



2. Large and Steady Air Output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.



3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.



4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable.



5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.

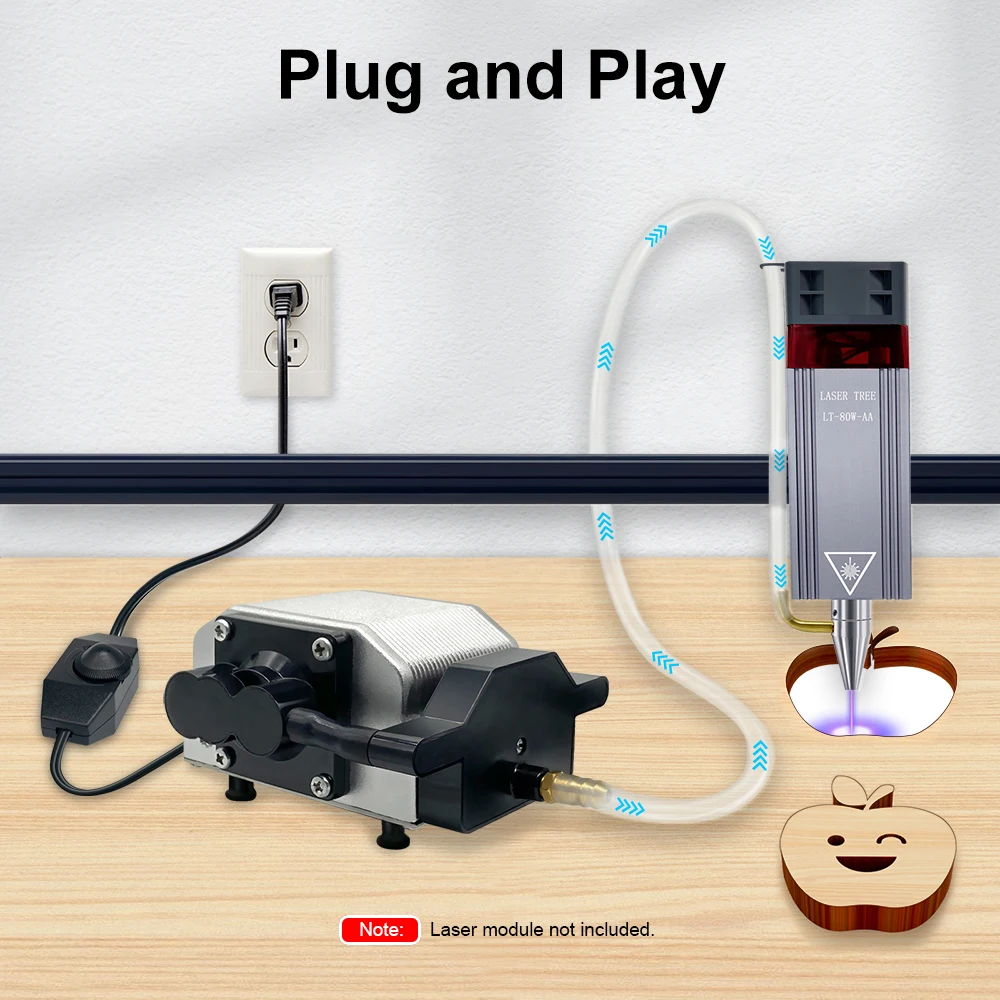

6. Plug and Play: please select the correct version of EU/US/AU plug.

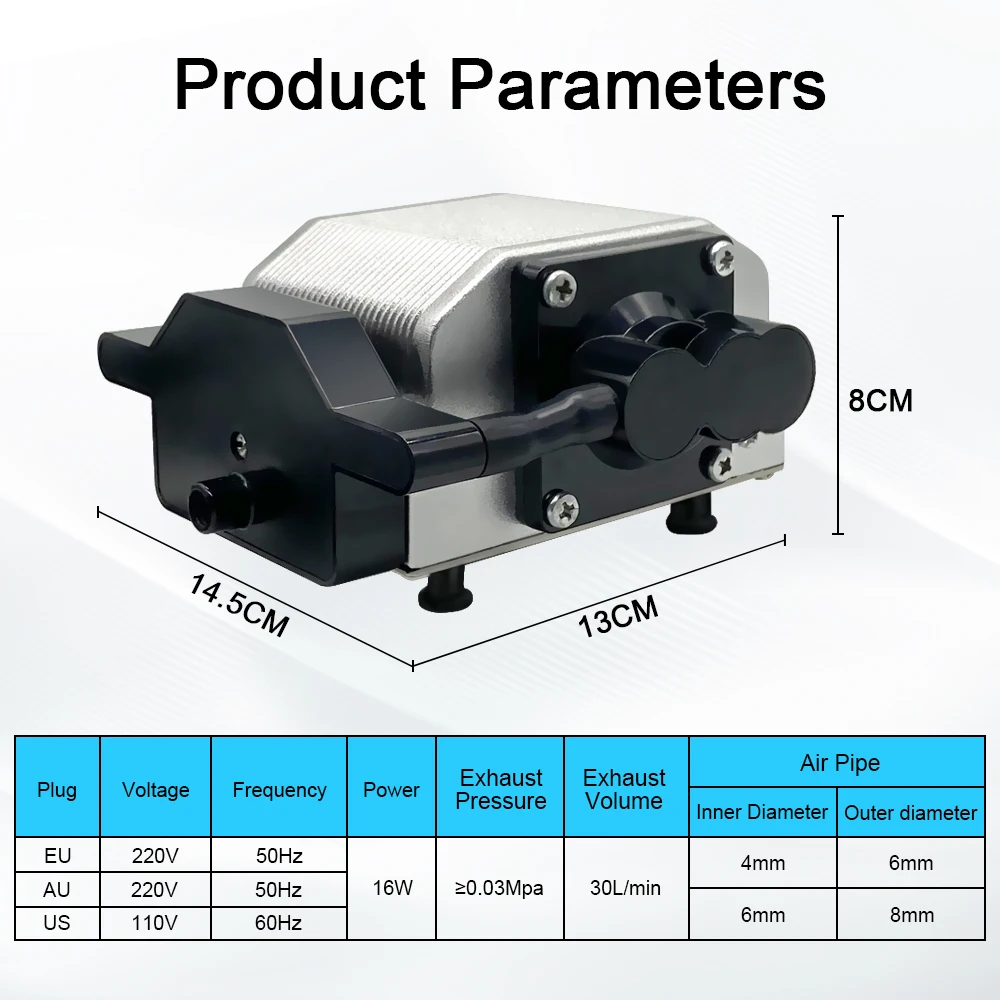

Specification:

Voltage: 110V/220V
Power: 16W
Exhaust Pressure: 0.03Mpa
Exhaust Volume: 30L/min
Outlet diameter: 8mm
Item Weight: 1.6kg
Item Size: 14.5*13*8cm
Application: Air assist laser module

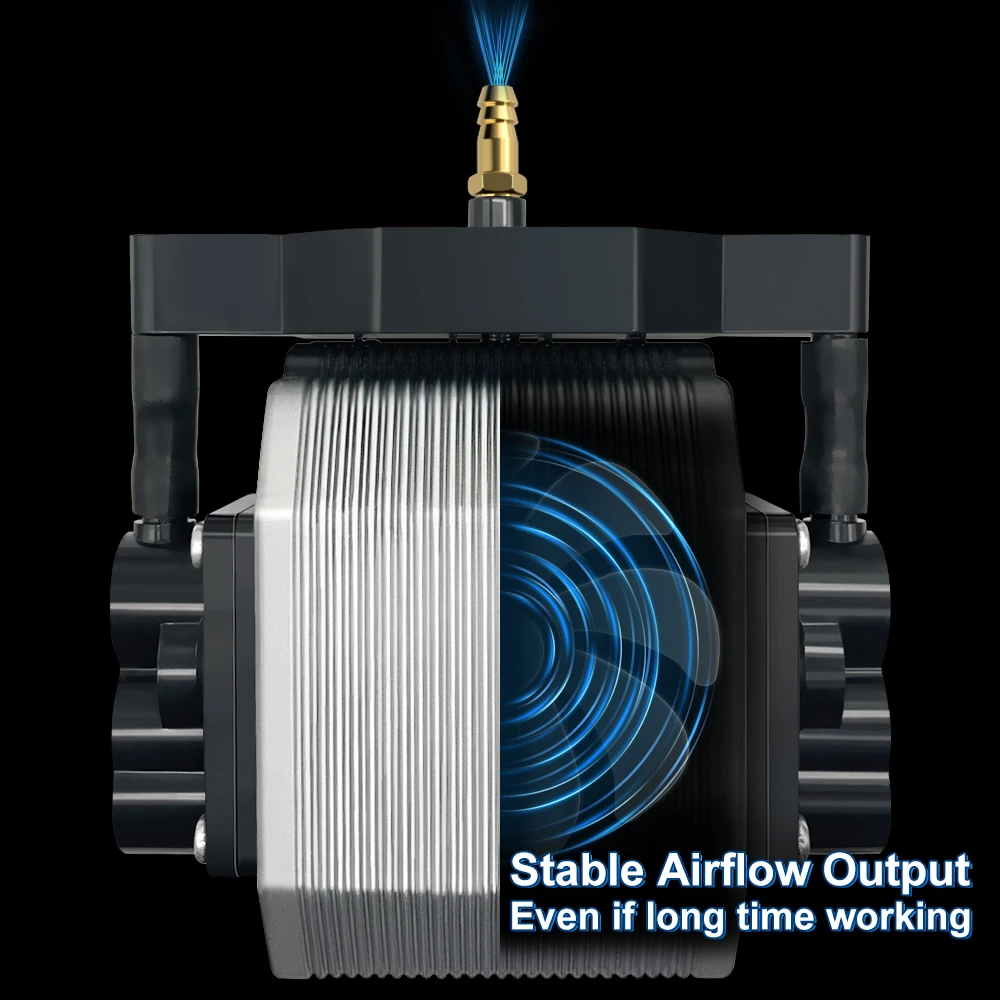

Stable Airflow Output

High stability design to maintain stable airflow output even if long time working

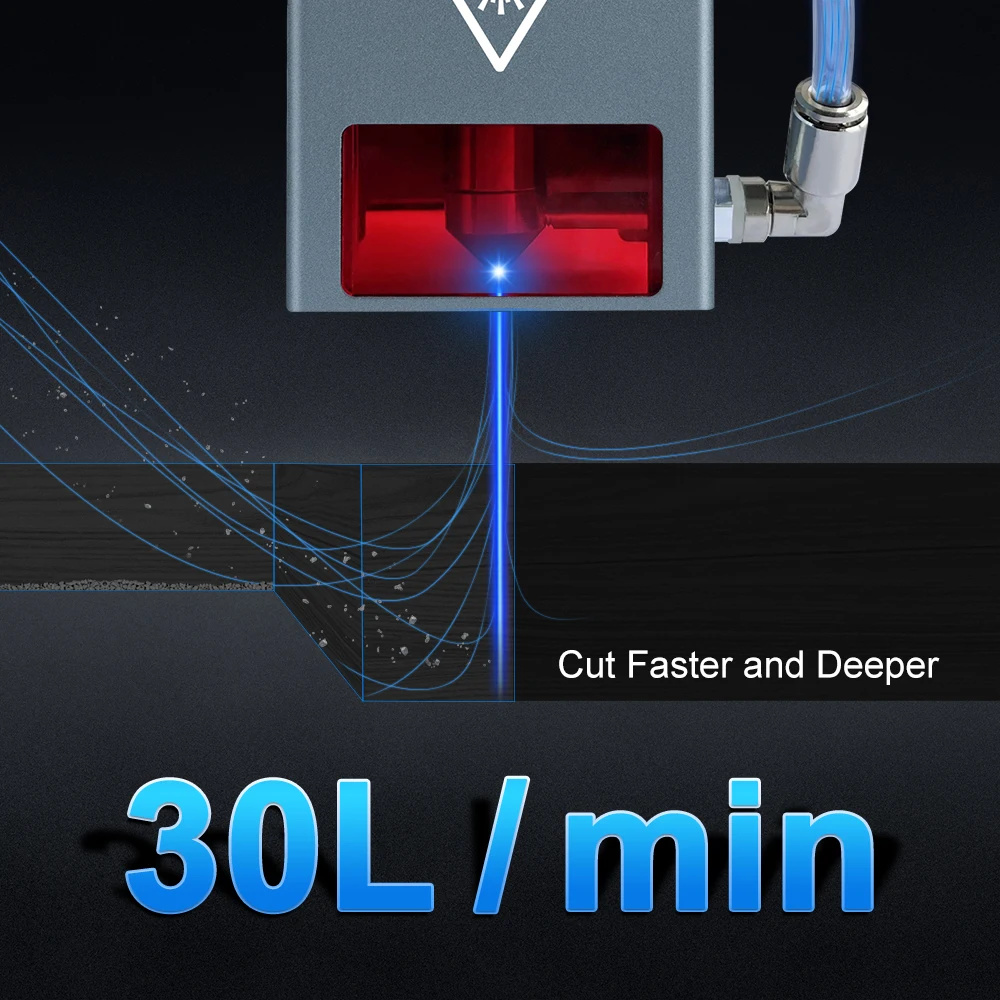

Large and Steady Air Output

30 L/min, blowing away smoke and residue produced during laser processing, cut faster and deeper

Adjustable Speed Design

Adjustable 0-30L/Min airflow speed

Copper Air Outlet

8mm enlarged air outlet to get clean-cut edge

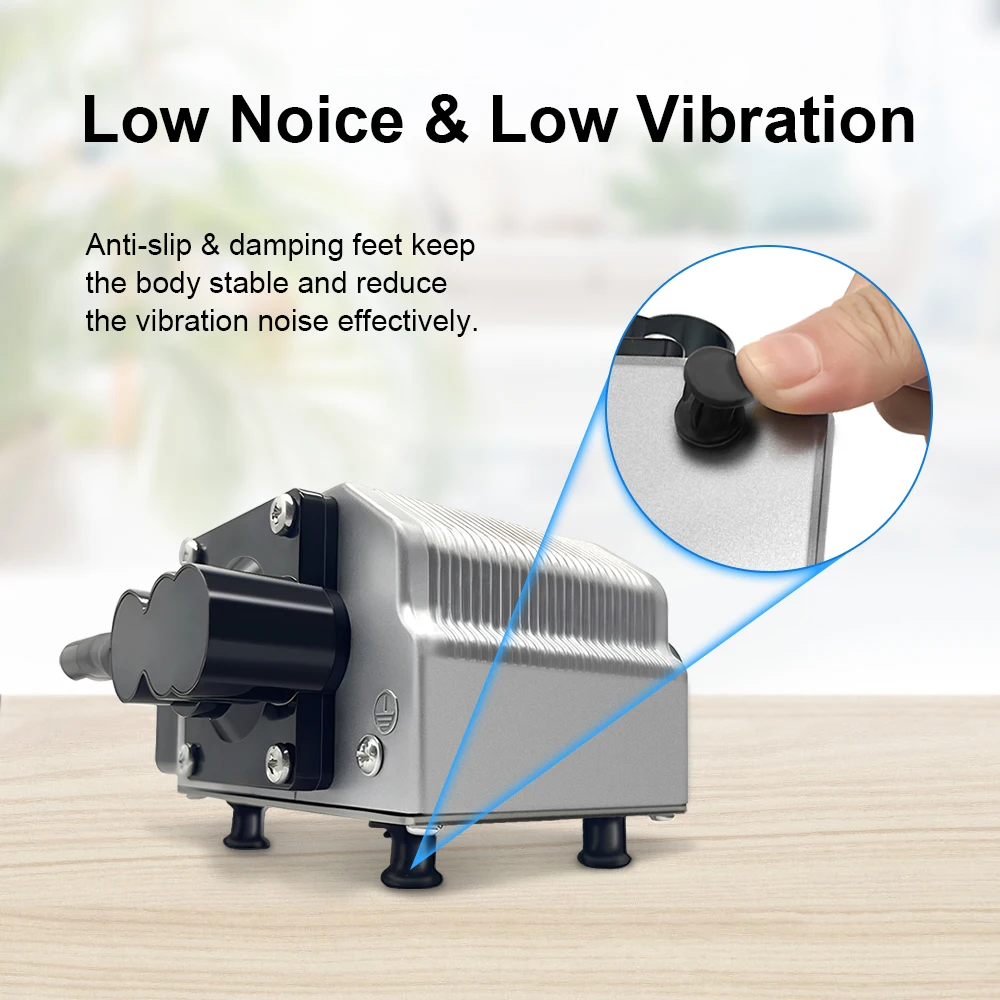

Low Noise & Low Vibration

Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively

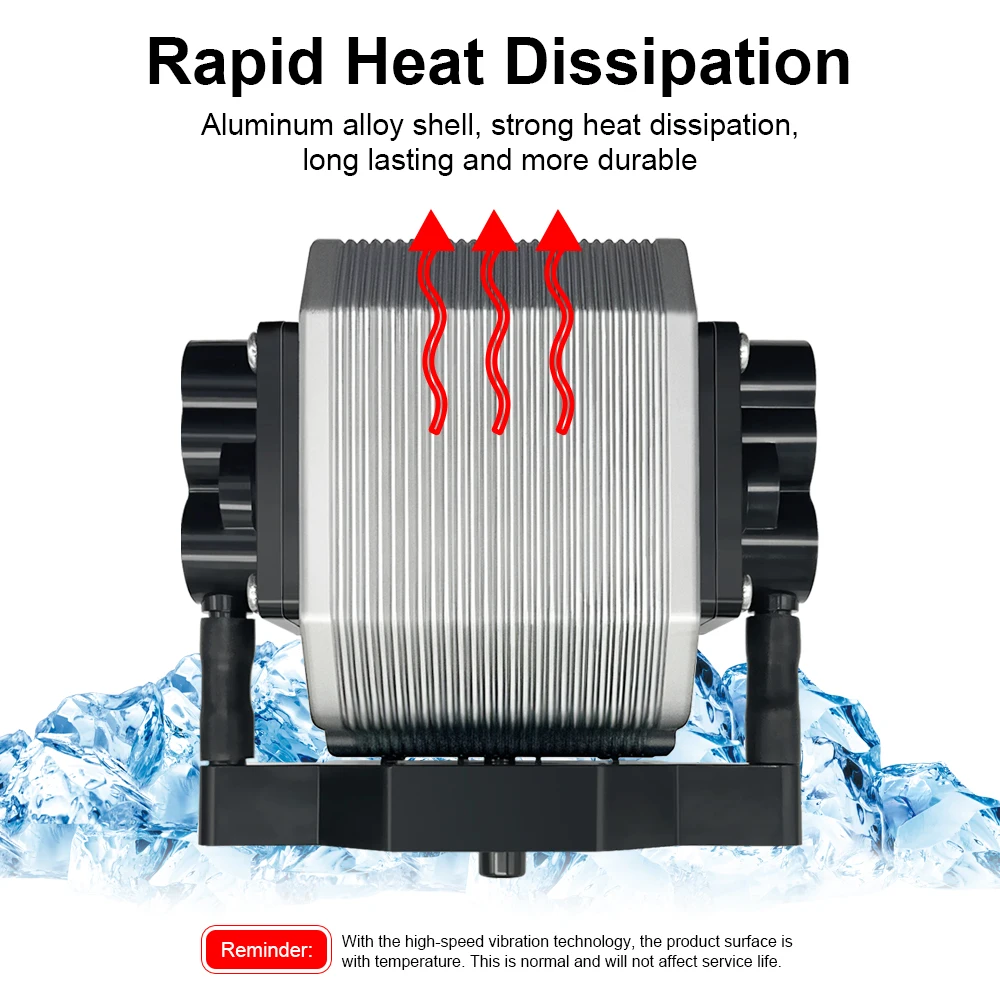

Rapid Heat Dissipation

Aluminum alloy shell, strong heat dissipation, long lasting and more durable



Note:

If you need the instruction manual, please contact us, thank you!
