5W Optical power Laser Head 45mm Laser Module with Air Assist
LT-40W-AA
1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).
2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.
3. High precision engraving resolution 0.08mm.
4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.
5. Upgraded Magnetic eye protective cover, easy to remove and install.
Specification:
Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W(±0.5W)
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Power Adjustable: Support 5V PWM modulation
Function: Engraving/Cutting

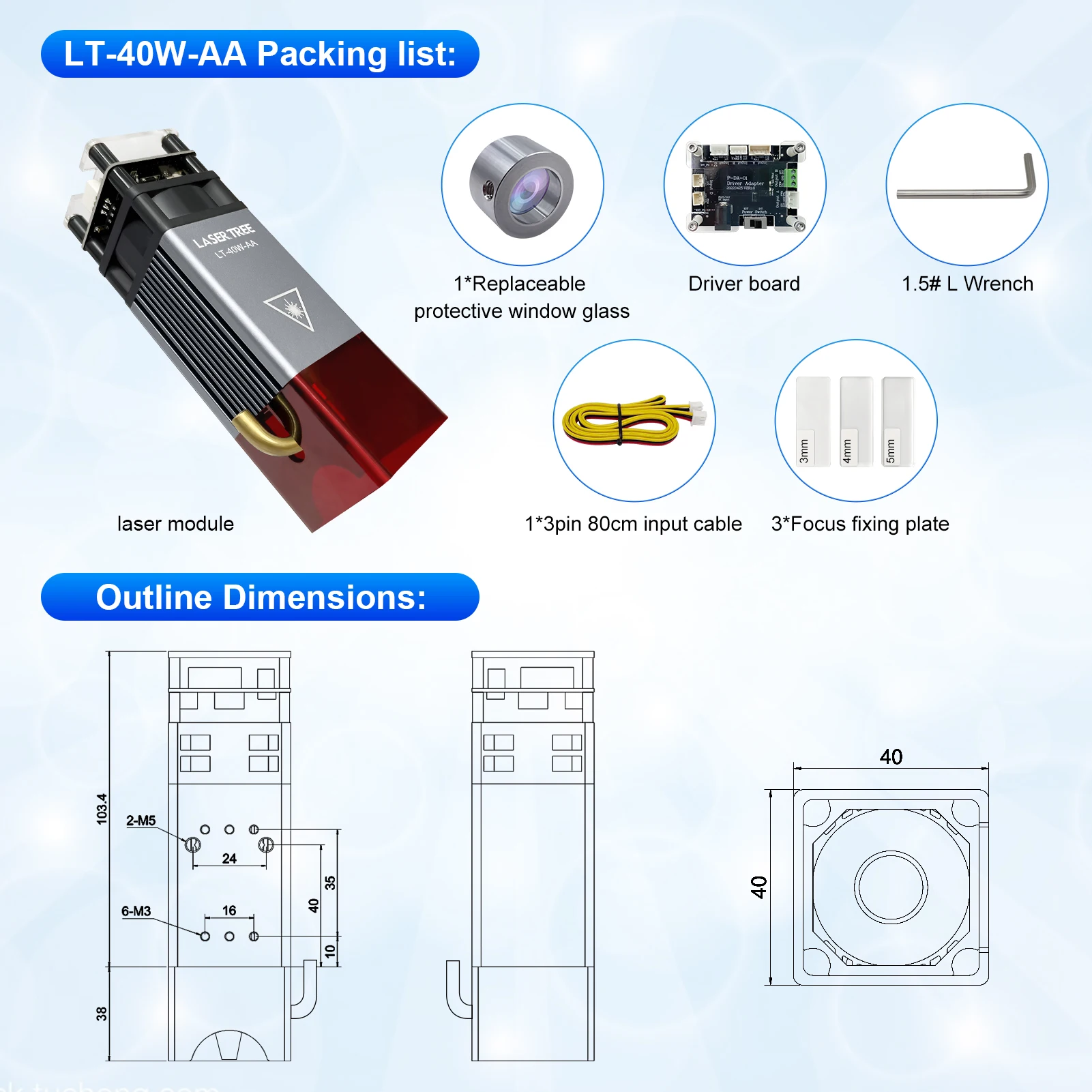

Module Size: 40*40*121mm
Module Weight: 240g
Magnetic Eye Protection Cover
Easy to remove and install
Beam Compressed Spot
More Precise with 5W Compressed Spot
