LASER TREE 80W 40W 20W Laser Module, 450nm TTL Blue Light Laser Head for Laser Engraving Wood DIY Creation Tool

LASER TREE 80W 40W 20W Laser Module, 450nm TTL Blue Light Laser Head for Laser Engraving Wood DIY Creation Tool



LT-80W-AA-PRO(Optical Power 10W) Features:

1.LT-80W-AA-Pro

It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

2.With the air asssit nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

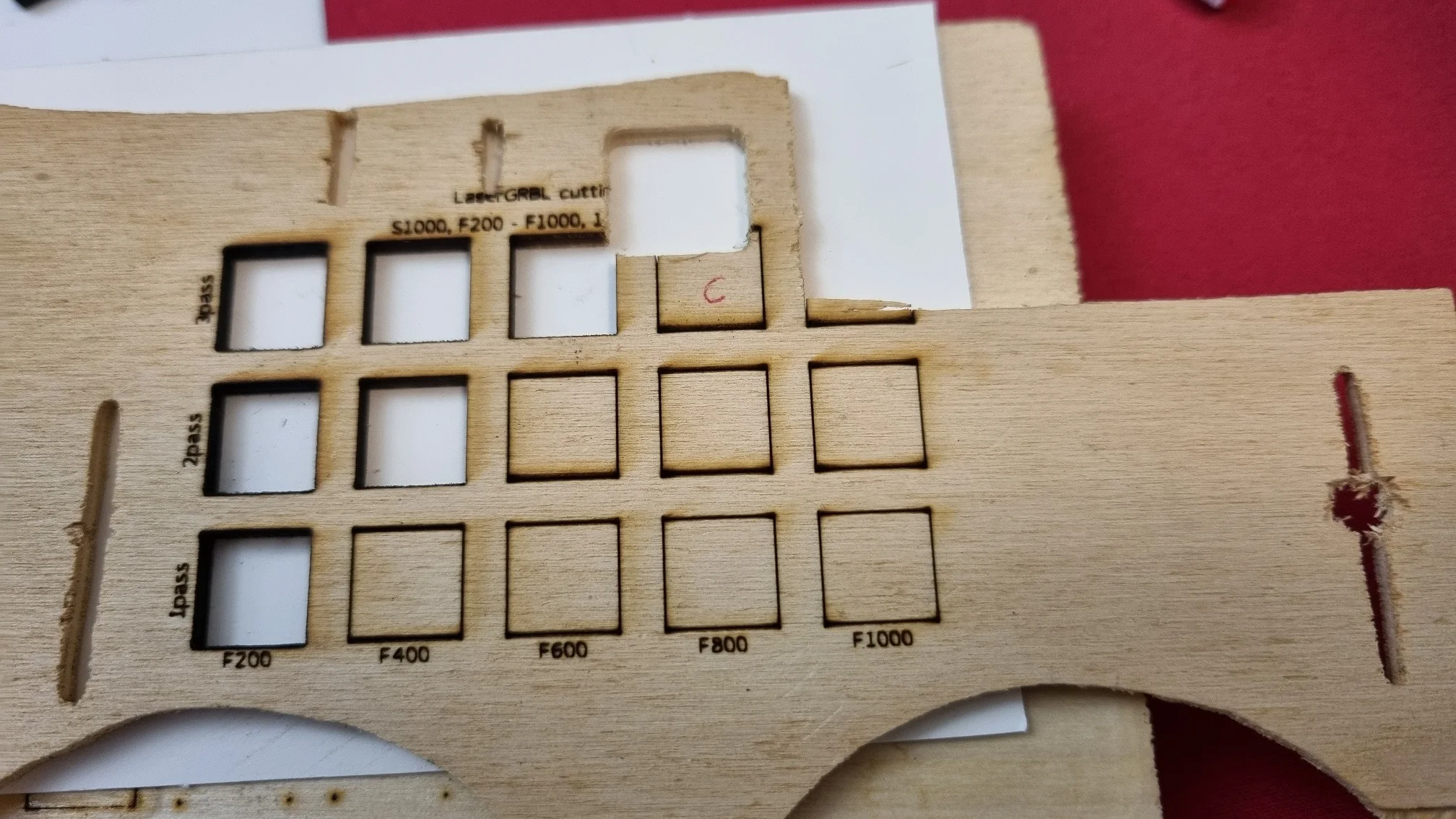

3. Remarkable cutting ability

Cutting 8mm bass plywood ,120mm/min ,one pass.

Cutting 5mm bass plywood, 50mm/min, one pass.

Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

4.With the laser protective cover

Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It’s also easy to remove if you don’t need it.

5. Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

Powerful Cutting Ability

Maximum material thickness that can be cut

With Air Assist VS No Air Assist

Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.

Dual-LDs with beam compressed technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

Interface diameter size

Air nozzle outer diameter: 6mm; inner diameter: 3.5mm

Air tube outer diameter: 8 mm;inner diameter: 6 mm

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

Eye Protective Cover Design

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.

Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

Provide spare protection window piece

Debris and fumes from the laser cutting process are blown onto the lens, providing a spare lens for better cleaning and replacement.
OTHER LASER MODULE:

Thicker beam and shorter effective energy range

Lower energy density beam

LASER TREE LASER MODULE:

Thinner beam and a longer effective energy range

Higher energy density beam, stronger cutting ability

Stable Optical Power Output

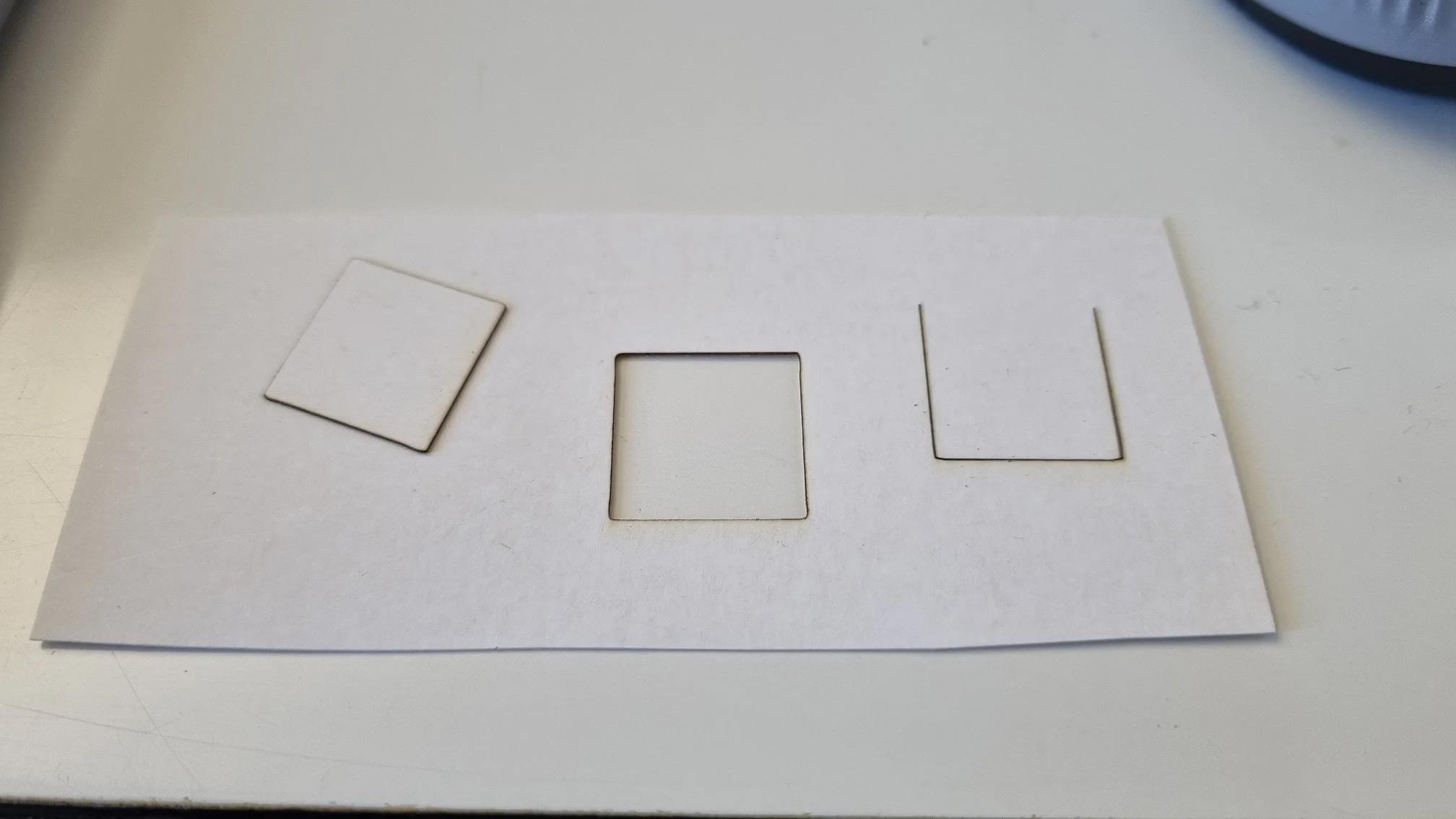

For cutting work

The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.

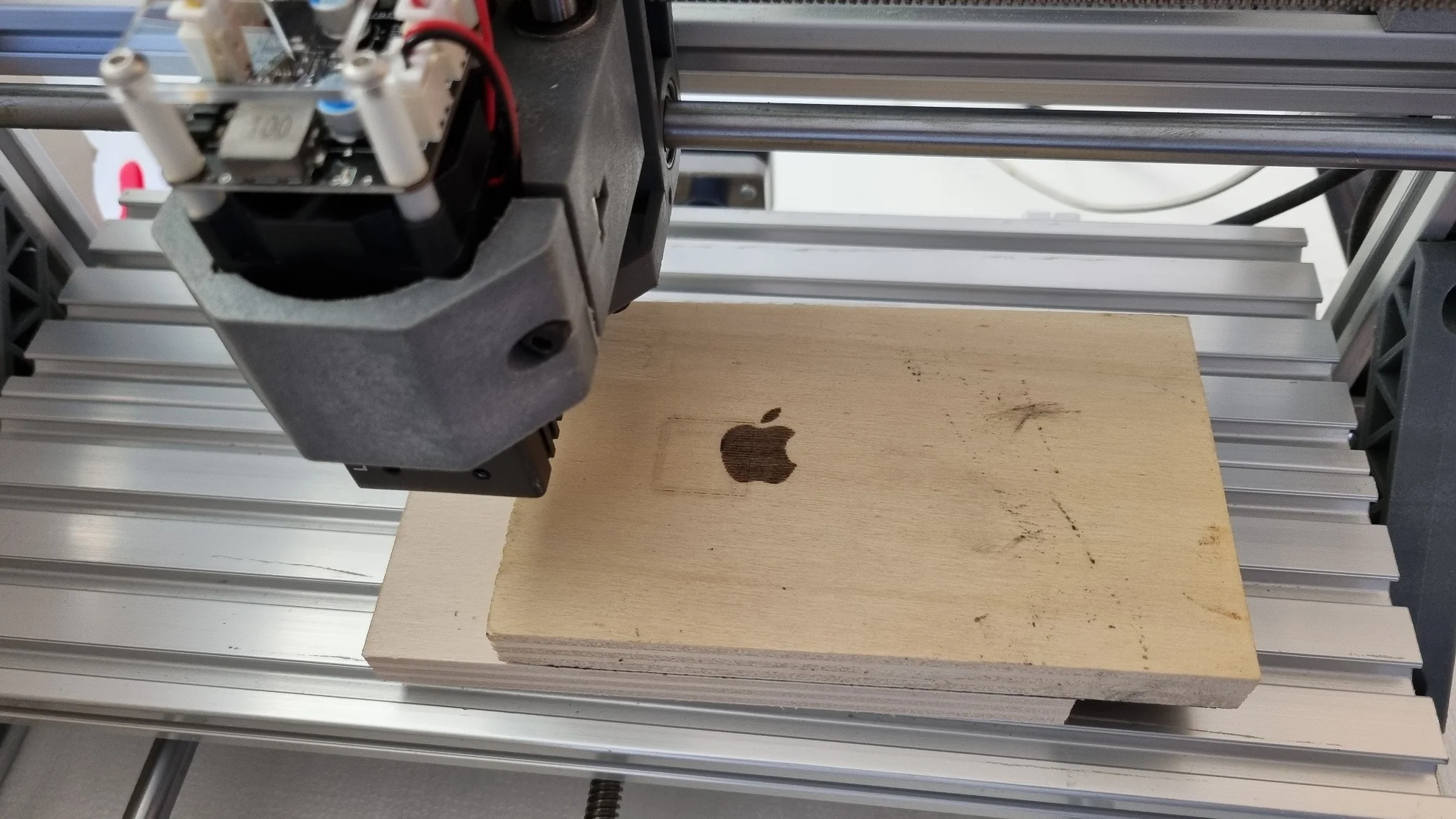

For engraving work

The focal point is at the surface of the material.Product Size

When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.

When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.

When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.

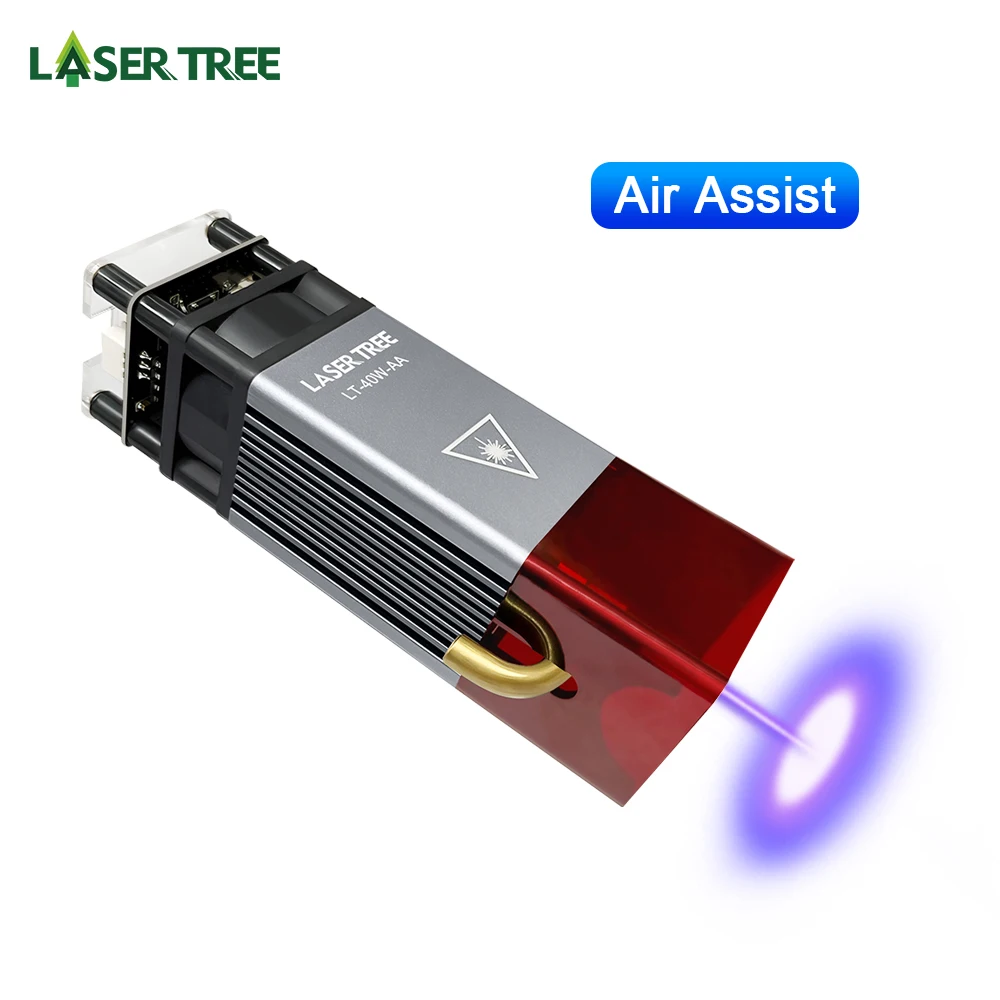

LT-40W-AA(Optical Power 5W) Features:



1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).

2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.

3. High precision engraving resolution 0.08mm.

4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.

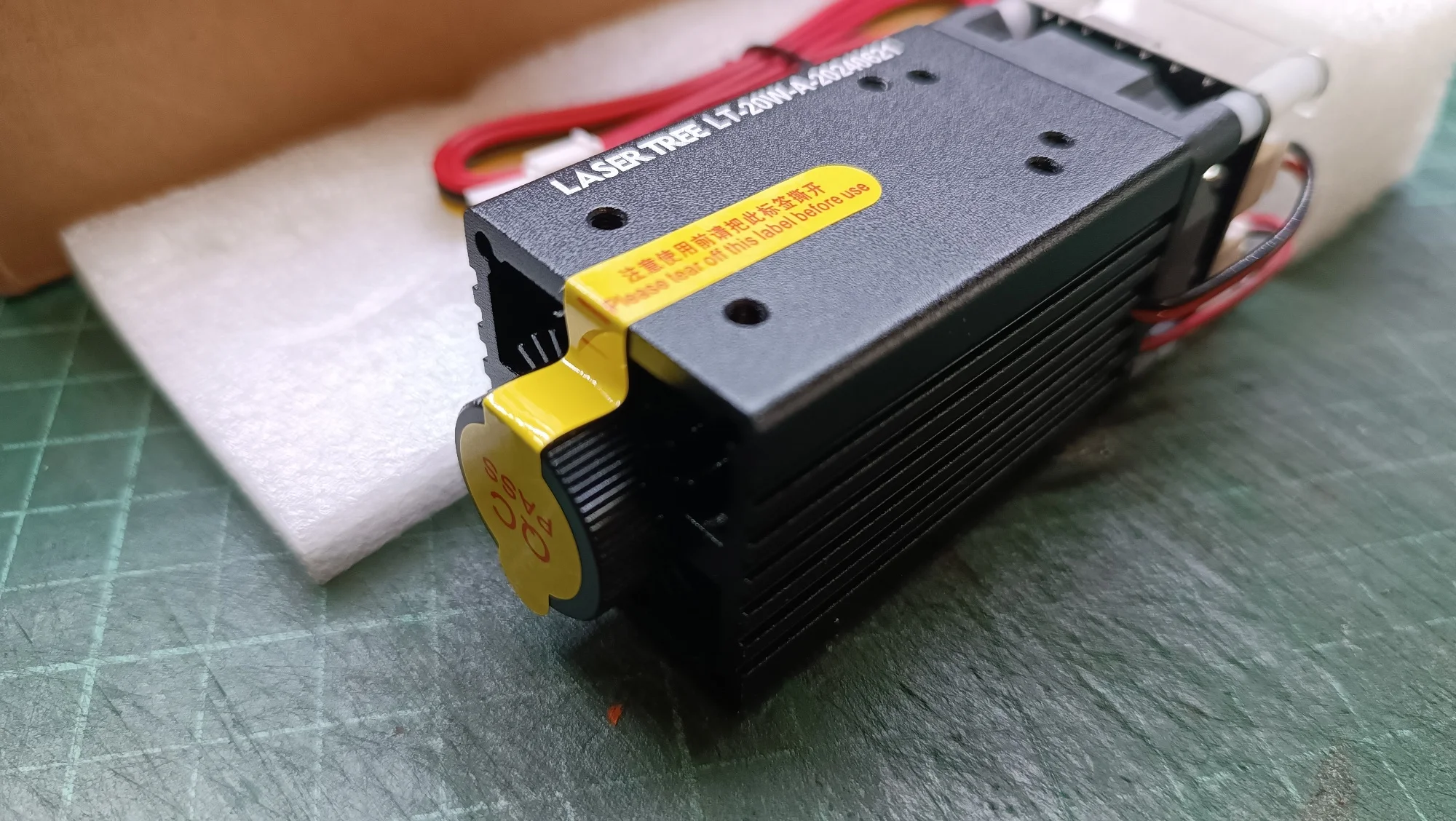

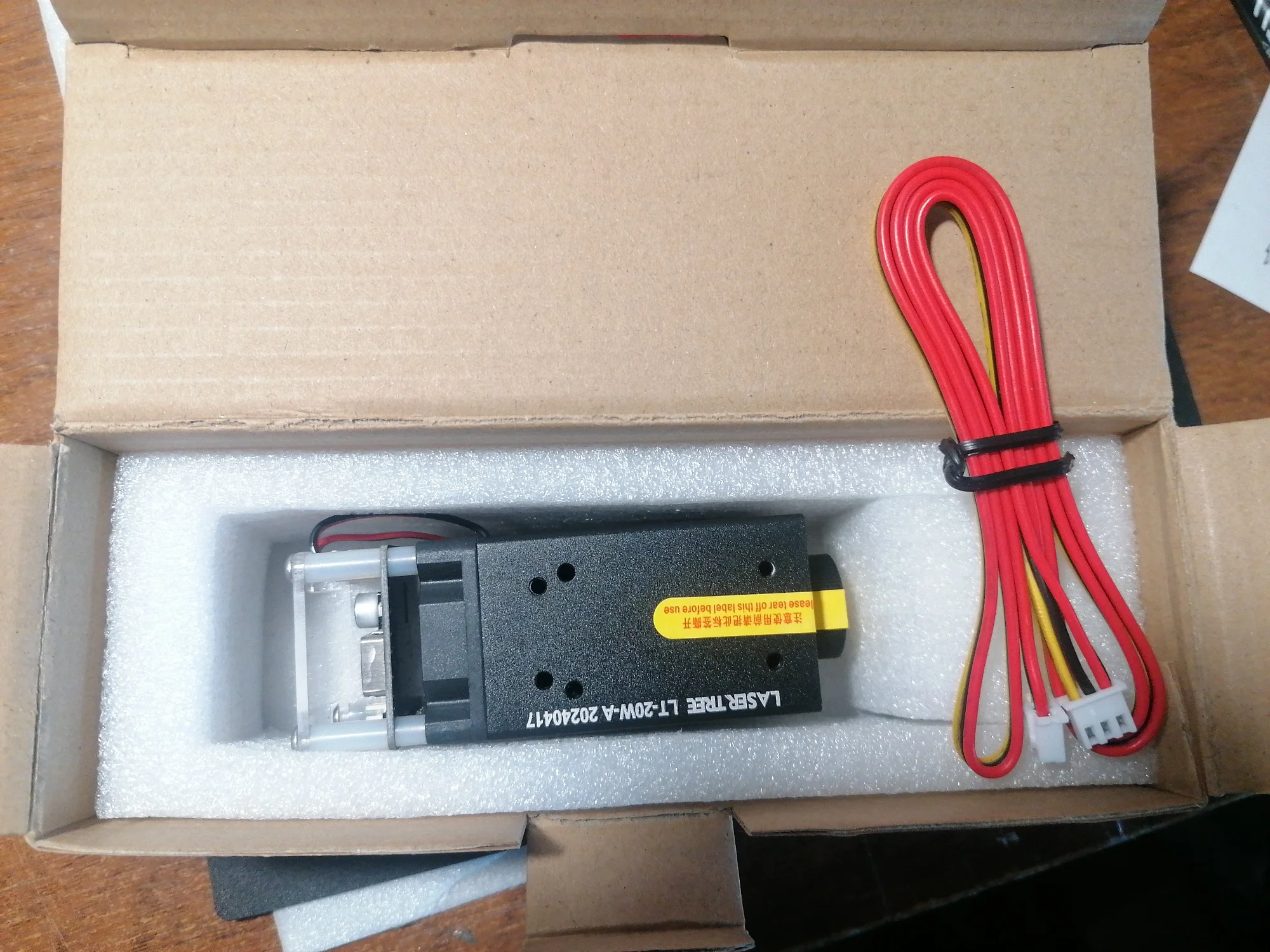

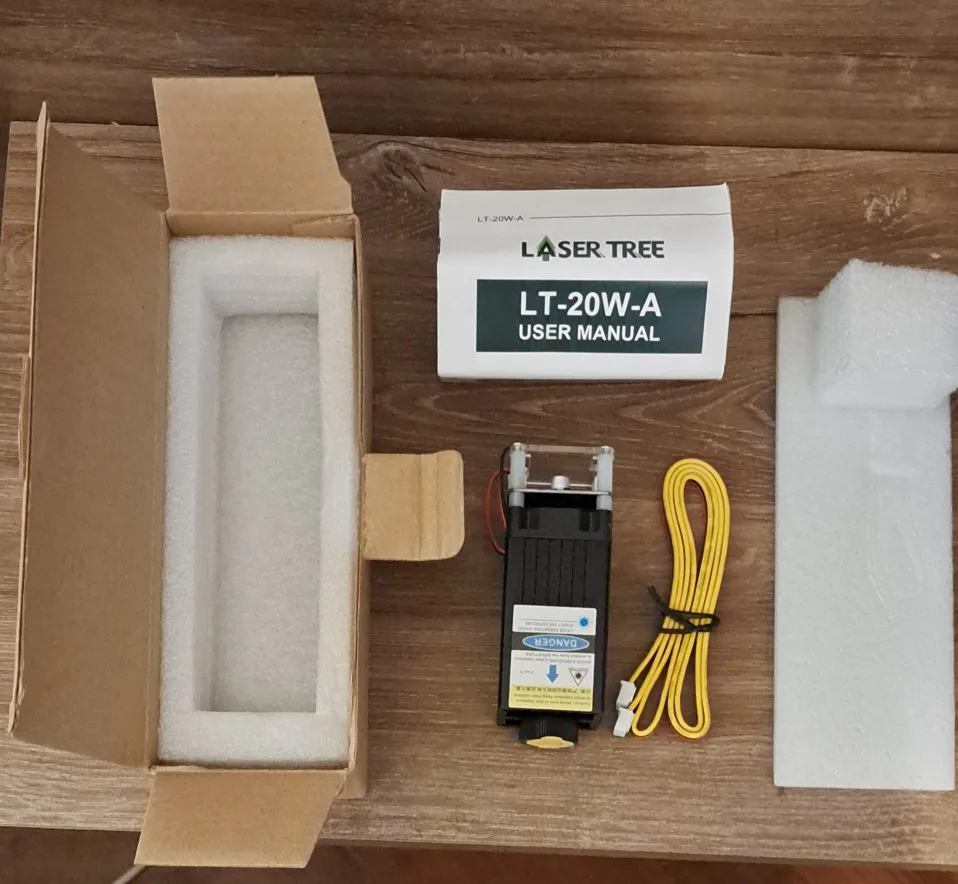

LT-20W-A(Optical Power 4W) Features:



Specifications:

Effect Laser Power: 20W

Material: Aluminum Alloy+Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power

Item Size: 9.5*3.5*3.5cm

Package Size: 14*6.2*6.2cm

Item Weight: 146g
