LASER TREE 80W/40W/30W/20W Laser Head For CNC Engraver Wood Cutting DIY Laser Tools 450nm TTL/ PWM Blue Light Laser Module

LASER TREE 80W/40W/30W/20W/7W Laser Head For Engraver Wood Cutting CNC DIY Laser Tool Blue Light Laser Module

LT-4LDS-V2 (20W Optical Power) Features:

The LT-4LDS-V2 is a professional cutting module designed for long-term safe cutting and fine engraving processes. Compared with V1, V2 has been greatly improved with a new housing design, easier-to-use air-assist, longer focal length and more stable cutting output power. Cut 10mm plywood at a time at 3mm/s, easily create the desired effect wood on the pattern. If you spend most of your working time on cutting, then choose LT-4LDS-V2 will be your good companion.

▶4-Beam Compressed Technology, built-in 4pcs 5W beam compressed laser diodes

▶It can cut 10mm thick bass/pine plywood, 8mm thick black acrylic, and even 0.08mm thick stainless steel by just one pass

▶Air assistance performance update;change the diameter of air tube from M5 to M8, to get stronger air pressure at air nozzle

▶ With air assist, when performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks.

▶ High Precision Engraved Resolution 0.08mm

▶ Widely compatible design, LT-4LDS-V2 laser module can be installed on ZBAIT*,Ortu*,Two Tr**s,Sculpf**9,Atomsta** and other models of DIY laser engraving machines (please contact us if you are not sure about compatibility)

LT-K20 (Optical Power 20W) Features:

1. Ultra High Power

LaserTree K20 is a true 19-21W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.

2. Powerful Cutting Ability

12mm basswood plywood: 100mm/min, one pass

15mm black acrylic: 15mm/min, one pass

15mm pine wood: 100mm/min, one pass

9mm MDF: 100mm/min, 2 passes

3. Built-in Air Assist Airway & Dual Fan Cooling Design

1>Built-in air assist airway to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

4. Working Status Indicator

The electrical connection status can be easily checked by the “Power” and “Signal” LED indicator.

5. Temperature Display & Alarm Function

Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

LaserTree K20 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.

6.Red Cross Line Locating

The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

7. Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

8. Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

9. Widely Compatible Design

In order to improve the compatiblity to different laser engraver machine, K20 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.

LT-K20 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(please contact us if you are not sure about compatibility)

For Cutting

Please make the focus locate lower than the cutting material surface.

For example, if you want to cut 10mm material, the focus should be 5mm lower than material surface, please adjust the fixed focus lever to 5mm.

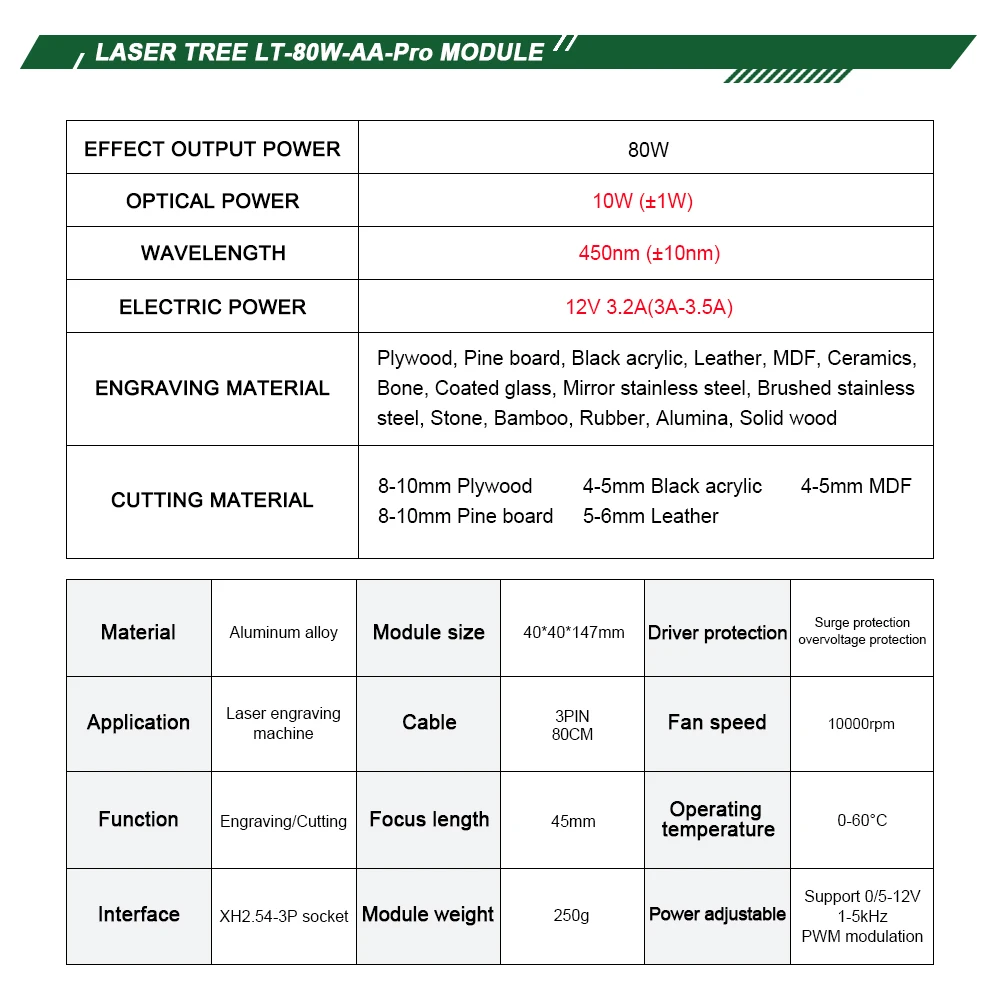

LT-80W-AA-PRO (Optical power 10W) Feature:

1.LT-80W-AA-Pro

It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

2.With the Air Asssit Nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

3. Remarkable Cutting Ability

Cutting 8mm bass plywood ,120mm/min ,one pass.

Cutting 5mm bass plywood, 50mm/min, one pass.

Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

4.With the Laser Protective Cover

Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It’s also easy to remove if you don’t need it.

5. Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

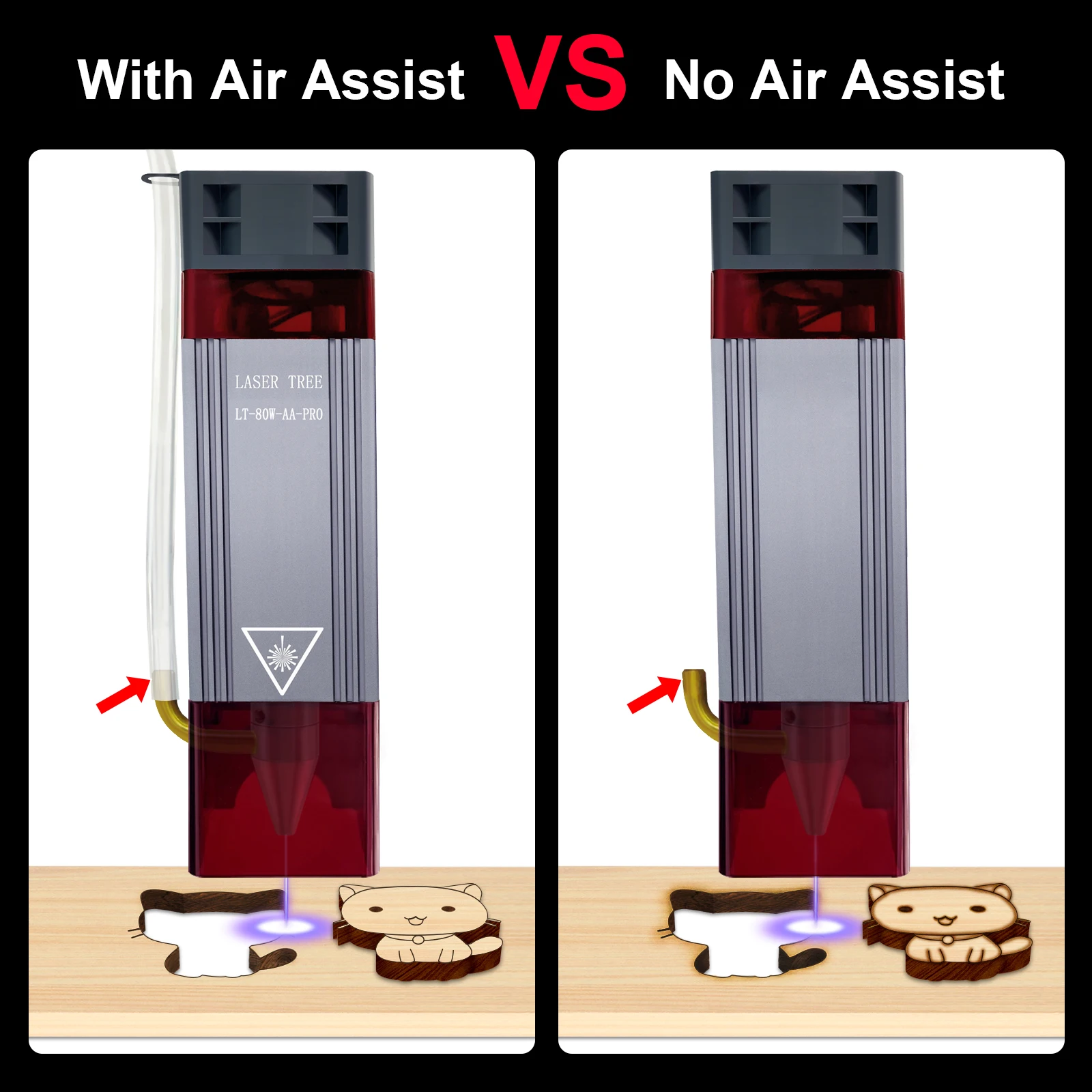

With Air Assist VS No Air Assist

Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.Interface Diameter Size

Air nozzle outer diameter: 6mm; inner diameter: 3.5mm

Air tube outer diameter: 8 mm;inner diameter: 6 mm

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

Eye Protective Cover Design

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.

Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

Provide Spare Protection Window Piece

Debris and fumes from the laser cutting process are blown onto the lens, providing a spare lens for better cleaning and replacement.For Engraving Work

The focal point is at the surface of the material.

For Cutting Work

The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.

LT-40W-A-Gold (Optical power 5W) Feature:

1：High Reliability y~20,000hours

2：High Engraving precision~0.08mm

3：Remarkable Cutting Ability~ Cutting through 5mm plywood by one pass

4：High Stainless Steel Engraving Speed~30mm/s

5: Adjustable focus 12V module

LT-40W-F23 (Optical power 5W) Feature:

【Upgraded 23mm Fixed Focus Laser Module】

a.Directly engrave mirror stainless steel: no need painting black;

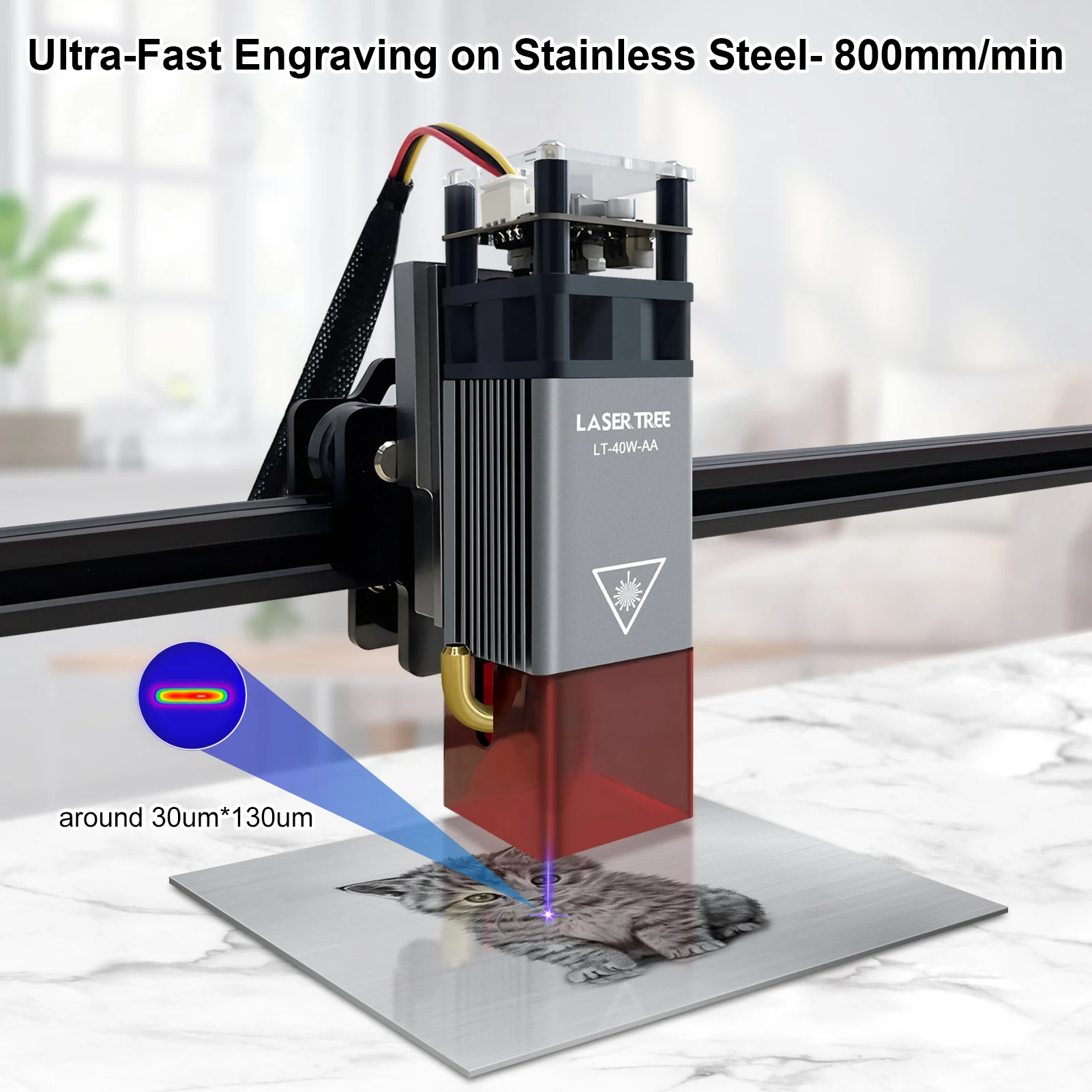

b. Super fast engraving speed: 304 stainless steel, up to 800mm/min with 23mm focus length;

c. Remarkable cutting ability: cutting through 4mm thickness plywood by one pass at speed of 80-100mm/min.

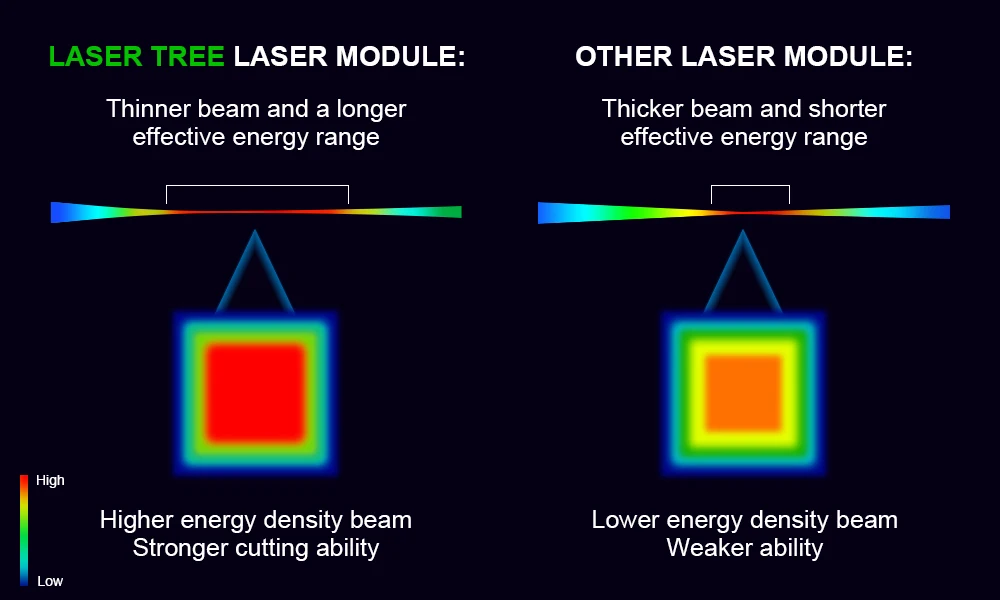

【Beam compressed spot】

Our blue laser module with Original diode, high quality,20,000 hours life time! Beam compressed spot to make the beam size much smaller at focus, power density increase 4~5 times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

【Easy to Use and Remove to Install】

The 40W laser engraving head with metal wind gathering hood,prevent flames from burning. Upgraded Magnetic eye protective cover, easy to remove and install. Control line installation method: pluggable. suitable for DIY engraving and cutting machine.

【Applicable Materials】

Plywood, black acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer)

LT-40W-AA (Optical power 5W) Feature:

1. Optical power is 5W (±1W), electrical power is 12V (1.5A-2A).

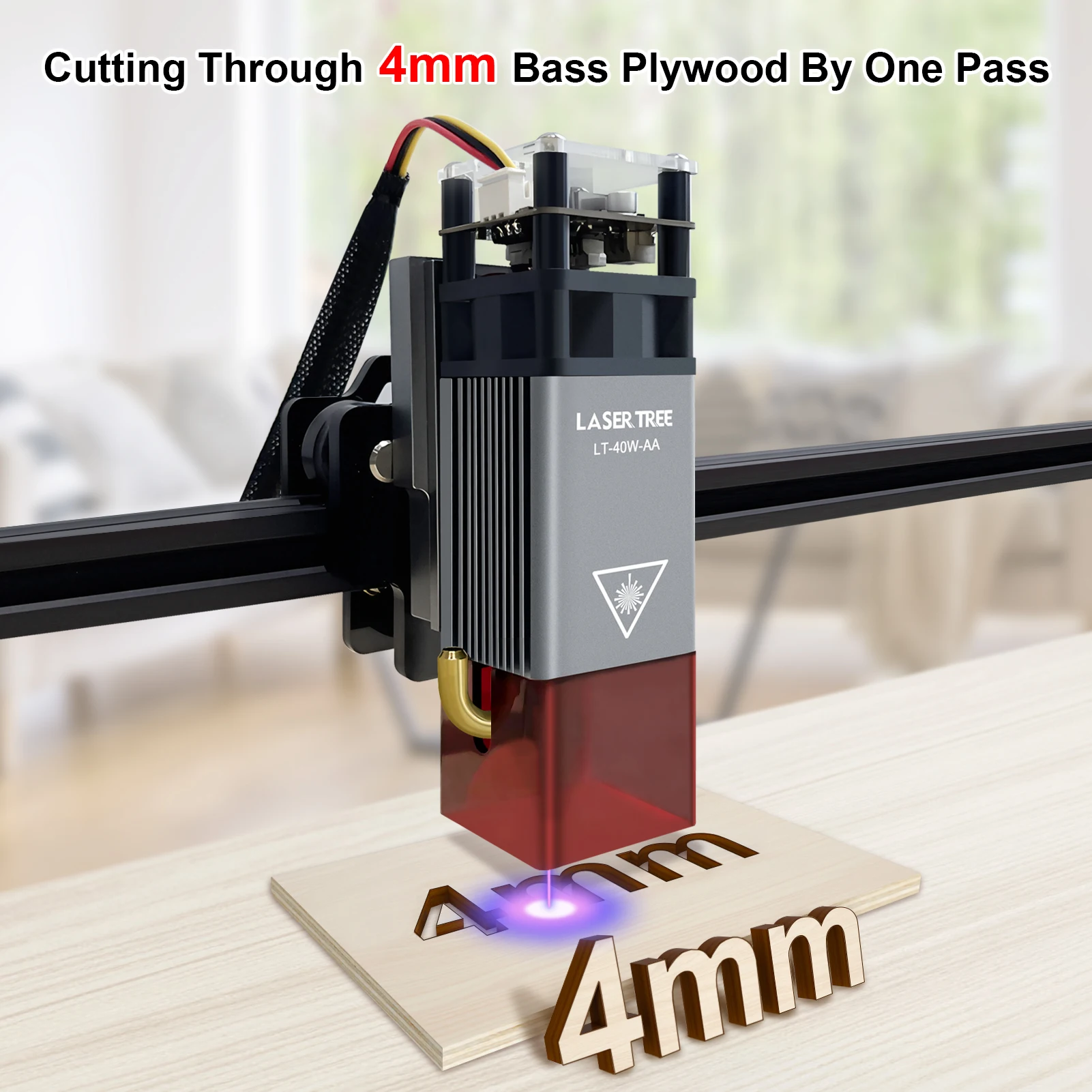

2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.

3. High precision engraving resolution 0.08mm.

4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.

LT-20W-A (Optical power 4W) Feature:

1：High Reliability y~1,000hours

2：High Engraving precision~0.1mm

3: Adjustable focus 12V module
