LT-40W-AA
1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).
2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.
3. High precision engraving resolution 0.08mm.
4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.
5. Upgraded Magnetic eye protective cover, easy to remove and install.
Specification:
Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W(±0.5W)
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Power Adjustable: Support 5V PWM modulation
Function: Engraving/Cutting
Module Size: 40*40*121mm
Module Weight: 240g

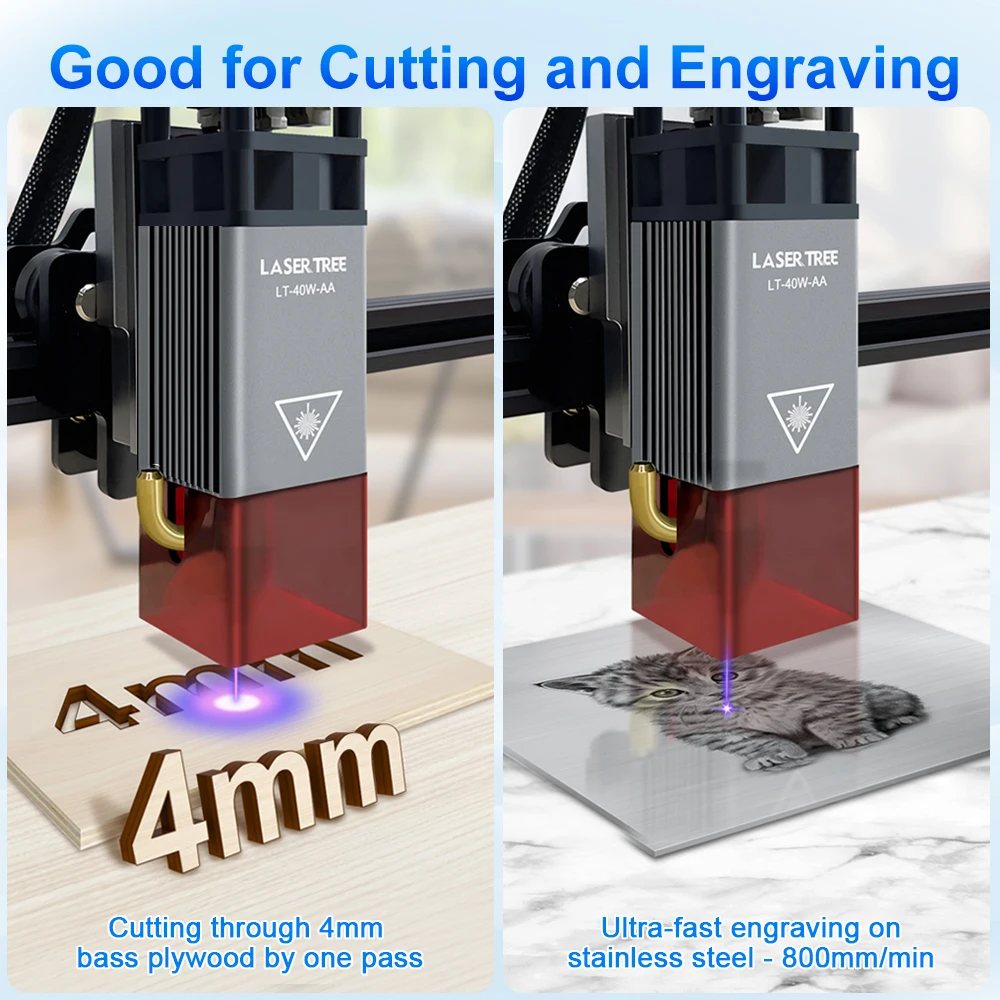

4mm thickness bass plywood cutting through by one pass
High-performance air assist makes cutting faster as well as improving the resultsachieving a cleaner surface.
Ultra-Fast Engraving on Stainless Steel – 800mm/min
High precision engraving resolution 0.08mm
For cutting work:
The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm below the air nozzle. For example, if you want to cut 4mm plywood, the distance from the air nozzle to the surface of the material should be 7mm-4mm/2=5mm.
For engraving work:
the focal point is at the surface of the material.
Easy to remove and install
The magnetic eye protection cover can effectively filter blue light and can work without goggles.

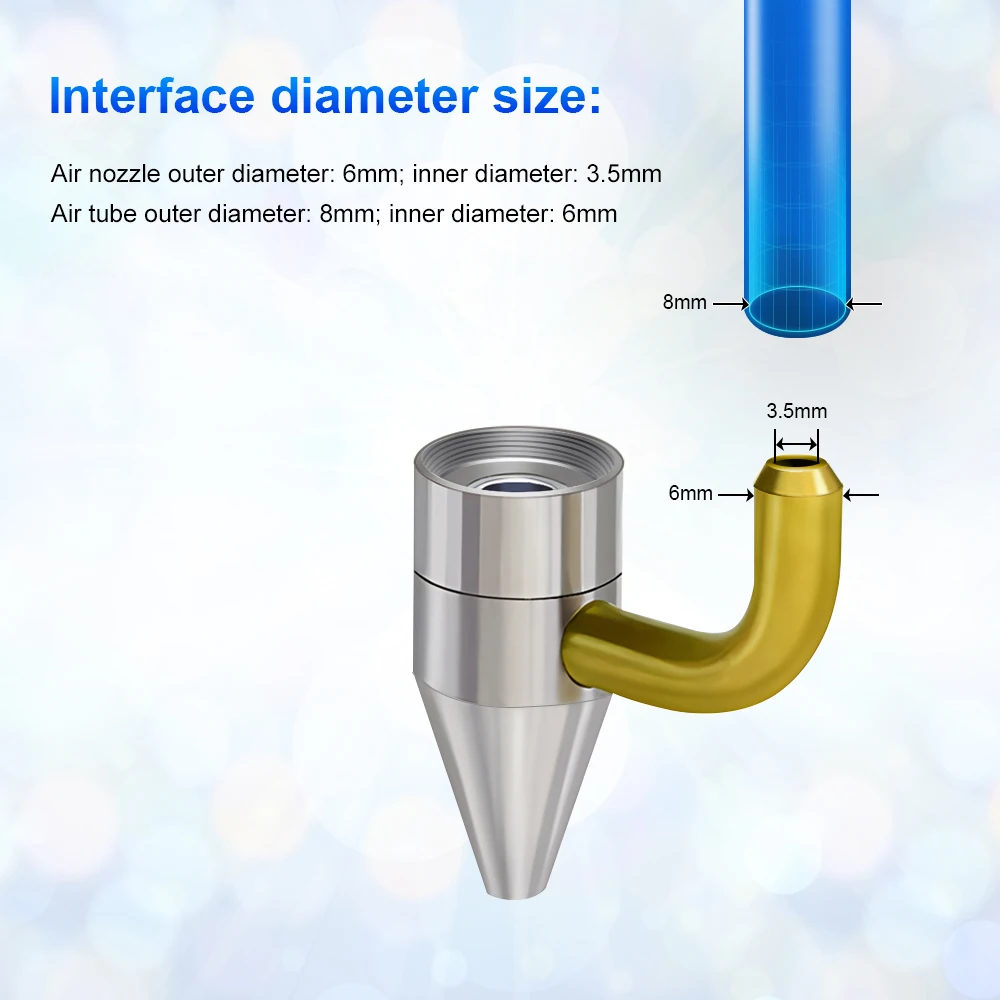

Interface diameter size.
Air nozzle outer diameter: 6mm; inner diameter: 3.5mm
Air tube outer diameter: 8 mm;inner diameter: 6 mm
Package with One More Protective Window Glass
Convenient for Maintenance

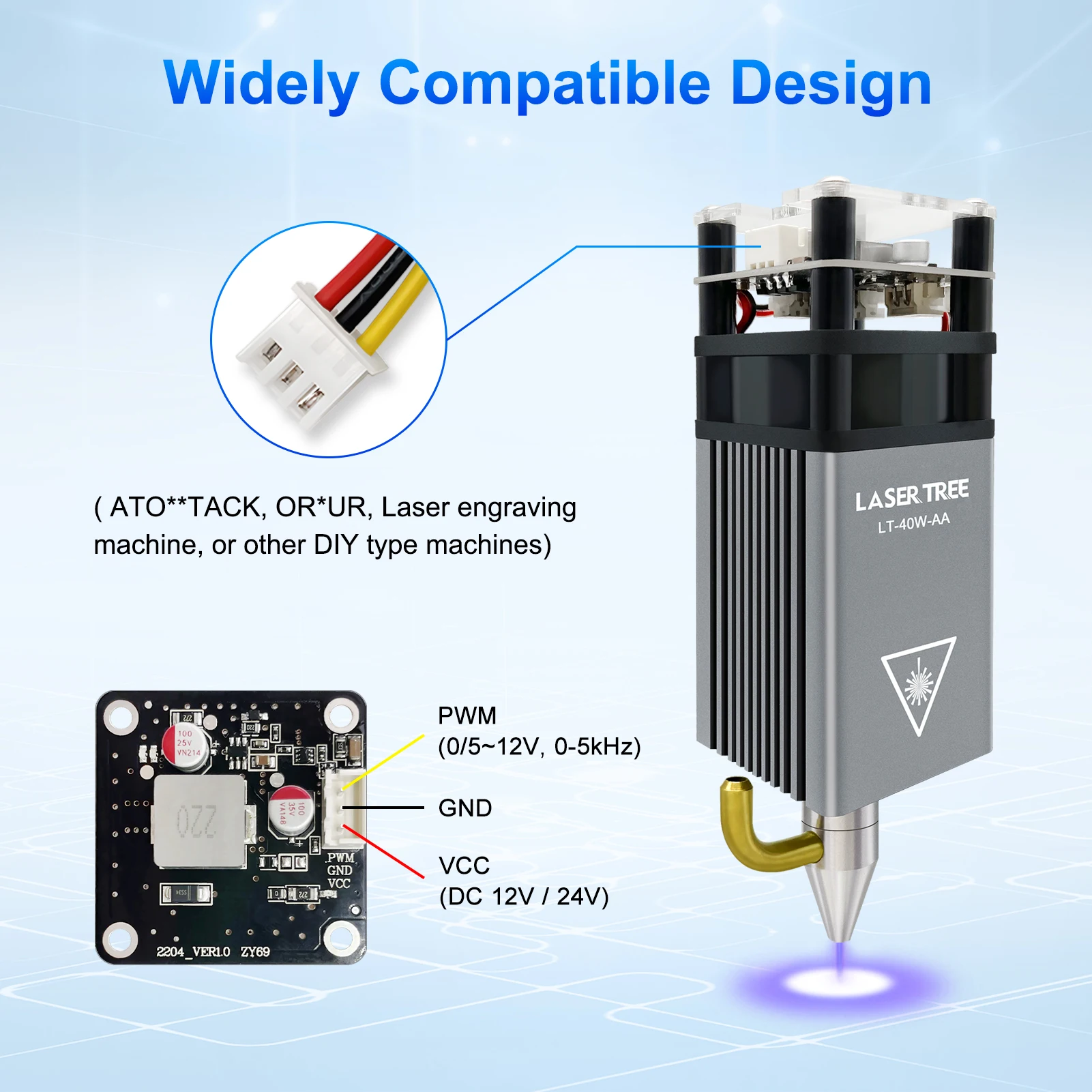

Widely Compatible Design
LT-40W-AA laser module can be installed on ZBAIT*,Ortu*,Two Tr**s,Sculpf**9,Atomsta** and other models of DIY laser engraving machines (please contact us if you are not sure about compatibility)
LT-40W-AA Engraving & Cutting for Material Test Data Reference
Product parameters
Compatible With AlI O***R/AT*****CK Machines
LT-40W-AA is 12V, if your machine is 24V, the P-DA-01 adapter board is included in the kit, please order another 12V power supply
Purpose of P-DA-01 Driver Adapter
Interface pin conversion and power conversion
