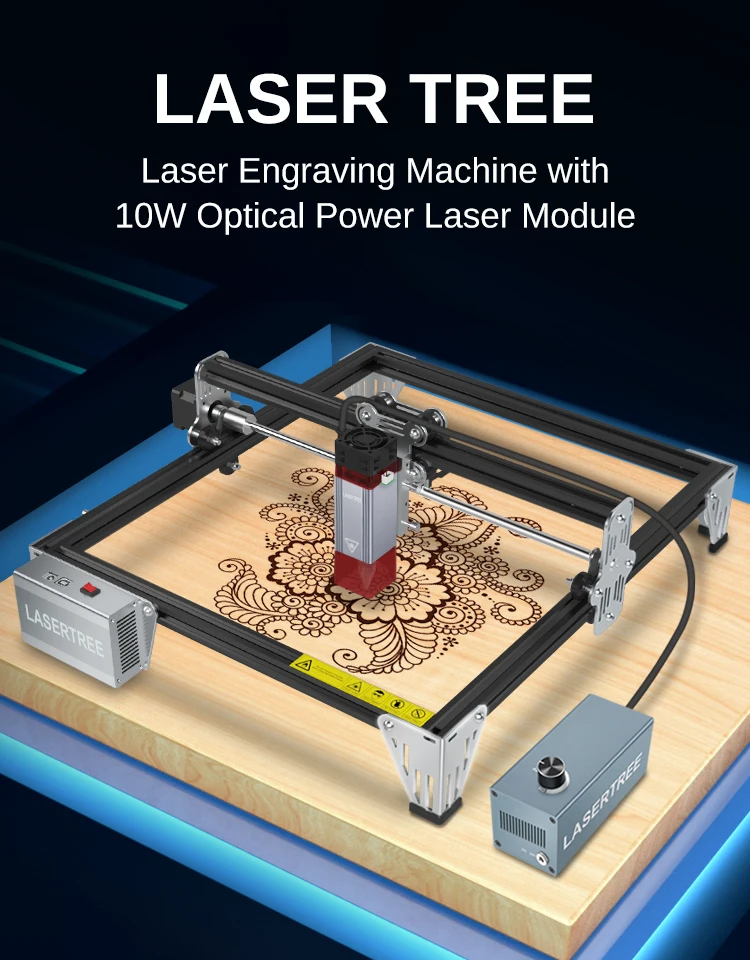

LASER TREE K1 Mini Laser Engraving Machine with 10W Laser Head Laser Engraver Cutter Woodworking TTL Blue Light Laser Module
1.Laser Engraving Machine–LT-K1-MINI
Laser Tree K1 Mini offers you a full set of accessories – laser engraving machine + 10W laser head + air pump + work plate.
The engraving area is 300*300 mm and meets most of the creative needs of beginners. larger frame body, a larger engraving range, your creativity will no longer be limited by the engraving space, even large pictures engraving requirements can be perfectly reproduced.
2. 10W Optical Power Laser Head—LT-80W-AA-PRO
About Cutting：
The laser head can cut through 8mm plywood, 8mm black acrylic, 3mm MDF by one pass. It is also equipped with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
About Engraving：Laser spot as small as 0.08*0.1 mm for finer engraving.

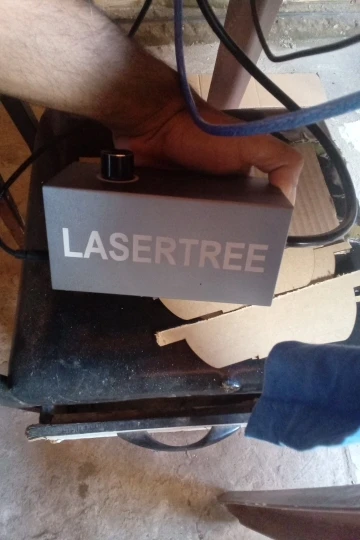

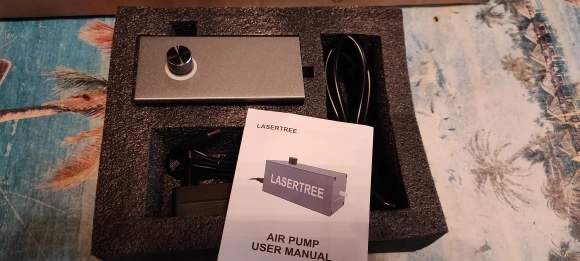

3. Air Pump–LT-AP-01

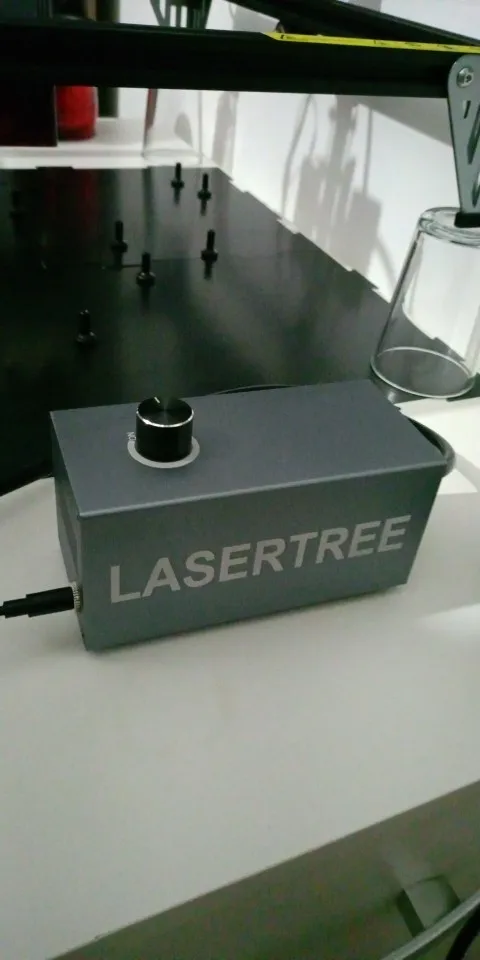

Low noise air pump equipped with adjustable airflow of 0-15L/min. Large and steady output airflow can blow away the smoke and dust generated during laser cutting. Prevent smoke and dust from attenuating laser energy, and increase the lifespan of the laser module lens. Help cut faster cleaner and deeper.
4. Working Plate
The work plate helps protect desktop surfaces from laser burns.

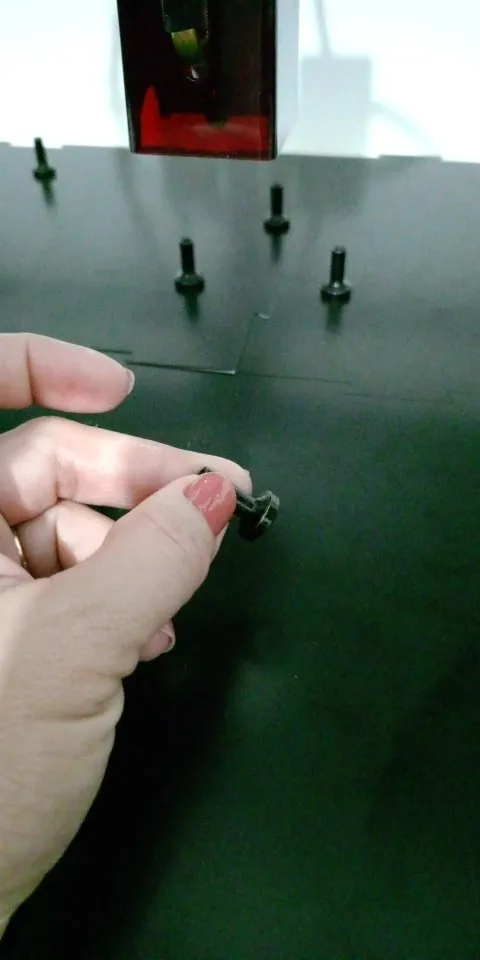

Air assist and magnetic column design helps smoke discharge protects wood from hot smoke and solves the problem of yellowing of materials due to smoke.
5. Compatible Software and System
LaserGRBL:(free, support Windows)
Lightburn: (paid, support Windows, Mac OS and Linux)
Engraving file format support: SVG,NC, DXF,BMP, JPG,PNG.etc.
Note: Software not include.
6. Easy to Assemble
Designed for easy-assembly, Includes detailed installation instructions and video, it only takes a few steps to complete the assembly.
With Air Assist VS No Air Assist
When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
Remarkable Cutting Ability
Cutting 8mm basswood plywood ,170mm/min ,one pass.
Cutting 8mm Black Acrylic, 30mm/min, one pass.
Cutting 5mm MDF, 240mm/min , one pass.
Engraving Speed 6000mm/min
High engraving precision 0.01mm
It provides protection pad to keep the engraver stable while working.
Air Pump Specification

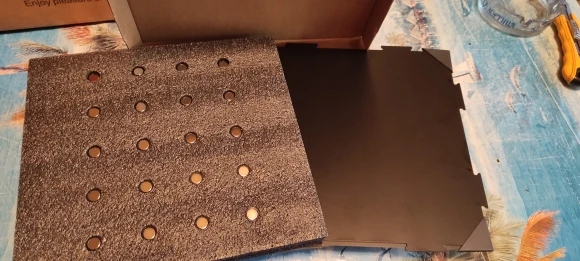

Working Plate
The work plate helps protect desktop surfaces from laser burns.
Air assist and magnetic column design helps smoke discharge protects wood from hot smoke and solves the problem of yellowing of materials due to smoke.

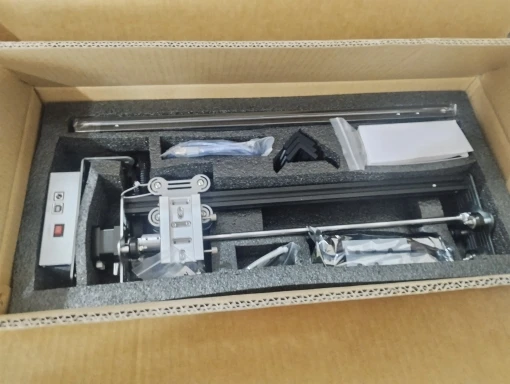

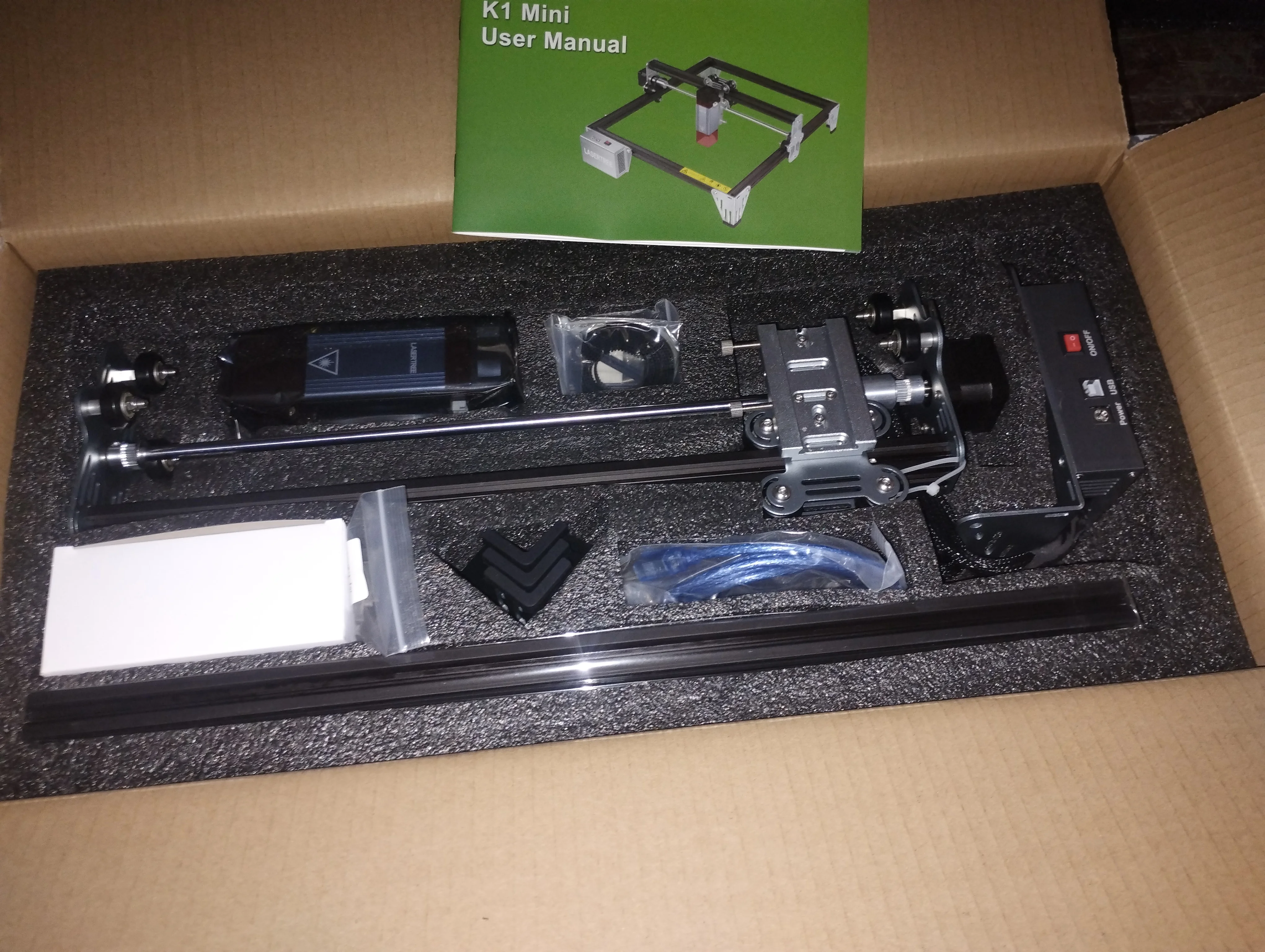

Modular Design
Modularized appearance design.easier to assemble.60% pre-installed,saving more installation time.

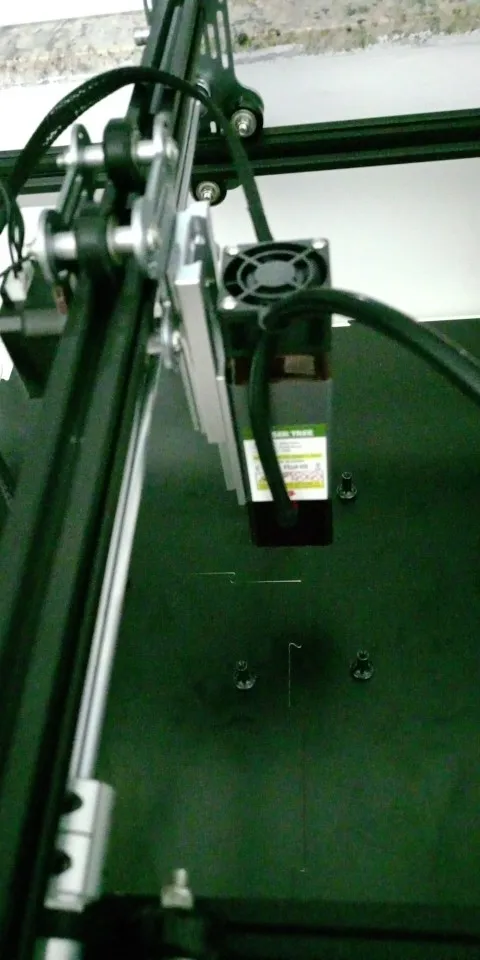

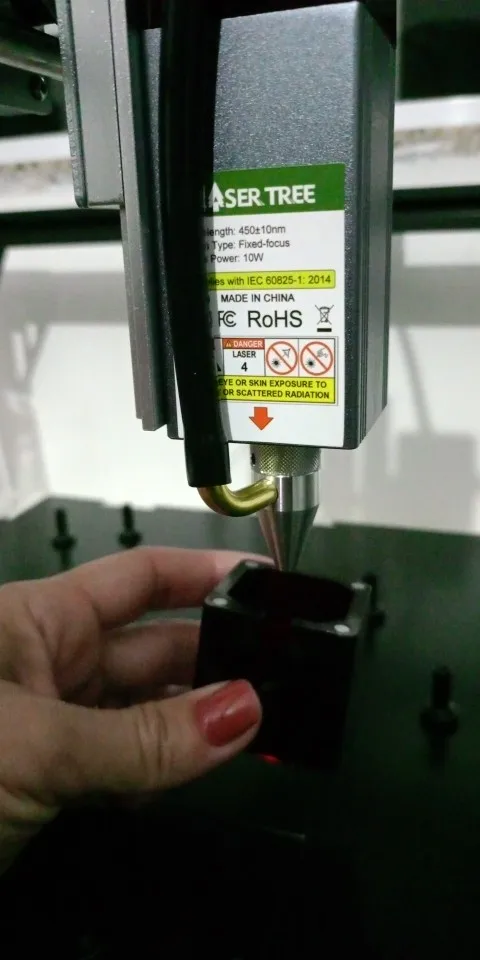

Dual-LDs with Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
High Beam Quality
With beam combination technology, our laser module is double powerful and thebeam quality is as good as a single diode.
300*300 Engraving Area
The 300*300 mm working area is easy to use and meets most of the
creative needs of beginners.
Compatible Software and System
LaserGRBL:(free, support Windows)
Lightburn: (paid, support Windows, Mac OS and Linux)
Engraving file format support: SVG,NC, DXF,BMP, JPG,PNG.etc.
Note: Software not include.
Engraving Reference Settings
Note: Glossy metal plate, Transparent materials, Reflecting materials, Some materials in white color or pervious to light, etc. Then, you need to use the marker pen to black it to engrave.
For Cutting Work
The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.
For Engraving Work
The focal point is at the surface of the material.
M***o –
Excellent product, very much comes built, minute details.
Very easy assembly.
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
C***r –

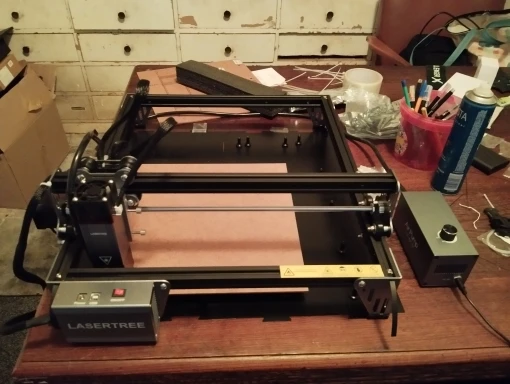

Excellent value for money since it is a label Kit + compressor + base. Just having only 30x30cm floor area she cuts 4mm MDF very well with a stride. The performance surprised me.
Color: k1MINI-10W Size: EU Ships From: brazil
S***n –
The Laser Tree Team is amazing and very helpful their prompt response was refreshing I bought The K1 Mini after a lot of research bet Laser Cutter available Laser is amazing at cutting and engraving and the air assist make it even better I will be buying another soon
Color: K1MINI-10W-KIT Size: EU Ships From: CHINA
A***u –
Very good for the price it cost
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
C***i –
Very fast delivery. I bought with coupon and indication from the channel laser recorders Brazil (jeézer).
I haven’t ridden yet, but it’s very well built.
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
G***a –

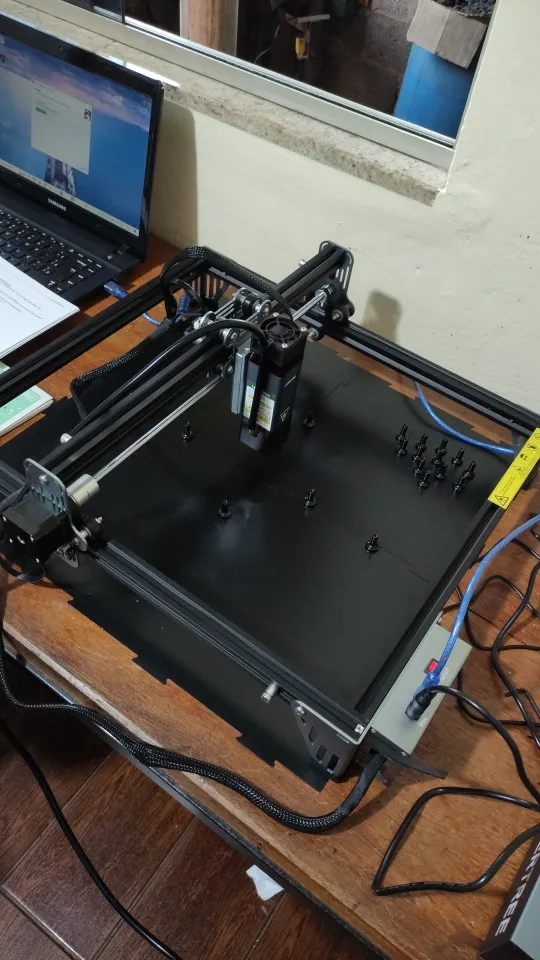

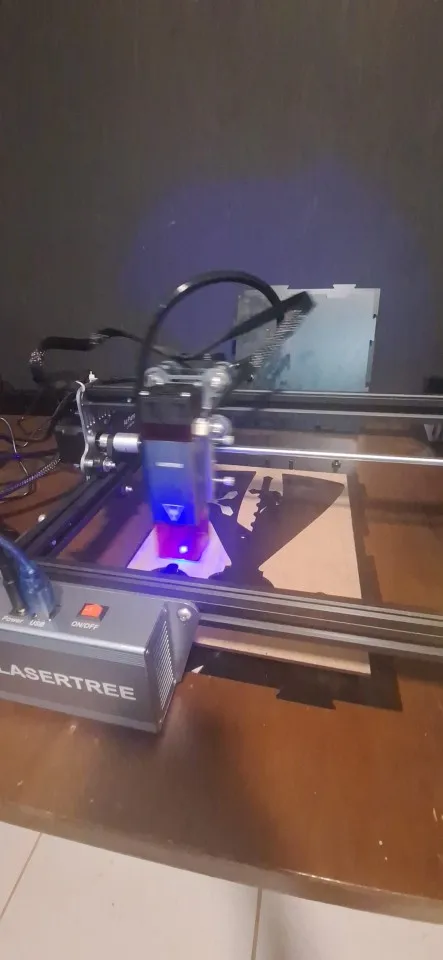

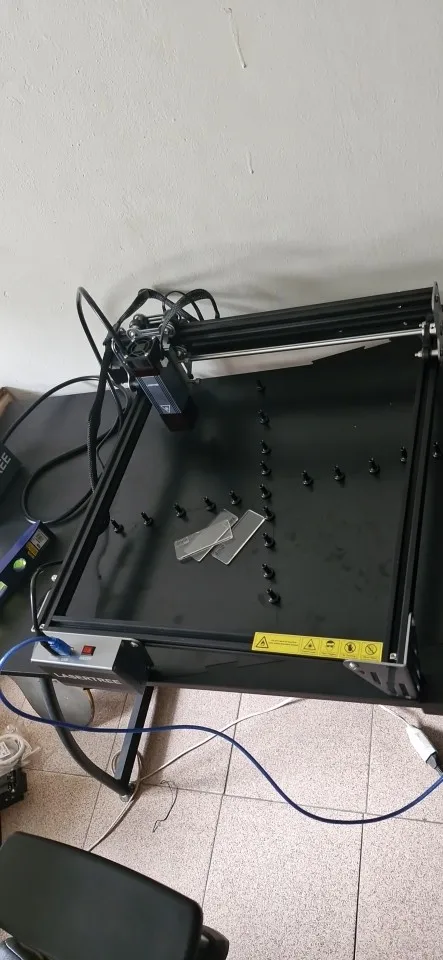

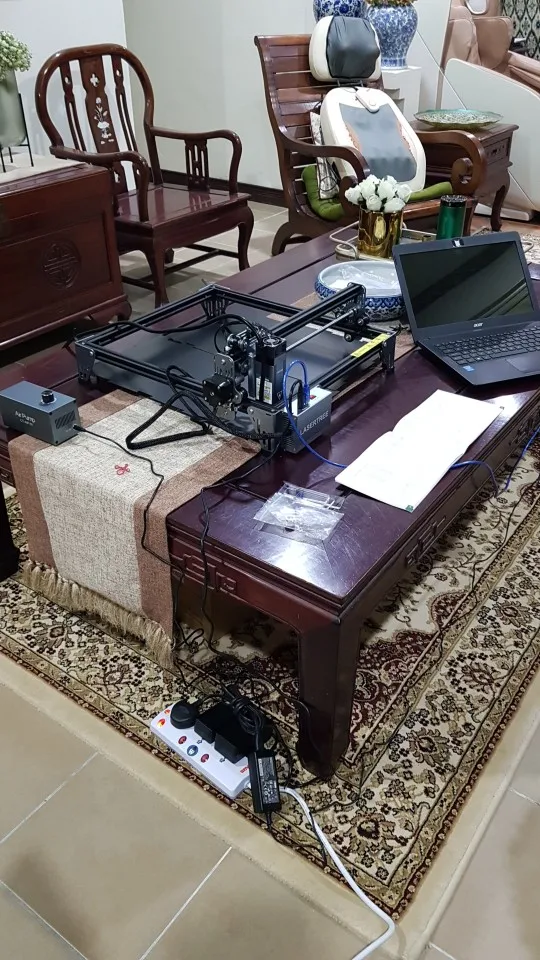

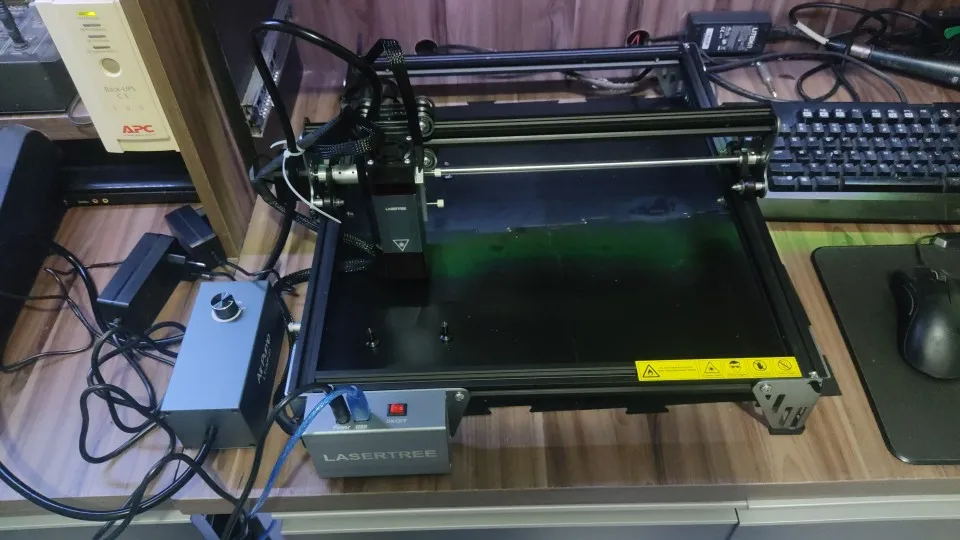

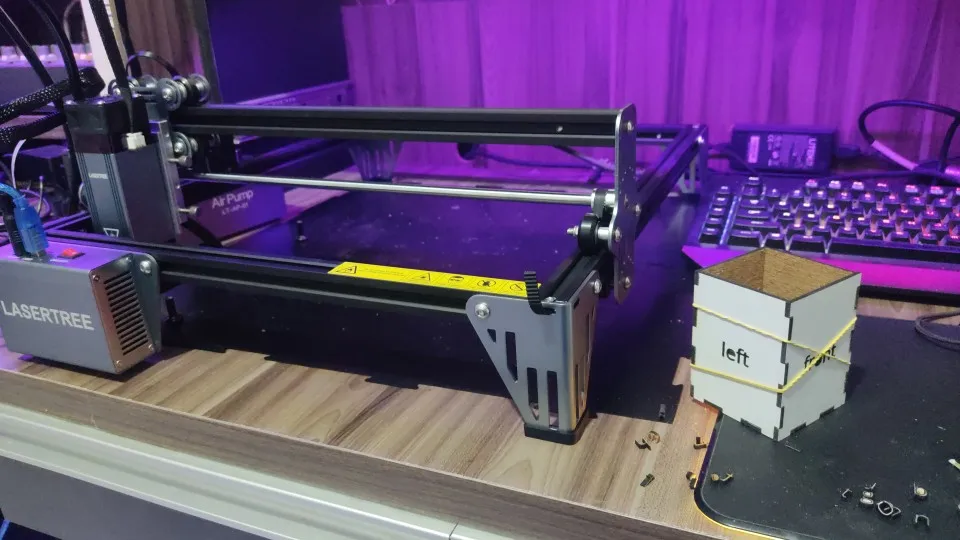

Powerful, robust machine with a cutting area of 300×300 ideal for small jobs and that does not take up much space, came well packed and with the kit all right.
I’m cutting MDF Pinus 2.8mm at 400 speed/100% what’s giving me great agility. I recommend it to anyone who is interested.
This purchase was only made thanks to her demonstration video, made by the channel “laser recorders Brazil”
In addition to the excellent explanation, indication and demonstration. My thank you very much!
Satisfied with the product!!
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
S***A –
Matches. I recommend it.
Color: K1MINI-10W-KIT Size: EU Ships From: CHINA
j***o –

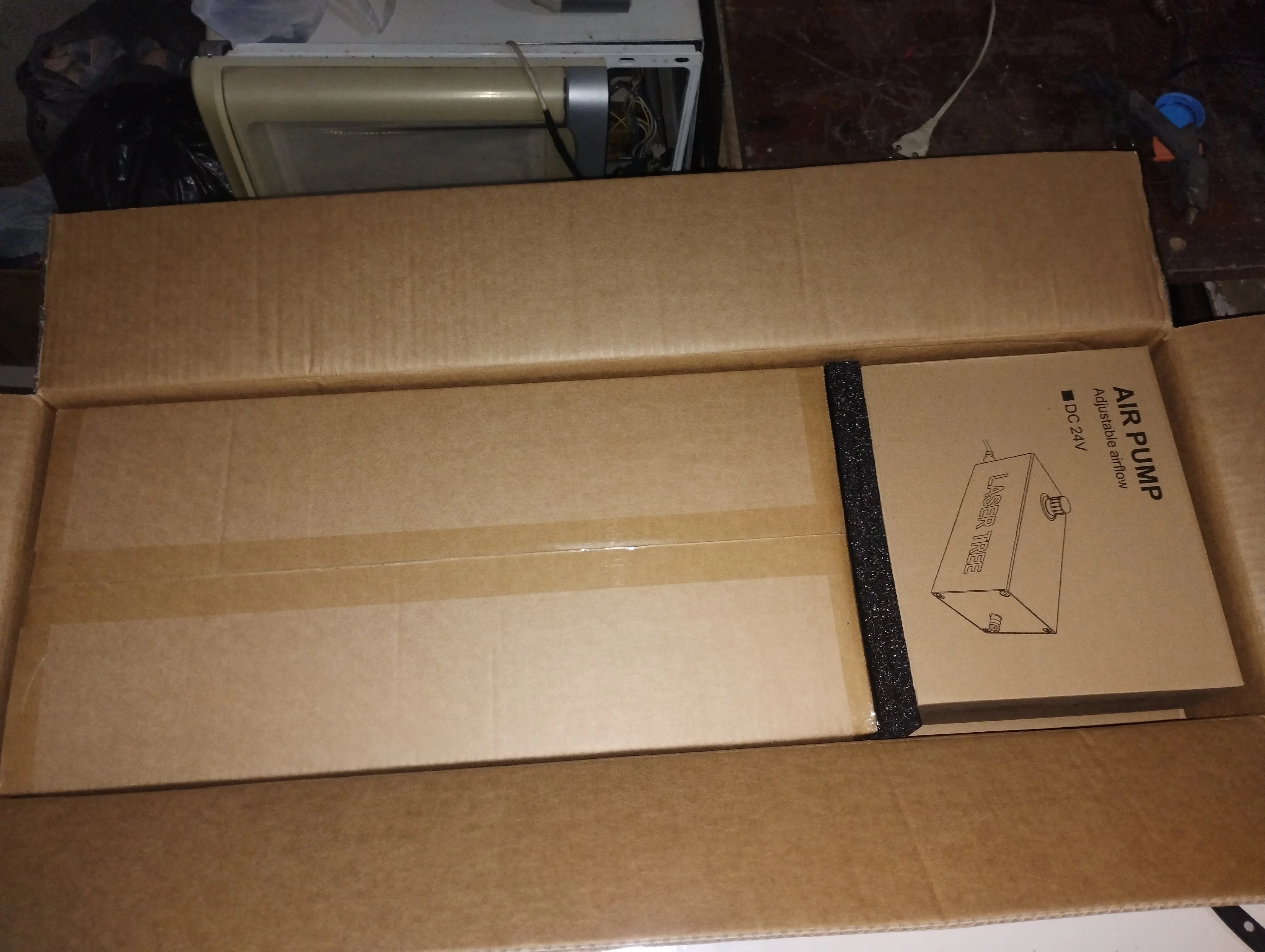

Delivery before the deadline and very well packed I ordered delivery by jadlog (and it was delivered by J & T Express) so arrived all right box intact super polite and careful delivery workers. I am still learning to move and configure but with the tips of the channel @ gravadoraslaserbrasi that was even the one who indicated this equipment, L is being very promising
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
J***o –
Excelente máquina. Montagem facil, manual muito bom e a qualidade dos materiais é excelente. No teste cortei MDF de 3mm com apenas uma passagem rápida.
Excellent machine. Easy assembly, very good manual and the quality of the materials is excellent. In the test I cut 3mm MDF with just one quick pass.
Color: K1MINI-10W-KIT Size: US Ships From: brazil
A***z –
Very good
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
V***a –
Excellent product quality, fast delivery, attentive seller answers all questions.
Thank you to the @ Laser recorders Brazil channel for the nomination is here.
I really liked the store and the product!
Color: K1MINI-10W-KIT Size: EU Ships From: brazil
P***a –
Machine easy to assemble and easy to handle.
Color: K1MINI-10W-KIT Size: US Ships From: brazil
C***y –

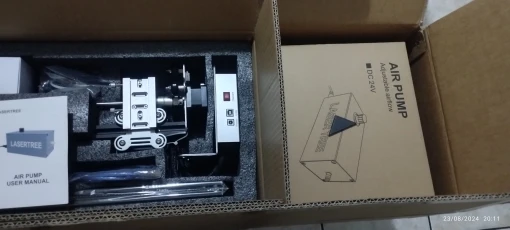

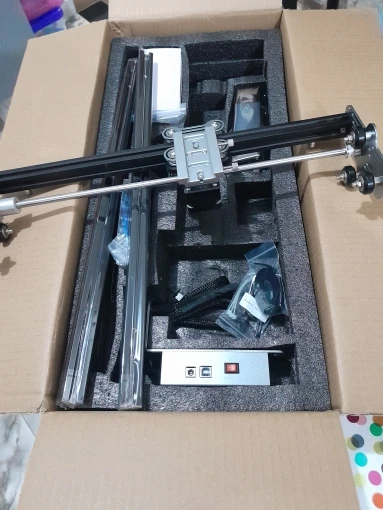

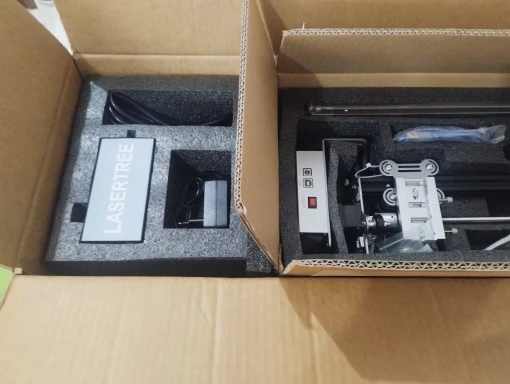

Arrived a lot comes packed without defects
