Our machines are customised products, need to confirm power, configuration and other details, please contact us before placing your order, thanks in advance.
Description
Razortek Fiber Cutting machine 1000w 1500w 2000w

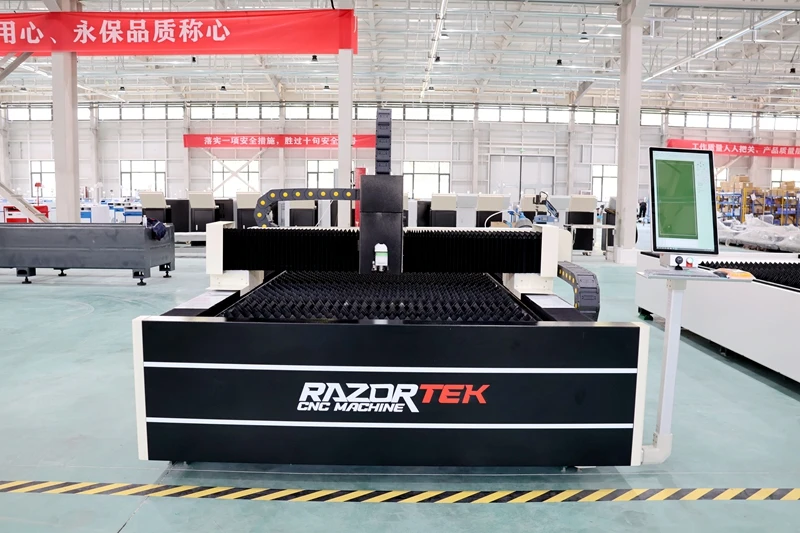

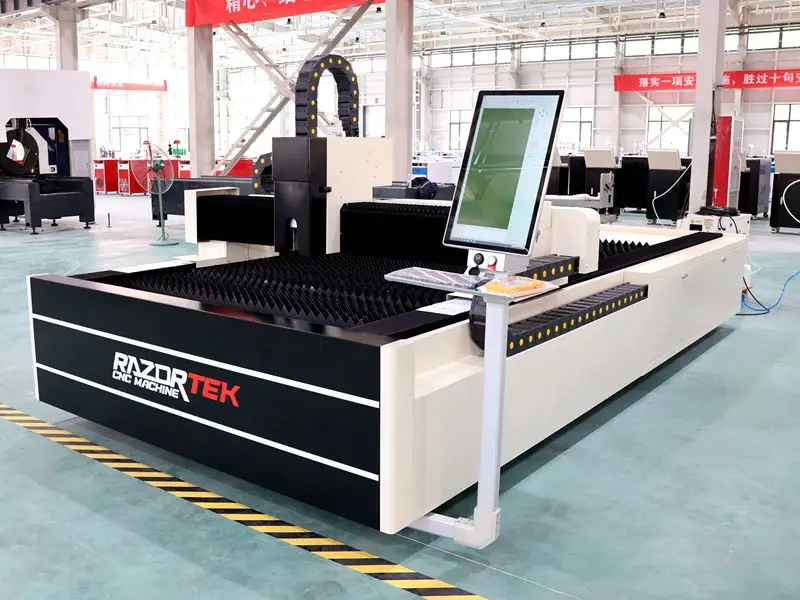

Appearance of machine
Specifications
|
RZ1530F1 |
|
|
Maximum processing range |
1530*3030mm |
|
Working platform load |
600kg |
|
X-axis travel |
1530mm |
|
Y-axis travel |
3030mm |
|
Z-axis travel |
80mm |
|
Working environment temperature range |
15~35 ℃ |
|
X / Y axis positioning accuracy |
±0.03mm |
|
X / Y axis repeat positioning accuracy |
±0.02mm
|
|
X / Y axis maximum moving speed |
60m/min |
|
Total power with 1000w |
Single phase 9.2Kw(41A),three phase 9.2Kw(14A) |
|
Total power with 1500w |
Single phase 11.2Kw(51A),three phase 11.2Kw(17A) |
|
Total power with 2000w |
13.2KW(20A) |
|
working voltage |
220 V/380V |

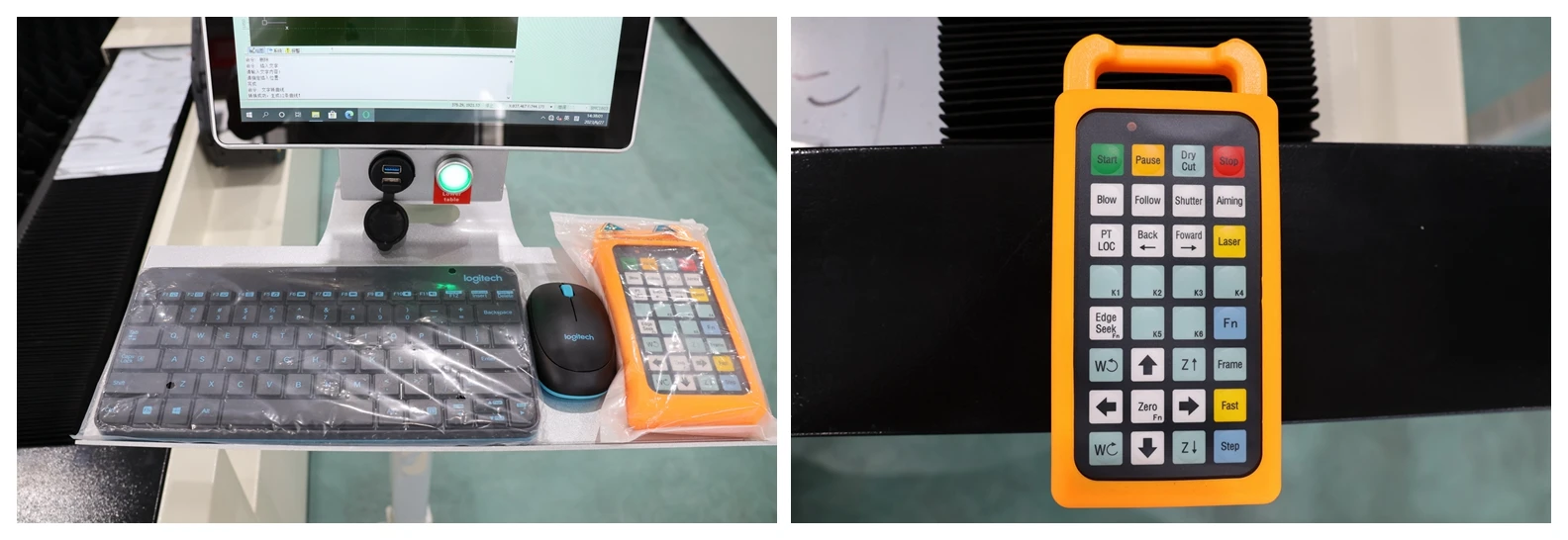

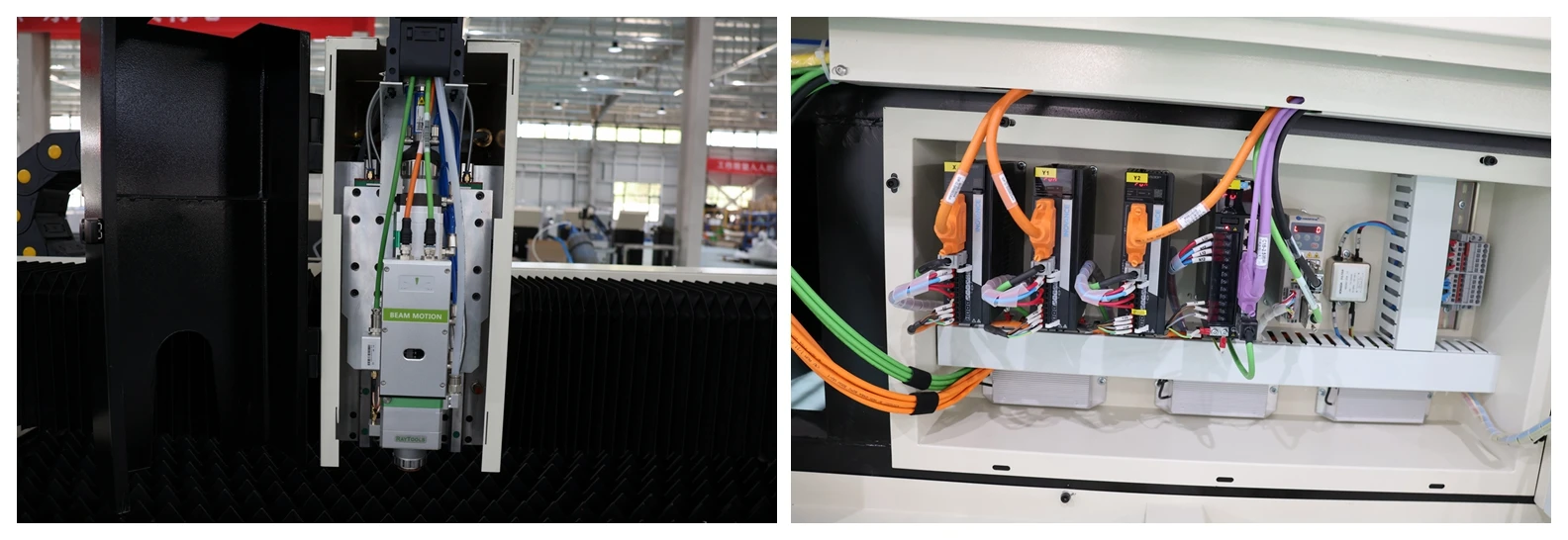

Detail pictures of machine
Application industry
carbon steel and stainless steel,aluminum.copper ,pipe,tube,U-steel etc
Mainly configuration
1.Raycus 1000w 1500w 2000w laser generator
2.Industry S&A water chiller
3.Raytools BT240 manual laser head
4.Cypcut 1000s controllerwith wireless DSP
5.Taiwan YYC Rack and pinion transmission,Y axis dual-drive

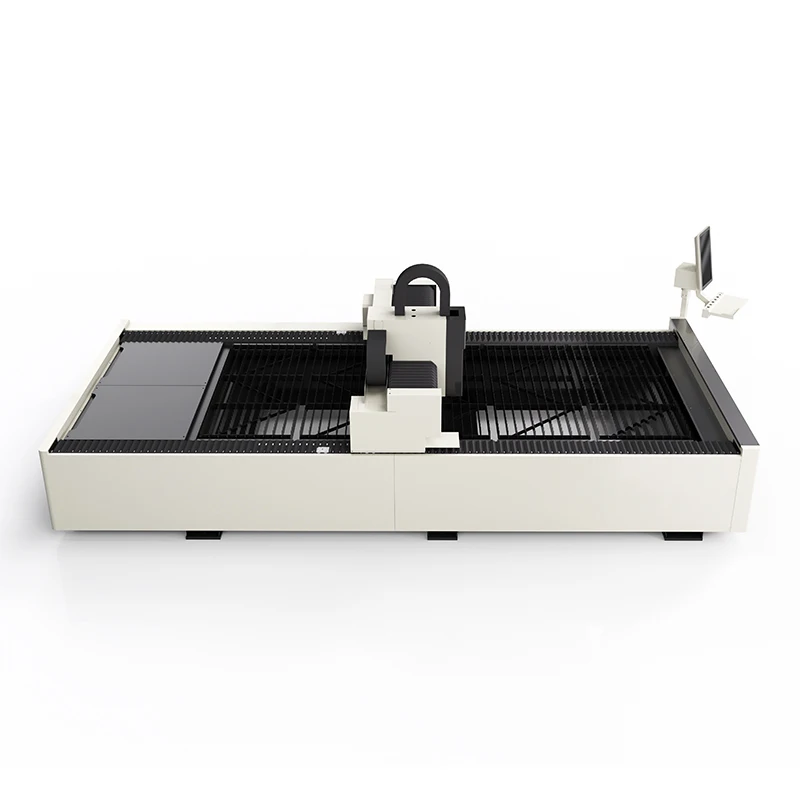

Fiber cutter machine size and packaging

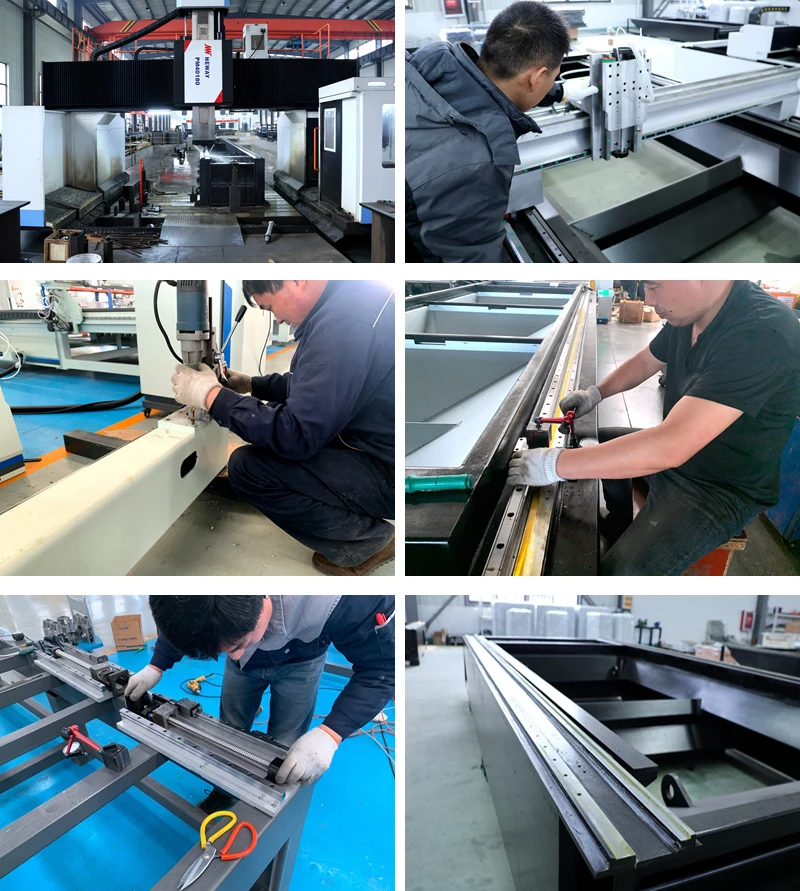

Quality control

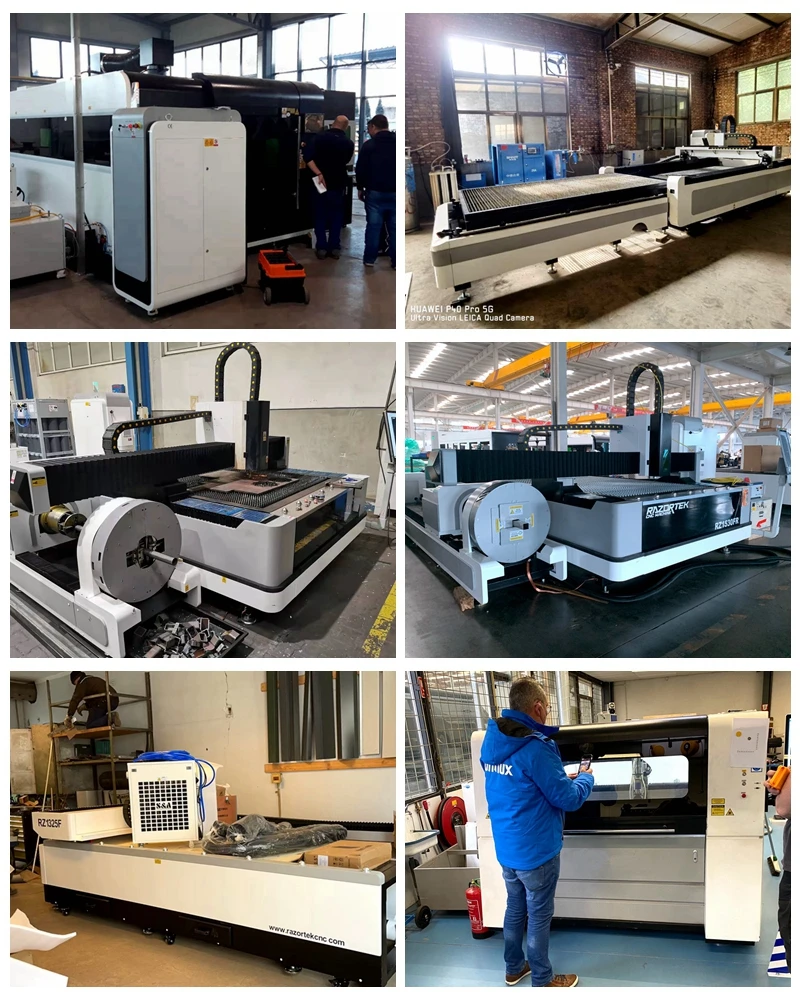

Customer Feedback
Certification

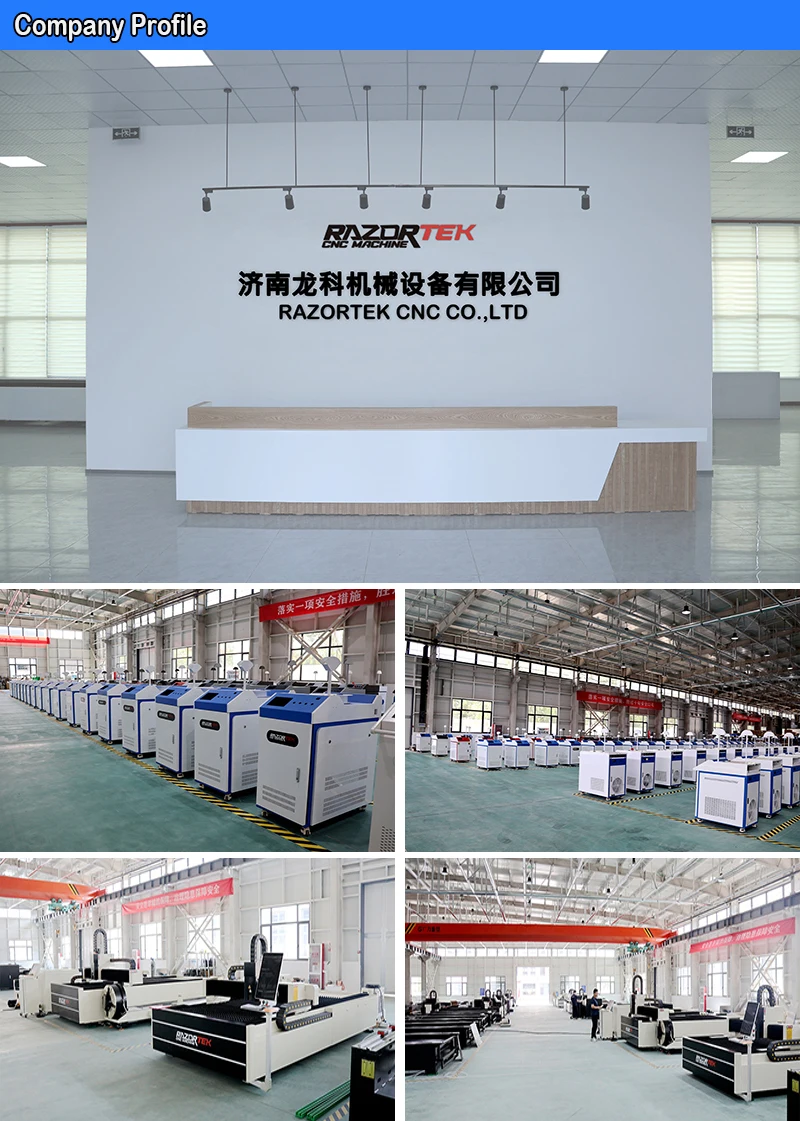

About Razortek:
RAZORTEK Started CNC Machine business Since 2014 July,Located in Jinan city,Shandong Province.Main products including CNC ROUTER, LASER MACHINE,DIGITAL KNIFE CUTTER,All machines passed the European Union CE authentication，American FDA certificate . CNC Equipmentis exported to most countries in the world, including Europe, America, Asia, Oceania . more than 70 countries and areas, and supply OEM service for our cooperator agents.
FAQ
Q1.Before send me an inquiry of the fiber laser cutter , it is better for you to provide me the following information:
What is the working area you need? And what metal and thickness you need cut, so we can recommend you suitable laser power.
Q2. If we don’t know how to use the machine, can you teach us?Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by “Teamviewer” online help software. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client’s specific requirements, it would be prolong.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, already exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?Yes. We can do FOB or CIF or DAP price,we will arrange shipment for you. For EXW price, buyer need to arrange shipment by yourselves
Q6. Do you have certificate of the laser machine
Yes,we have CE and FDA
Service after sale
1.Guarantee:24months guarantee of the whole machine.
2.Software issue:Our technician is able to re-install or set up by remote for free.
3.Hardware issue:Main parts(excluding the consumables) shall be replaced/repaired free of charge if there is any problem during the warranty period.
4.Support online:Our technician is able to teach you online to run the machine or eliminate the fault for free.
5.Training in Razortek factory:We are able to train your staff after placed order in our factory for free.
6.On-site training(Recommended the most effective way):We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight,visa,hotel,training costs, etc.)
