Product Description

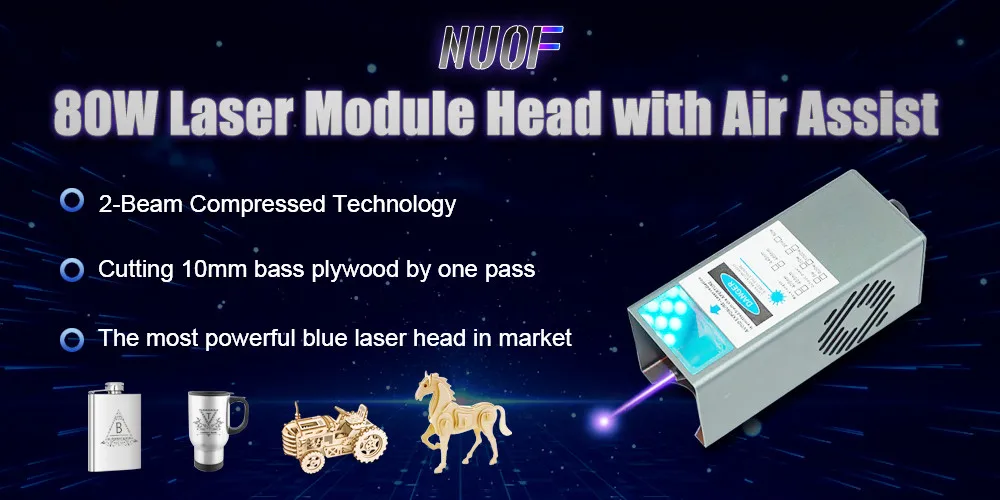

[Main performance]
a.Directly engrave mirror stainless steel: no need painting black;

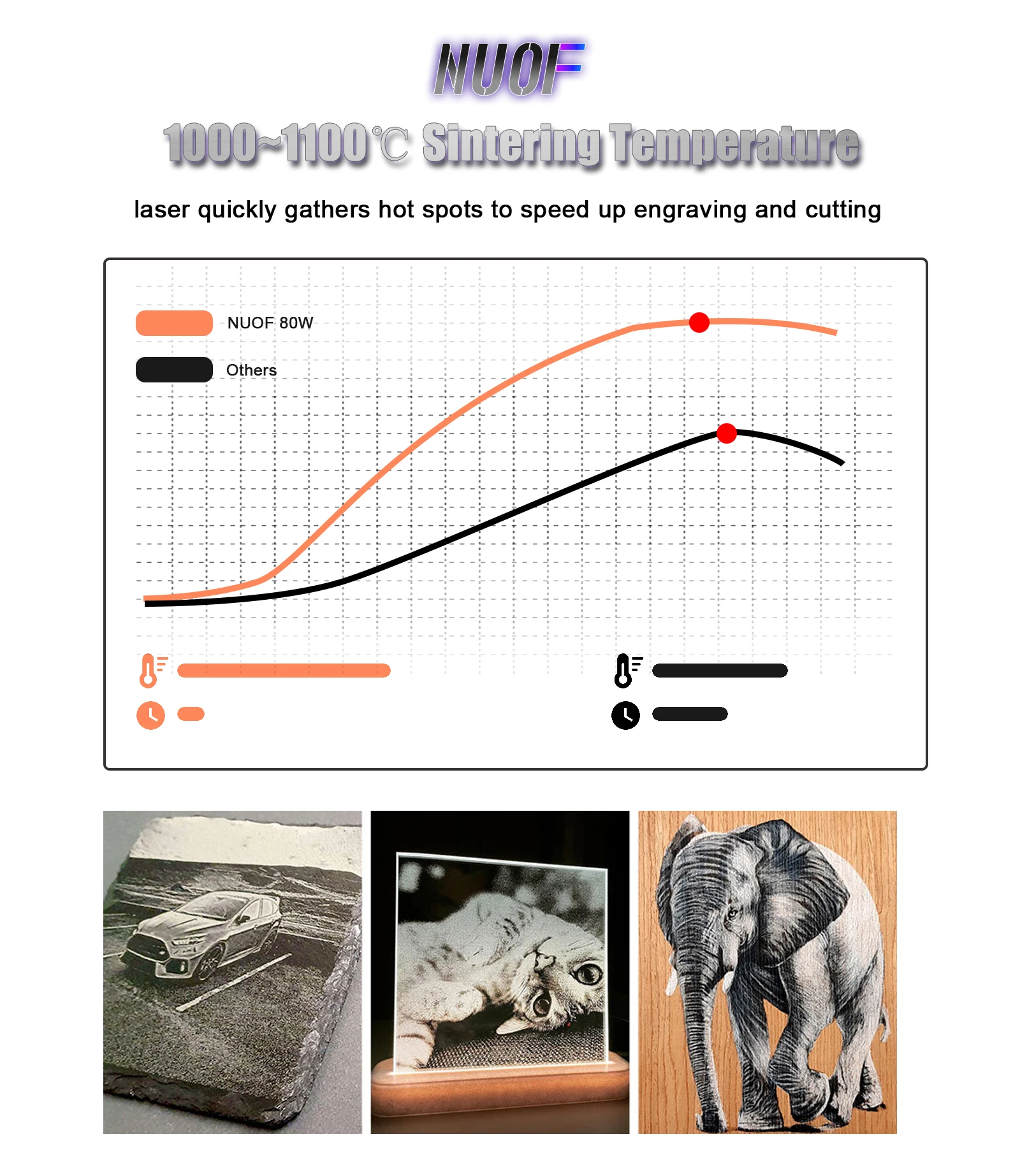

b. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s;

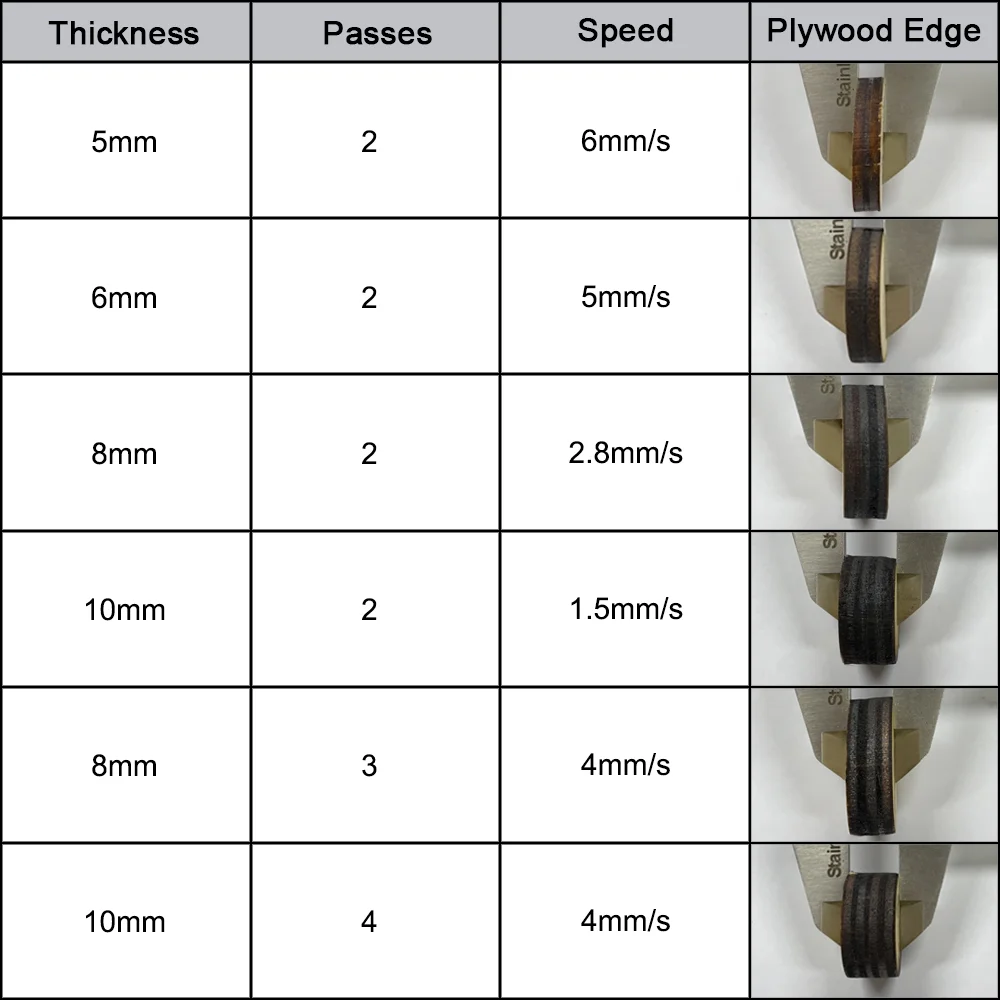

c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.
[Original diode] Original diode, high quality, 20,000 hours life time!
[Strong compatibility] Suitable for various types of laser cutting machines and engraving machines.

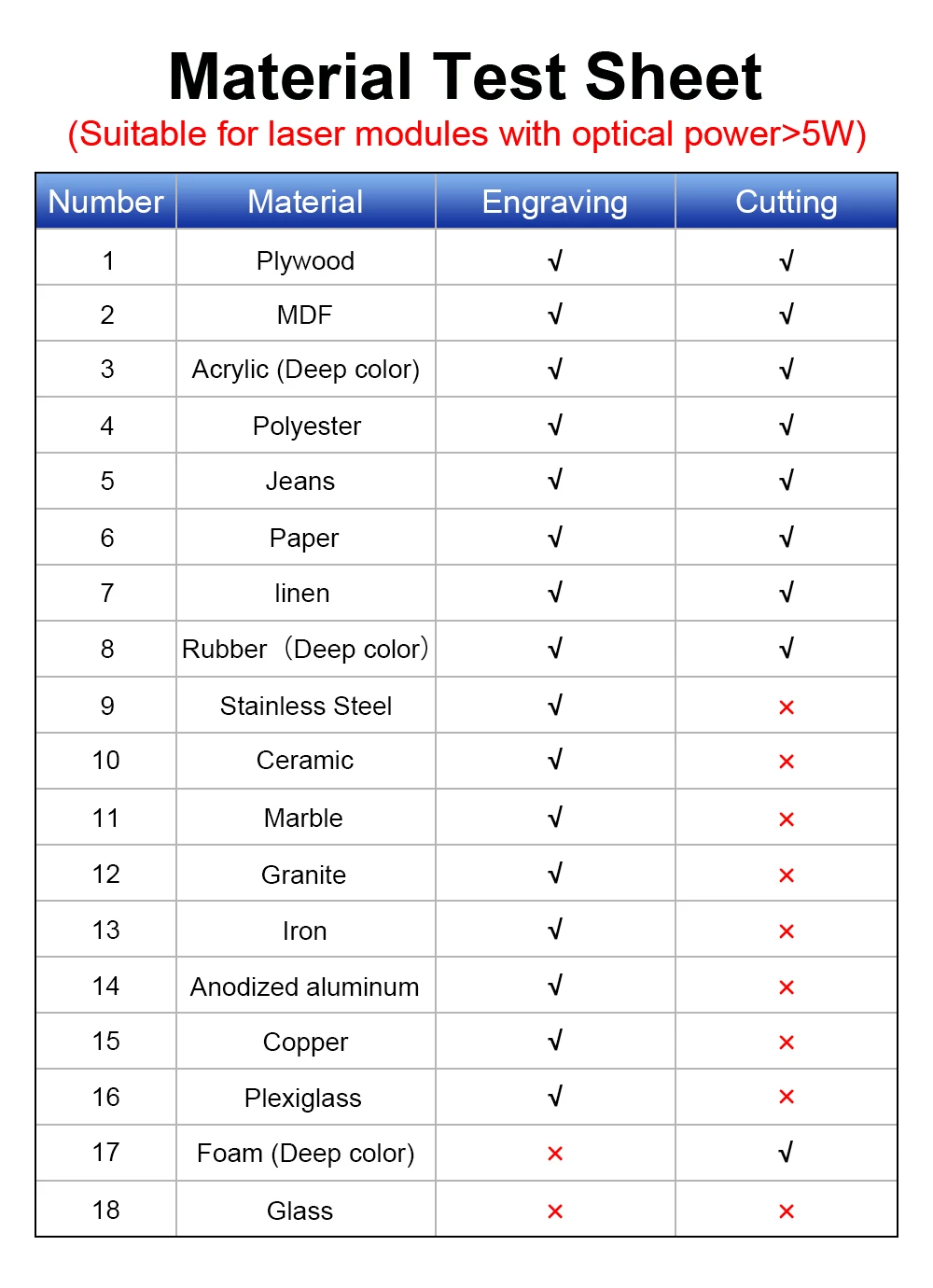

[Applicable materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Features:
Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
Fixed focus laser head—suitable for three-axis engraving machine, easy to install.
Easy to assemble—small, compact, convenient and easy to install.

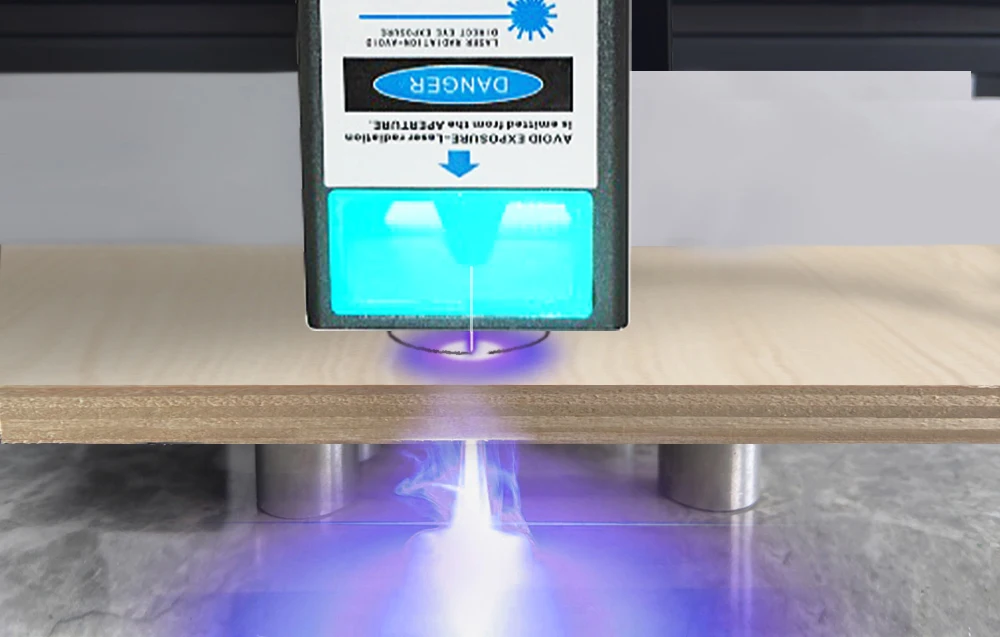

Air Assist— Blowing through the air nozzle, which improves cutting performance and reduces burn marks
Widely Compatibility—Compatible with Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
Two Ways to use NUOF 10W air asssit:
Way1: with the air asssit nozzle
The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
In order to make full use of air assist, it is recommended to use it with air pump.
Recommended Air Tubing inner diameter: Φ2.5-3 mm
Recommended air pump pressure: 150kPa
Way2：with the laser protective cover
When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.
Specification:
Material: aluminum alloy
Effect output power: 80W
Optical Power：10W (±1W)
Wavelength: 450nm (±10nm)
Light color: blue
Focus Length: 50mm
Spot form: Punctiform, fixed focus
Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)
PWM Modulation: 0/3-12V 0-5kHz TTL/PWM
Input port: XH2.54-3P socket
Item size: 40*40*108mm
Laser module net weight: 300g
Dual-LDs with Beam Compressed Technology
• One laser module has two built-in 5W laser diodes, and the optical power is 10W
• With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.
Built-in Air Assist Airway & Dual Fan Cooling Design
Measurable 10W Actual Optical Power
Professional Air Assist

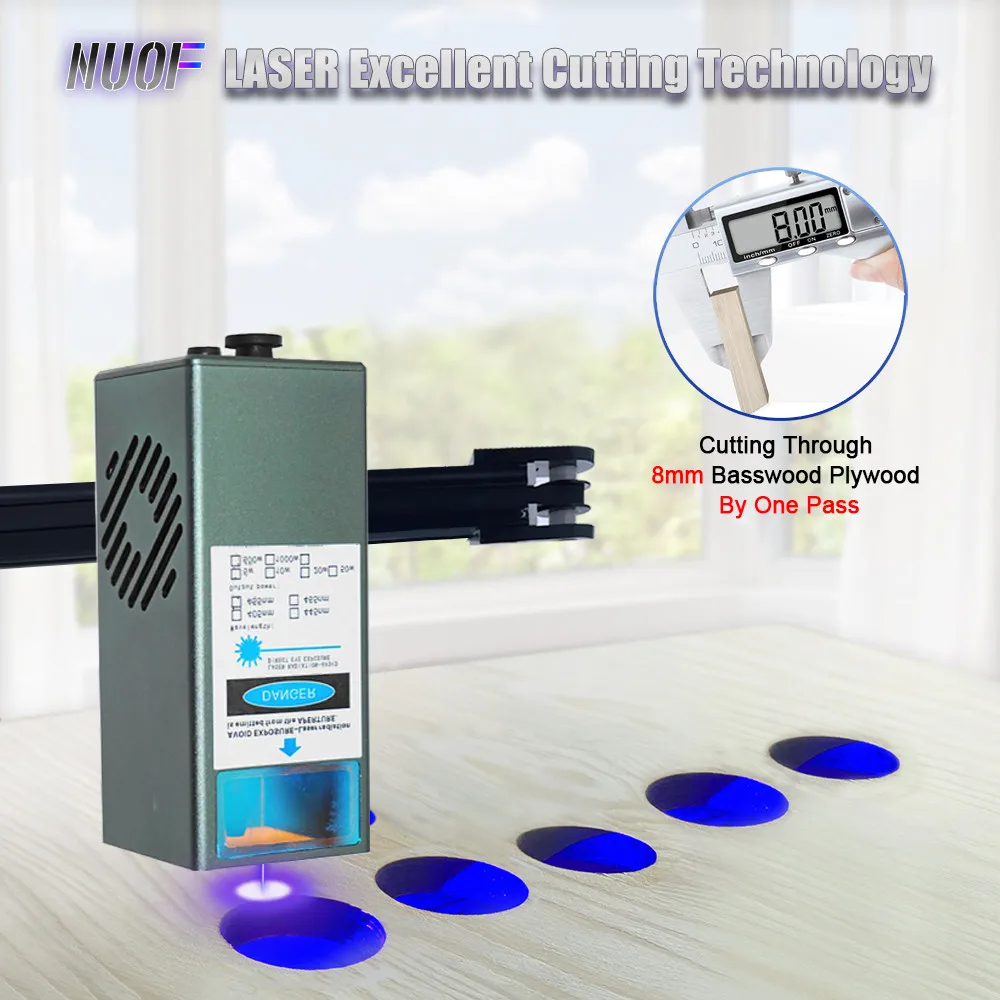

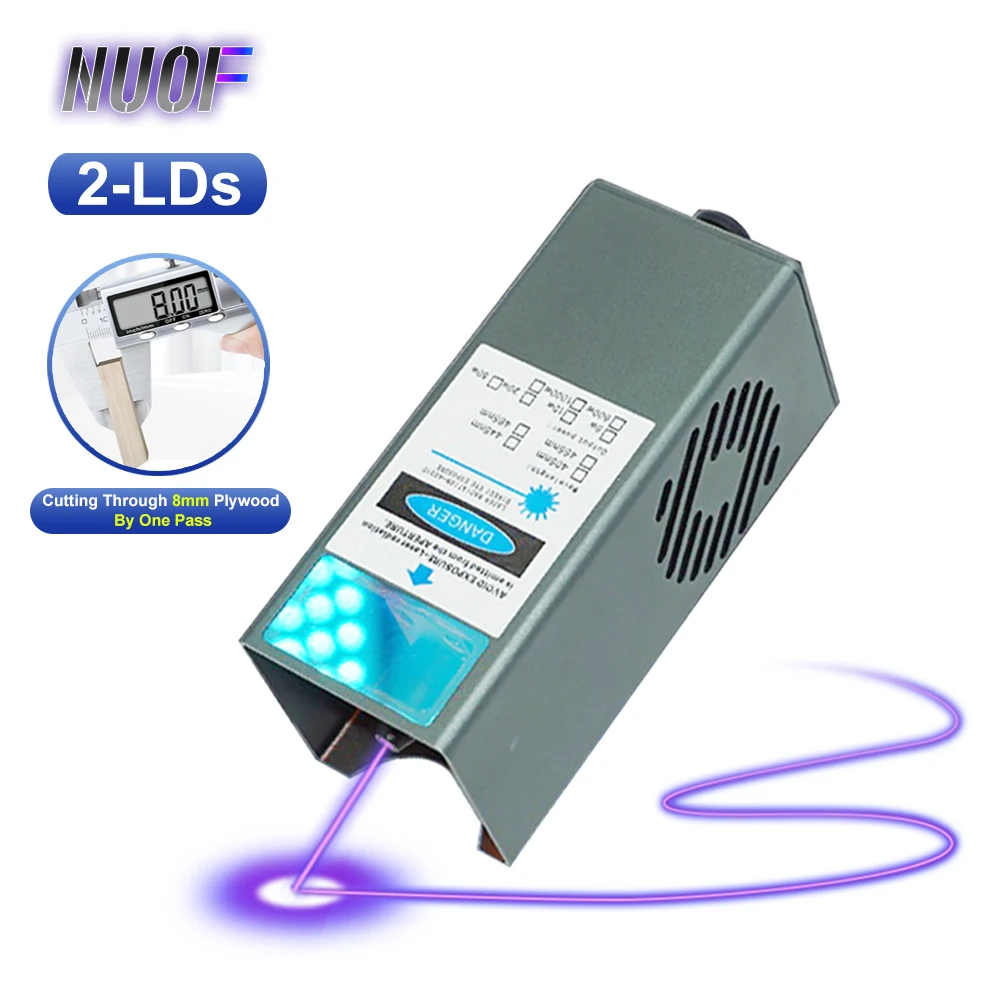

Cutting through 8mm plywood by one pass

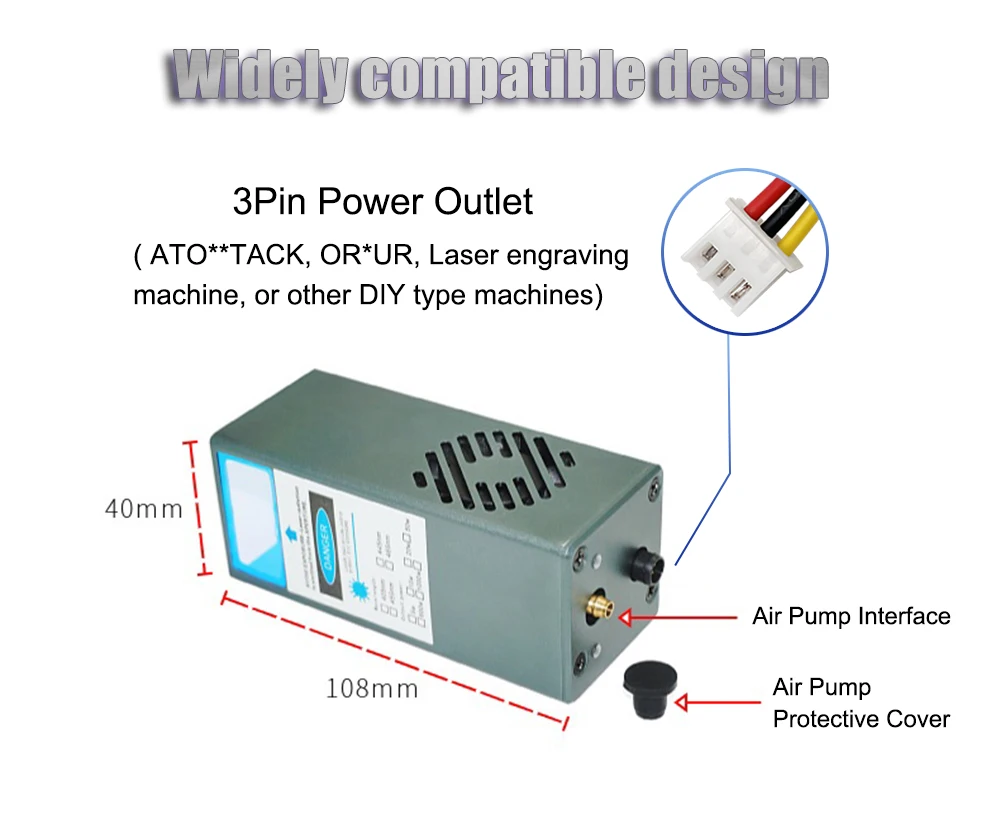

Widely Compatible Design
Suitable for ATO*TACK, OR&UR, T*TREE laser engraving machine, or other DIY engraving machines

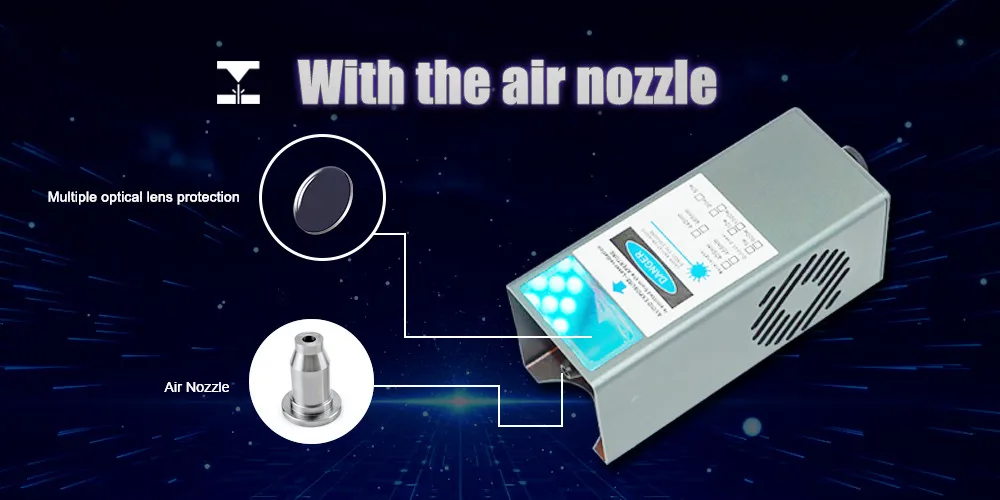

With the Air Asssit Nozzle
Greatly reduce burned marks, good for cutting
(In order to have a better cutting effect, it is recommended to use an air pump)
No Air Assist VS with Air Assist

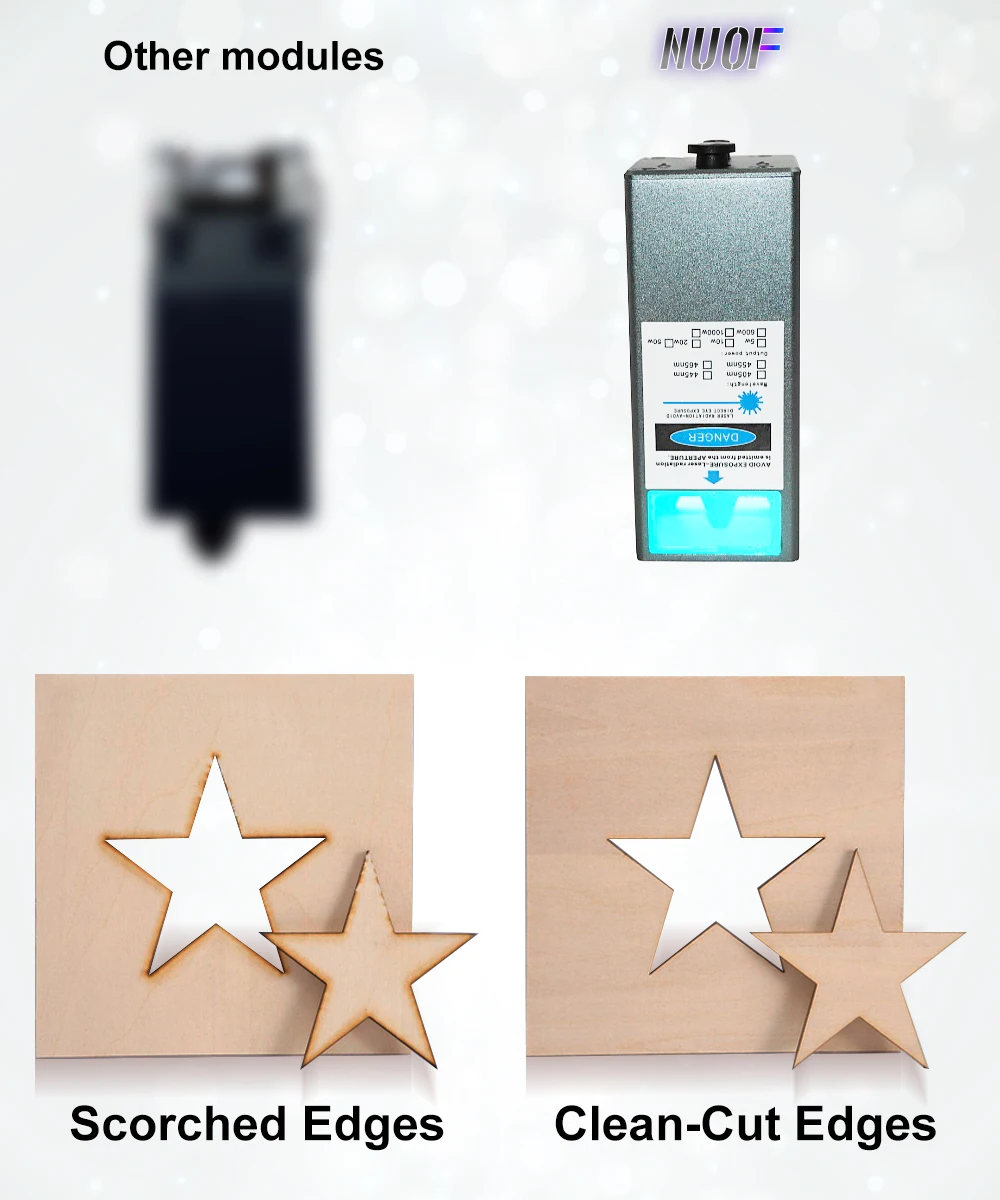

â–²Scorched Edges(without Air Nozzle)
â–¼Clean-Cut Edges(with Air Nozzle)

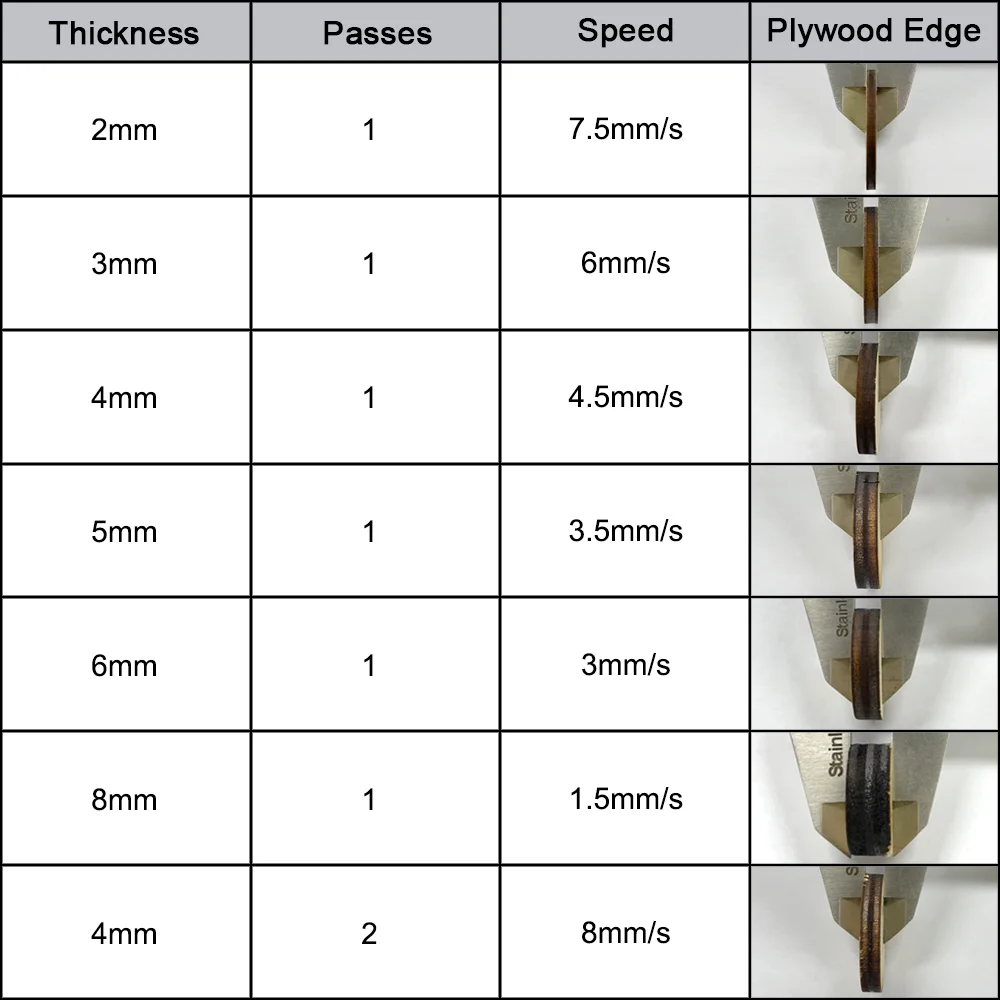

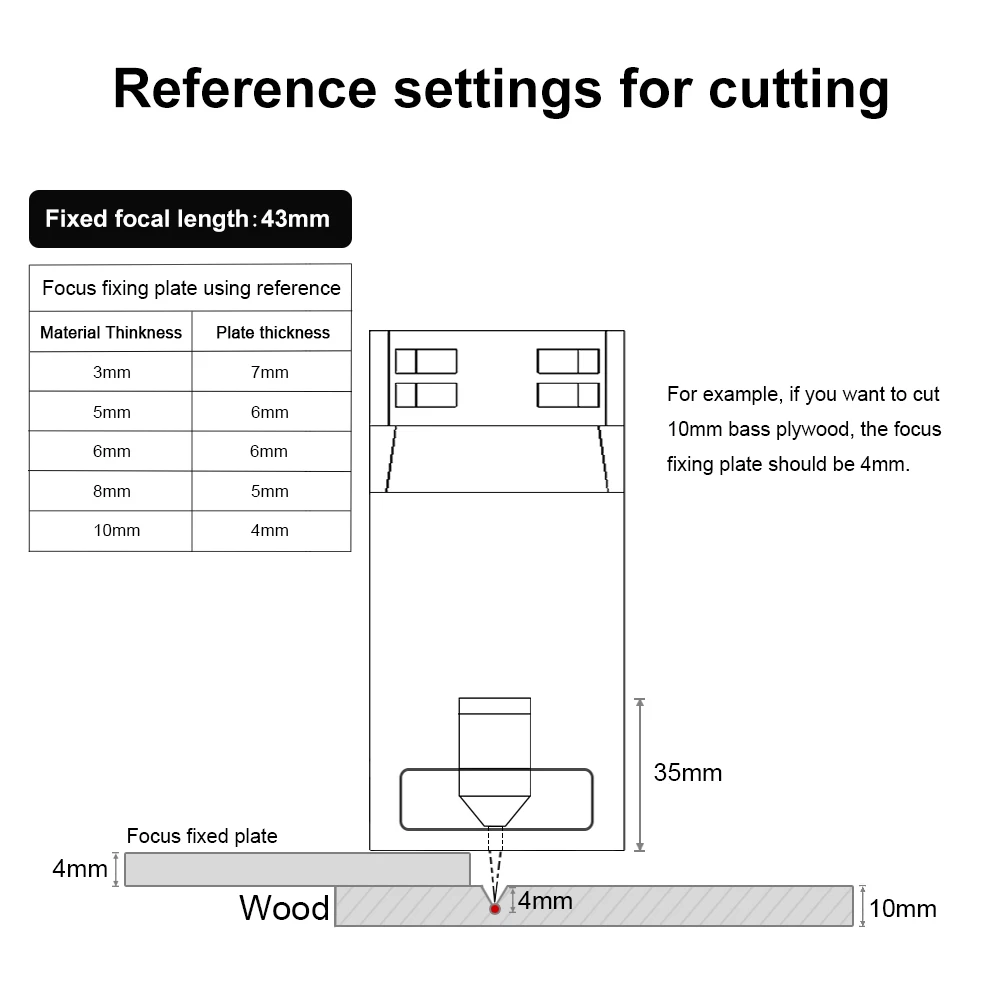

Reference Settings for Cutting

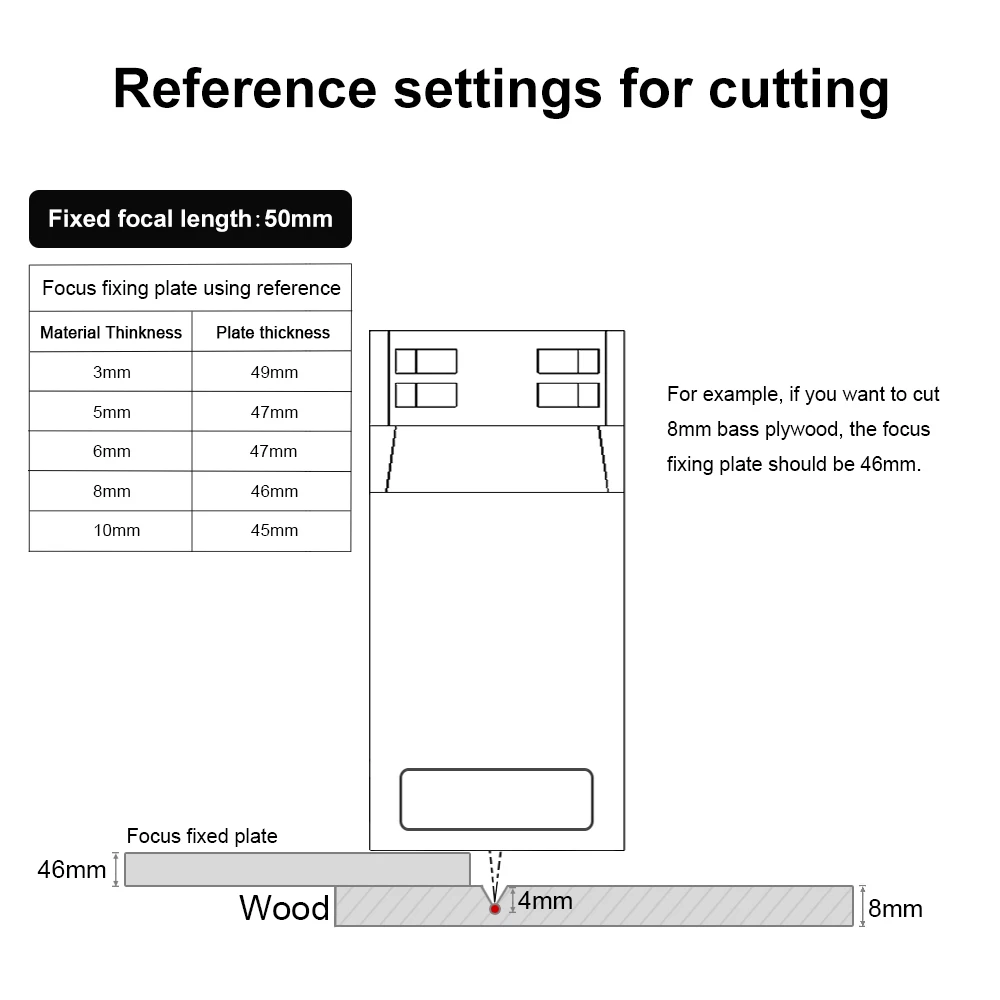

The focal point (the point where the light passes through the lens and converges to a point with the highest energy).
When cutting, the ideal location for the focal point should be in the middle of the material.
Take NUOF-80W as an example, its focal length is 50mm,
Cut the 8mm board, the middle position is 4mm below the board surface (8/2=4mm), 50-4=46mm,
Put a 46mm thick focus fixing plate between the nozzle and the board for the best cutting point.
FF-10W Laser module kit：
Laser module * 1
Fixed Focus Column * 1
3PIN Cable * 1
1. 4-Beam compression technology, 20W ultra-strong optical power laser module
Cut through 12mm bass plywood by one pass
Cut through 15-20mm pine plywood by one pass
Cut through 5mm MDF by one pass
2. With air nozzle to get clean-cut edges, improve cutting performance
3. Excellent heat dissipation design, keep stable cutting ability and extend service life
4. We recommend using a 24V 5A power adapter
5. Only 300~400mw power decrease with 100% power output in 30mins
6. Support digital（TTL/PWM）and analog modulation
7. Compatible with various DIY cutting engraving machines
4-Beam Compressed Technology
Built-in 4pcs 5W beam compressed laser diodes
Built-in Air Assist Airway & Dual Fan Cooling Design
With Air Assistance
With air nozzle to get clean-cut edges, and improve cutting performance
Note: It is recommended to use with the air pump

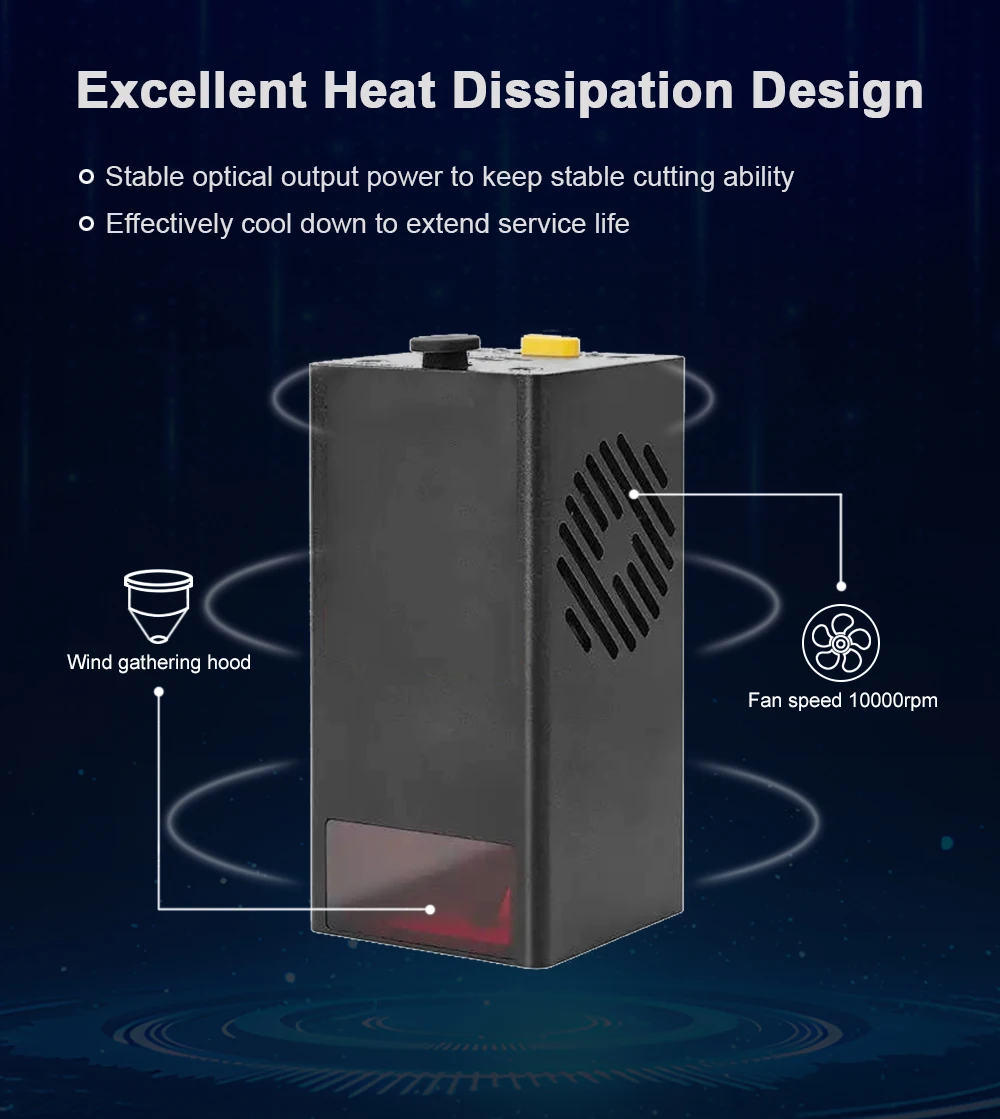

Excellent Heat Dissipation Design
Stable optical output power to keep stable cutting ability
Effectively cool down to extend service life

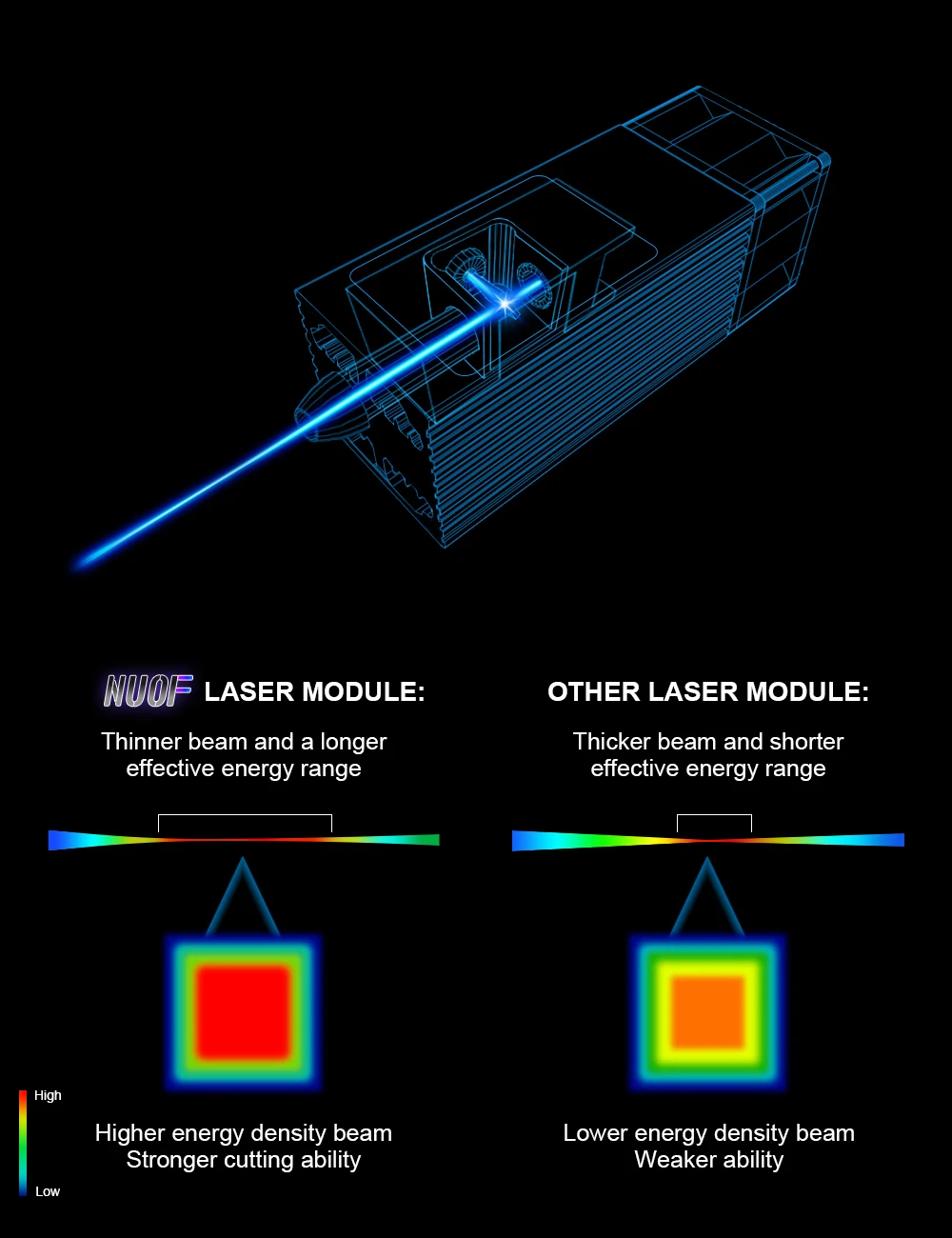

Minimum 0.15*0.3mm Ultra-thin Beam
Thinner beam and longer effective energy range Higher energy density beam, stronger cutting ability
Support Digital(TTL/PWM) and Analog Modulation
Product Size

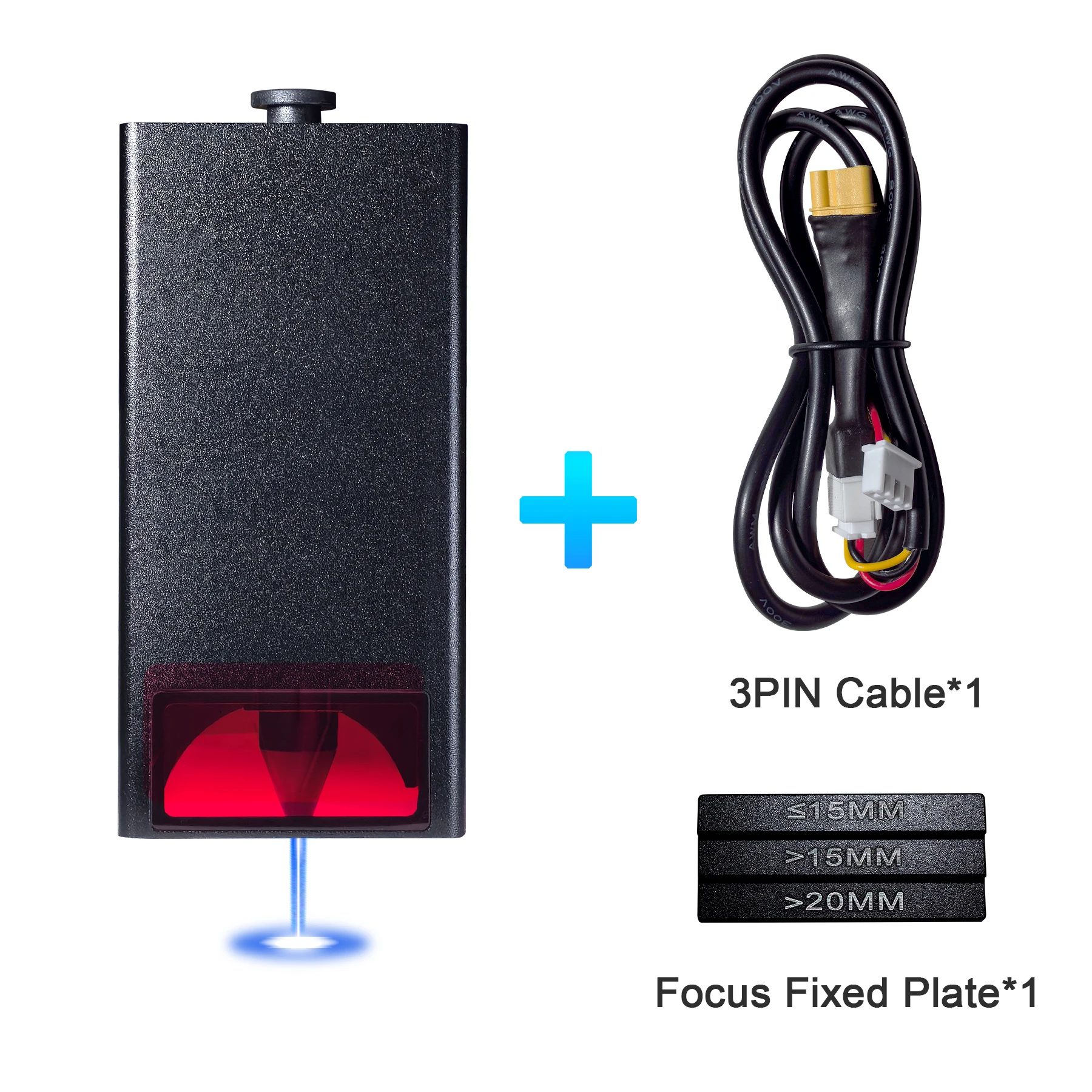

FF-20W Laser Kit：
Laser module * 1
3PIN Cable * 1
Focus Fixed Plate * 1
