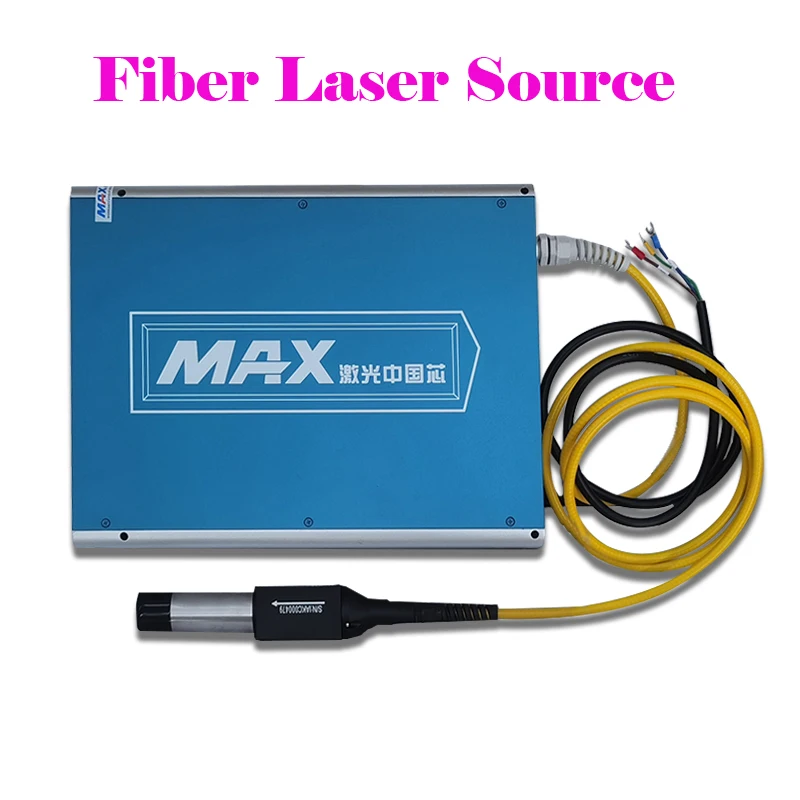

Original 50W Max Fiber Laser Source Q-switched Pulse GQM 1064nm for Laser Marking Machine DIY Parts Replacement 20W 30W



Original MAX Brand 20W 30W 50W Power Q-switched Pulse Fiber Laser source Module GQM 1064nm High Quality for Laser Marking Machine DIY

Quality:

Model:20W>20L>20X

Model:30W>30L>30X

Model:50W>50X



Customer can choose suitable model to buy based your general budget.

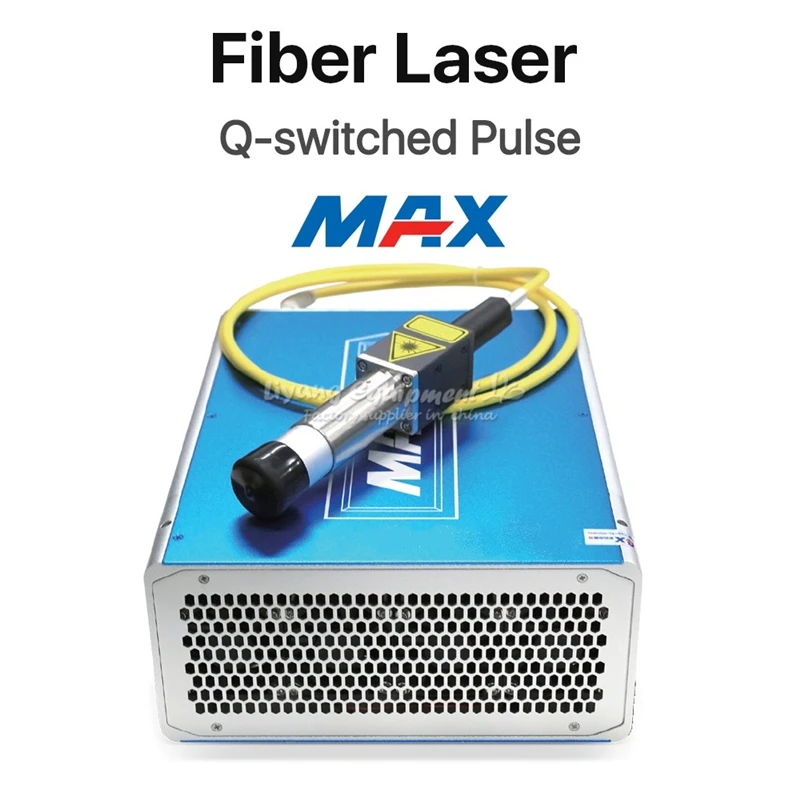

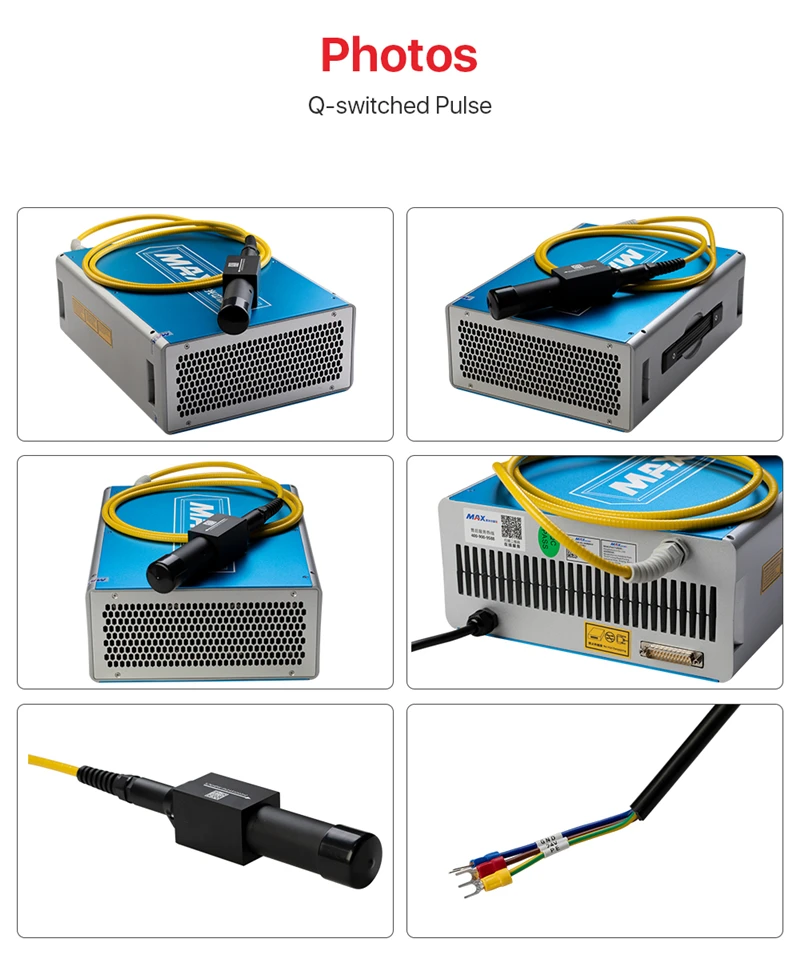

Q-Switched Pulsed Fiber Laser
Series are maintenance-free fiber lasers based on the Q-switched technology and MOPFA. These lasers deliver light centered at 1064nm and guided to the work piece via a flexible metal-sheathed fiber cable. It provides a set of pulse durations, repetition rates and peak powers. The optical head may be equipped with an opto-isolator, that makes it possible to mark directly on non-metallic materials (plastic, wood, paper, etc.) and some metal with low reflectivity.

·High beam quality fiber output.

·Superior reliability, long lifetime.

·No shadow or virtual open circuit phenomenon when processing on special materials.

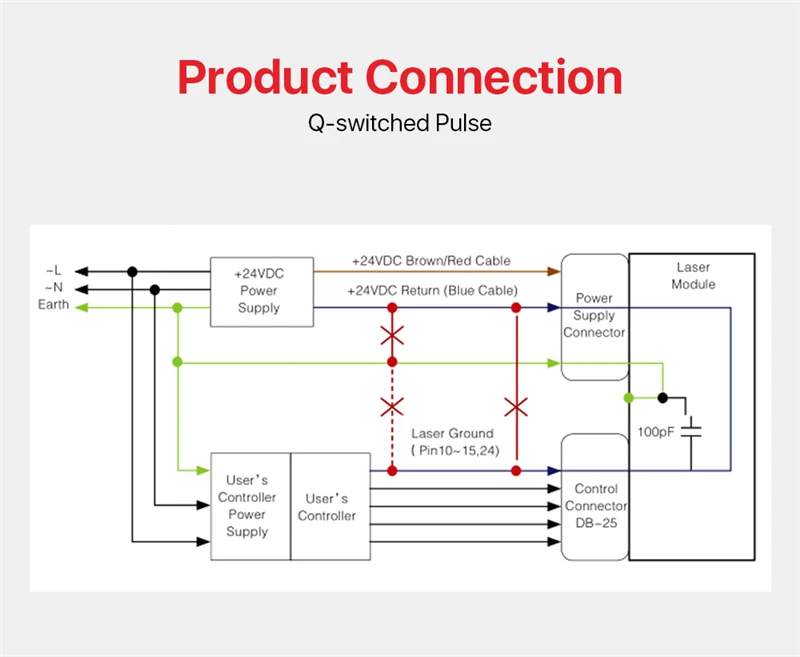

·Universal DB-25 interface.

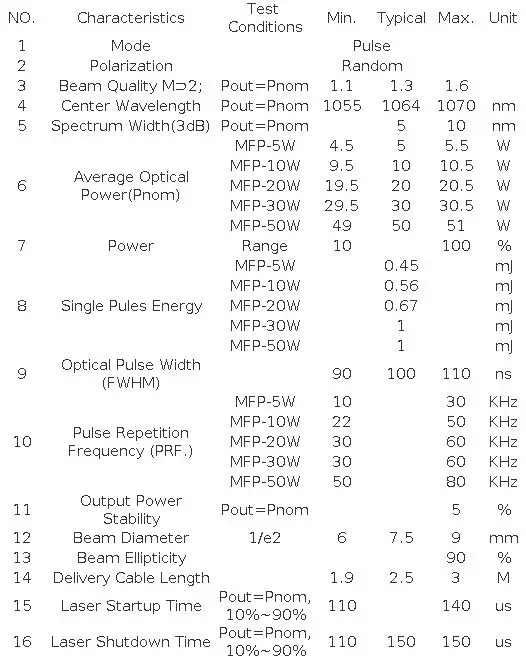

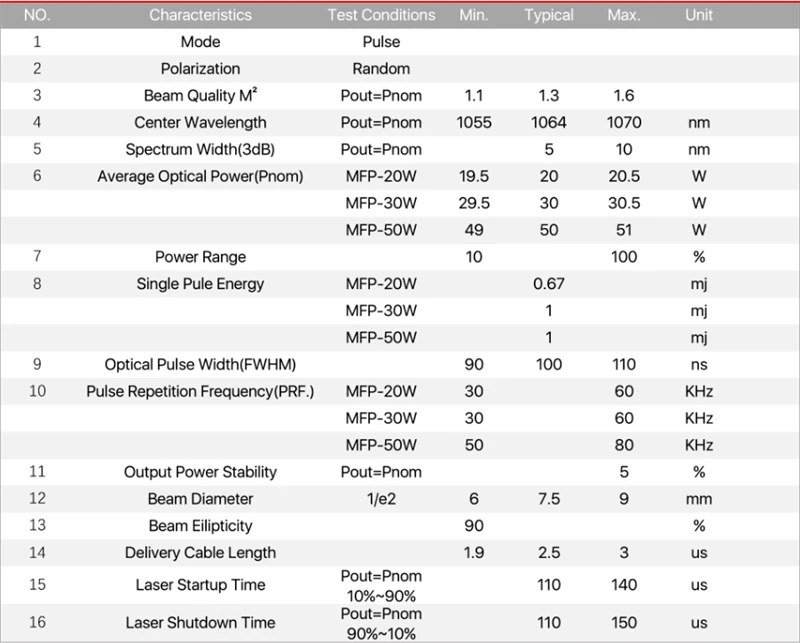

Technical Parameters



NO.	Characteristics	Test Conditions	Min.	Typical	Max.	Unit
1	Mode	Pulse
2	Polarization	Random
3	Beam Quality M⊃2;	Pout=Pnom	1.1	1.3	1.6
4	Center Wavelength	Pout=Pnom	1055	1064	1070	nm
5	Spectrum Width(3dB)	Pout=Pnom		5	10	nm
6	Average Optical Power(Pnom)	MFP-5W	4.5	5	5.5	W
		MFP-10W	9.5	10	10.5	W
		MFP-20W	19.5	20	20.5	W
		MFP-30W	29.5	30	30.5	W
		MFP-50W	49	50	51	W
7	Power	Range	10		100	%
8	Single Pules Energy	MFP-5W		0.45		mJ
		MFP-10W		0.56		mJ
		MFP-20W		0.67		mJ
		MFP-30W		1		mJ
		MFP-50W		1		mJ
9	Optical Pulse Width(FWHM)		90	100	110	ns
10	Pulse Repetition Frequency (PRF.)	MFP-5W	10		30	KHz
		MFP-10W	22		50	KHz
		MFP-20W	30		60	KHz
		MFP-30W	30		60	KHz
		MFP-50W	50		80	KHz
11	Output Power Stability	Pout=Pnom			5	%
12	Beam Diameter	1/e2	6	7.5	9	mm
13	Beam Ellipticity				90	%
14	Delivery Cable Length		1.9	2.5	3	M
15	Laser Startup Time	Pout=Pnom, 10%~90%	110		140	us
16	Laser Shutdown Time	Pout=Pnom, 10%~90%	110	150	150	us

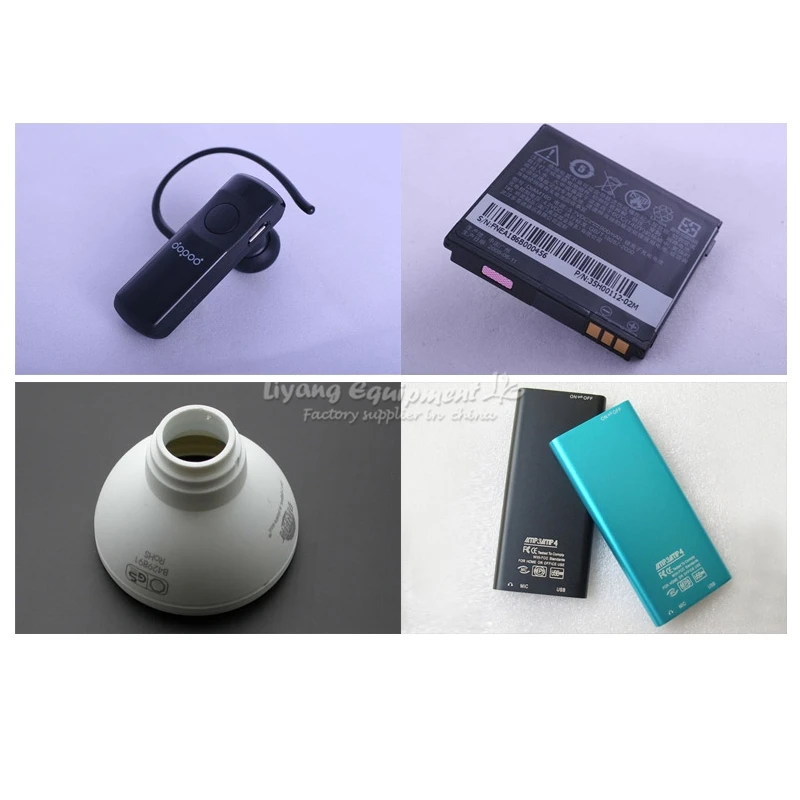

Applications of Laser Marking:

Widely used for all metal marking, some plastic and parts of stone engraving. Ceramic, plastic keys, metal and non-metallic material marking Graphic engraving Special materials processing, etc.
