Original Raytools Laser Protective Windows Fiber Protection Lens 37×7 27.9×4.1 22.35×4.1 4kw 12kw 1064nm 211LCG0020 211LCG0037

Original Raytools Laser Protective Windows Fiber Protection Lens 37×7 27.9×4.1 22.35×4.1 4kw 12kw 1064nm 211LCG0020 211LCG0037

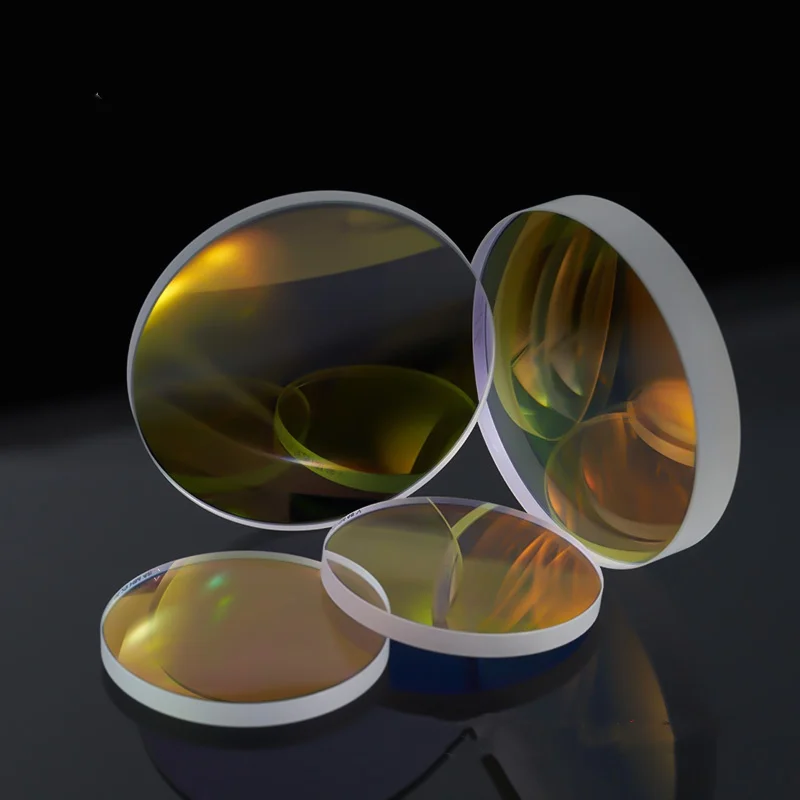

Original raytools laser protective glass

Material: Quartz Fused Silica
Wavelength: 1064nm
Transmittance: >99.76%
Laser Power: 0-4kw/12kw

Original Lens: 24.9×1.5(4kw),27.9×4.1(4kw),22.4×4.1(4kw),30×5(4kw),37×7(12kw),38.1×1.6(12kw)

Application: Fiber Cutting Machine Silica Protective Windows
Suitable for Raytools laser cutting head BT210S/BT220/BT240S/BS12K(12KW)/BM110/BM111/BM04K

BM06K/BM06K-3D/BM116/BS06K/BD04K/GF101 etc

Protective lenses are very important precision components in the optical path system of laser cutting machines

During processing, the laser cutting head will accumulate a large amount of energy. In order to block dust and slag splashing, protect the internal optical path and core components of the laser cutting head, protective lenses need to be installed on the laser cutting head to effectively protect it from damage
