QDHWOEL Ruida Controller RDC6445G RDC6445S CO2 Laser Control System for Laser Cutting Engraving Machine Upgrade RDC6442 RDC6442G

QDHWOEL Ruida Controller RDC6445G RDC6445S CO2 Laser Control System for Laser Cutting Engraving Machine Upgrade RDC6442 RDC6442G

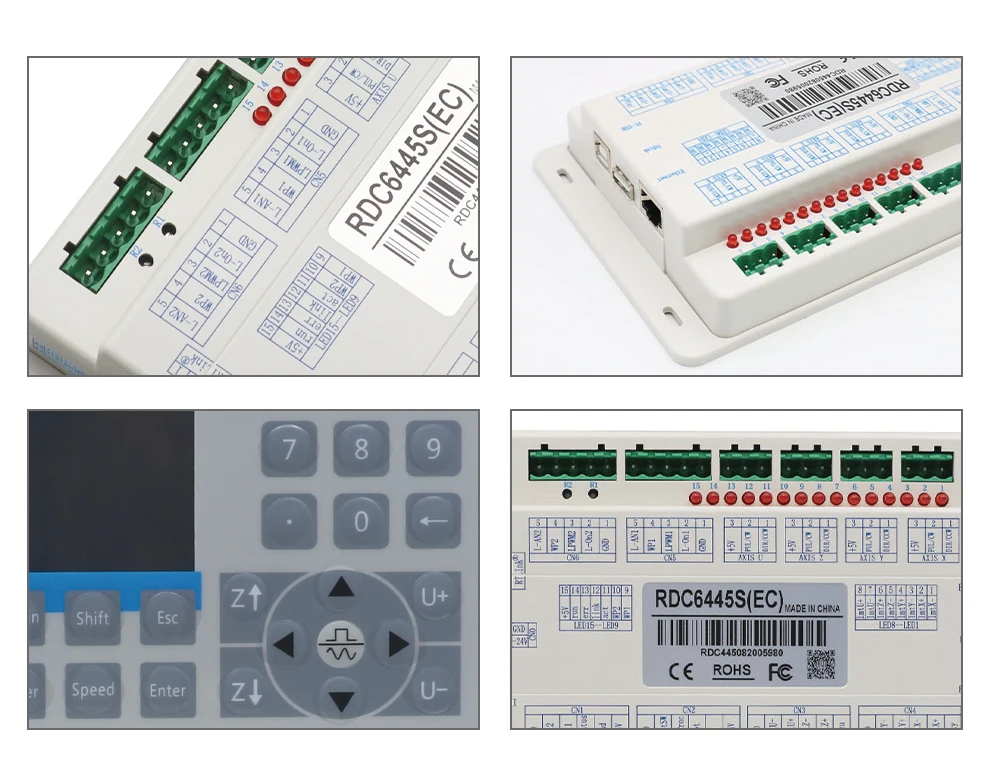

RDC6445S/RDC6445G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more perfect

Technical Parameters:

1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;

2. On-board 128M non-releasable memory;

3. USB maximum transfer rate is 12M, the longest distance is 5 meters;

4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;

5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;

6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can directly drive 24V / 5V DC relays

7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;

Function description:

1. Support up to 4 servo / stepper motor control;

2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;

3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;

4. Support mobile APP;

5. Support dual-head electric mutual shift control and super-format split cutting processing;

6. Support dual-head asynchronous processing;

7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;

Notice:

1. Ruida 6445 6445G has Upgraded to 6445S.

2. 6445S is fully compatible with Ruida 6442 6442G 6442S.
