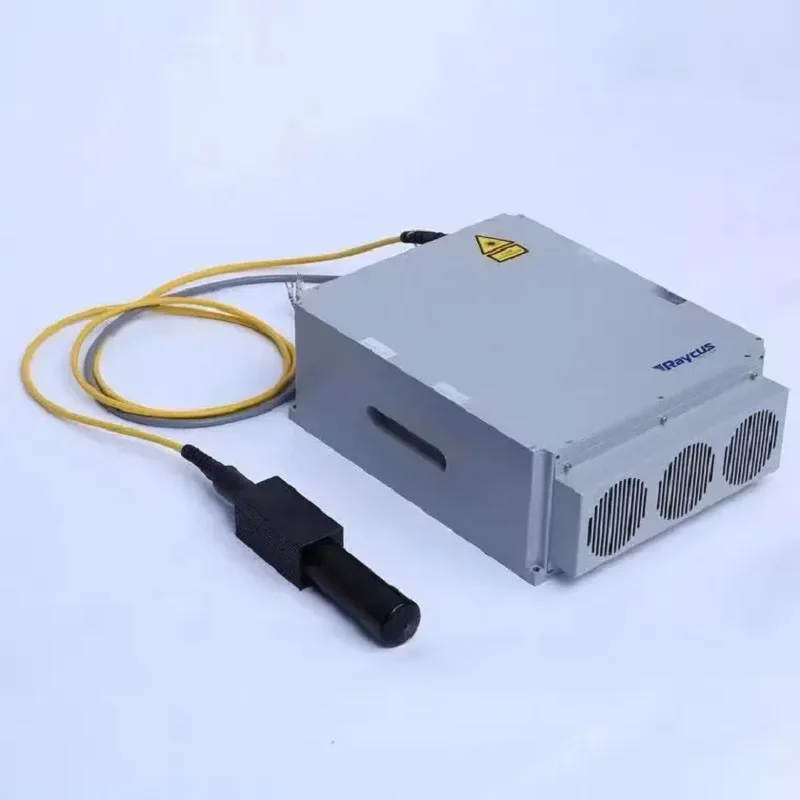

Raycus RFL-P50QB 50w 50QB fiber laser source Original Factory Products
Technical Parameter
Raycus RFL-P50QB 50w 50QB fiber laser source Original Factory Products
v Specification
Features
– High stability laser output
– High single pulse energy
– High marking efficiency
– Short pulse setup time, high reliability
– Maintenance-free operation
Optical properties
– Average output power: (W ): 50
– Center wavelength: (nm ): 1064
– Repetition frequency range (kHz): 50-100
– Output power stability: <3%
Output characteristics
– Output spot diameter (mm): 7±1
– M²: <1.6
– Pulse width (ns): 120-160 (customizable)
– Maximum single pulse energy (mJ): 1
– Polarization: Random
– Output fiber length (m): 3 (customizable)
Electronic control characteristics and Other features
– Input power (VDC ): 24
– Power adjustment range (%): 10-100
– Size (W*H*D) (mm ): 260*340*120
– Cooling method: air cooling
– Working temperature (℃): 0-40
Application
– Material processing
– Marking
– Deep carving
– Cleaning
– Precision welding
– Micromachining
– Sheet metal cutting and punching
– Scribe
– Mao
– Silicon processing
– Resistance adjustment
– ITO film etching
Raycus RFL-P50QB 50w 50QB fiber laser source Original Factory Products
Product Items
Raycus RFL-P50QB 50w 50QB fiber laser source Original Factory Products
Features
– High stability laser output
-High single pulse energy
– High marking efficiency
– Short pulse setup time, high reliability
– Maintenance-free operation
Optical properties
– Average output power: (W ): 20
– Center wavelength: (nm ): 1064
– Repetition frequency range (kHz): 30-60
– Output power stability: <3%
Output characteristics
– Output spot diameter (mm): 7±1
– M²: <1.5
– Pulse width (ns): 120-150 (customizable)
– Maximum single pulse energy (mJ): 0.67
– Polarization: Random
– Output fiber length (m): 3 (customizable)
Electronic control characteristics and Other features
– Input power (VDC ): 24
– Power adjustment range (%): 10-100
– Size (W*H*D) (mm ): 260*340*120
– Cooling method: air cooling
– Working temperature (℃): 0-40
– Power Consumption(w):170
RFL-P20QS Application
– Material processing
– Marking
– Deep carving
– Cleaning
– Precision welding
– Micromachining
– Sheet metal cutting and punching
– Scribe
– Mao
– Silicon processing
– Resistance adjustment
– ITO film etching
