Raytools Laser Collimator & Focusing Lens F100/F125/F150/F200 2Pcs/Set JGS1 for Raytools WSX Bodor Laser Head BM110 BM114 BT240S

Rated 5.00 out of 5 based on 1 customer rating

$0.16 – $270.46

Focal Length

Ships From

Diameter

Clear

SKU: RXQP0YHRX87M Category: Collimating Lens

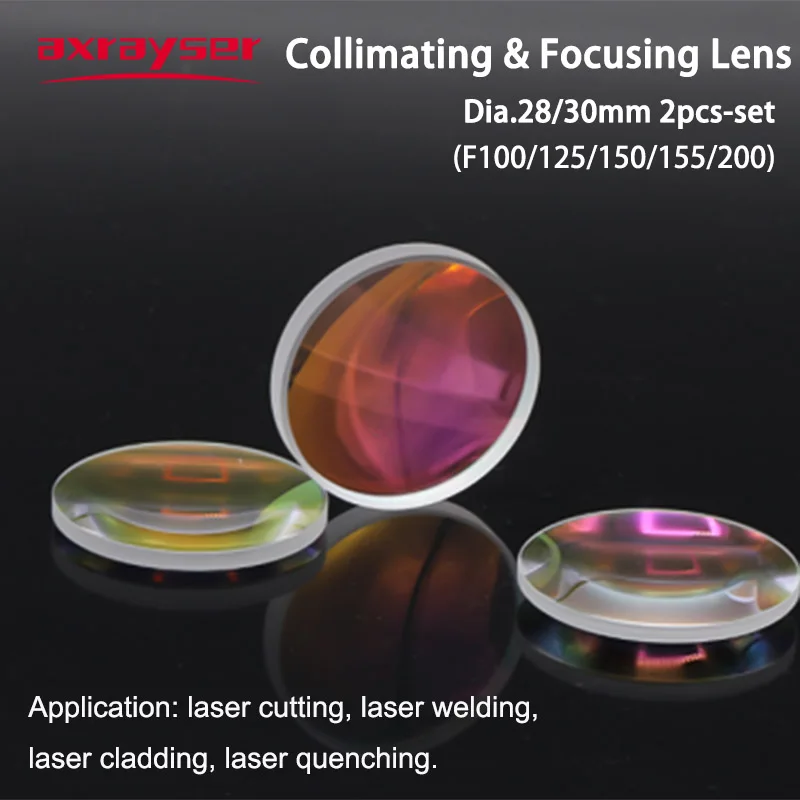

Raytools Laser Collimator & Focusing Lens F100/F125/F150/F200 2Pcs/Set JGS1 for Raytools WSX Bodor Laser Head BM110 BM114 BT240S

Wavelength: 1064nm(900-1100nm) For Fiber Laser Beam

Transmittance: >99.76%

Model: Diameter:28mm/30mm/37mm/38.1mm

Focal Length:75/100/125/150/155/200mm

Material:Quartz Fused Silica

Package:2pcs/set, Including 1pc of Convex-Convex Lens and1pc of Meniscus Lens

Application:For Raytools BT210 BT220 BT240 BM109 BM110 BM111 BM114 BM115 Head & WSX Bodor Laser Machine

If need unlisted size or not sure , please contact customer service, we will answer quickly.

Weight	0.050 kg
Dimensions	4 × 4 × 2 cm
Brand Name	axrayser
Origin	Mainland China
Structure	Double Convex
Model Number	D28/D30mm F75/100/125/150/155/200mm
Material	JGS1 Quartz Fused Silica
Shape	Spherical
Certification	CE
Usage	Fiber Laser Head
Item Name	Laser Collimator Focusing Lenses
Laser Head Brand	For Bodor Raytools & WSX Laser Head
Wavelength	1064nm(900-1100nm)
Transmittance	>99.76%

1 review for Raytools Laser Collimator & Focusing Lens F100/F125/F150/F200 2Pcs/Set JGS1 for Raytools WSX Bodor Laser Head BM110 BM114 BT240S

Rated 5 out of 5

y***a – July 3, 2024

Focal Length: FL100 Ships From: CHINA Diameter: Dia30
