Product Description

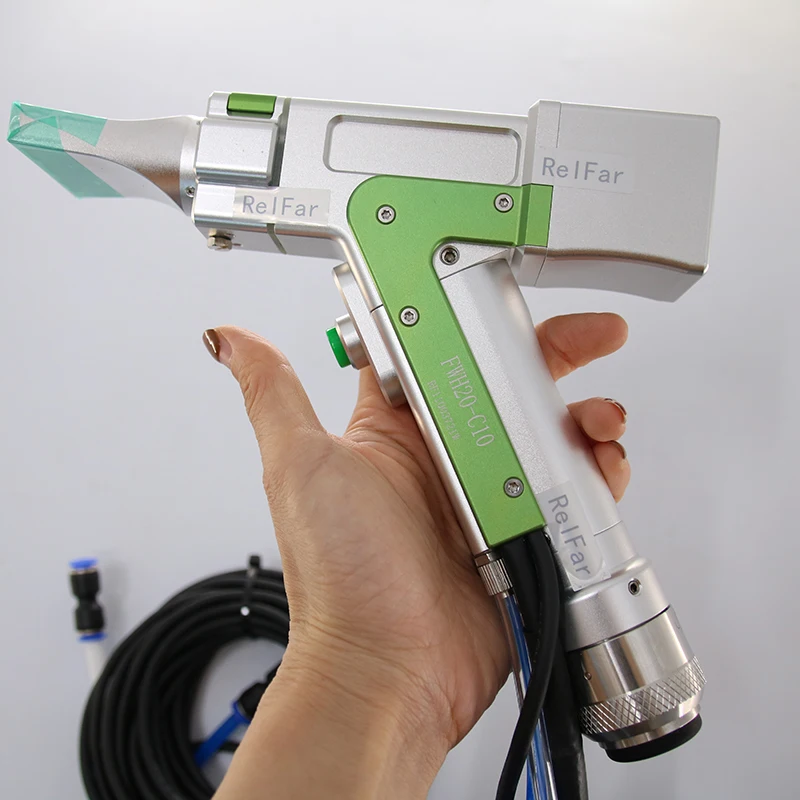

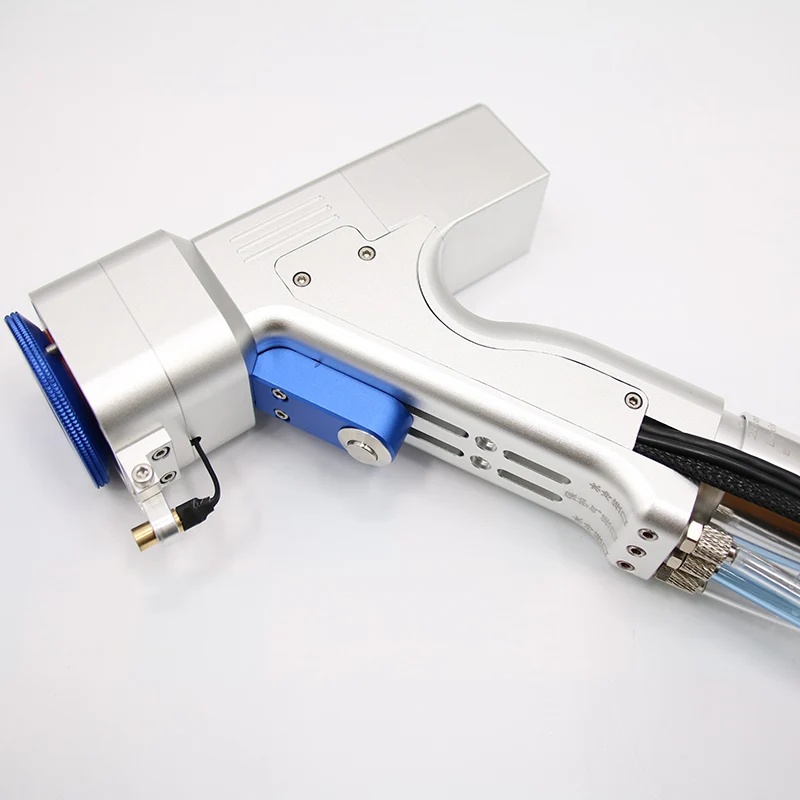

Relfar FWH20-C10 Laser Cleaning Head
The embedded laser cleaning control system is a controller specially developed by RuiDa for laser cleaning. Support spiral scanning and linear scanning, spiral scanning can well avoid the zebra crossing phenomenon of traditional linear filling scanning. The system is simple to operate, and can display scan parameters, alarm information, and motion status in real time.Equipped with 7-inch TFT touch screen.
In order to ensure personal safety, please wear special fiber laser protective glasses before operation;
Keep the product clean and prevent coolant, condensate or other foreign matter from intruding into the cavity, otherwise it will cause functional pollution and functional impact on related parts.
Replacement parts are assembled in a dust-free workshop. Except for the protective mirror drawer, which can be disassembled,other modules are forbidden to disassemble in principle. If you must check the collimating lens, focusing lens, and vibrating lens, please remove the product in a clean environment.
Specification
| FWH20-C10 | |
| Fiber interface | QBH |
| Wavelength range | 1070±20um |
| Rated power | ≤2000W |
| Collimated focal length | F50mm |
| Focus focal length | F400mm |
| Scanning width | 0～100mm |
| Auxiliary air pressure | ≤1Mpa |
| Weight | 0.72Kg |
For more details
Applications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Contact Us
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material?
2.The size of material?
3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
