SN04-N 4mm TL-W5MC1 Approach Sensor NPN Inductive Proximity Sensor DIY Parts CNC Laser Endstops Limit Switch NPN Touch Switch

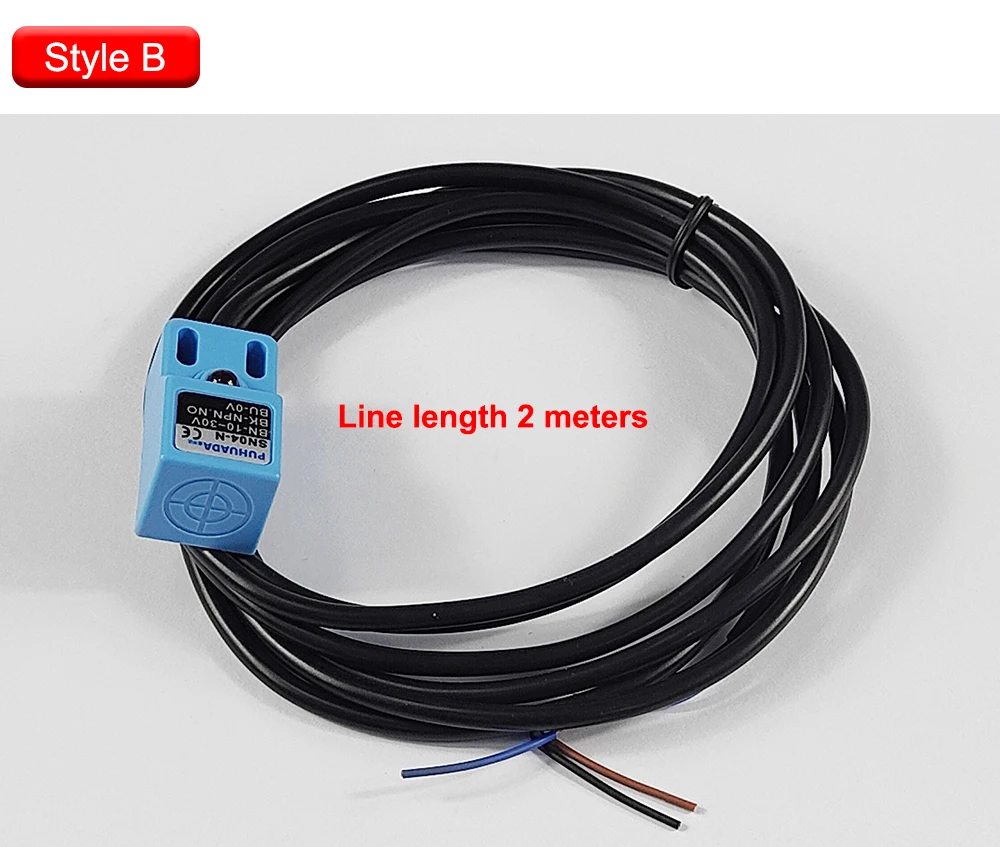

（Style B)

Main Parameter:

Detection distance : 4mm ± 10%.

Set distance: 0~3.8mm.

Delay distance: 10% below of the detection distance.

Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal).

Stand detection object: lron 18*18*1mm.

Response frequency: DC:0.5kHz.

Supply voltage: DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below.

Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing.

Meterial: (Housing:Nickel plated brass)(Detection surface:ABS).

Protection influence: lP67(IEC specification).

Note: This product (Style D/E) is suitable for CO2 laser cutting machines and used with magnets. Due to shipping restrictions, this product does not contain magnets.Note: This product (Style D/E) is suitable for CO2 laser cutting machines and used with magnets. Due to shipping restrictions, this product does not contain magnets.

Note: This product (Style D/E) is suitable for CO2 laser cutting machines and used with magnets. Due to shipping restrictions, this product does not contain magnets.
