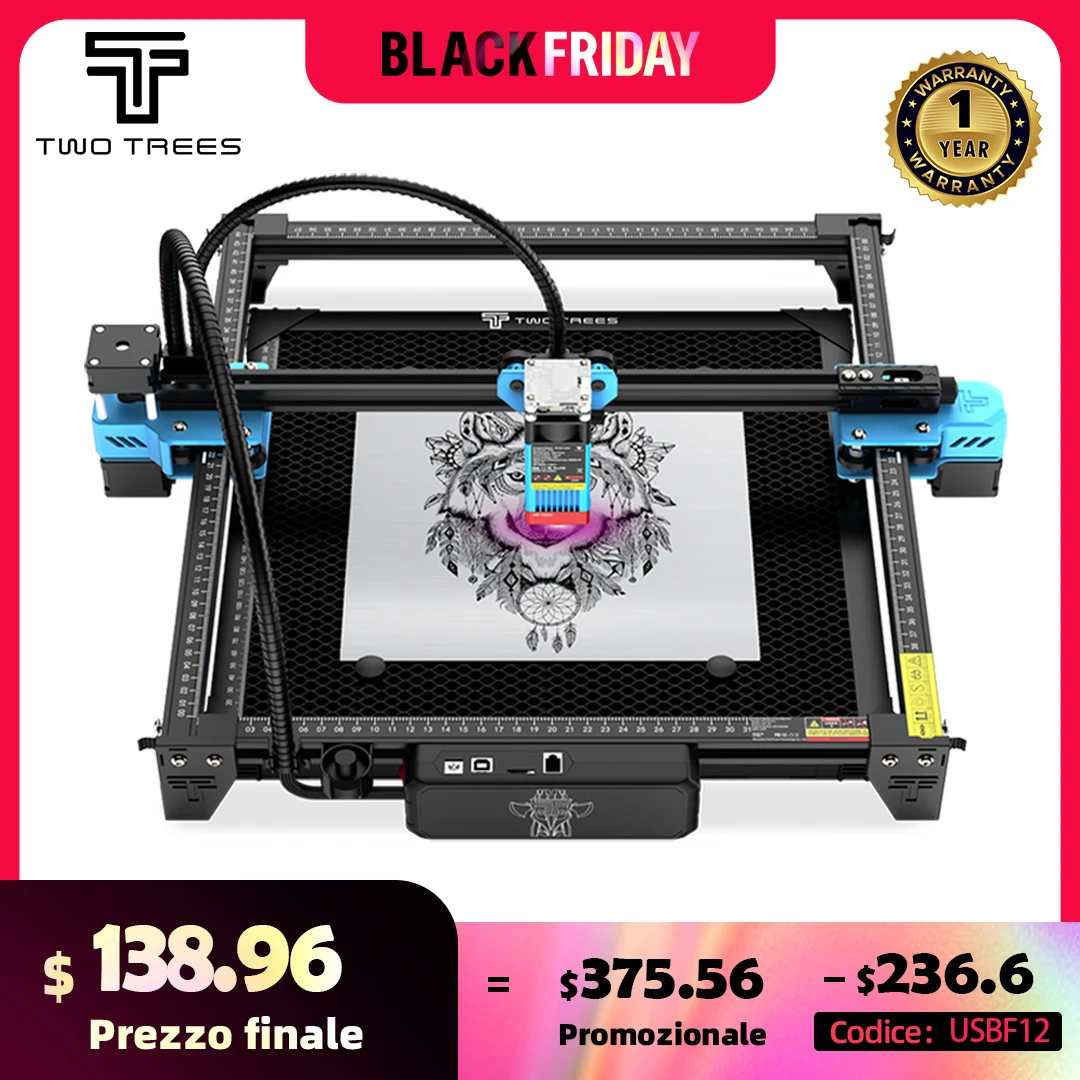

TwoTrees TTS-55 Pro Laser Engraver With Wifi Offline Control 80W Laser Engraving Cutting Machine 445±5nm Blue Light Cnc Machine
Latest Laser Beam Shaping Technology: TTS-55 Pro uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.
Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.
Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.
Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.
Wide Compatibility:Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.
Machine parameters:
Model: TTS-55 Pro /TTS-10 Pro
Machine Weight: 3kg
Engraving Range: 300 * 300mm
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.1mm
Engraving Speed: 30000mm / min
Software Support System: MAC, Windows
Machine Material: Aluminum Profile + Plastic Parts
Power Supply: 12V 4A DC / 24V 4A DC
Control Board: LTS esp32 Motherboard (32bit)
Laser Power: 5.5w/10w (optional)
Input Power: 40w/80w (optional)
Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc
Supporting software: Lasergrbl (Windows system), Lightburn (General)
Power type: European standard / American Standard (Optional)
Languages Supported By The Software: Chinese, English, Italian, French and German
Working Environment: Temperature 5-40 ℃, Humidity 20-60%
Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)
Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
Note: Transparent materials cannot be cut or engraved directly, and the surface needs to be covered.
you may want to know
Q1. Why does the title say 80W/40W, but the laser is 10W/5W?
A: 80W/40W is based on the effective power of the laser machine of the carbon dioxide laser engraving machine, and its actual laser output power should be 10W/5W.
Q2. Can I engrave metal?
A: Yes, TwoTrees laser engraving machine uses compressed spot technology, the spot size is only 0.08mm, and supports engraving stainless steel and various coated metals.
Q3. Can it be used without an air-assisted air pump?
A: Yes, the laser can work without an air compressor, using an air compressor is just to increase the cutting effect and efficiency.
Q4. Can clear glasses and Stanley cups be engraved?
A: Yes, it can engrave glass or Stanley cups. For transparent glass, you can cover it with black paint or color value and then complete the engraving.You can contact us to watch the test video
Q5. Can this machine only cut dark acrylic?
A: Yes, the laser cutting machine can cut dark acrylic, but not clear acrylic.
Q6. Is there a user manual?
A: Yes, there is a paper user manual in English/Russian/German in the box, and there is also a QR code to get the tutorial video.
Q7. Is there a warranty?
A:Twotrees laser engraving machines enjoy long-term warranty service.
If any parts fail within 90 days of receipt, they can be replaced free of charge.
For malfunctions or other issues after 90 days, you will be charged shipping costs.
Q8. Do I need to pay tax?
We have warehouses in Brazil, Europe, Russia, the United States, Mexico, Chile, the United Arab Emirates, and South Africa. If you choose to ship from overseas warehouses, you will not need to pay customs duties.
All our items come with warranty and good after-sales service
If you encounter any problems, please feel free to contact us and we will help.
Please note! Please make sure your address is correct and complete before making payment. (For orders shipped from China, please confirm that the address is in English)
Usually, we will start shipping your order within 24 hours and provide logistics track information within 48 hours. (Some logistics channels may have delays)
Please understand that customs duties are beyond our control and are the recipient’s responsibility.
If you have questions, please consult your local customs.
a***n –
All right, as described in the ad.
Very beautiful laser engraver.
Color: TTS-Kit 3 Ships From: brazil Power: 40W TTS-55 Pro Plug Type: us
M***a –
Wonderful equipment, it is of excellent quality, very good quality. The materials feel very good, the instructions to assemble are very easy. The team works in a perfect way. We are very, very happy with the purchase. Fast Shipping. I recommend to 100% the seller
Color: TTS-Kit 2 Ships From: CHINA Power: 40W TTS-55 Pro Plug Type: us
0***r –

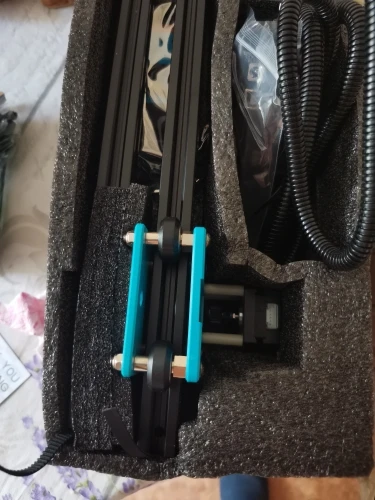

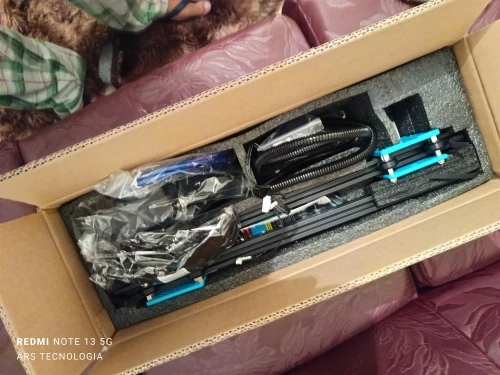

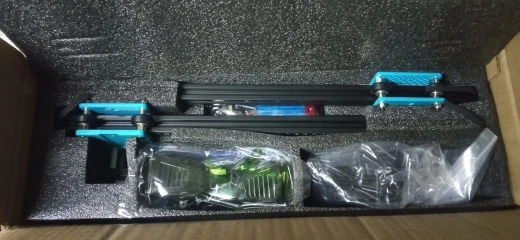

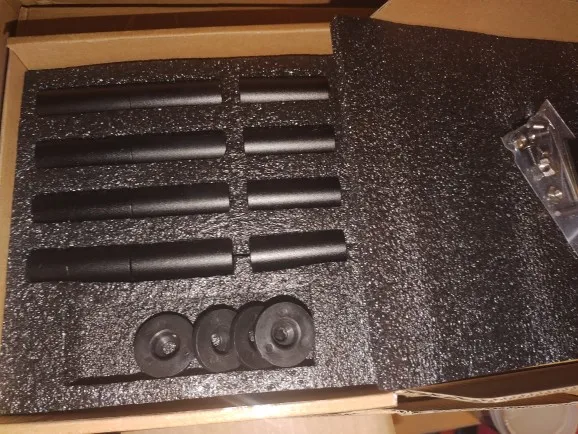

loved the packaging came separate and well package no break or bents all came same time fast shipment will update on set up so far 👍
Color: TTS-Kit 6 Ships From: CHINA Power: 40W TTS-55 Pro Plug Type: us
G***l –
Very good equipment, easy assembly, and quality material. Thank you
Color: TTS-Kit 6 Ships From: brazil Power: 40W TTS-55 Pro Plug Type: EU
j***a –
I bought a piece of equipment from them in Brazil, there were some pieces they sent me the time without problem very top company I recommend them without a doubt company that cares about the customer wanted more company like that
Color: TTS-Kit 5 Ships From: brazil Power: 80W TTS-10 Pro Plug Type: EU
M***s –

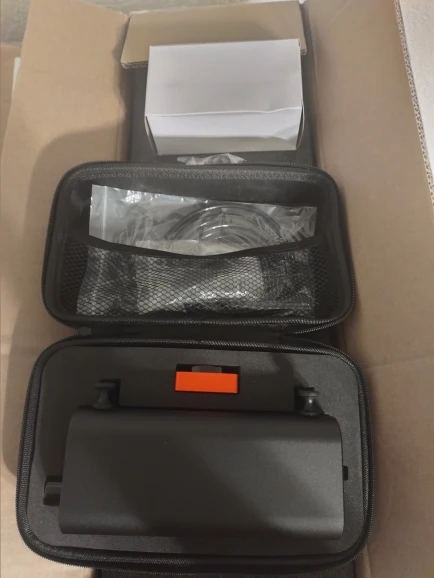

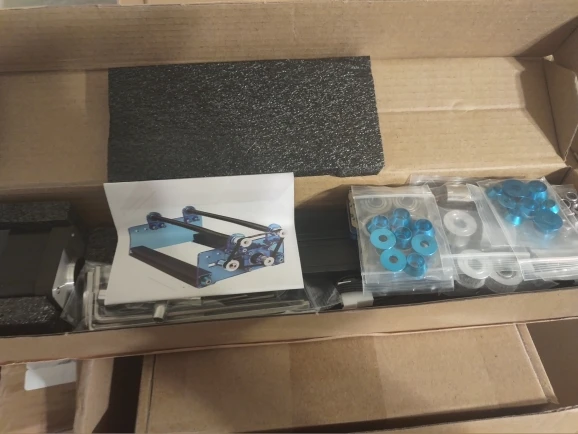

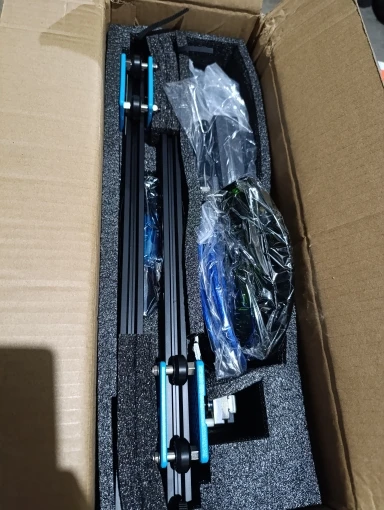

Very well packed
Color: TTS-Kit 6 Ships From: brazil Power: 80W TTS-10 Pro Plug Type: EU

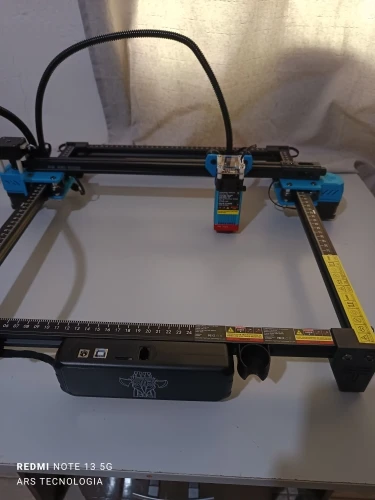

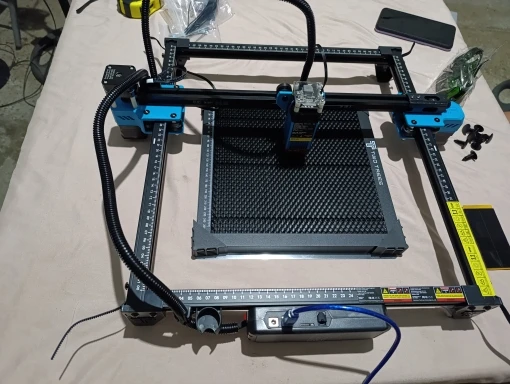

V***o –

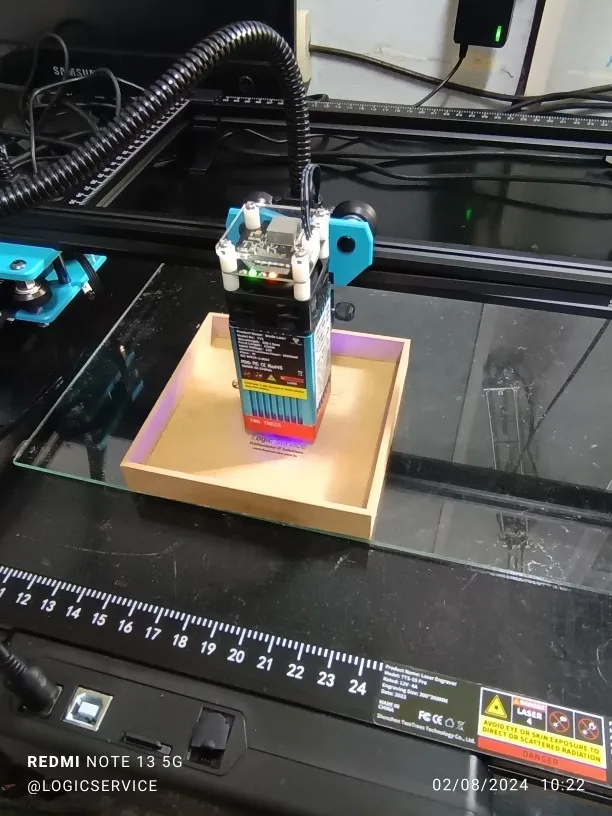

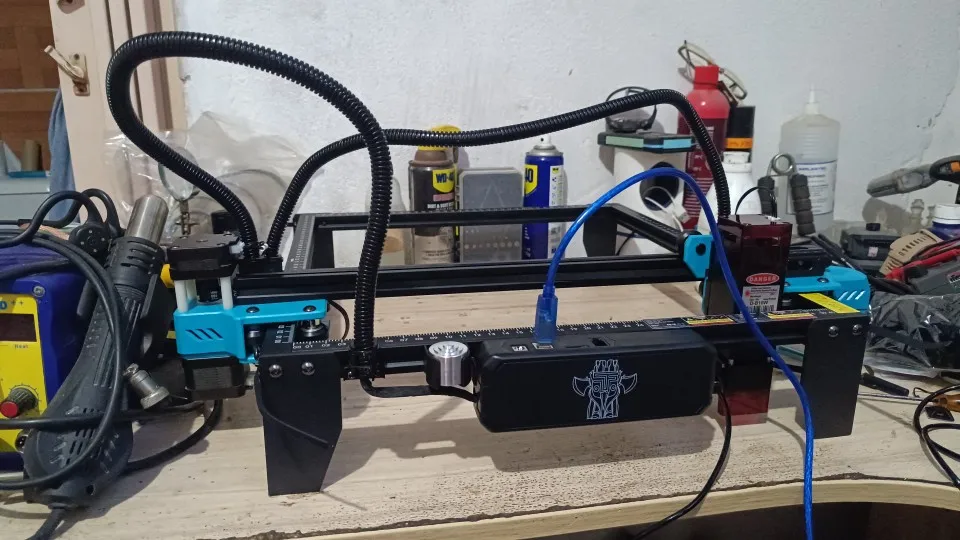

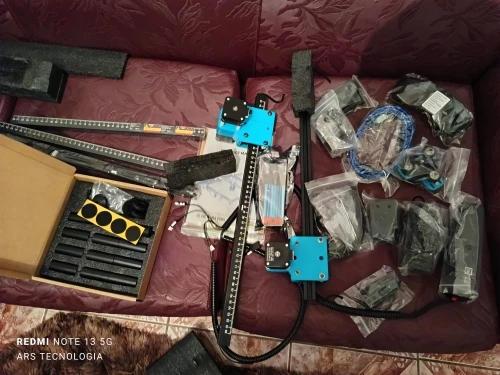

After receiving, I did the assembly which took an average of about 50 min. I missed information on straps looseness and tension. In the recording head, it seems to me that it is loose and I also did not find the information of how it should be. I did a recording test, straight through my cell phone and it worked. I haven’t been able to cut anything yet, I need to study more how it works. I found it well built and easy to assemble. In the manual itself, could have future upgrade information.
Color: TTS Ships From: brazil Power: 40W TTS-55 Pro Plug Type: EU Plug
I***N –
Arrived well and it is very well packed in the next few days the armare and I will try how it works
Color: TTS Ships From: CHINA Power: 40W TTS-55 Pro Plug Type: US PLUG
E***o –
Arrived super fast. Everything perfect. Very good machine.
Color: TTS Ships From: brazil Power: 40W TTS-55 Pro Plug Type: US PLUG
Є***о –
Delivered for the Moscow. It was not possible to see the fact that the Ali did not. The box came from the minutes of the thought, ale everything is tzile. Zibrava on video. All pratsyu, even more, I did not start up in the well-being. Without hitting the phone. Pish the pardon…
Color: TTS Ships From: CHINA Power: 40W TTS-55 Pro Plug Type: EU Plug
M***e –
Super seller a question an answer. (and very quickly)
Happy with my purchase.
I’m working out. It’s not easy, but I’m happy with the results.
Advice watch the video (via QR code before starting editing) after it’s a child’s game.
Color: TTS-Kit 6 Ships From: GERMANY Power: 80W TTS-10 Pro Plug Type: EU Plug
