Visual Fault Locator Fiber Optic Cable Tester 30mw Red Laser Light 5-30KM Pen Type Visual Fault Locator

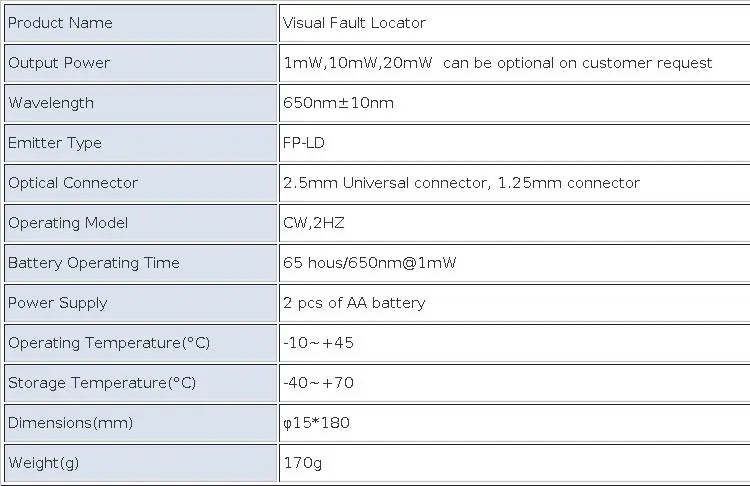

Specifications

Product Name	Visual Fault Locator
Output Power	1mW,10mW,20mW can be optional on customer request
Wavelength	650nm±10nm
Emitter Type	FP-LD
Optical Connector	2.5mm Universal connector, 1.25mm connector
Operating Model	CW,2HZ
Battery Operating Time	65 hous/650nm@1mW
Power Supply	2 pcs of AA battery
Operating Temperature(°C)	-10~+45
Storage Temperature(°C)	-40~+70
Dimensions(mm)	φ15*180
Weight(g)	170g

Optical Fiber Pen-type Red Light Source
Pen-based red light source, which use 650nm semiconductor laser as a light emitting device, through the constant current drive, transmit the red light which power is stable. After connecting with optical interface, the red light can enter into the multimode and single mode fiber, achieve detecting function of optical fiber fault. It is an indispensable tool for fiber-optic construction, fiber-optic network maintenance, optical device production and research.

Applications

1.Fiber fracture and bending fault location;

2.OTDR shadow of the failed inspection;

3.End to end fiber identification;

4.Maintenance in telecom, CATV;

5.Test Lab of optical fibers;

6.Fiber routing and continuity checking in optical networks.

Features

1. 2.5mm universal connector, for 1.25mm connectors;

2. FC (Male)-LC (Female) convertor can be provided on requests;

3. Operates either in CW or Pulsed;

4. Constant output power;

5. Lower Battery warning;

6. Long battery life (up to 60 hours);

7. Crash-proof and dust-proof design for laser head;

8. Laser case ground design prevents ESD damage;

9. Burning testing to ensure the reliability;

10. Portable and rugged, easy to use;

11. Guarantee to CE standards include EMC, EMI, ROHS.
