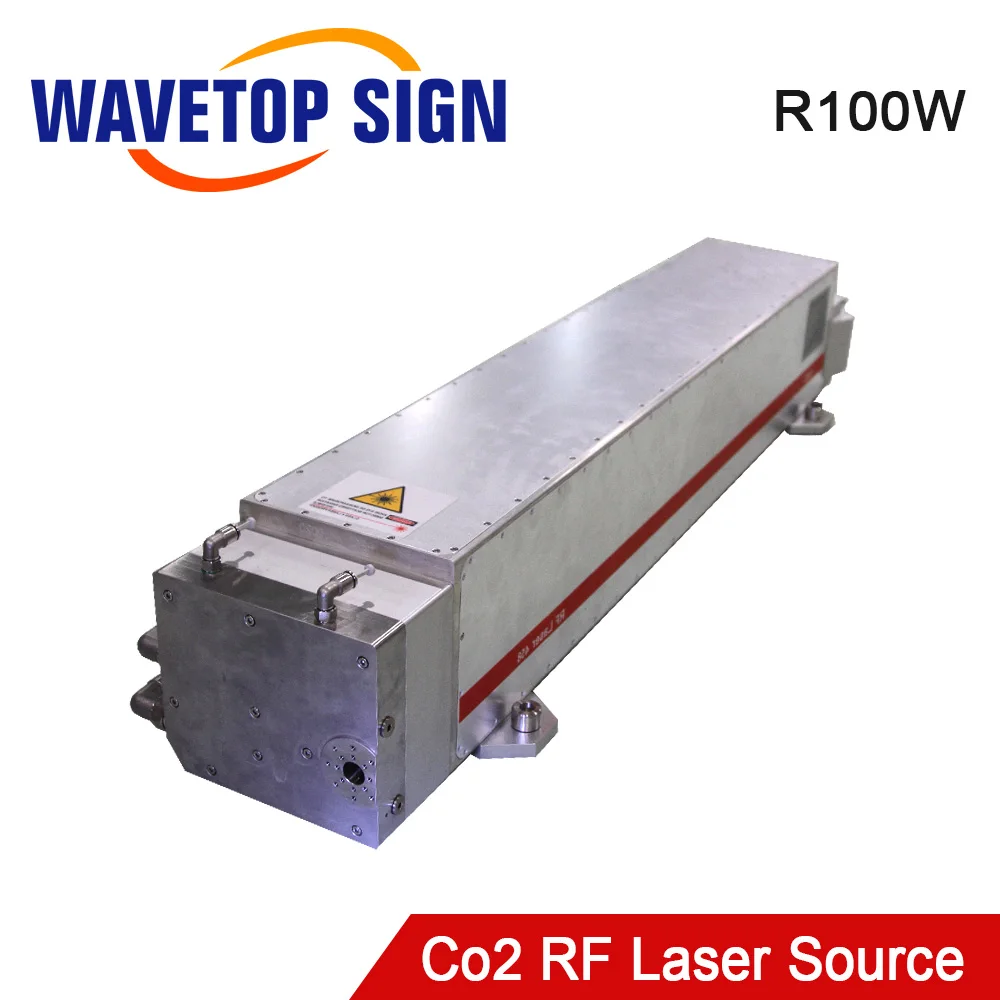

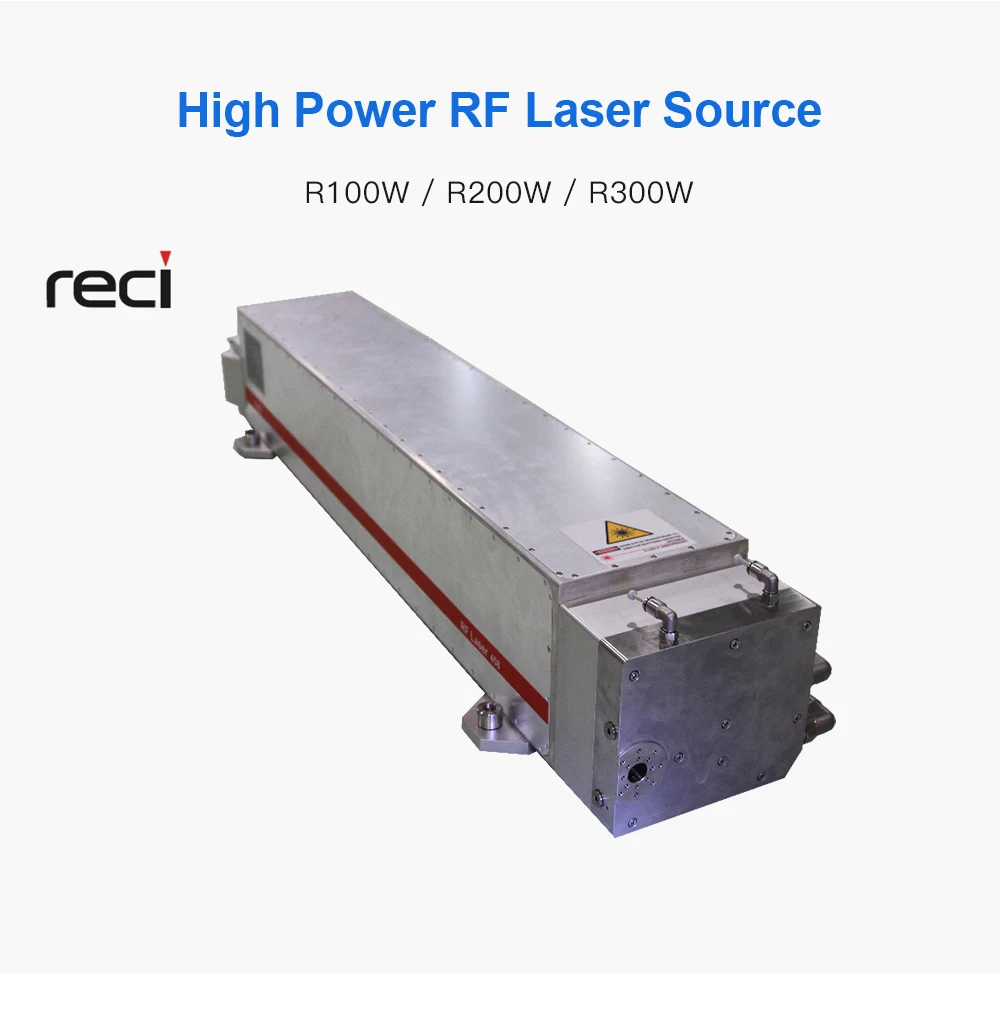

WaveTopSign Co2 RF Laser Source R100W for Co2 Laser Cutting Marking and Engraving Non-metallic Materials.

$5,875.20

Key Features of RF Laser Source

  1. Advanced RF Technology Integration:
    • The RF Laser Source integrates cutting-edge RF technology with laser energy, creating a powerful and versatile tool. This combination allows for precise control and customization of the laser beam, tailored to specific needs and applications.
  2. High Energy Output:
    • With its robust design and advanced technology, the RF Laser Source delivers high energy output. This ensures effective treatment or processing, even in challenging materials or conditions.
  3. Precision and Accuracy:
    • The RF Laser Source offers exceptional precision and accuracy, thanks to its advanced control systems and precise beam focusing capabilities. This makes it ideal for applications requiring meticulous attention to detail, such as medical imaging, micro-machining, and precision cutting.

Availability: 49 in stock

SKU: OXIQHV1VEQYM Category:

Laser Specifications:

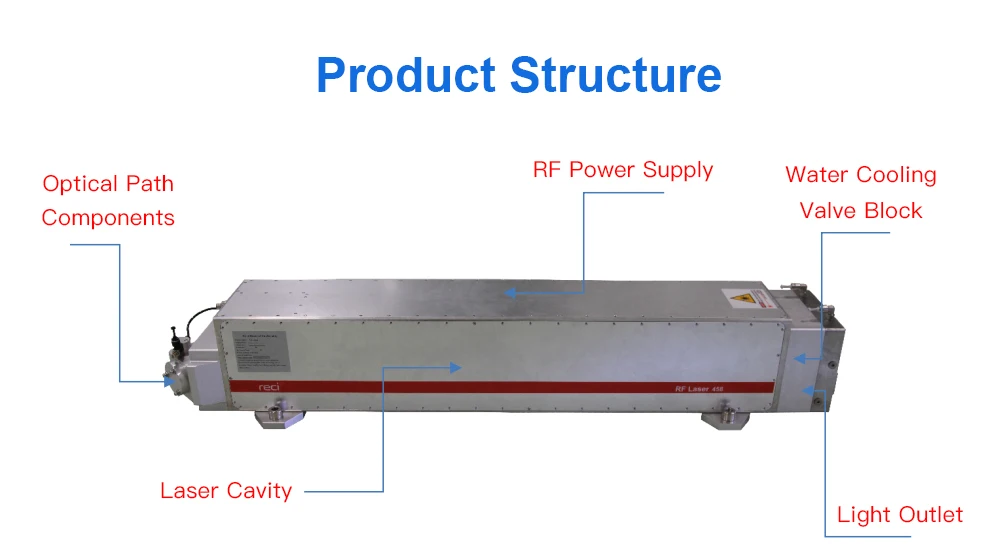

Laser Tube: sealed resonant cavity, RF excitation, water cooling
Wavelength: 10.6 μ m
Maximum Rated Power Range: 100W
Peak Power: 300 W
Minimum Transmission Power: 20W
Excitation Frequency: 81 MHz
Expected service life of laser tube: >20000 hours (this data is an estimated value, not a guaranteed value)
Energy: 10-200 mJ
Power Stability (open-loop): <± 5%
External Dimensions: 710 x 160 x 166 mm
Weight: 21.9kg

RF Power Supply Specification:
Peak Output Power: 4.5kW (at a frequency of 81.36 MHz)
DC Input: 50V+/-1V (peak value=85A)
Pulse Width Range: 0-520μs
Frequency: 1-100kHz (maximum)
Duty Cycle (Range): 4-60%

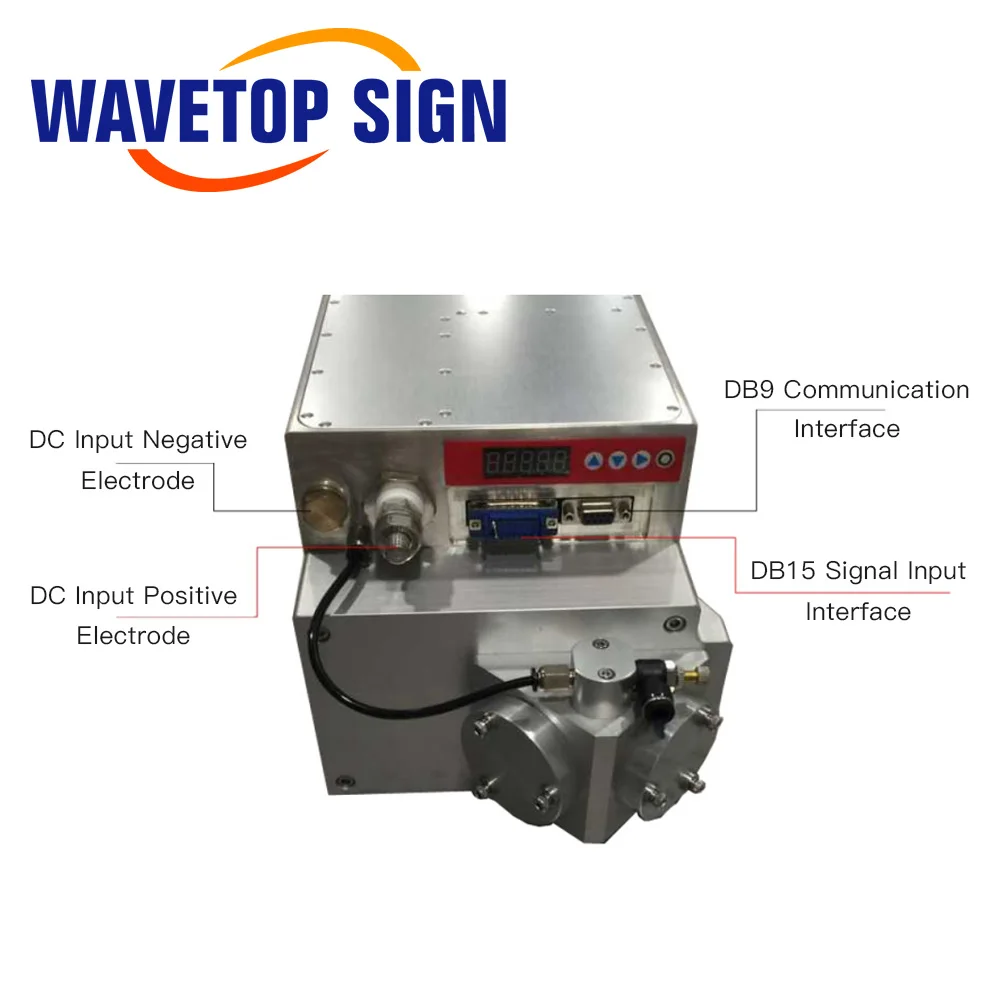

Requirements for DC Power Supply:
Output Voltage: 50V DC+/-1V
DC Output Current (Average) : 90A
DC Output Current (Peak) : 90A
Power Output (Maximum) : 4.5kW



Weight 28.000 kg
Dimensions 75 × 25 × 25 cm
Brand Name

wavetopsign
Certification

CE, RoHS
Origin

Mainland China
Hign-concerned Chemical

none
Model Number

R100W
