Features:
1. ARM32-bit MCU control board, running faster, the maximum no-load speed reaches 40000mm/min, better algorithm optimization, less vibration when the machine moves at high speed, and more stable performance;
2. X/Y/Z/A four-axis drive, Y-axis dual drive. Support for rotary axis
3. The control board power supply and line number circuit use optocoupler isolation, the entire control board is safer, more stable, and has strong anti-interference ability
4. External 300W/500W spindle
5. Split design, control, drive and expansion boards can be replaced
6. limit switches, 5V/12V/24V constant voltage pins
7. Can be connected to a high-power driver
8. Stepper drive subdivision adjustable

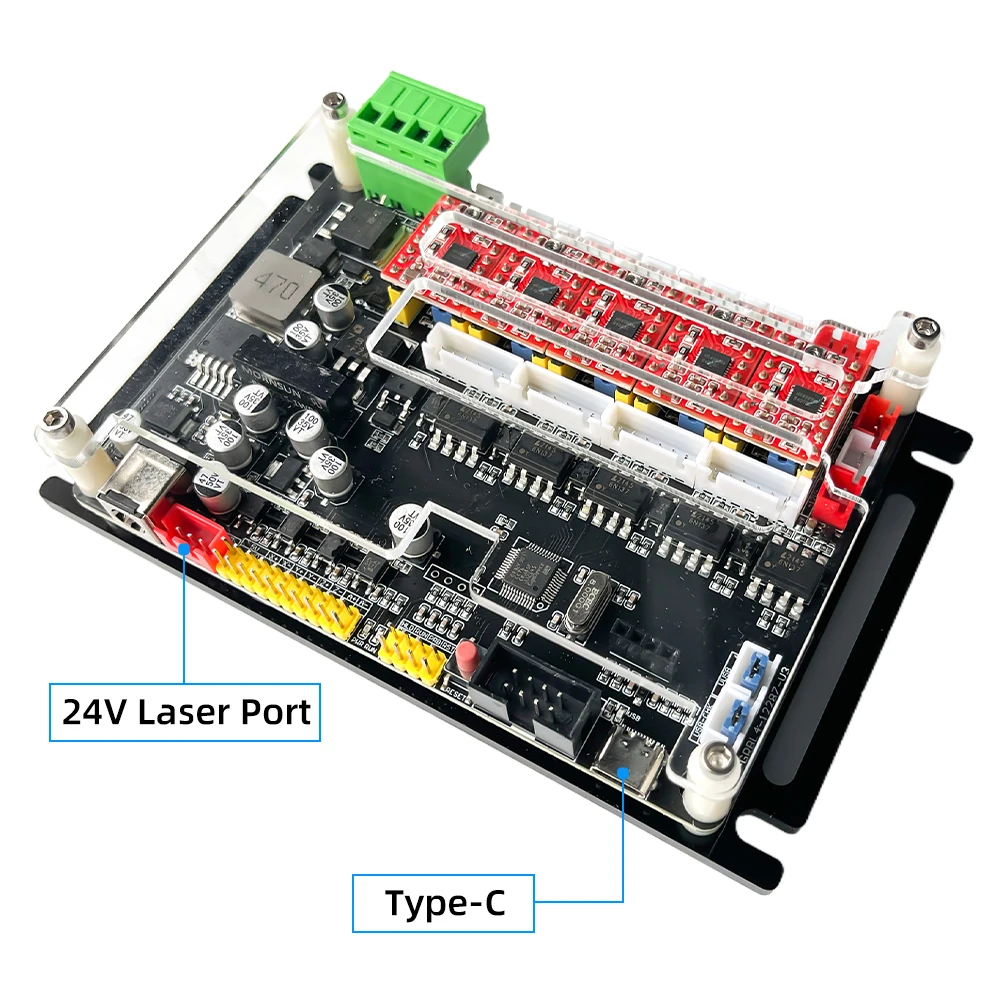

9. Can connect 775 motor/3pin laser 4pin laser/offline controller. Reserve 24V, 12V, 5V power output ports to facilitate the expansion of various functions
10. PWM/TTL software to adjust laser power
11. Support USB flash firmware, firmware upgrade is more convenient
Parameters:
▶Product Name:4 Axis 3.0 Control Board
▶Product Specifications:4 Axis
▶Package Size:185mm*115mm*55mm
▶Package Weight:300g

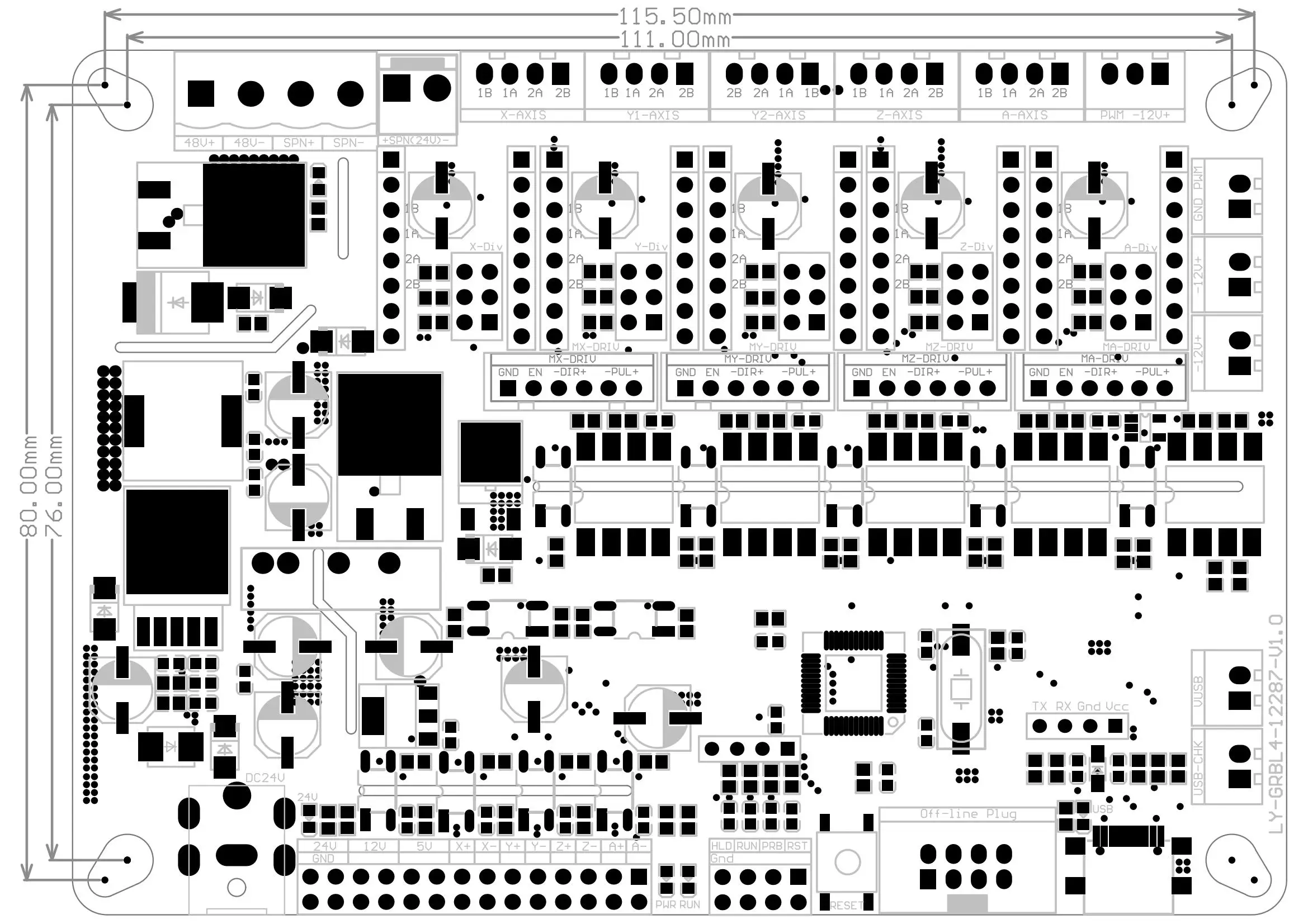

▶Product Size:122mm*87mm
▶Product Weight:150g
▶Operating System:Window/Linux/Mac
▶Interface Type:TypeC
▶Supply Voltage:DC24V- 5A
▶Software Support:Candle/LaserGRBL/LightBurn/USG

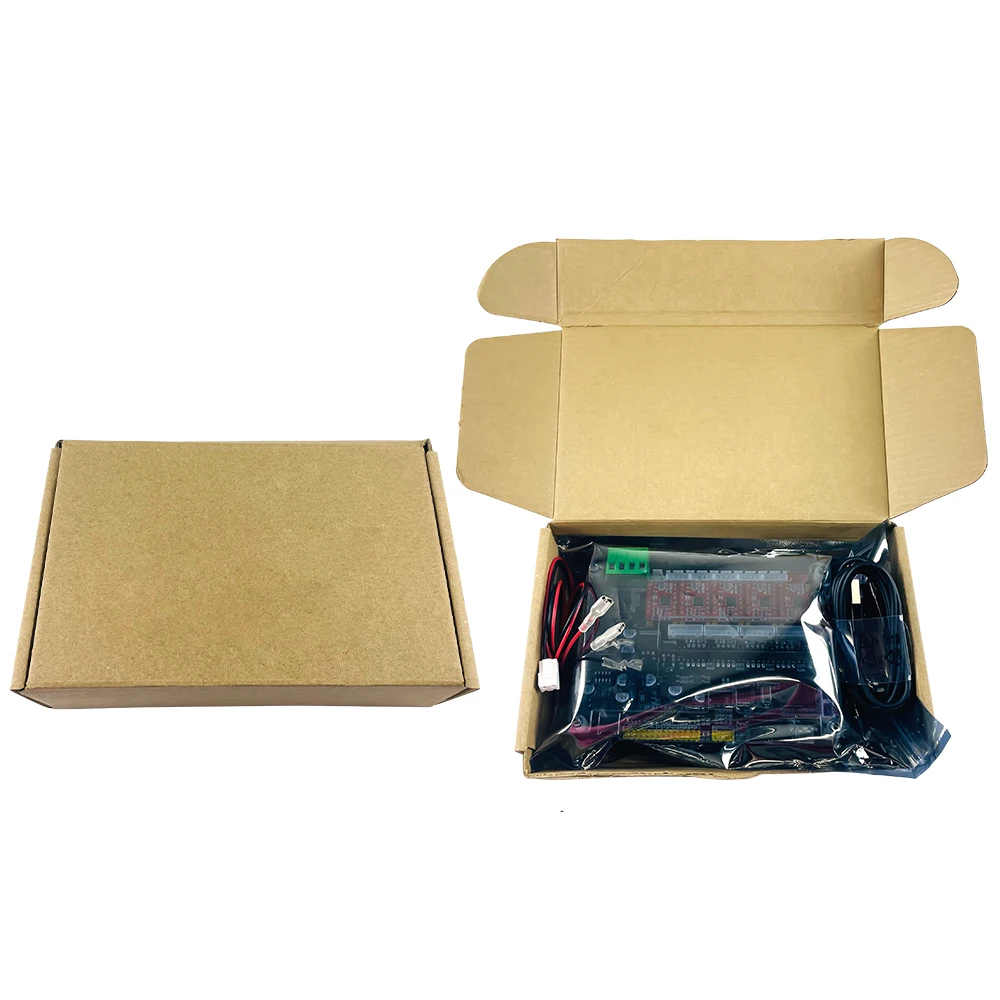

Packing list:
1* 4 axis control board
1* Type C USB cable
1* 775 motor cable
B***a –
Work for good
Color: 8825 driver
s***x –
Beautiful map, as described
Color: 8825 driver
F***r –
In accordance with the description.
Color: 4988 driver
E***r –
Works Perfect
Color: 4988 driver
R***i –
Very well packed, beautiful product. Was worth the comppora.
Color: 4988 driver
C***g –
Where can I find the termination circuit?
Color: 8825 driver
A***v –

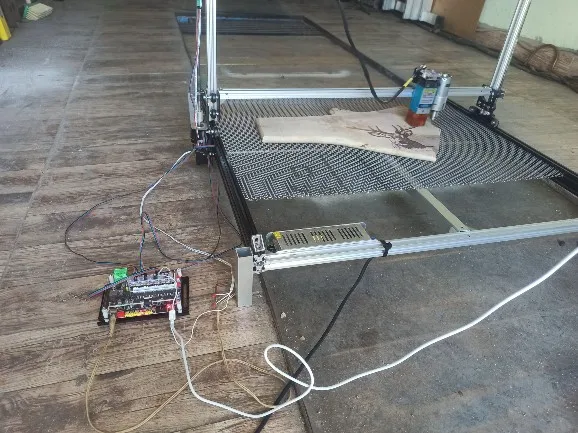

For the castle in CNC 3018. It was suspended by an hour. And before it is packed. Board to be assigned and without problems can be given parameters. I’ll take it for the next time.
Color: 4988 driver
s***z –
Perfect meets my needs, very versatile and adaptable to many machine configurations, excellent item, I am very satisfied with my purchase
Color: 8825 driver
p***r –

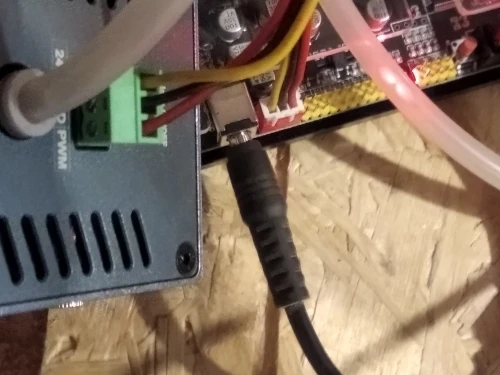

Fast shipping, well wrapped, no damage. Reasonable price. Provisional and checked, it works without reservations, waiting for assembly in the machine. Please note the polarity of the connection with the laser K30, in my case there was a need to change the struts (polarity). And not every computer recognizes models. (problem with the CH340 driver on older operating systems.
Color: 8825 driver
AliExpress Shopper –
Color: 8825 driver
Y***z –
Very well packed, I haven’t tested yet
Color: 4988 driver
D***e –
Color: 4988 driver
L***a –
Color: 8825 driver
d***r –
received fast everything ok
Color: 4988 driver
G***k –
The shipment well packed arrived before the declared date, driver and seller Super. I recommend.
Color: 4988 driver
B***b –
Very good product. German quality test and good packing system. Inside box is usb micro C 6 ampers, cable for a power supply for motor with two isolated contacts. I really recommend this product for all.
This package has a esd protection foils and package.
Color: 4988 driver
j***g –

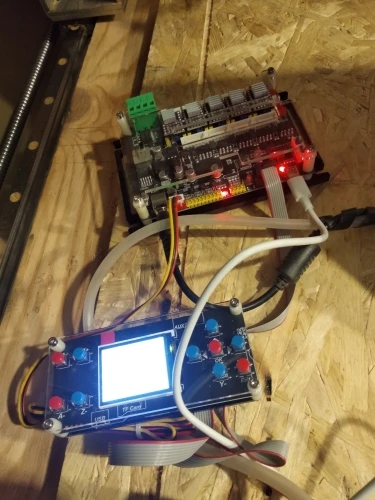

The control direction of the offline control and the control direction of the light burn are opposite to each other. If you change offline control to offline standard, it will be the opposite in comm ..
Color: 8825 driver
Н***в –
Brazo is close, a lot of goodness is packaged, in excellent standing and well-equipped in response to the description.
Good Bi Bilo da IMA technical documentation or pone link Kim virtual takawa is attached.
Color: 4988 driver
S***n –
great work well !! don’t forget to eject the current default is 2.5v
Color: 8825 driver
d***r –
received fast everything ok
Color: 8825 driver
