Clouday Ruida RDC6432 CO2 Laser Controller System for Laser Engraving Cutting Machine Replace AWC708S Ruida 6442S Ruida Leetro

Rated 4.90 out of 5 based on 10 customer ratings
(10 customer reviews)

$426.40 – $852.80

SKU: PNZ4HQT1RTOC Category:

Ruida Software RDC6432G (can only use this newest version)

download link:

http://cloudray.oss-us-west-1.aliyuncs.com/Controller/Ruida/Software/RDWorksV8Setup8.01.48-20200618.rar

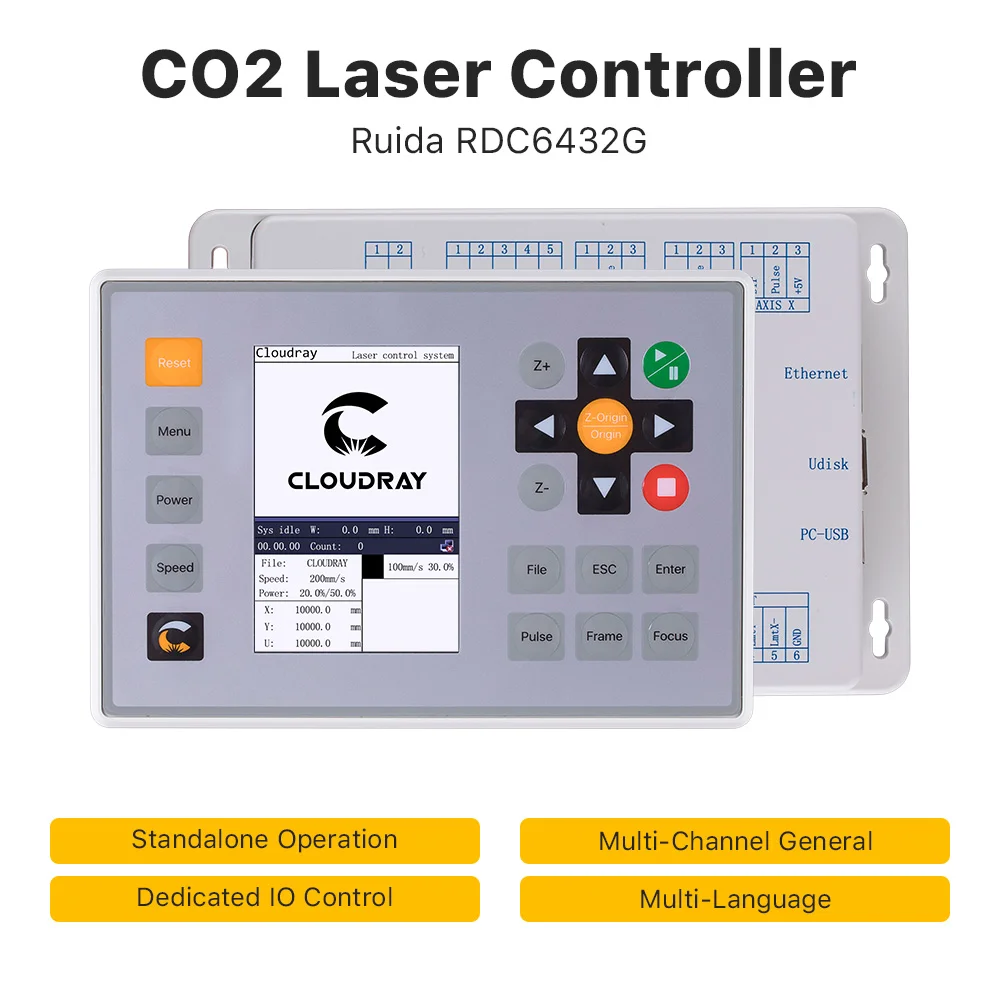

Name: Co2 Laser Controller

Model: Ruida RDC6432G

Feature:

  • The RDC6432G system is the latest laser engraving/cutting control system.
  • True color TFT screenman-machine operating system.
  • 1-way independent adjustable laser power control. Multi-channel general/dedicated IO control.
  • Better and better motion control functions.

Parameters:

  • Digital laser control signal;
  • TTL level output, 50mA drive capability;
  • The PWM frequency is adjustable from 2K to 50K;
  • PWM duty cycle is adjustable from 1% to 99%;
  • Motor control signal OC output, 300mA drive capability;
  • Motor control pulse frequency is up to 500KHZ;
  • USB maximum transmission rate of 12M, the longest distance of 5 meters;
  • Linear/circular/B-spline interpolation accuracy+/-0.5 pulse;

Multiple Languages:

  • Support simplified Chinese, traditional Chinese,English,Japaness, German, Russia, Spanish,Portuguese,Korean,French and other 16 languages.

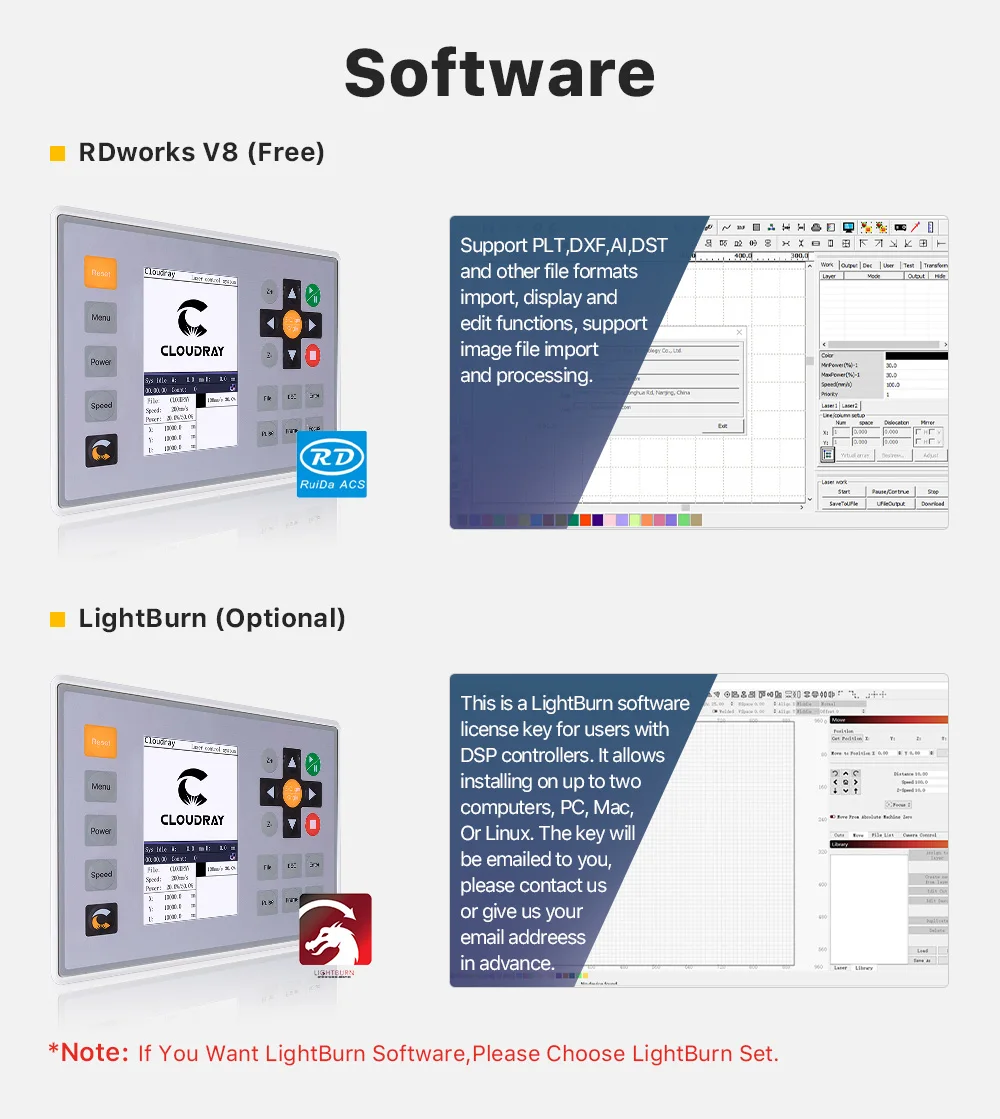

Software RDworKs V8:

  • Support PLT,DXF,AI,DST and other file formats, display and edit functions, support image file import ans peocessing.

Application Area:

  • Focus on non-metal cutting, suitable for leather, fobric, sign and 3C application fields.

Weight 1.500 kg
Dimensions 27 × 16 × 19 cm
Brand Name

Cloudray
Origin

Mainland China
Hign-concerned Chemical

none
Is Smart Device

YES
Certification

CE
Application

Lathe and Turning Center
Model Number

Ruida RDC6432
Interface Port

USB
Input Power

DC24V
LCD Size

3.5 inch
Support Software

Laser CAD/CORELDRAW/AUTOCAD
Display

Color Diaplay
Support Format

DST PLT BMP DXF DWG AI etc

10 reviews for Clouday Ruida RDC6432 CO2 Laser Controller System for Laser Engraving Cutting Machine Replace AWC708S Ruida 6442S Ruida Leetro

  1. Rated 5 out of 5

    R***Z –

    Original and very good! The best cost benefit

    Ships From: brazil Voltage: Standard set

  2. Rated 5 out of 5

    Г***ч –

    Ships From: China Voltage: Plus power supply

  3. Rated 5 out of 5

    P***v –

    ok

    Ships From: CHINA Voltage: Standard set

  4. Rated 5 out of 5

    AliExpress Shopper –

    Ships From: express Voltage: Standard set

  5. Rated 5 out of 5

    F***D –

    Very good works perfectly

    Ships From: brazil Voltage: Standard set

  6. Rated 5 out of 5

    Г***ч –

    Ships From: express Voltage: Standard set

  7. Rated 5 out of 5

    E***s –

    Ships From: CHINA Voltage: Standard set

  8. Rated 5 out of 5

    H***z –

    Excellent, all very well.

    Ships From: CHINA Voltage: Standard set

  9. Rated 5 out of 5

    AliExpress Shopper –

    Very good,. I arrive early, I still don’t install it in my machine. I arrived with your cables all in good condition

    Ships From: CHINA Voltage: Standard set

  10. Rated 4 out of 5

    R***s –

    I just arrived. Let’s install and remark

    Ships From: CHINA Voltage: Standard set
