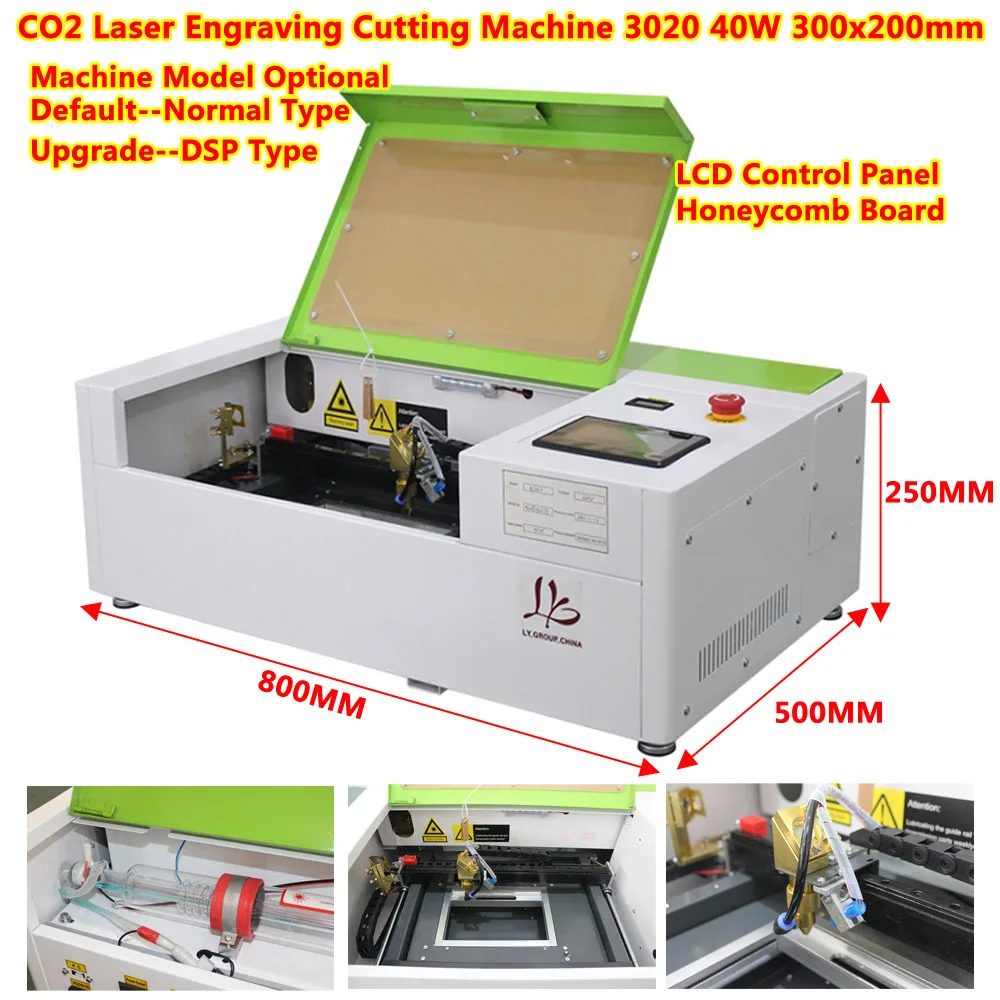

CO2 Laser Cutting Machine 3020 40W Marking Engraving
Cutter LCD Control Panel/Honey Comb Board USB DSP Off-Line Version Optional
Optional: 3020-40W

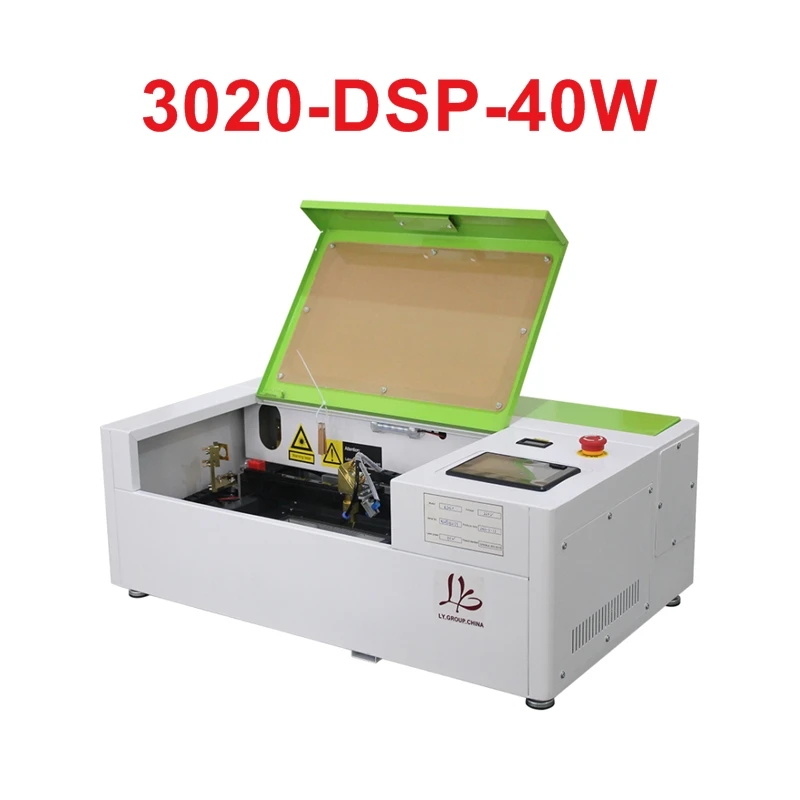

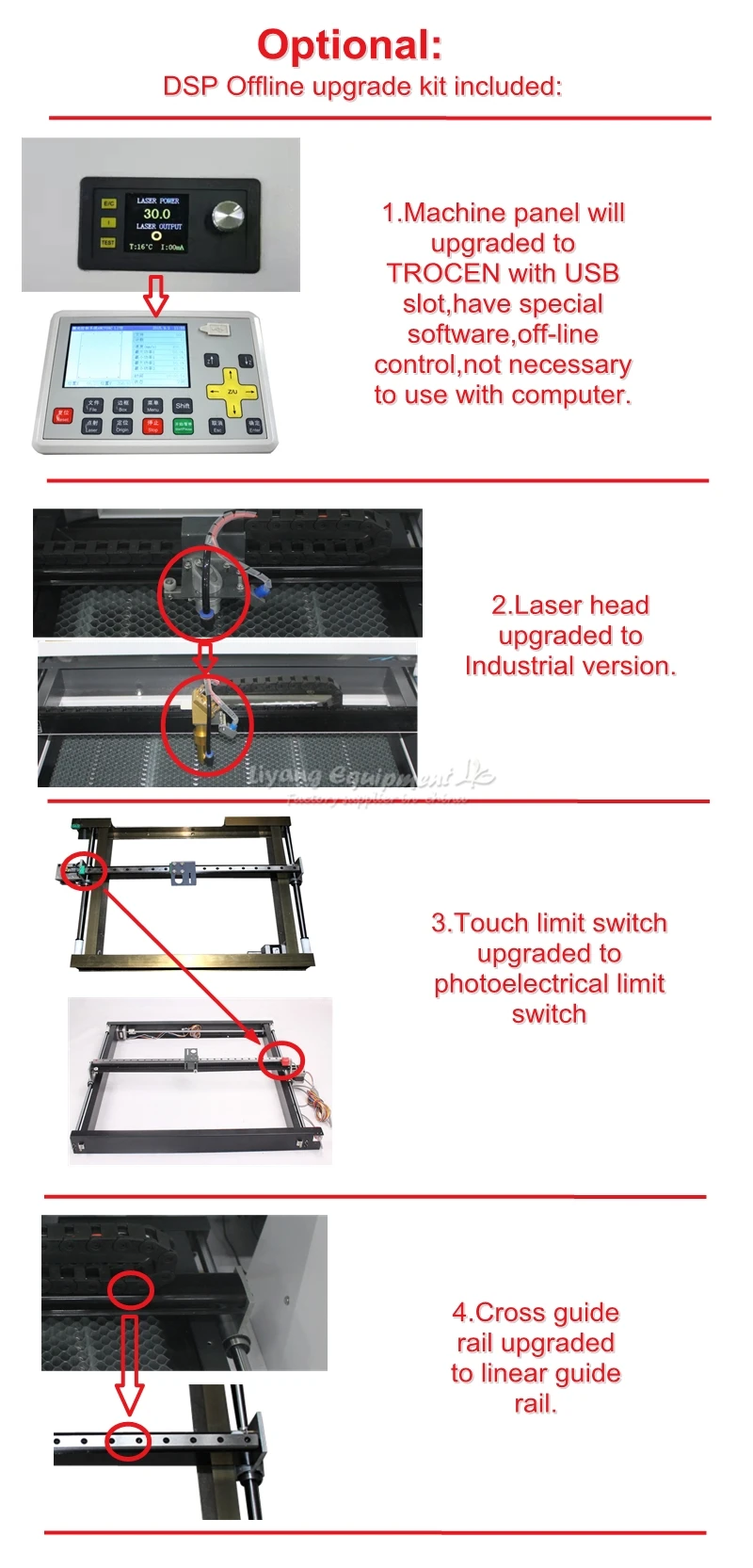

Normal version / DSP Version
110/220V 40W 300*200mm Mini CO2 Laser Engraver Engraving Cutting Machine 3020 Laser with USB Sport blowing anti-flaming system red light alignment

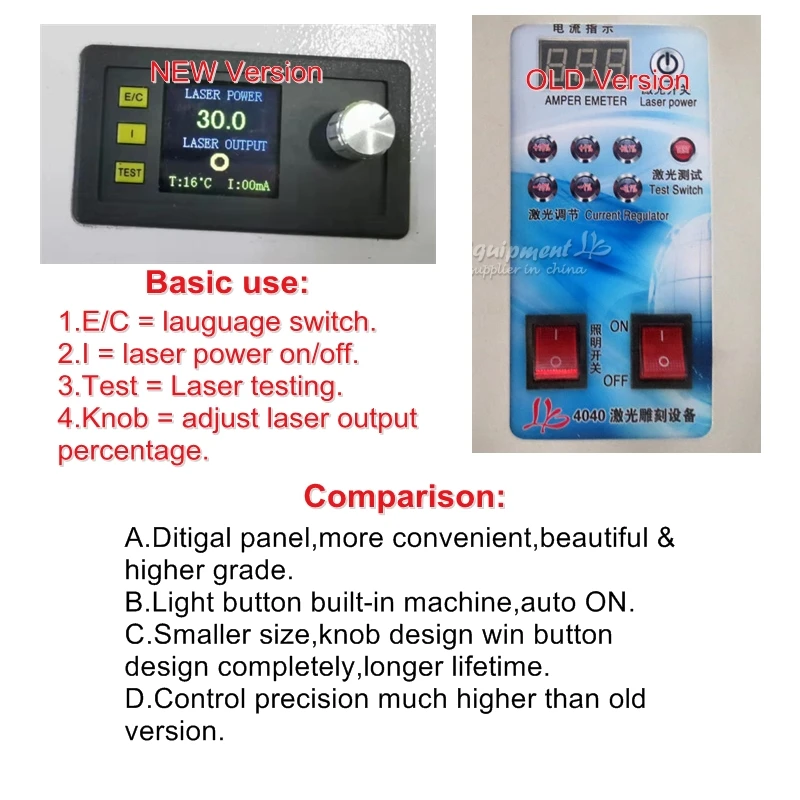

300*200 mm Mini CO2 Laser Engraver Engraving Cutting Machine 3020 Laser with USB Sport LCD panel
Secification:
oCommunication Interface: USB Port /
oCE Certification: Yes
oISO9001 Quality Certification: Yes

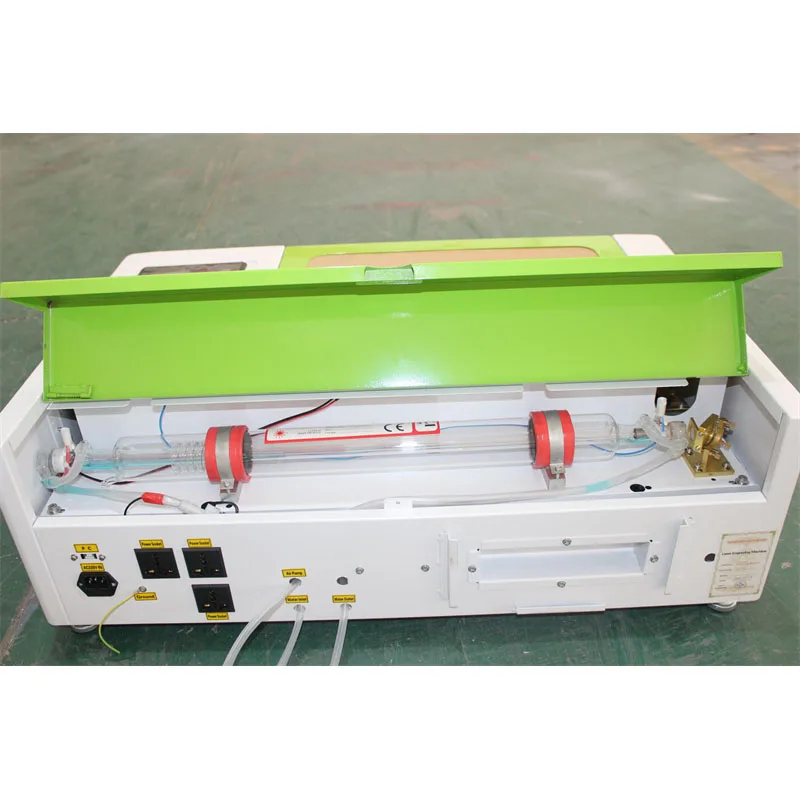

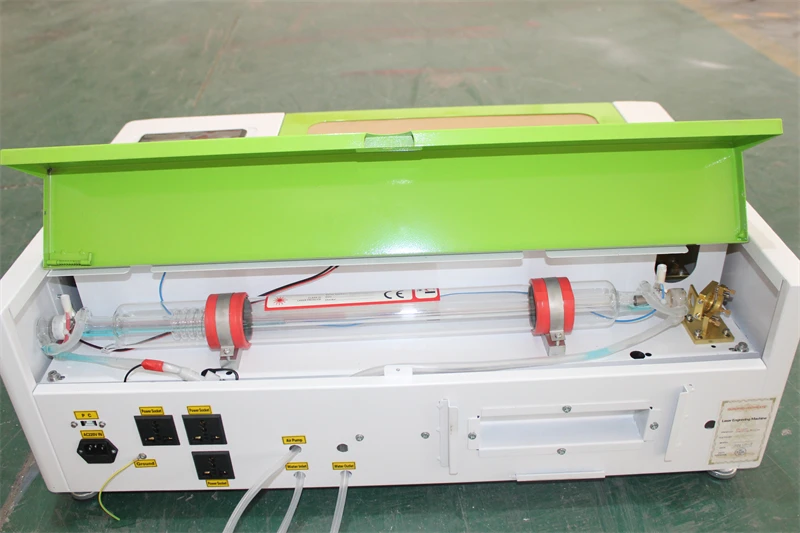

oLaser Type: CO2 Gas
oTube Trigger Volt: 20KV
oTube Operating Volt: 15KV
oCurrent: 18~22mA
oEngraving Area: 12x8in.(30x20cm)
oMaximum Item Size to Engrave: 10.25W x 8.75L x2.85H in.

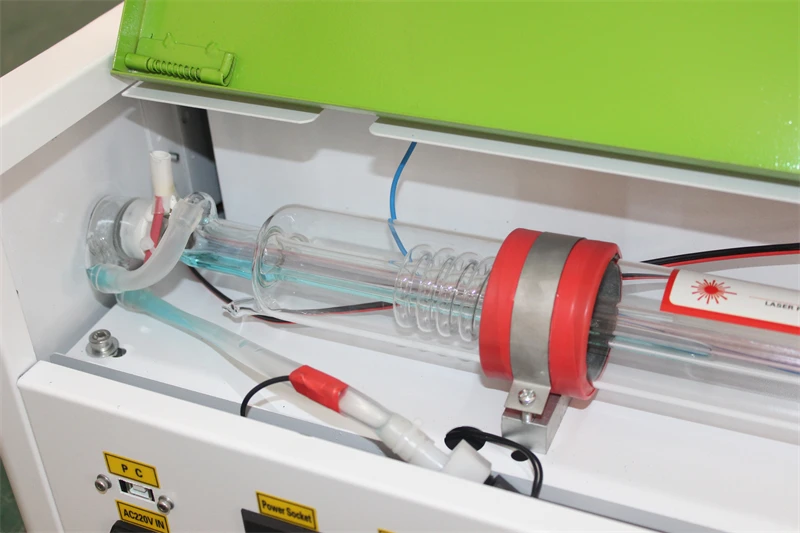

oLaser Tube (life hours): 1000-1300 Hours
oLaser Power: 40W
oEngraving Speed: 0-200mm/s (0-7 in./s)
oCutting Speed: 0-20mm/s (0-0.7 in./s)
oMinimum Shaping Character: 1 X 1mm (0.04X0.04)in.
oResolution Ratio: 0.026mm / 0.001 in.(1000dpi)
oPower Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
oResetting Positioning: 0.01mm (0.0004 in.)
oMotor Type: Stepper Motor
oSoftware Supported: CorelLASER 2013,LaserDRW
oPower Consumption: 250W
oOperating Temperature: 32-113F (0-45C)
oGraphic Format Supported:PLT/DXF/BMP/JPG/GIF/PGN/TIF
oWater Cooling: Water Pump include

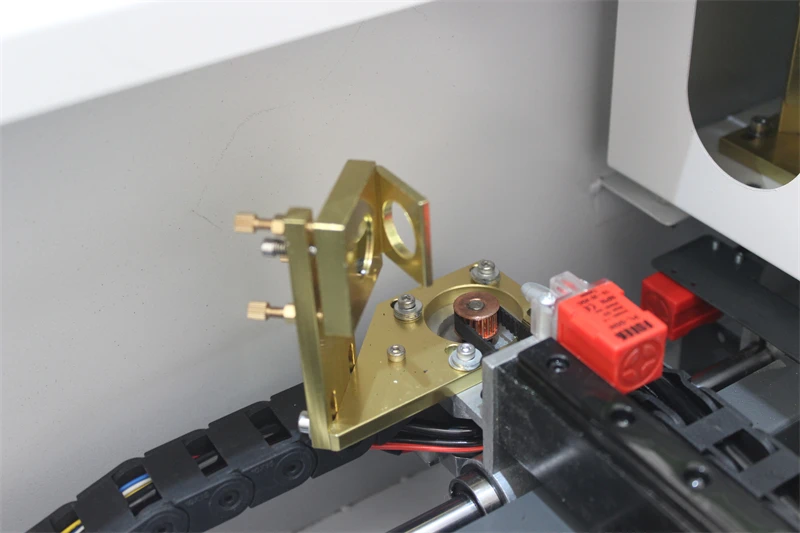

oRecommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens

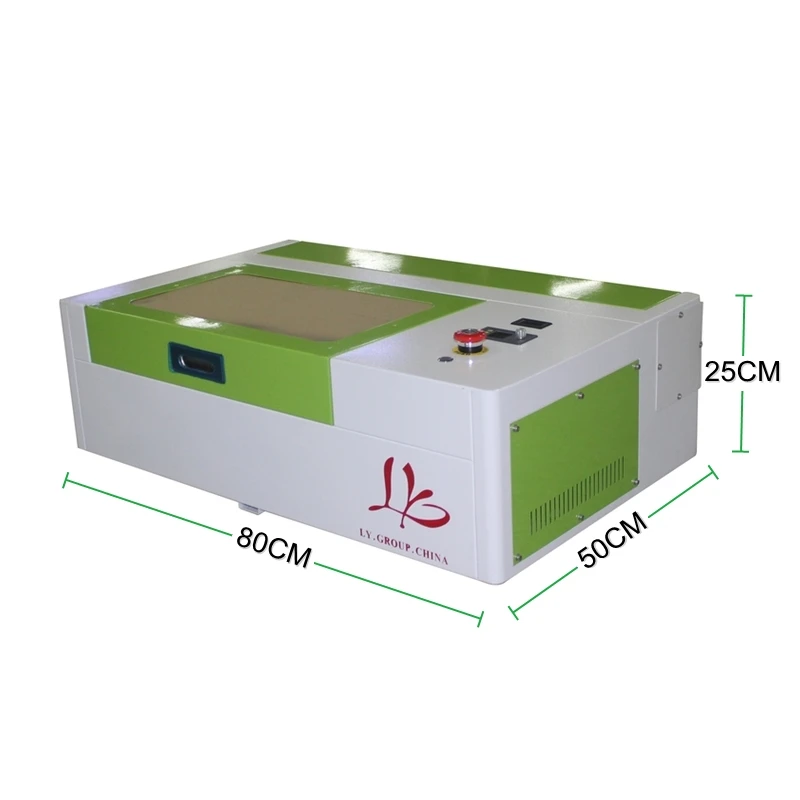

oProduct Dimensions:31.4 X 19.6 X9.8in.(800x500x250mm)
oProduct Weight: 32Kg/67lb (shipping 38kg/80lb)
oOne year warranty
| Communication Interface | USB Port Or Off-Line Control |
| FDA Compliant | Yes |
| CE Certification | Yes |
| ISO9001 Quality Certification | Yes |
| Laser Type | CO2 Gas |
| Tube Trigger Volt | 20KV |
| Tube Operating Volt | 15KV |
| Current | 18~22mA |
| Engraving Area | 12x8in.(30x20cm) |
| Maximum Item Size to Engrave | 10.25W x 8.75L x 2.85H in. |
| Laser Tube (life hours) | 1000-1300 Hours |
| Laser Power | 40W |
| Engraving Speed | 0-200mm/s (0-7 in./s) |
| Cutting Speed | 0-20mm/s (0-0.7 in./s) |
| Minimum Shaping Character | 1 X 1mm (0.04 X0.04)in. |
| Resolution Ratio | 0.026mm / 0.001 in. (1000dpi) |
| Power Supply | 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item. |
| Resetting Positioning | 0.01mm (0.0004 in.) |
| Motor Type | Stepper Motor |
| Software Supported | CorelLASER 2013,LaserDRW / DSP Version have special software |
| Power Consumption | 250W |
| Operating Temperature | 32-113F (0-45C) |
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
| Water Cooling | Water Pump include |
| Recommended Spare Parts/Consumables | Laser Tube, Focal lens, Reflection lens |
| Product Dimensions | 31.4 X 19.6 X 9.8in.(800x500x250mm) |
| Product Weight | 32Kg/67lb (shipping 38kg/80lb) |
| Warranty | One year |
Packing list :
(RE: Maybe not upgrade in time, so we have final explanation rights for any changes.)
1.laser 3020 Engraving machine 40W Normal or DSP Version

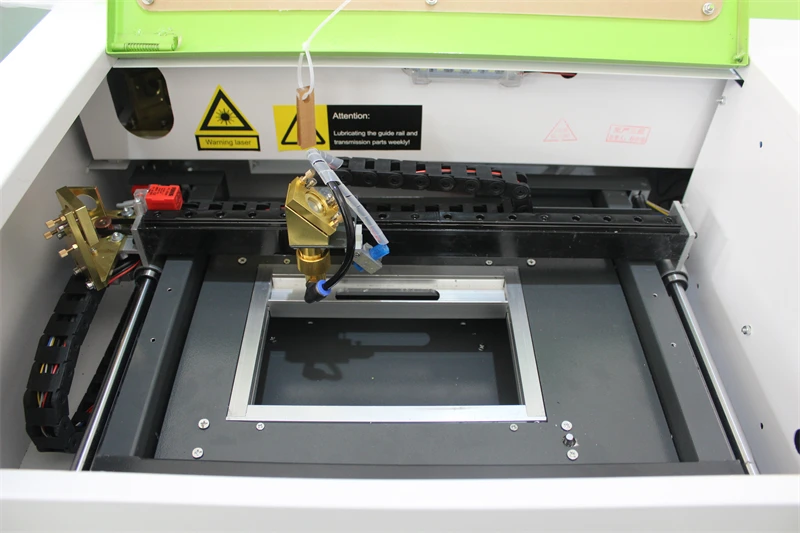

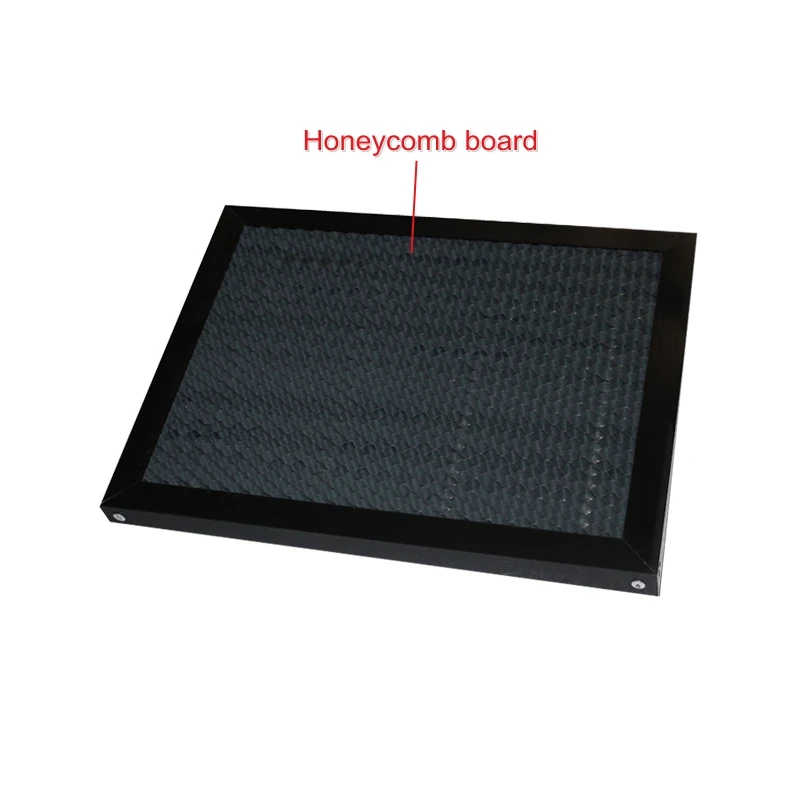

2.Honey comb board 300*200mm
3.USB date line
4.Power line
5.USB dongle (DSP version not with)
6.Smoke pipe
7.Water pump
8.Air pump
9.Smoke fan
