Features:
Strong Scalability & Compatibility – Standardized structure and drive interface can be adapted to various 3D printers, such as Ender-3 S1/Ender-3 S1 Pro/Ender-3 S1 Plus, laser engraving machine, CNC engraving machine and other machines according to requirements.
Safety conservation – A special laser safety shield is adopted to meet the FDA Class 4 safety requirements to avoid laser damage to eyes and skin.
Convenient to install – Take out laser head kit and a cylindrical head thumb screw from the packing box. Install laser head kit on the fixing plate. Tighten it with cylindrical head thumb screw (clockwise)
Pollution minimization – Built-in air filter cotton can effectively absorb smoke and odor generated by engraving. Reduce indoor air pollution and care for human health.
Thin Laser Spot and Long Service Time – Imported laser semiconductor diode, stable power, fine spot, long service life, sustainable use of 10000+ hours. Support carving or cutting material such as cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc.
Specification:
Model: CV-Laser module
For: Ender-3 S1/Ender-3 S1 Pro/Ender-3 S1 Plus
Control signal: PWM
Laser source: Semiconductor laser
Laser wavelength: 450±5nm
Optical power: 1.6W
Safety grade: FDA Class 4
Power requirements: DC 24V
Support material types: cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc.
Working humidity range: 10%~90%
Operating temperature range: 0℃-+40℃
Product size: 53x72x102mm
Product N.W: 210g
Package Size: 185x180x85mm/7.1 x 7 x 3.3in
Package Weight: 540g/19oz
Packing List:
2 x Wooden board
2 x Kraft paper
7 x Colored cardboard
7 x Colored felt paper
1 x Power cord
2 x Black nylon cable tie
1 x M2 hexagon wrench
1 x Cylindrical head screw
4 x Hexagon socket counter sunk head screws

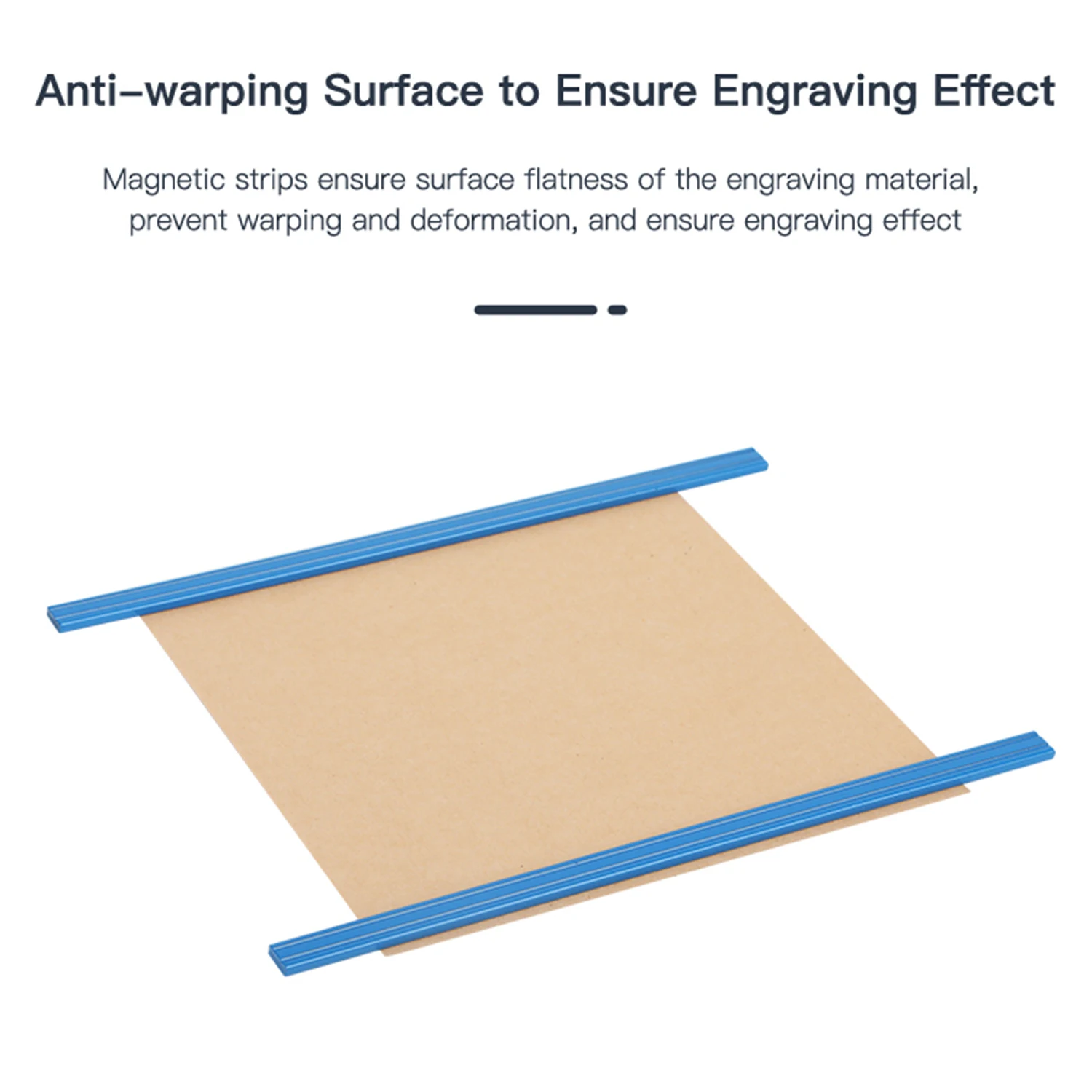

2 x Soft magnetic stripe
2 x Activated carbon smoking cotton
1 x Dust-free cloth
1 x Protective glasses
