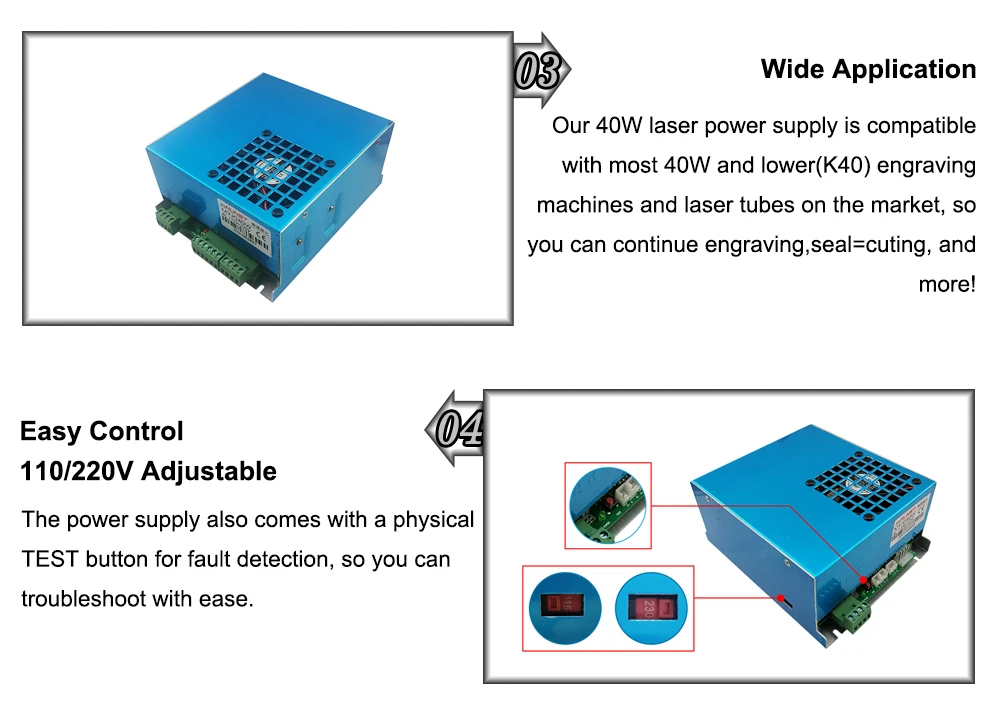

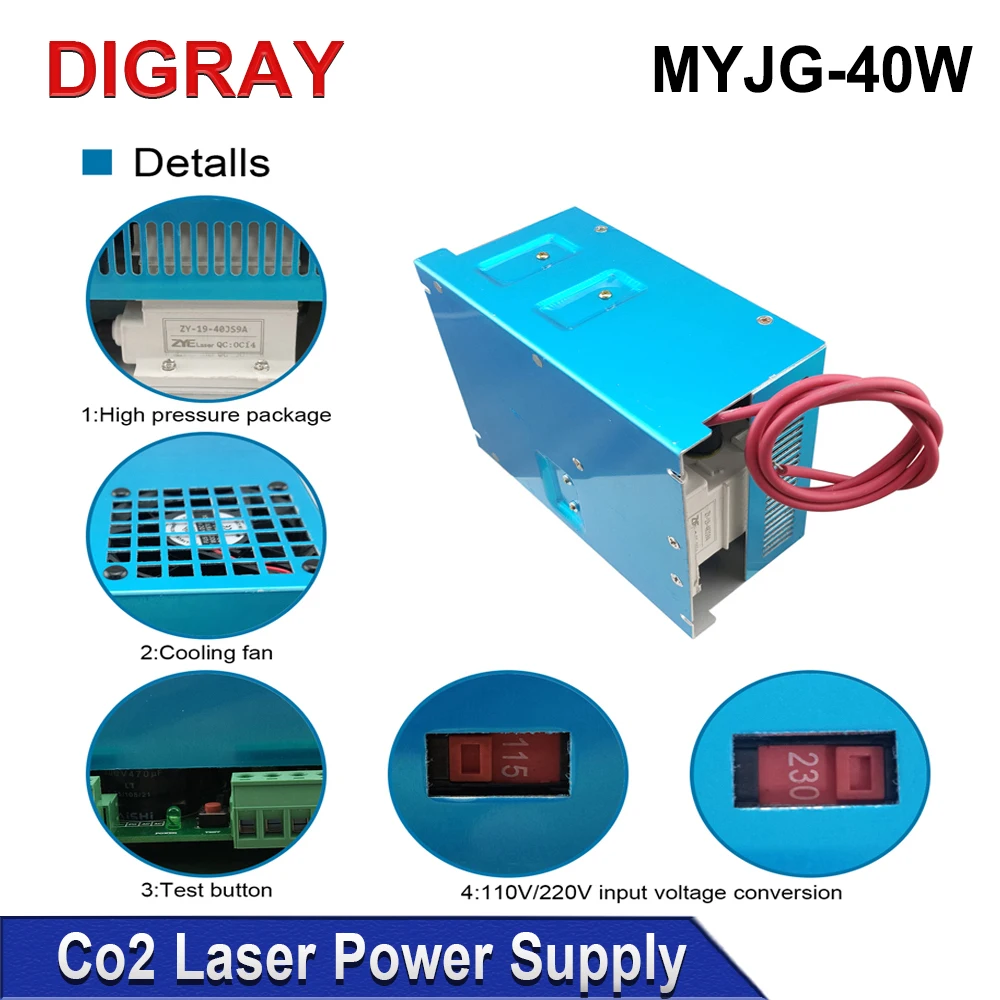

Note: The default voltage of the 40W laser power supply is 220V. If your laser machine voltage is 110V, please adjust this product to 110V. (40W has a voltage adjustment button)

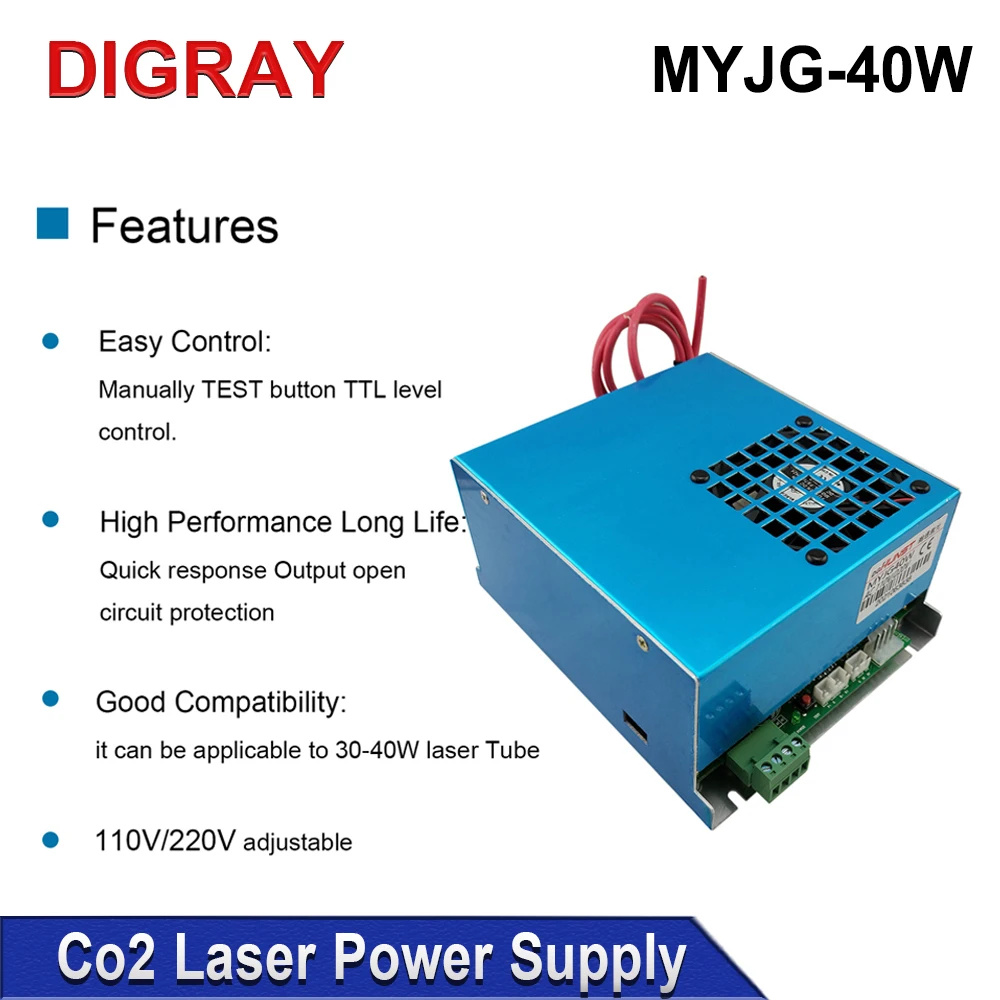

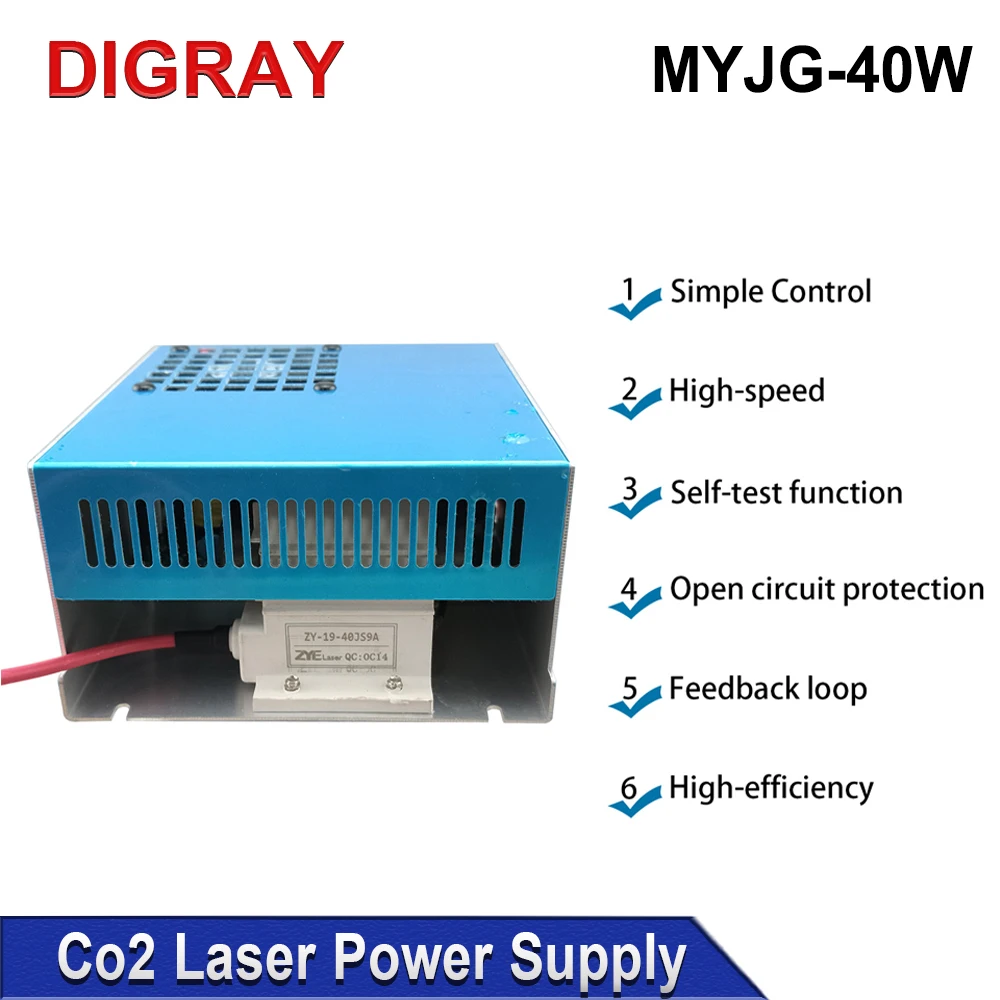

1. It has good compatibility and can be applied to laser tubes from many manufacturers.

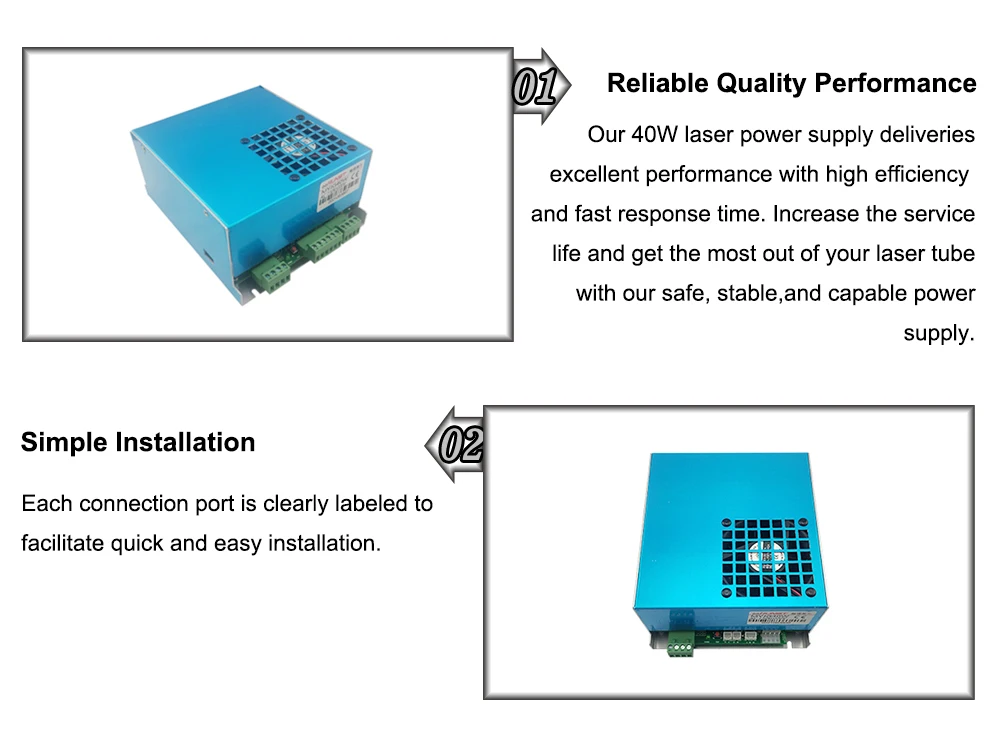

2. The response speed is fast, and the engraving and cutting effect is good.
3. Significantly delay the life of the laser.

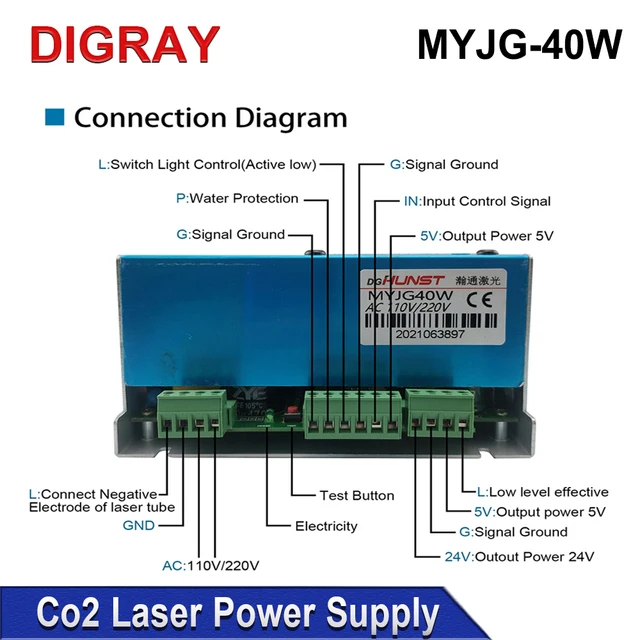

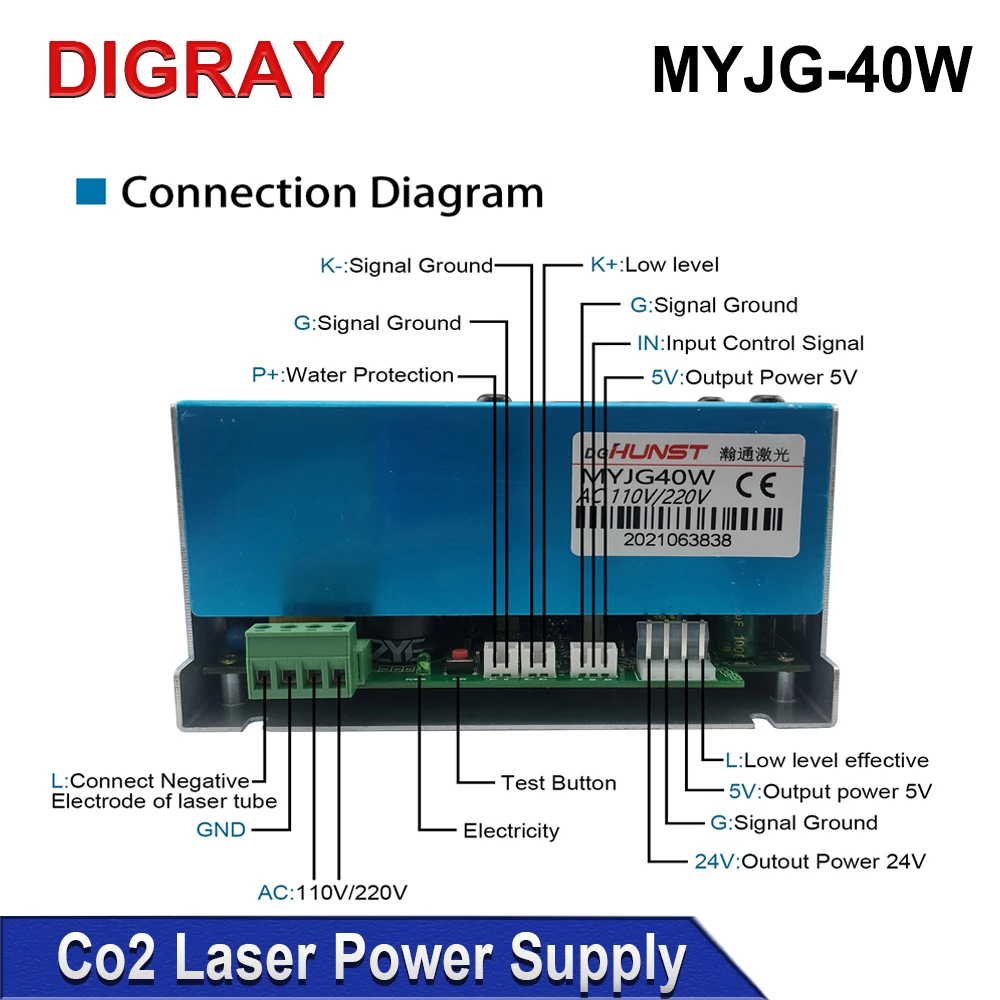

4. The control is simple, you can choose high or low level control, you can input 0-5V analog signal to control the size of the laser power, and you can use PWM signal to control. At the same time, a protection switch is added.
5. The power supply itself has an open-circuit protection function. Under the condition of good protective grounding, the power supply can work in an open-circuit state for a short time, which can avoid the damage of the laser power supply caused by the burst of the laser tube, thereby improving the life of the power supply.
6. Added manual test switch, which can test whether the laser power supply is normal.
7. Each power supply will undergo a 12-hour aging test at a high temperature of 60° under full load, and the power supply will be turned on and off for 500 times in 7 seconds.
8. Suitable for 40W CO2 laser tube with diameter of 50mm and length of 700mm.
D***o –

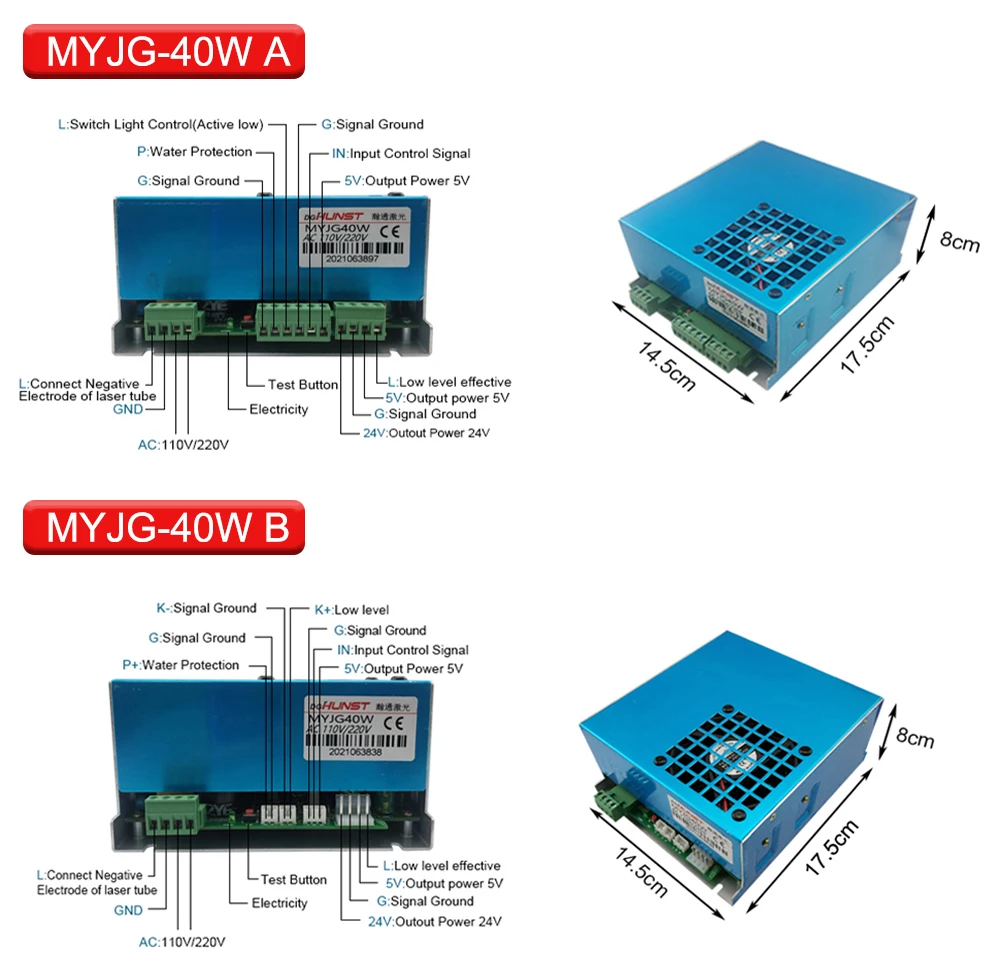

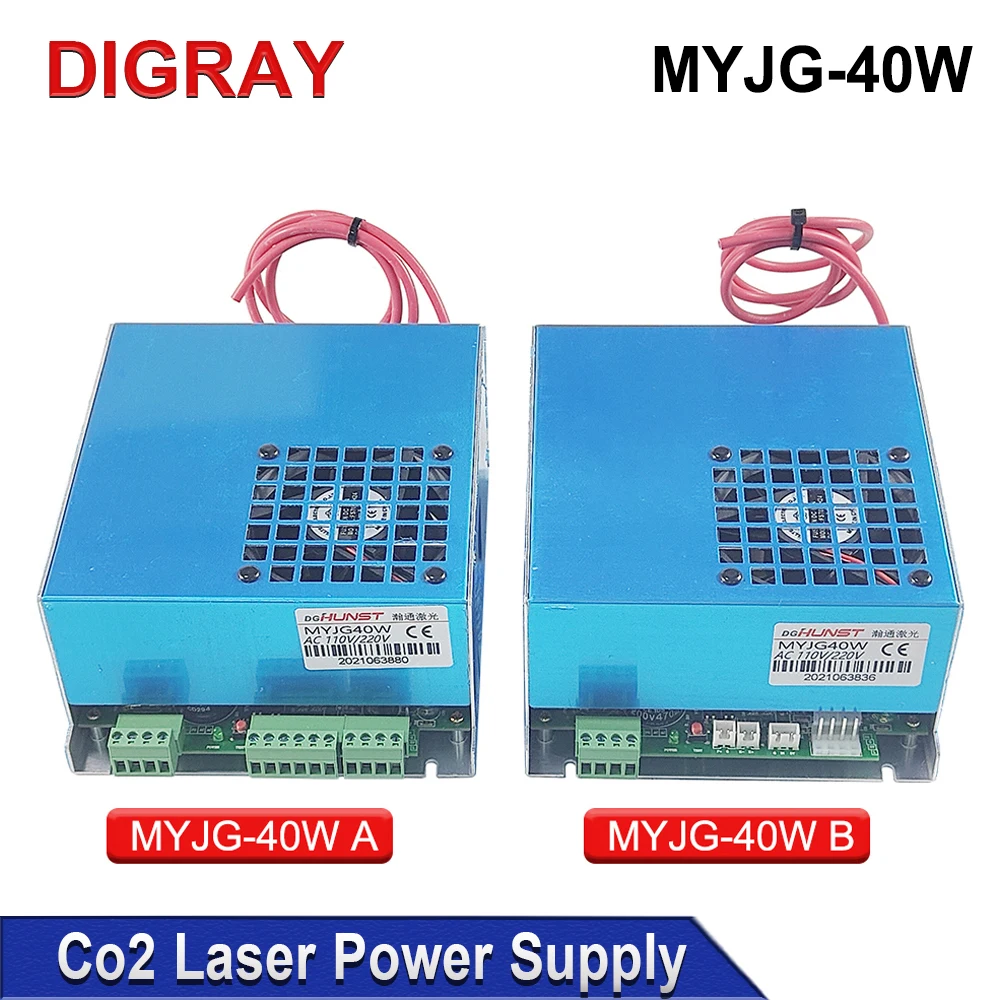

Color: MYJG-40W B
