-2.4G wireless DMX512 R/T
-126 channels jumping frequency automatically, high anti-jamming ability, to ensure works reliability
-7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
-Each other in the same place (Tricolor LED displaying Indicators)
Specification:
Input voltage: DC 5V 0.5A
Communication distance: 300M (visible distance)
Work frequency section: 2.4G ISM, 126 channels, frequency section
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface:RS485
Operating temperature: -40 ~ 85 Celsius
Storage Temperature: -65 ~ 150 Celsius
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
1) Press momentary switch above the side led indicator to indicate ID setting.
2) Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color IDcode.
3) Working condition:
LED constant lit up No DMX or wireless signal.
Red LED flash: Transmitting.
Green LED flash: Receiving
4) RF frequency 2.400 – 2.525G, total 126 channels, it’s searching automatically.
5) ID Code “1-7” groups ID code, press ‘KEY’ for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color)
Establishing Communication:
1. Power on DMX512 wireless received board first and then following to power up the transmitted board.
2. Press the “Key” button to set the same ID value of the transmitted board and received board. Please use a different ID value if you need to use more than 1 group of wireless universals at the same time in the same place.
3. The red LED flashes when the transmitter transmits DMX data by no interfered frequency section, then the receiver changes communicated frequency section. Green LED flashes until received same ID value, the more DMX data, the faster the LED flashes.
4. Communication was established correctly.
Which Plug did I need?
In order to get the package soon, place choose the right Plug Type.
FAQ
Q: How can I use it?
PS: the video shows how to use ALIEN DMX Transmitter and Receiver (it is black shell and Plug-in type)
Q: How many channels have?
A: there are 7 channels for the ALIEN and they are colored red green purple blue and so on. The transmitter needs to match the color using on all receivers.
Q : Which plug i can choose ?
A : The plug type as images below
E***o –
works fine. really good product. I used the controller almost 15 meters far from the lights with the receiver and it worked very well.
Color: 1T4R Plug Type: EU Plug
8***r –
I had already bought the others. They are already tested
Color: 1T4R Plug Type: EU Plug
AliExpress Shopper –
Fast and neat sending
Color: 1T4R Plug Type: EU Plug

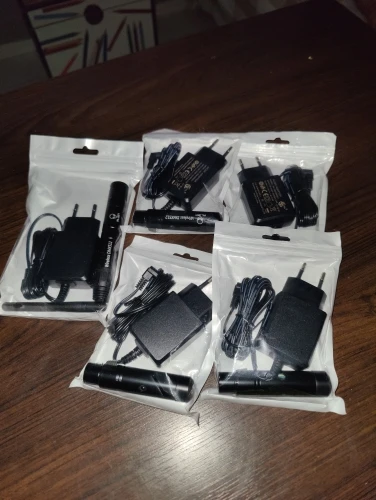

S***v –
Fast delivery, good design, easy setup. Checked-TX and 4 PCs RX work properly. Ordered without a built-in battery, although convenient, but up to 4 hours of battery life is not enough for me anyway.
Color: 1T4R Plug Type: EU Plug
a***r –
Working properly, delivery took almost 40 days
Color: 1T4R Plug Type: EU Plug
AliExpress Shopper –
Compliant material has the description and works very well. Configuration is simple.
Color: 1T4R Plug Type: EU Plug
A***a –
Satisfied with the received item. Compliant and functional
Color: 1T4R Plug Type: EU Plug
E***a –
It worked perfectly, commands and receives the signal very well.
Color: 1T4R Plug Type: EU Plug
O***a –
Good quality!!
I’ll buy again.
Need to prove.
Color: 1T4R Plug Type: EU Plug
S***o –
Not yet tested, but everything arrived as agreed. Helpful seller and well differentiated equipment. Excellent.
Color: 1T4R Plug Type: EU Plug
B***a –
9/10
It once happened that it caught a signal from something else and the smoke generator went smoky. Overall I am very pleased and recommend!
Color: 1T4R Plug Type: EU Plug
I***r –
Very nice facts! Arrived on schedule, nothing to say
Color: 1T4R Plug Type: EU Plug
S***v –
Fast delivery. I recommend the seller. Excellent quality.
Color: 1T4R Plug Type: EU Plug
M***k –
Everything as described, works great, I recommend!!!
Color: 1T4R Plug Type: EU Plug
A***e –
It was worried very quickly. Neatly packaged and clear instruction.
When connecting to the Lights everything worked immediately in 1 time, very nice. Also continues to work the rest of the time so it’s a keeper!
Color: 1T4R Plug Type: EU Plug
D***r –
Great item easy setup ….many thanks
Color: 1T4R Plug Type: EU Plug
T***r –
Product has not yet been tested. Packaging and first impression are very good. Gladly once again
Color: 1T4R Plug Type: EU Plug
AliExpress Shopper –
Impressive
Color: 1T4R Plug Type: EU Plug
D***n –
Excellent Product I recommend it
Color: 1T4R Plug Type: EU Plug
D***m –
Second product bought very good transceiver
Color: 1T4R Plug Type: EU Plug
