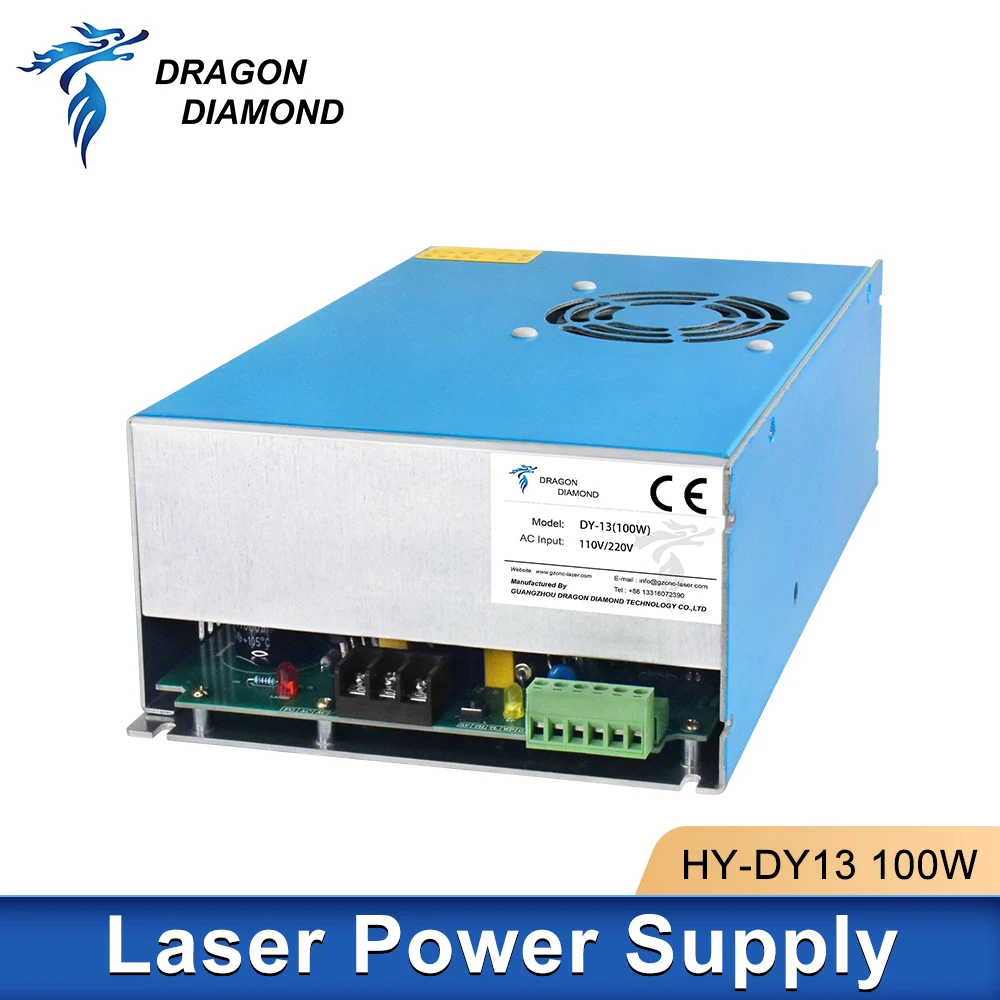

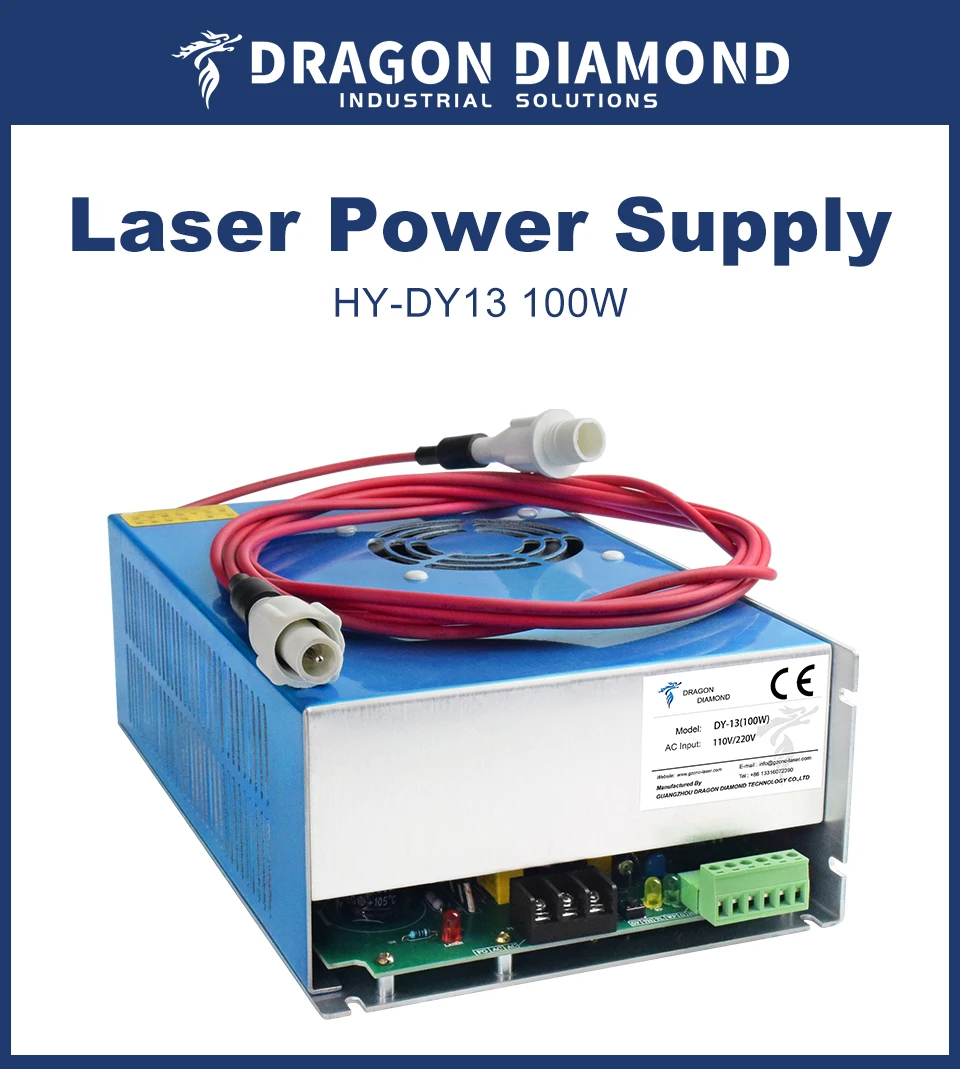

DY13 100W Co2 Laser Power Supply For RECI W2/Z2/S2 Laser Tube For Laser Engraving and Cutting Machine HY-DY Series

Rated 5.00 out of 5 based on 4 customer ratings
(4 customer reviews)

Price range: $147.00 through $182.00

Laser Power Supply

SKU: YCWXIM0OSAXK Category:



Features:

1）Good compatibility: It can be applicable to 80W laser tubes manufactured by different factories.

2）Zero-current half-bridge soft-switching circuit.High efficiency and fast response.Match various manufacturers of laser tubes.

3）Simple Port Control，TTL level signals can control the laser start/stop.

4）Protection switch is to check the outside water，ventilation,etc.

5）Laser Power Adjustment：input 0V to 5V analog signal，can also input PWM signal.

6）Open Circuit Protection Function：avoid the damage to laser power supply due to laser tube burst.

7）Factory Aging Test：1.Each power supply will go through 60℃ and 12 hours aging test under full load.2.500times 7 seconds Start/Stop test.




Weight 2.500 kg
Dimensions 37 × 26 × 19 cm
Brand Name

DRAGON DIAMOND
Certification

CE
Origin

Mainland China
Model Number

DY13 Co2 Laser Power Supply 100-120W
Application

For RECI T/W Series Laser Tube
Suitable

W2/W4/T2/T4/V2
Input Voltage

AC110V or AC220V
Max Input Current

8A
Max Output Voltage

DC 40KV
Max Output Current

DC 28mA
Response Speed

≤1mS
Max Input Power

550W
Efficiency

≥90%(when full load)
MTBF

≥10000 hours
Application 1

laser 100w
Application 3

laser co2 100w
Application 4

co2 laser tube 100w
Application 5

co2 laser kit
