NOTICE:
1.The more you order,contact me,the more cheaper price will be.
2.Package include:1PCS Solenoid Valve.
3.We have some model in poland warehouse,for the customer from Europe,We will shipping from this warehouse,it will be quickly
If you want waterproof type,please

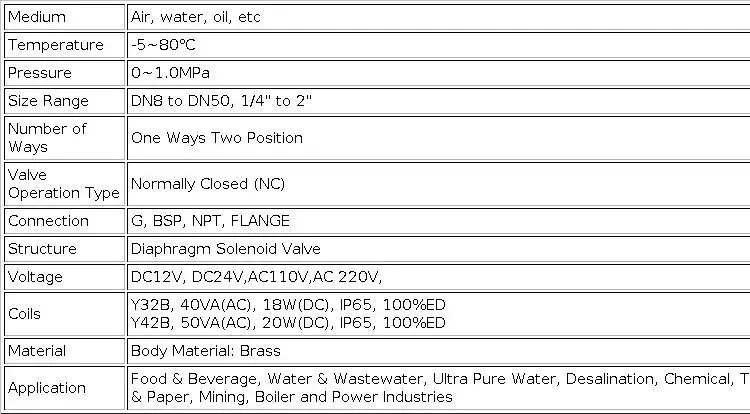

| Medium | Air, water, oil, etc |
| Temperature | -5~80℃ |
| Pressure | 0~1.0MPa |
| Size Range | DN8 to DN50, 1/4″ to 2″ |
| Number of Ways | One Ways Two Position |
| Valve Operation Type | Normally Closed (NC) |
| Connection | G, BSP, NPT, FLANGE |
| Structure | Diaphragm Solenoid Valve |
| Voltage | DC12V, DC24V,AC110V,AC 220V, |
| Coils | Y32B, 40VA(AC), 18W(DC), IP65, 100%ED Y42B, 50VA(AC), 20W(DC), IP65, 100%ED |
| Material | Body Material: Brass |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Q&A
Q1: Are you manufacturer ?
A1: Yes,We are.
Q2:How does your factory do regarding quality control?
A2:All the products will be 100% checked before the shipment,also will take video or pictures send to you
Q3:What are the way of the transportation?
A3:Depending upon the weight of goods ,If the parcels wight below 2kg and less than standard volume for shipping will be sent via the shipping method you have choice,and they will be all traceable;If the parcels wight over 2kg or bigger than standard size for shipping will be sent via commercial Express(UPS,Fedex,DHL,TNT,and so on);if there is a difference in freight,please make up for it.Thank you for your understanding.
Q4: What’s your Delivery Time?
A4:Standard parts: 15-45days,Non-standard parts: 60days.We will make the delivery as soon as possible with the guarantee quality.
Q5: About tax?
A5:We are not responsible for any taxes or VAT on the customs of buyer’s country
Thank you for your purchase and browsing,Your feedback is very important for us
Т***а –
Good valve, works clearly, arrived in time. But instead of DN8 they put DN15, for this I shoot the star. Because all the fittings are already 1/4 “, then you will have to be wise with the fittings. Wish to the seller-henceforth be more careful.
Voltage: DC12V Specification: DN8 Ships From: express
Л***ч –
This is not in the description. 12v solenoid, 7ohm7 coil resistance, 0,85 current
Voltage: DC12V Specification: DN15 Ships From: express
Ф***ч –
Excellent Product, I didn’t check it in the work, but it looks very reliable.
Voltage: AC220V Specification: DN15 Ships From: express
С***ч –
Works well, I took it for a gas generator for every fireman)))
Voltage: DC12V Specification: DN15 Ships From: express
AliExpress Shopper –
I purchased the valve DN50 (2 inch), 24DC. Tested it, it works. The measured resistance of the solenoid is 14 Ohm. Measuring the current on the solenoid when the solenoid is ON, the current shows 1,69A.
That means the consumed power is 24V * 1,71A = 41W when the solenoid is ON. It is very much for a static state. In my project, the valve should open/close the air flow several hours every day. There will be a lot of electricity for the valve in the open state.
Lucky for me, the valve doesn’t consume any electricity in the closed state.
Voltage: DC24V Specification: DN50 Ships From: CHINA
M***r –
At 35 minutes it heats at 50 ° C very fast transport
Voltage: DC12V Specification: DN15 Ships From: CHINA
А***ч –
The valve works perfectly in conjunction with a smart outlet as part of an auto-watering system.
Voltage: DC12V Specification: DN20 Ships From: express
d***k –
Recived the 12volt version, consumes 13watt when coil is excited thus generating heat, eventually will melt, if used for could water will dissipate enough heat to keep it could
Very sturdy build
Voltage: DC12V Specification: DN8 Ships From: CHINA
С***й –
A normal such valve. Works, keeps the pressure. Only it’s buzzing like a Transformer…
Voltage: AC220V Specification: DN20 Ships From: express
Н***ч –
I continue to automate 🙂 I bought the third 🙂
Voltage: DC12V Specification: DN20 Ships From: express
O***y –
Excellent and works perfectly and perfectly. Sanding is very easy.
Opens with the pump at the same time.
Voltage: AC220V Specification: DN20 Ships From: CHINA
Р***ч –
Bought for 24 volts. 24 heats up like a boiler. Included on 12 in and all the norms work. Or confused, or so it warms up at a given voltage.
Voltage: DC24V Specification: DN8 Ships From: express
Ш***ч –
The valve is excellent, the membrane is good, the coil is simple but it works flawlessly so far and does not warm up, maybe up to about 50
Voltage: AC220V Specification: DN15 Ships From: express
